Description

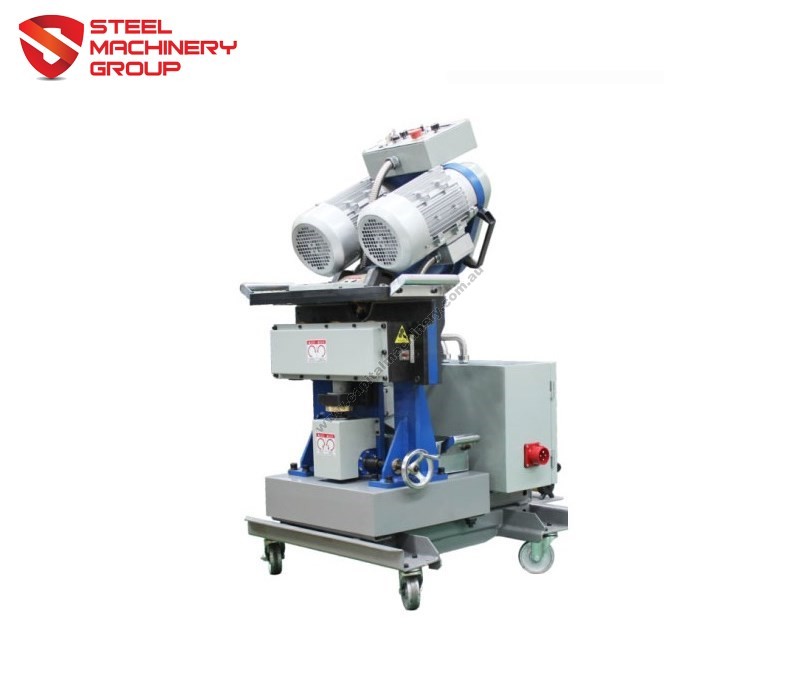

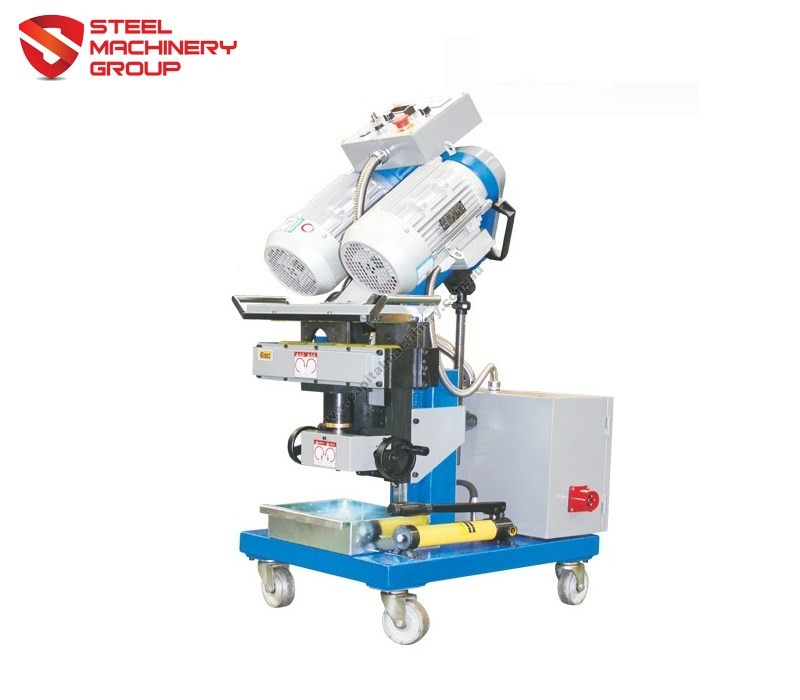

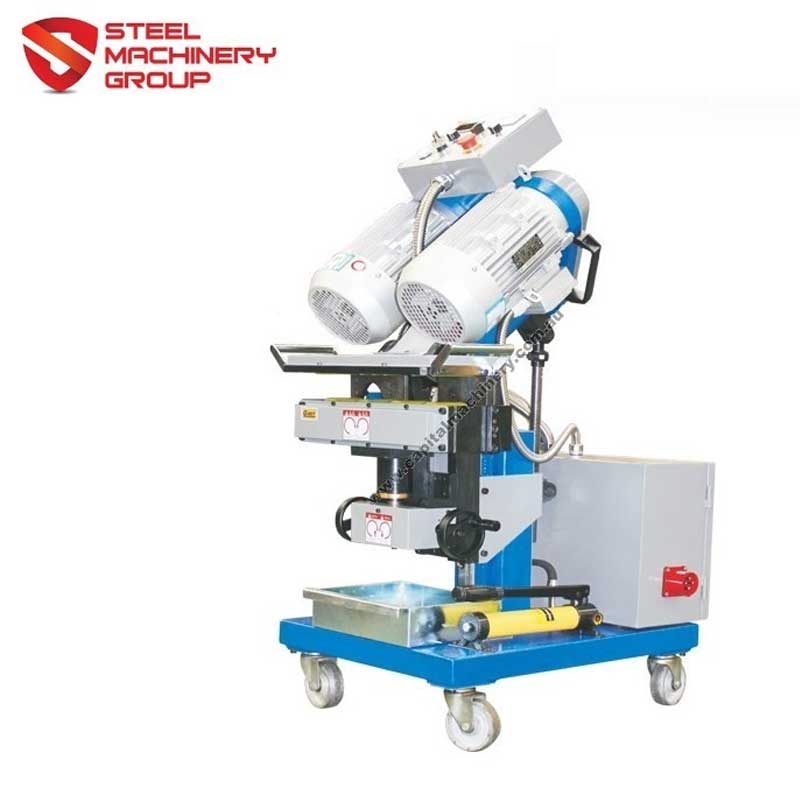

SMG Rapid-Edge 70M Milling Type Plate Beveling Machine with two motors. A wide working range of clamp thickness 6-80 mm, bevel angle 0 – 60 degrees adjustable and max bevel width could reach up to 70mm. The best solution for beveling and milling process for weld preparation.
Two processing ways:

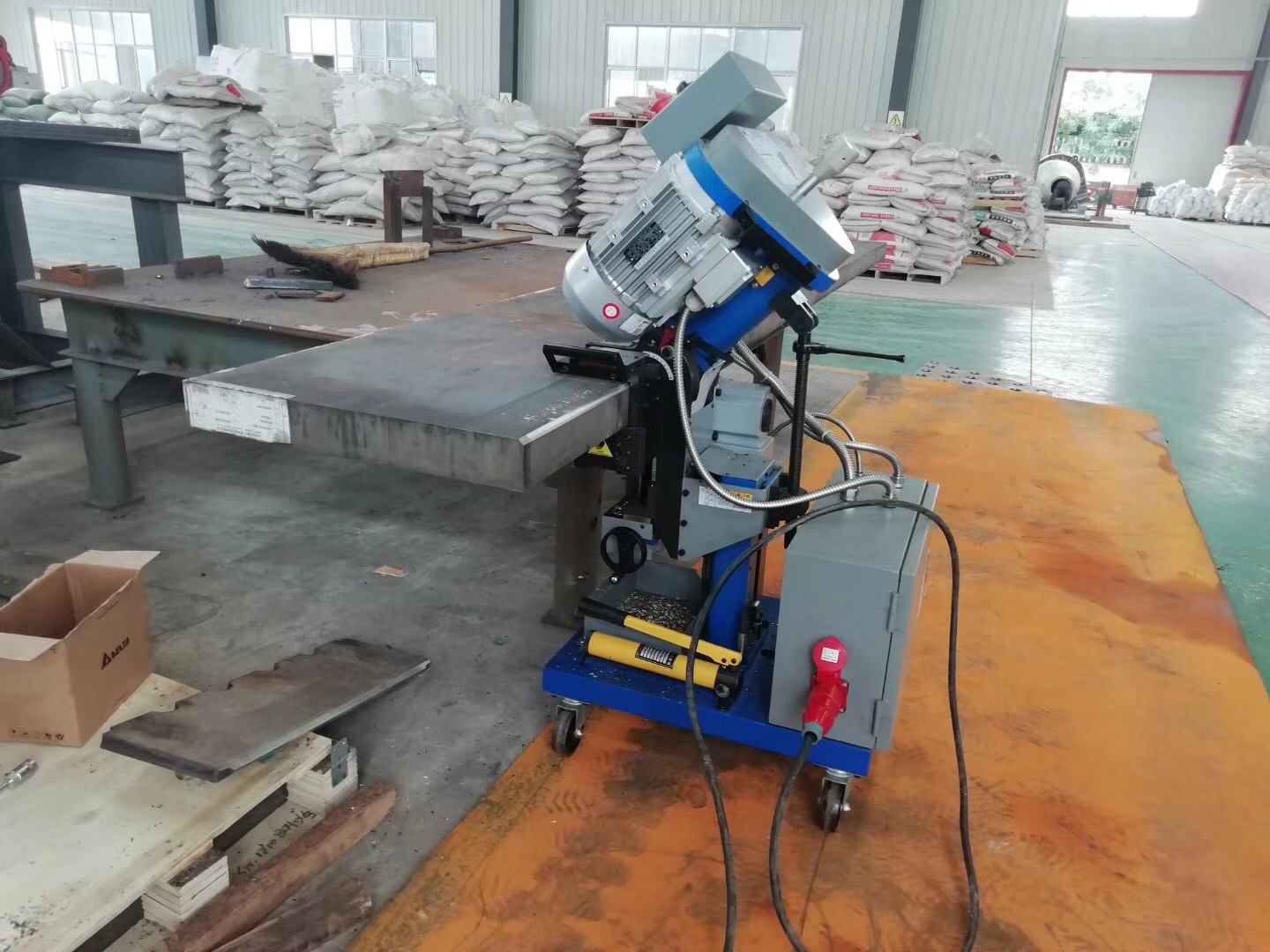

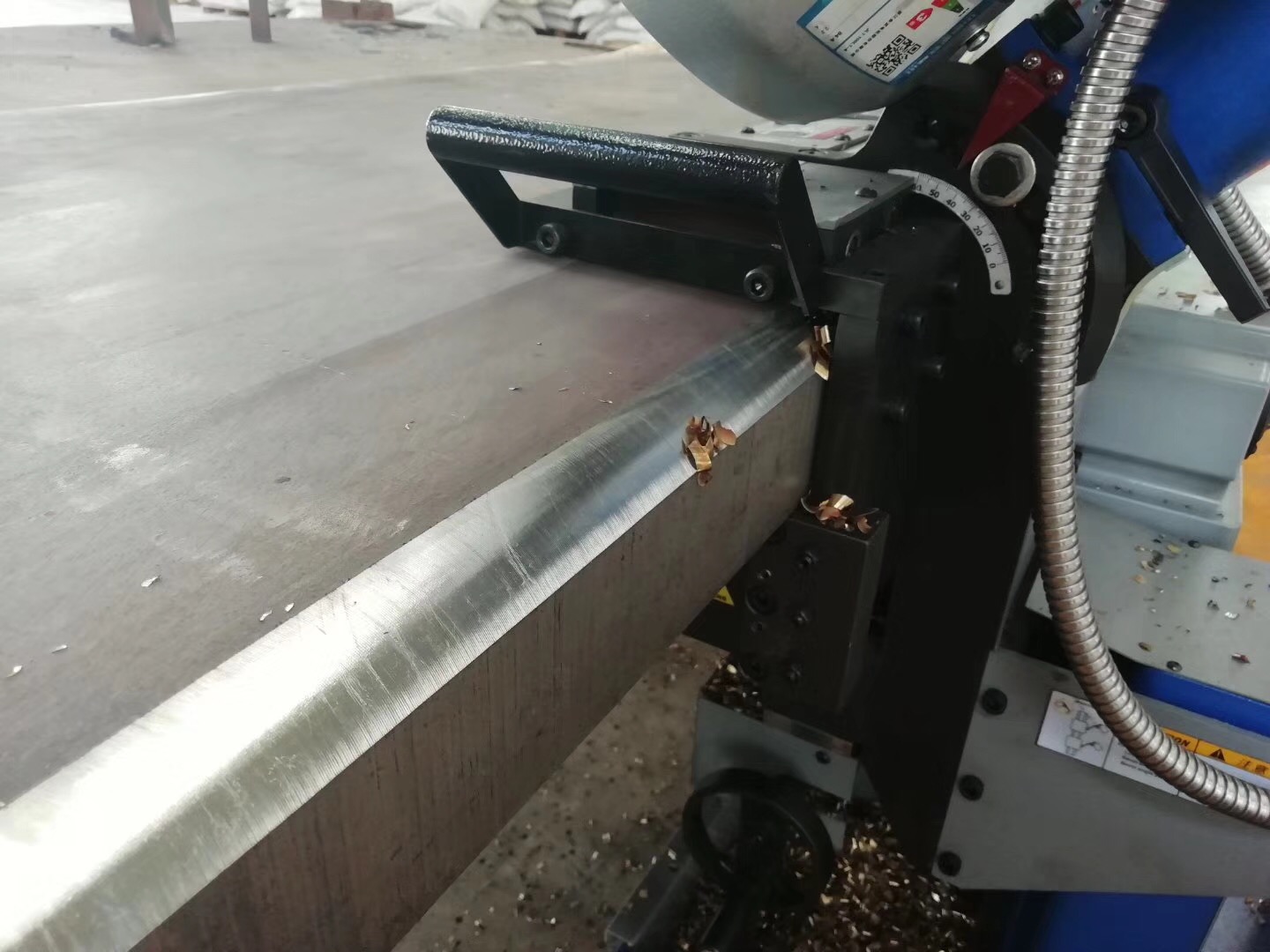

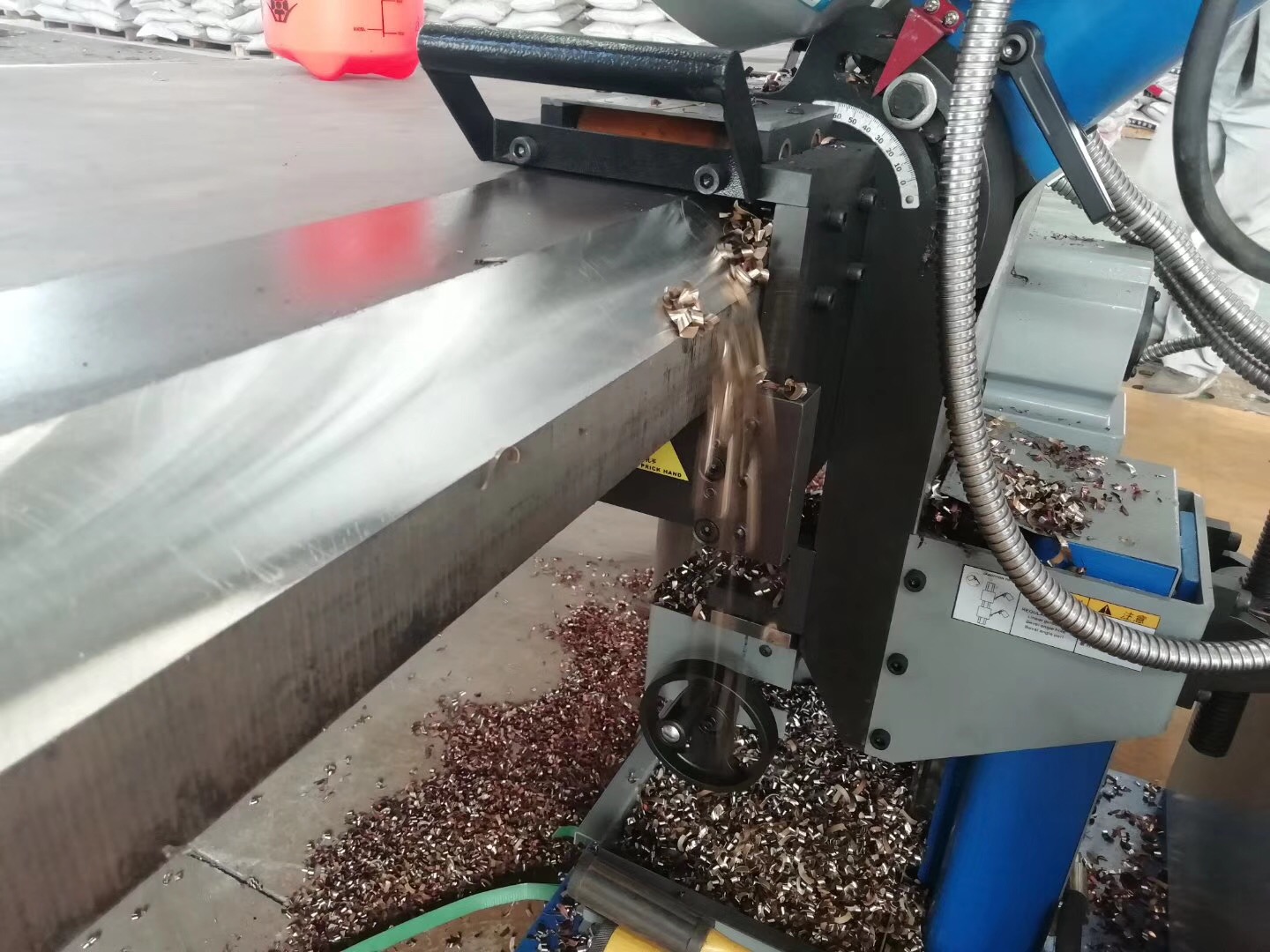

Model 1: Cutter catches the steel and leads into the machine to complete the job while processing small steel plates. Model 2: Machine will travel along the edge of steel and complete job while processing large steel plates.
Specifications
Model No. | SMG-RE70M |
Power Supply | AC 415V 50HZ |
Total Power | 4800W |
Spindle Speed | 750-1050r/min |
Feed Speed | 0-1500mm/min |
Clamp Thickness | 6-80mm |
Clamp Width | >80mm |
Process Length | >300mm |
Bevel angel | 0-60 degree adjustable |
Single Bevel Width | 15-20mm |
Bevel Width | 0- 70mm |
Cutter Plate | 80mm |
Cutter QTY | 6PCS |
Worktable Height | 700-760mm |
Travel Space | 800*800mm |
Weight | N.W 245KGS G.W 280KGS |
Packaging Size | 800*690*1140mm |
Note: Standard Machine includes:
- 1pc cutter head
- 2 set of Inserts
- Tools in case
- Manual Operation
Features
- Available for metal plate Carbon steel, stainless steel, aluminium etc

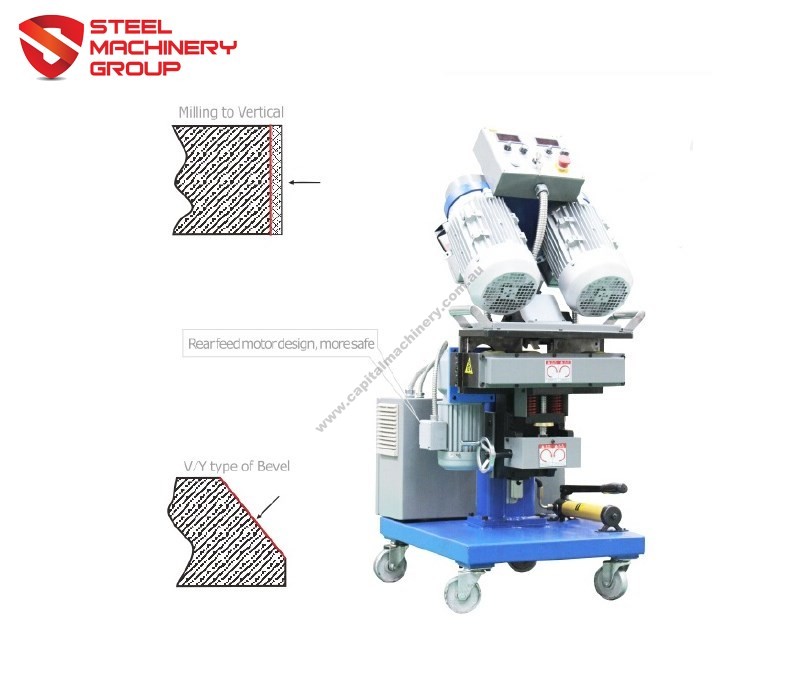

- Can process “V”,”Y”, 0 degree milling, vary type of bevel joint
- Milling Type with High Previous can reach Ra 3.2-6.3 for surface
- Cold Cutting, energy saving and Low Noise, More safe and environmental with OL protection
- Wide working range with Clamp thickness 6-80mm and bevel angel 0-60 degree adjustable
- Easy Operation and high efficiency
- A more stable performance with 2 motors
