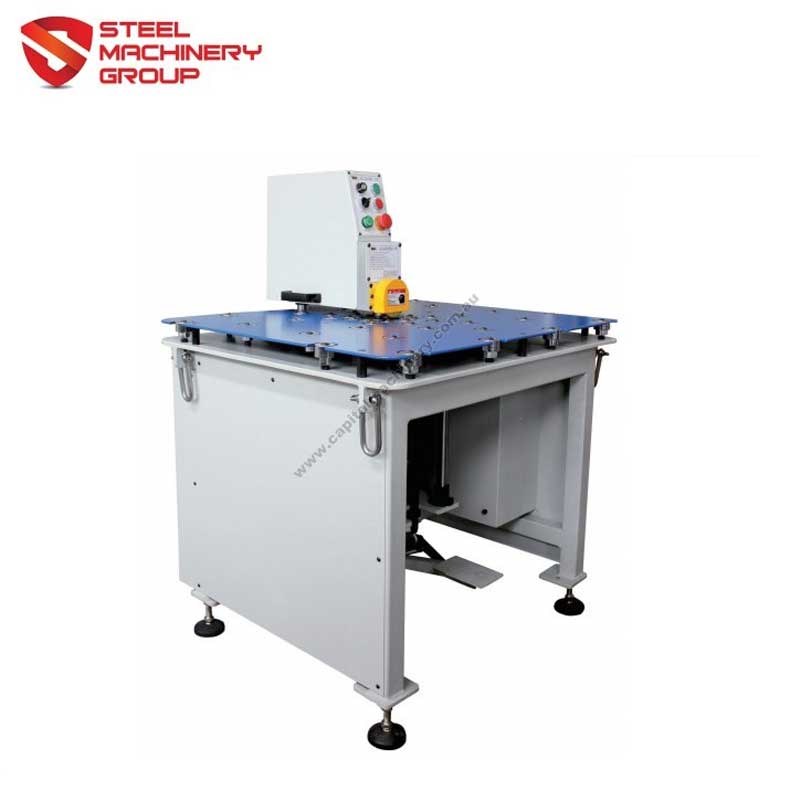

SMG 3R Metal Edge Rim Chamfering Machine

Contact this seller for accurate pricing

In stock

Capital Machinery is your supplier of top-quality, cost effective, low-noise and easy maintenance beveling machine in Australia. We have top-quality brands ready to provide efficient results at competitive prices. The SMG 3R Metal Edge Rim Chamfering Machine is designed to work with a wide range of plate thickness of up to 4-100mm, bevel angle of 0-90 degrees and customized machine for better options. It offers easy-operations and precise performance in terms of welding bevel and joint processing.

  Chat Now
SKU: BEVELING-SMG-R3 Categories: , Brand:

Description

The SMG 3R Metal Edge Rim Chamfering Machine is mainly designed for edge radius processing. Available for option R2, R3, C3, C2, depending on your specifications. It is capable of processing plates in different shapes at clamp thickness of 6-40mm for rim chamfering pre-painting.

Specifications

Model No. SMG 3R Metal Edge Rim Chamfering Machine
Power Supply AC 380V 50HZ
Total Power 790W
Spindle Speed 2800r/min
Feed Speed 0-6000mm/min
Clamp Thickness 6-40mm
Process Hole Din > φ 50mm
Process Capacity R3, R2, C3, C2
Cutter Plate φ 40mm
Cutter QTY 3 PCS
Worktable Height 775mm
Travel Space 800*900mm
Weight N.W 260KGS G.W 310KGS
Packaging Size 1000*1000*1150mm

Note: Standard Machine includes:

  • 1pc cutter head
  • 2 set of Inserts
  • Tools in case
  • Manual Operation

Features

  1. Available for metal plate Carbon steel, stainless steel, aluminium etc
  2. Can process R3, R2, C3, C2 as per customer’s need for metal edge chamfering
  3. Cold chamfering, energy saving and Low Noise, More safe and environmental with OL protection
  4. Wide working range with Clamp thickness 6-40mm and easy adjustable
  5. Easy Operation and high efficiency

Attachments (PDF)


Specification

Additional information

Weight 255 kg
Condition

New
