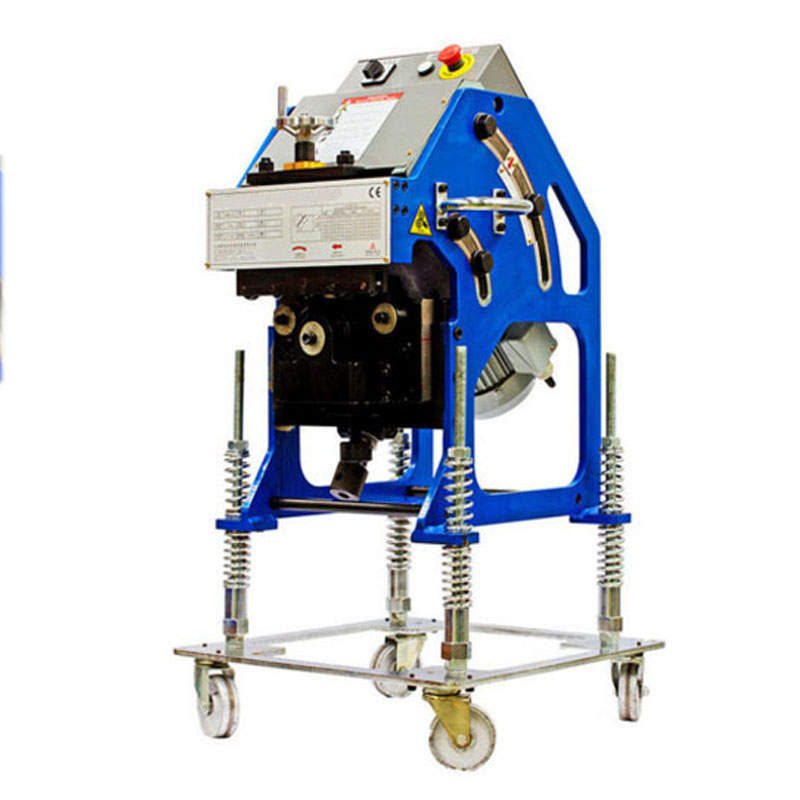

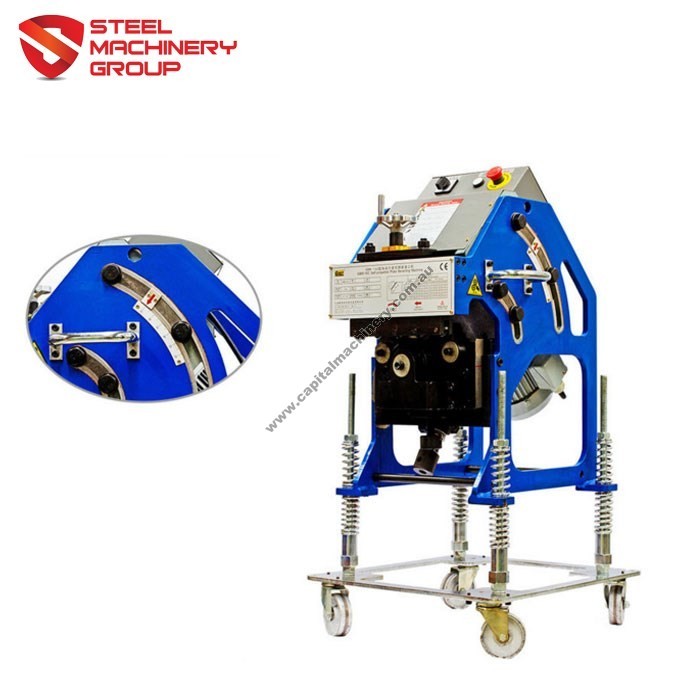

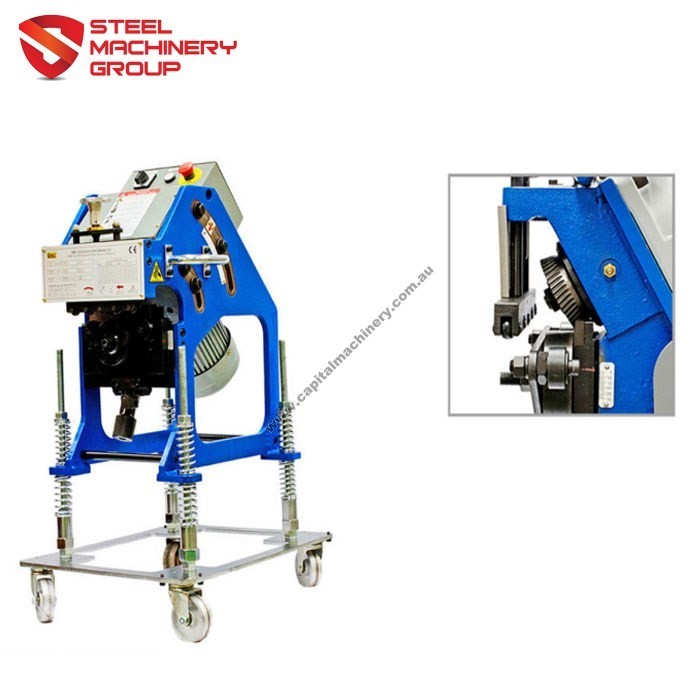

SMG-16D-GBM Heavy Duty Steel Plate Beveling Machine

$11,600.00

  • AUD: A$17,651.72
  • GBP: £10,016.37
  • EUR: €11,581.44
  • JPY: ¥1,558,344
  • CNY: ¥82,000.40

In stock

The SMG 16D-GBM Plate Beveling Machine is designed to work with various plate beveling applications.

This highly efficient Metal Plate Beveling Machinery is widely used in the construction industry for precision welding preparations.

With efficient processing speeds from 1.5 – 2.6 meters per minute, reducing operator processing time.

The ability to clamp a range of plate clamping thicknesses from 6-30mm and an adjustable bevel angle range of 25 – 45 degrees.

Capital Machinery is your premier supplier of Plate Beveling Machine in Australia.

We offer top-quality brands and provide quality service for all your beveling needs.

  Chat Now
SKU: BEVELING-SMG-16D-GBM Categories: , Brand:

$11,600.00

  • AUD: A$17,651.72
  • GBP: £10,016.37
  • EUR: €11,581.44
  • JPY: ¥1,558,344
  • CNY: ¥82,000.40

Description

SMG-16D-GBM high-efficiency steel plate beveling machine widely used in construction industry for weld preparation.Clamp thickness 9-40mm and bevel angle range 25-45degree adjustable with high efficiency at processing 1.2-1.6 meters per min. Single bevel width could reach 16mm, especially for heavy-duty metal plates.

Two processing ways:

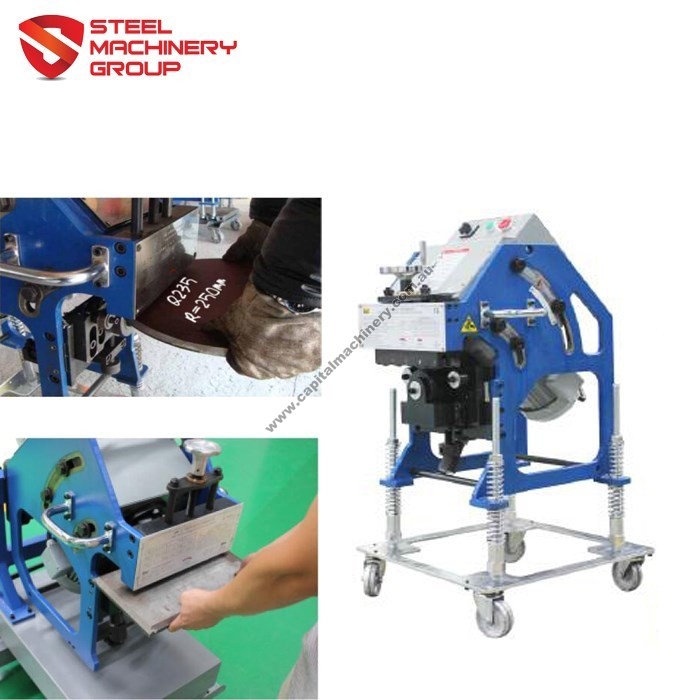

  • Model 1: Cutter catches the steel and lead into the machine to complete the job while processing small steel plates.
  • Model 2: Machine will travel along the edge of steel and complete the job while processing large steel plates.

Specifications

Model No. SMG-16D-GBM steel plate beveling machine
Power Supply AC 415V 50HZ
Total Power 1500W
Motor Speed 1450r/min
Feed Speed 1.2-1.6metesr/min
Clamp Thickness 9-40mm
Clamp Width >155mm
Process Length >100mm
Bevel angle 25-45 degree as customer’s requirement
Single Bevel Width 16mm
Bevel Width 0 – 28mm
Cutter Plate φ 115mm
Cutter QTY 1 PC
Worktable Height 700mm
Travel Space 800*800mm
Weight N.W 212KGS G.W 265KGS
Weight for Turntable option SMG-12D-R-GBM N.W 315KGS G.W 360KGS

Note: Standard Machine includes:

  • 3 pcs cutter
  • Tools in case
  • Manual Operation

Features

  1. Available for material: Carbon steel, stainless steel, aluminium etc
  2. IE3 Standard motor at 1500w
  3. Hight Efficiency can reach up to 1.2-1.6meter /min
  4. Imported reduction gearbox for cold cutting and non-oxidation
  5. No Scrap Iron Splash, more safe
  6. Max bevel Width can reach up to 28mm
  7. Easy Operation

Specification

Additional information

Weight 212 kg
Condition

New
