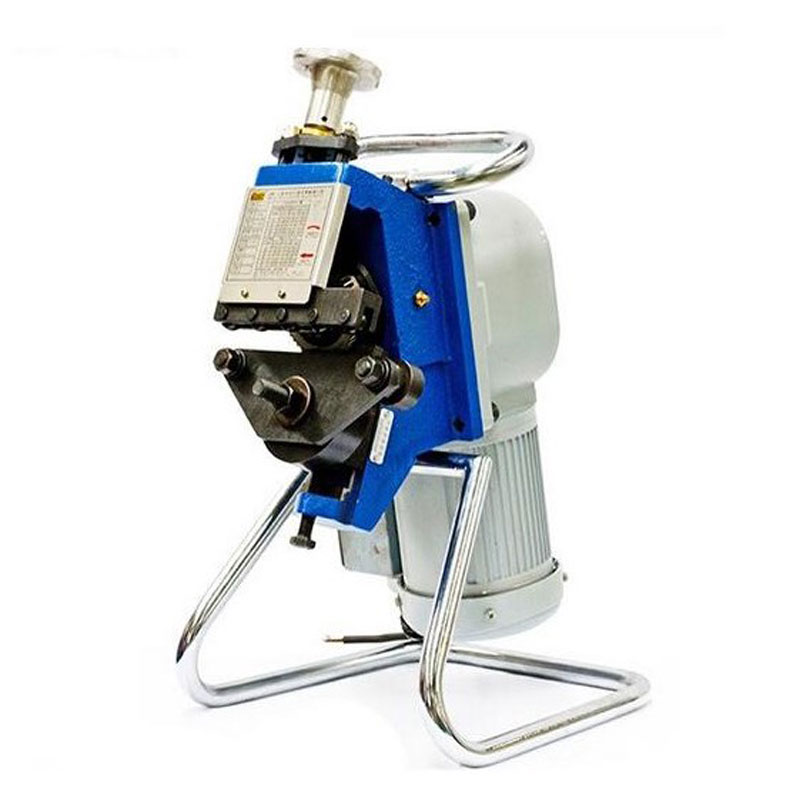

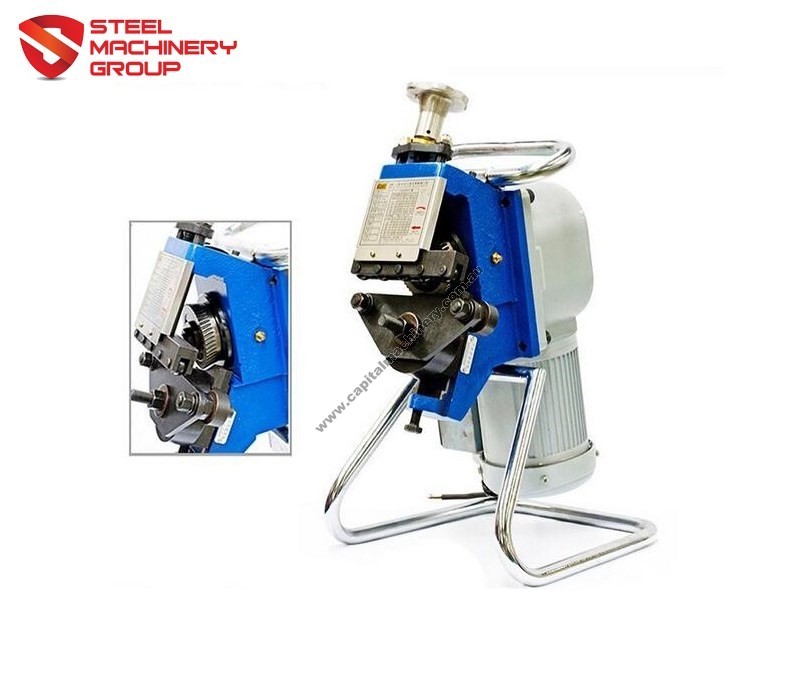

SMG Rapid-Edge 8G Gear Type Plate Beveling Machine
$5,723.00
- AUD: A$8,894.69
- GBP: £4,943.18
- EUR: €5,566.76
- JPY: ¥748,780
- CNY: ¥39,585.99
The SMG Rapid-Edge 8G Gear Type Plate Beveling Machine works with a wide range of plate specifications. Providing high-quality, efficient, safe and easy operation for weld preparation. SMG-6D Beveling Machine is an efficient portable cold cutting type of beveling machine designed for high production environments.
Description
SMG Rapid-Edge 8G Gear Type Plate Beveling Machine is kind of portable, handheld machine for plate edge and pipe end beveling. Clamp thickness in a range of 4 -16mm, bevel angle regularly 25 / 30 / 37.5 / 45 degrees as per Customer’s requirements. Cold cutting and beveling with high efficiency which can reach 1.2 – 2 min. per minute.
Specifications
| Model No. | SMG Rapid-Edge 8G Gear Type Plate Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 4800W |
| Motor Speed | 1450r/min |
| Feed Speed | 1.2-2metesr/min |
| Clamp Thickness | 4-16mm |
| Clamp Width | ＞55mm |
| Process Length | ＞50mm |
| Bevel angel | 25 / 30 /37.5 /45 degree as customer’s requirement |
| Single Bevel Width | 6mm |
| Bevel Width | 0 – 8mm |
| Cutter Plate | φ 78mm |
| Cutter QTY | 1 PC |
| Worktable Height | 460mm |
| Travel Space | 400*400mm |
| Weight | N.W 33KGS G.W 55KGS |

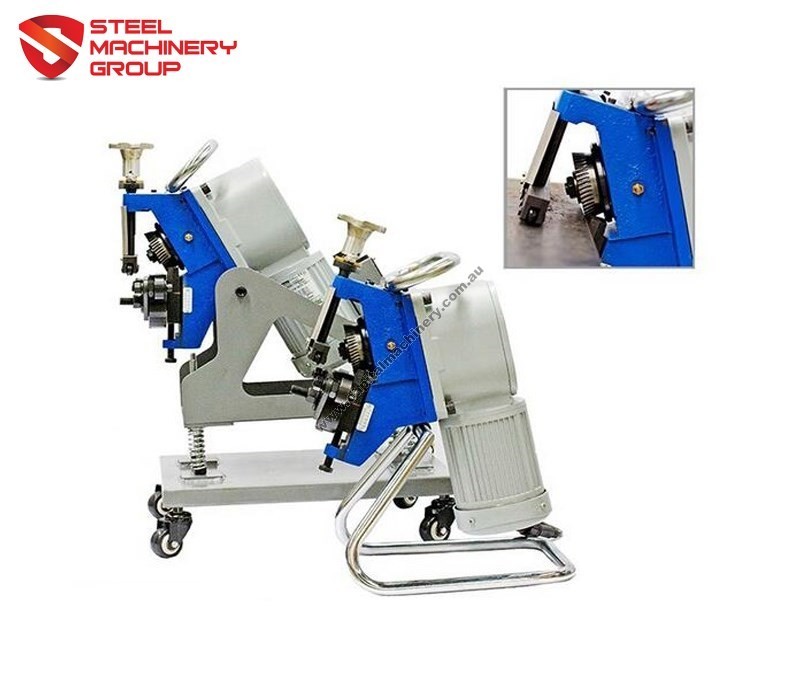

| Weight with Car | N.W 39KGS G.W 60KGS |
Note: Standard Machine includes:
- 3 pcs cutter
- bevel angle adapter
- Tools in case
- Manual Operation
Features
- Available for material: Carbon steel, stainless steel, aluminium etc
- Available for Both metal plate and pipes
- IE3 Standard motor at 400w
- Hight Efficiency can reach up to 1.2-2meter /min
- Imported gearbox for cold cutting and non-oxidation
- No Scrap Iron Splash, More safe
- Portable at low weight only 33kgs
Specification
Additional information
| Weight | 33 kg |
|---|---|
| Condition | New |
