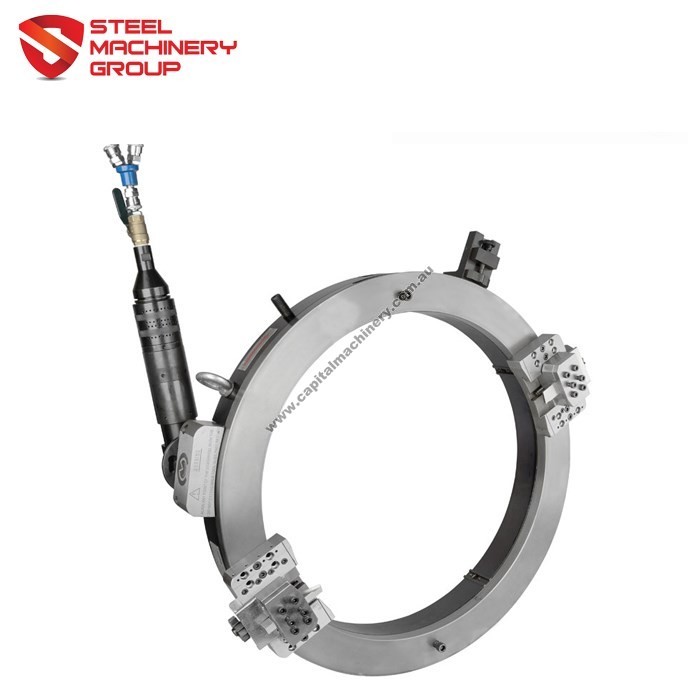

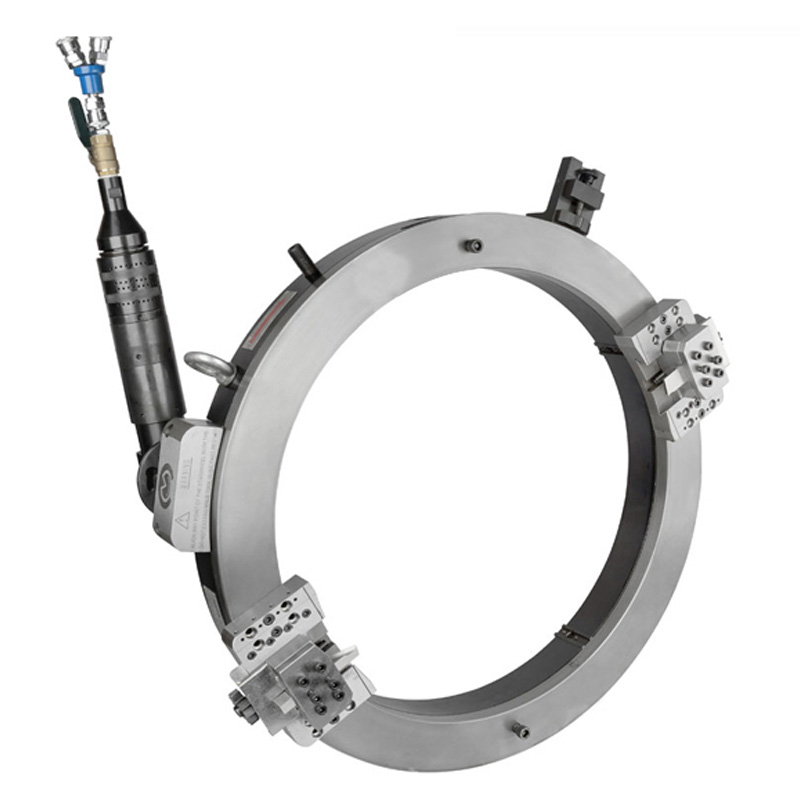

SMG Automatic Cold Pipe Cutting Beveling Machine

$3,241.00

  • AUD: A$4,931.83
  • GBP: £2,798.54
  • EUR: €3,235.81
  • JPY: ¥435,396
  • CNY: ¥22,910.63

In stock

The SMG Automatic Cold Pipe Cutting Beveling Machines can process cold cutting and bevel simultaneously. It is designed with the latest technology to provide quality results in beveling and cutting. It features a low axial and radial clearance and its lightweight structure makes it suitable for complicated sites. Capital Machinery offers top beveling and cutting machines at competitive prices. We are committed to providing you with top-notch products able to perform at optimal levels.

  Chat Now
SKU: BEVELING-SMG-159-OCP Categories: , Brand:

$3,241.00

  • AUD: A$4,931.83
  • GBP: £2,798.54
  • EUR: €3,235.81
  • JPY: ¥435,396
  • CNY: ¥22,910.63

Description

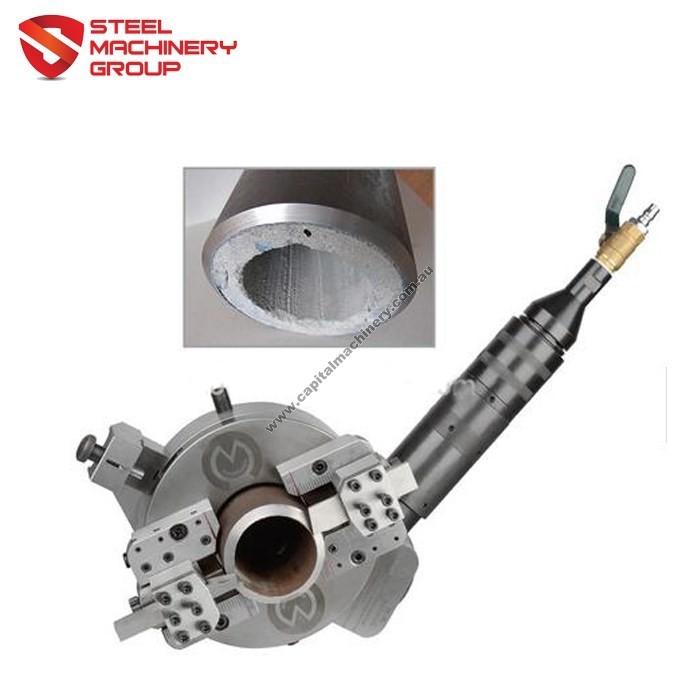

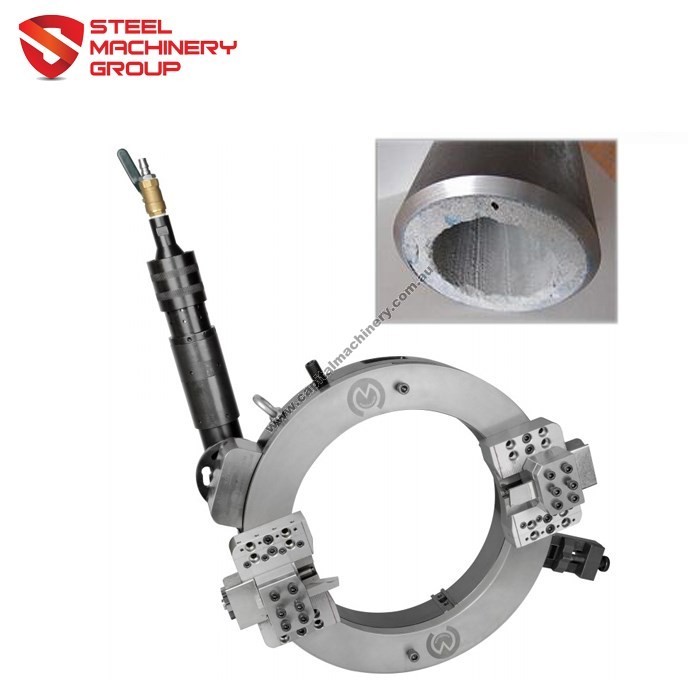

This series features a portable od-mounted frame type pipe cold cutting and beveling machine. Like all SMG products in this line, it offers superior lightweight design, minimal radial space and extremely easy to operate. It also features a split frame design that separates mount the od of the in-line pipe for strong and stable clamping, making it easier and more efficient to process simultaneous cutting and beveling.

Specifications

Power Supply: 0.6-1.0 @1500-2000L/min

Model No. Working Range Wall Thickness Rotation Speed Air Pressure Air Consumption
SMG-89 Ο† 25-89 3/4β€˜β€™-3β€˜β€™ ≀35mm 50 r/min 0.6~1.0MPa 1500 L/min
SMG-159 Ο†50-159 2β€˜β€™-5β€˜β€™ ≀35mm 21 r/min 0.6~1.0MPa 1500 L/min
SMG-168 Ο†50-168 2β€˜β€™-6β€˜β€™ ≀35mm 21 r/min 0.6~1.0MPa 1500 L/min
SMG-230 Ο†80-230 3β€˜β€™-8β€˜β€™ ≀35mm 20 r/min 0.6~1.0MPa 1500 L/min
SMG-275 Ο†125-275 5β€˜β€™-10β€˜β€™ ≀35mm 20 r/min 0.6~1.0MPa 1500 L/min
SMG-305 Ο†150-305 6β€˜β€™-10β€˜β€™ ≀35mm 18 r/min 0.6~1.0MPa 1500 L/min
SMG-325 Ο†168-325 6β€˜β€™-12β€˜β€™ ≀35mm 16 r/min 0.6~1.0MPa 1500 L/min
SMG-377 Ο†219-377 8β€˜β€™-14β€˜β€™ ≀35mm 13 r/min 0.6~1.0MPa 1500 L/min
SMG-426 Ο†273-426 10β€˜β€™-16β€˜β€™ ≀35mm 12 r/min 0.6~1.0MPa 1800 L/min
SMG-457 Ο†300-457 12β€˜β€™-18β€˜β€™ ≀35mm 12 r/min 0.6~1.0MPa 1800 L/min
SMG-508 Ο†355-508 14β€˜β€™-20β€˜β€™ ≀35mm 12 r/min 0.6~1.0MPa 1800 L/min
SMG-560 Ο†400-560 16β€˜β€™-22β€˜β€™ ≀35mm 12 r/min 0.6~1.0MPa 1800 L/min
SMG-610 Ο†457-610 18β€˜β€™-24β€˜β€™ ≀35mm 11 r/min 0.6~1.0MPa 1800 L/min
SMG-630 Ο†480-630 20β€˜β€™-24β€˜β€™ ≀35mm 11 r/min 0.6~1.0MPa 1800 L/min
SMG-660 Ο†508-660 20β€˜β€™-26β€˜β€™ ≀35mm 11 r/min 0.6~1.0MPa 1800 L/min
SMG-715 Ο†560-715 22β€˜β€™-28β€˜β€™ ≀35mm 11 r/min 0.6~1.0MPa 1800 L/min
SMG-762 Ο†600-762 24β€˜β€™-30β€˜β€™ ≀35mm 11 r/min 0.6~1.0MPa 2000 L/min
SMG-830 Ο†660-813 26β€˜β€™-32β€˜β€™ ≀35mm 10 r/min 0.6~1.0MPa 2000 L/min
SMG-914 Ο†762-914 30β€˜β€™-36β€˜β€™ ≀35mm 10 r/min 0.6~1.0MPa 2000 L/min
SMG-1066 Ο†914-1066 36β€˜β€™-42β€˜β€™ ≀35mm 9 r/min 0.6~1.0MPa 2000 L/min
SMG-1230 Ο†1066-1230 42β€˜β€™-48β€˜β€™ ≀35mm 8 r/min 0.6~1.0MPa 2000 L/min

Note: Standard Machine Packaging includes:

  • 2 pcs cutter
  • 2pcs of bevel tool
  • tools
  • operation manual

Features

  1. Low axial and radial clearance lightweight suitable for working at a narrow and complicated site
  2. Split frame design can separate to 2 half, easy to process when two ends not open
  3. This machine can process cold cutting and beveling simultaneously
  4. With an option for electric, Pneumatic, Hydraulic, CNC based on site condition
  5. Tool feed automatically with Low noise, long life and stable performance
  6. Cold working without Spark, Will not affect the pipe material
  7. Can process different pipe material: Carbon steel, stainless steel, alloys etc.
  8. Explosion Proof, Simple structure makes easy to maintenance

Specification

Additional information

Weight 255 kg
