Name: ▷ Buy New SMG Orbi-Edge Electric Pipe Beveling Machine (Steel Machinery Group) - Available at MachineryGenie.com
Brand: Steel Machinery Group
SKU: BEVELING-SMG-OEE
Price: 3483.00 USD
Availability: InStock

Description

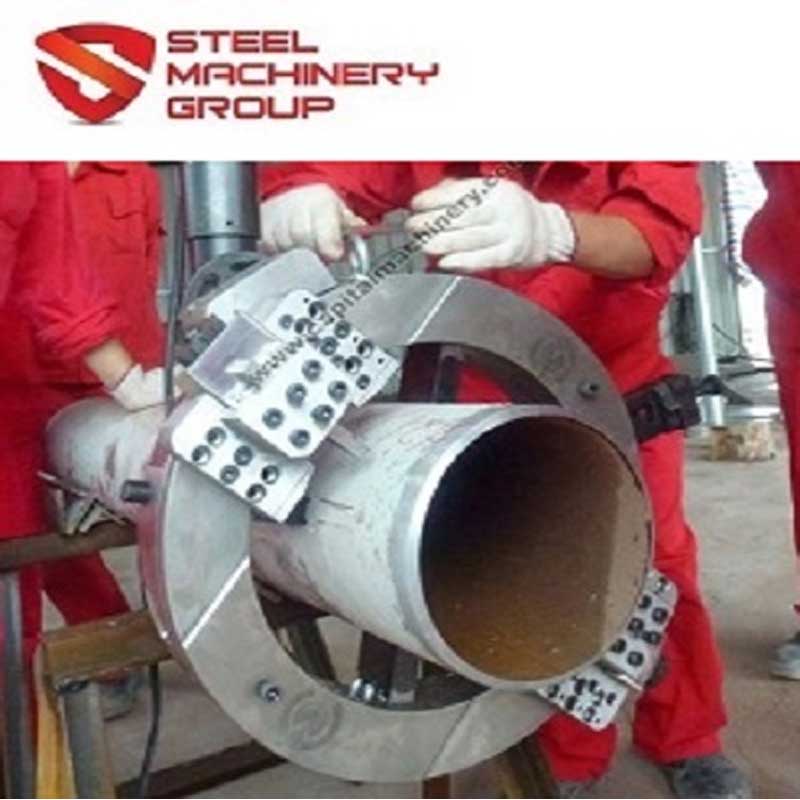

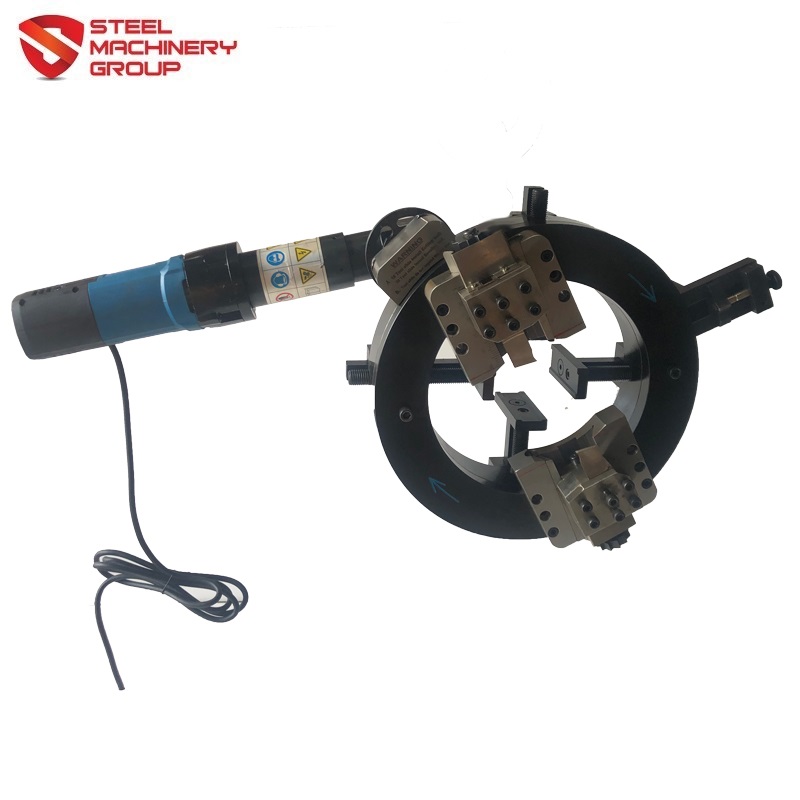

Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. With its split frame design, it separates the mount of the in-line pipe for a more stable and stronger clamping, therefor allowing simultaneous process cutting and beveling.

Specifications

Power Supply: 220-240v 1 ph 50-60 HZ

Motor Power: 1.5-2KW

Model NO.	Working Range		Wall Thickness	Rotation Speed
SMG-89OE	φ 25-89	3/4‘’-3‘’	≤35mm	42 r/min
SMG-168OE	φ50-168	2‘’-6‘’	≤35mm	18 r/min
SMG-230OE	φ80-230	3‘’-8‘’	≤35mm	15 r/min
SMG-275OE	φ125-275	5‘’-10‘’	≤35mm	14 r/min
SMG-305OE	φ150-305	6‘’-10‘’	≤35mm	13 r/min
SMG-325OE	φ168-325	6‘’-12‘’	≤35mm	13 r/min
SMG-377OE	φ219-377	8‘’-14‘’	≤35mm	12 r/min
SMG-426OE	φ273-426	10‘’-16‘’	≤35mm	12 r/min
SMG-457OE	φ300-457	12‘’-18‘’	≤35mm	12 r/min
SMG-508OE	φ355-508	14‘’-20‘’	≤35mm	12 r/min
SMG-560OE	φ400-560	16‘’-22‘’	≤35mm	12 r/min
SMG-610OE	φ457-610	18‘’-24‘’	≤35mm	11 r/min
SMG-630OE	φ480-630	20‘’-24‘’	≤35mm	11 r/min
SMG-660OE	φ508-660	20‘’-26‘’	≤35mm	11 r/min
SMG-715OE	φ560-715	22‘’-28‘’	≤35mm	11 r/min
SMG-762OE	φ600-762	24‘’-30‘’	≤35mm	11 r/min
SMG-830OE	φ660-813	26‘’-32‘’	≤35mm	10 r/min
SMG-914OE	φ762-914	30‘’-36‘’	≤35mm	10 r/min
SMG-1066OE	φ914-1066	36‘’-42‘’	≤35mm	10 r/min
SMG-1230OE	φ1066-1230	42‘’-48‘’	≤35mm	10 r/min

Note: Standard machine packaging includes:

2 pcs cutter
2pcs of bevel tool
tools
operation manual

Features

Low axial and radial clearance lightweight suitable for working at a narrow and complicated site

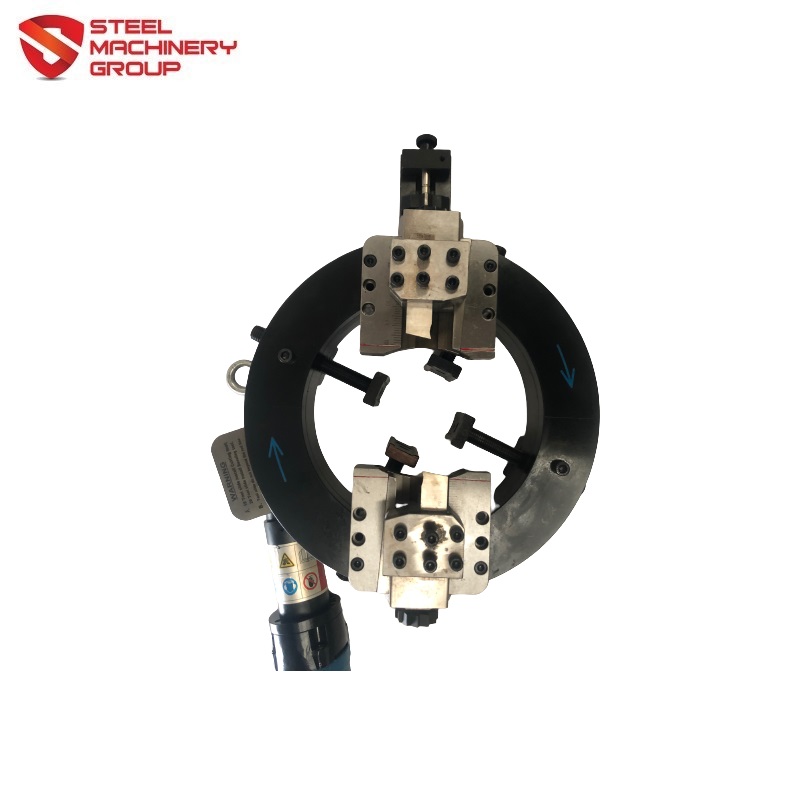

Split frame design can separate to 2 half, easy to process when two end not open
This machine can process cold cutting and beveling simultaneously
With option for electric, Pneuamtic, Hydraulic ,CNC based on site condition
Tool feed automatically with Low noise, long life and stable performance
Cold working without Spark , Will not affect the pipe material
Can process different pipe material : Carbon steel, stainless steel , alloys etc

Attachments (PDF)

Specification

Additional information

Weight	255 kg
Condition	New
Model Number	SMG-89OE, SMG-168OE, SMG-230OE, SMG-275OE, SMG-305OE, SMG-325OE, SMG-377OE, SMG-426OE, SMG-457OE, SMG-508OE, SMG-560OE, SMG-610OE, SMG-630OE, SMG-660OE, SMG-715OE, SMG-762OE, SMG-830OE, SMG-914OE, SMG-1066OE, SMG-1230OE
