Name: SMG Orbi-Edge Pneumatic Pipe Cutting and Beveling Machine
Brand: Steel Machinery Group
SKU: BEVELING-SMG-OEP
Price: 23841.12 CNY
Availability: InStock

Description

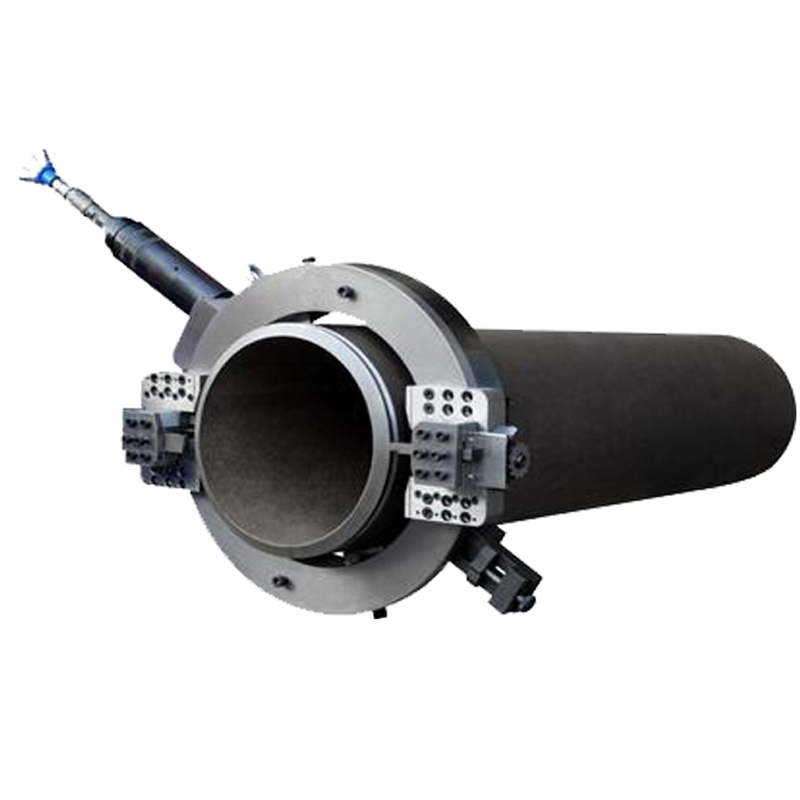

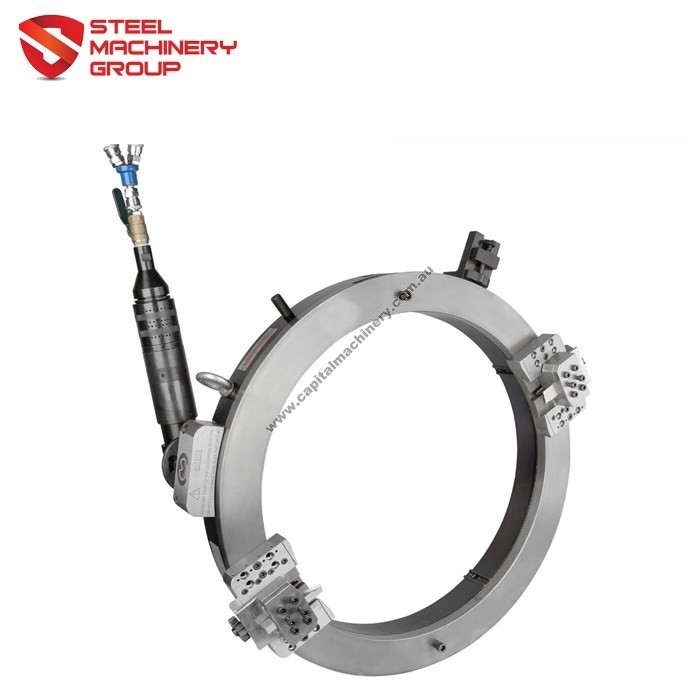

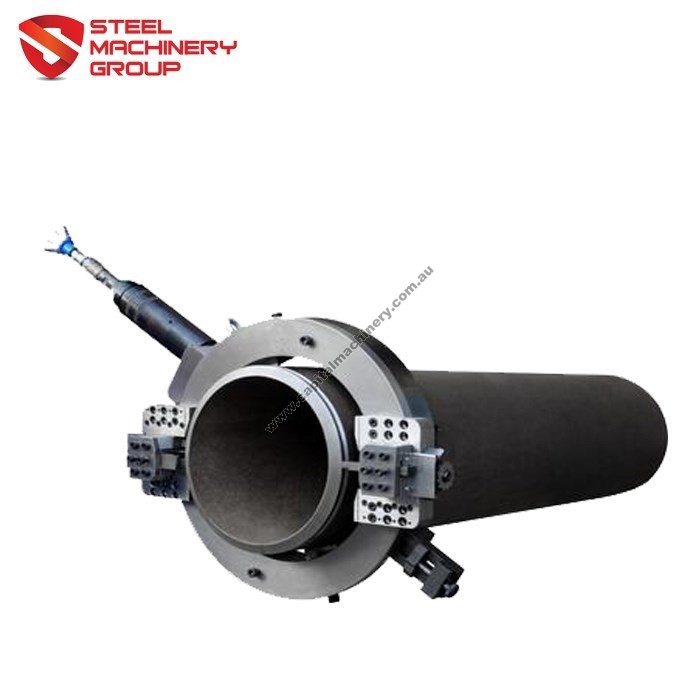

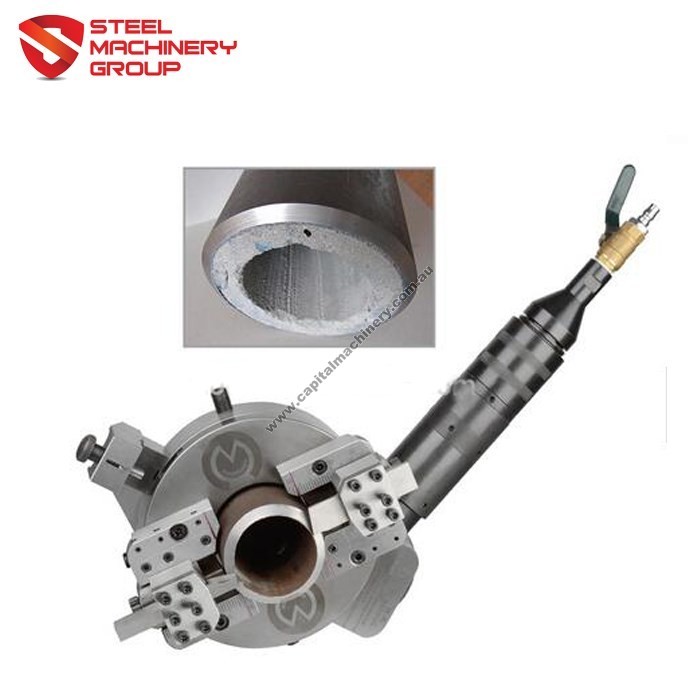

This series features a portable od-mounted frame type pipe cold cutting and beveling machine. Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. With its split frame design, it separates the mount of the in-line pipe for a more stable and stronger clamping, therefore allowing simultaneous process cutting and bevelling.

Specifications

Power Supply: 0.6-1.0 @1500-2000L/min

Model No.	Working Range		Wall Thickness	Rotation Speed	Air Pressure	Air Consumption
SMG-89P	φ 25-89	3/4‘’-3‘’	≤35mm	50 r/min	0.6~1.0MPa	1500 L/min
SMG-159P	φ50-159	2‘’-5‘’	≤35mm	21 r/min	0.6~1.0MPa	1500 L/min
SMG-168P	φ50-168	2‘’-6‘’	≤35mm	21 r/min	0.6~1.0MPa	1500 L/min
SMG-230P	φ80-230	3‘’-8‘’	≤35mm	20 r/min	0.6~1.0MPa	1500 L/min
SMG-275P	φ125-275	5‘’-10‘’	≤35mm	20 r/min	0.6~1.0MPa	1500 L/min
SMG-305P	φ150-305	6‘’-10‘’	≤35mm	18 r/min	0.6~1.0MPa	1500 L/min
SMG-325P	φ168-325	6‘’-12‘’	≤35mm	16 r/min	0.6~1.0MPa	1500 L/min
SMG-377P	φ219-377	8‘’-14‘’	≤35mm	13 r/min	0.6~1.0MPa	1500 L/min
SMG-426P	φ273-426	10‘’-16‘’	≤35mm	12 r/min	0.6~1.0MPa	1800 L/min
SMG-457P	φ300-457	12‘’-18‘’	≤35mm	12 r/min	0.6~1.0MPa	1800 L/min
SMG-508P	φ355-508	14‘’-20‘’	≤35mm	12 r/min	0.6~1.0MPa	1800 L/min
SMG-560P	φ400-560	16‘’-22‘’	≤35mm	12 r/min	0.6~1.0MPa	1800 L/min
SMG-610P	φ457-610	18‘’-24‘’	≤35mm	11 r/min	0.6~1.0MPa	1800 L/min
SMG-630P	φ480-630	20‘’-24‘’	≤35mm	11 r/min	0.6~1.0MPa	1800 L/min
SMG-660P	φ508-660	20‘’-26‘’	≤35mm	11 r/min	0.6~1.0MPa	1800 L/min
SMG-715P	φ560-715	22‘’-28‘’	≤35mm	11 r/min	0.6~1.0MPa	1800 L/min
SMG-762P	φ600-762	24‘’-30‘’	≤35mm	11 r/min	0.6~1.0MPa	2000 L/min
SMG-830P	φ660-813	26‘’-32‘’	≤35mm	10 r/min	0.6~1.0MPa	2000 L/min
SMG-914P	φ762-914	30‘’-36‘’	≤35mm	10 r/min	0.6~1.0MPa	2000 L/min
SMG-1066P	φ914-1066	36‘’-42‘’	≤35mm	9 r/min	0.6~1.0MPa	2000 L/min
SMG-1230P	φ1066-1230	42‘’-48‘’	≤35mm	8 r/min	0.6~1.0MPa	2000 L/min

Note: Standard machine packaging including :

2 pcs cutter
2 pcs of bevel tool
Tools
Operation manual

Features

Low axial and radial clearance lightweight suitable for working at a narrow and complicated site
Split frame design can separate to 2 half, easy to process when two ends not open
This machine can process cold cutting and beveling simultaneously
With an option for electric, Pneumatic, Hydraulic, CNC based on site condition
Tool feed automatically with Low noise, long life and stable performance
Cold working without Spark, Will not affect the pipe material
Can process different pipe material: Carbon steel, stainless steel, alloys etc.
Explosion Proof, Simple structure makes easy to maintenance

Attachments (PDF)

Specification

Additional information

Weight	255 kg
Condition	SMG-89P, SMG-159P, SMG-168P, SMG-230P, SMG-275P, SMG-305P, SMG-325P, SMG-377P, SMG-426P, SMG-457P, SMG-508P, SMG-560P, SMG-610P, SMG-630P, SMG-660P, SMG-715P, SMG-762P, SMG-830P, SMG-914P, SMG-1066P, SMG-1230P
