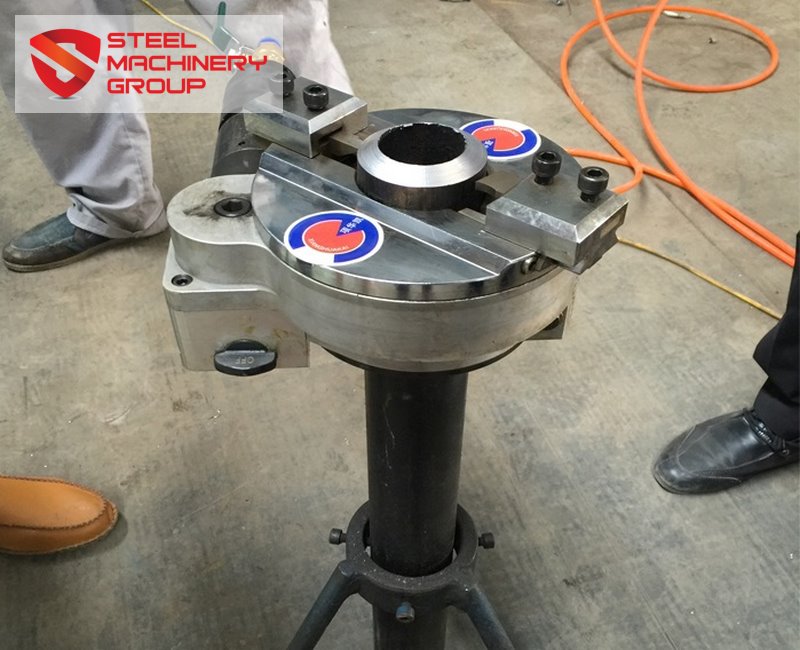

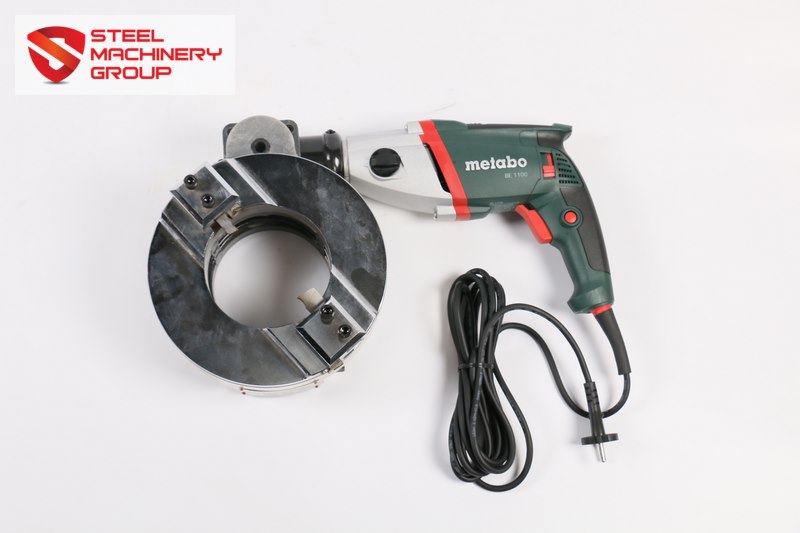

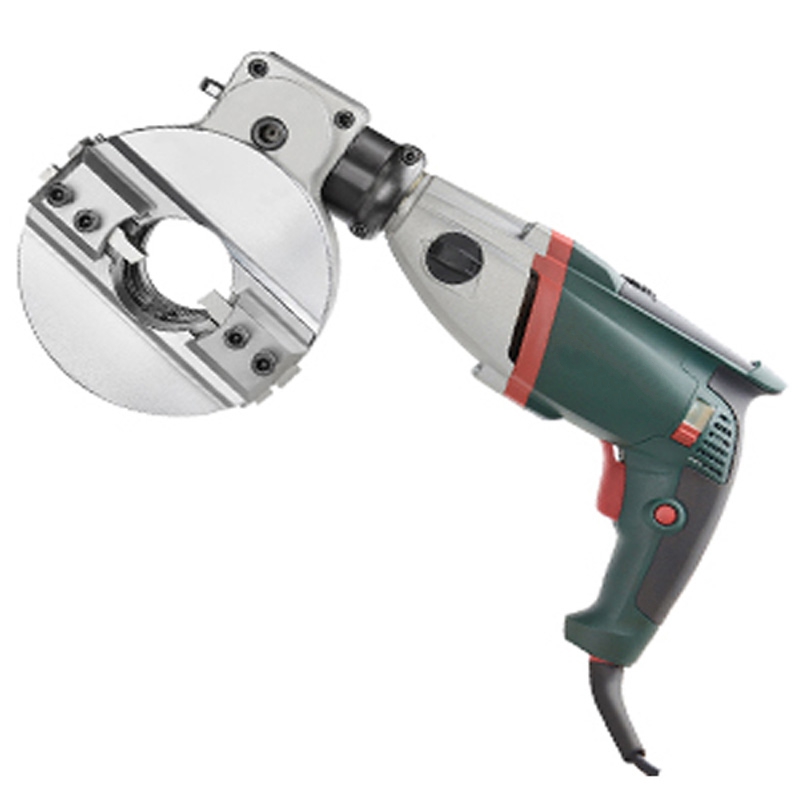

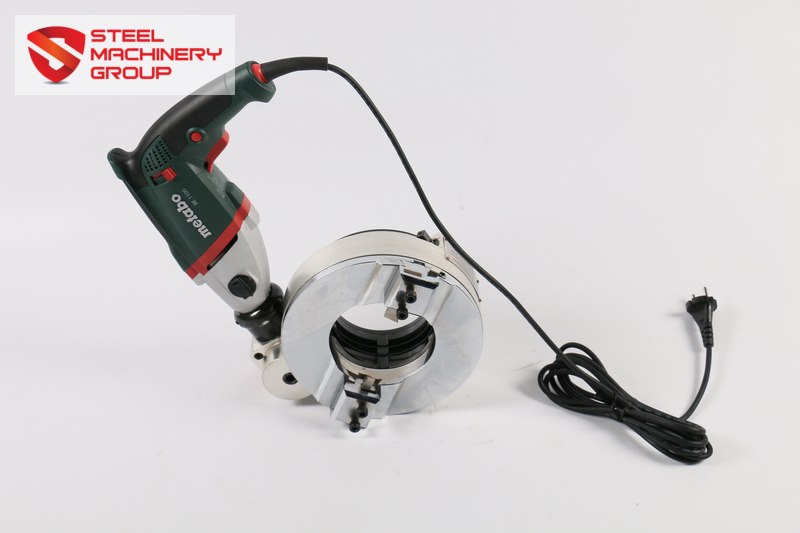

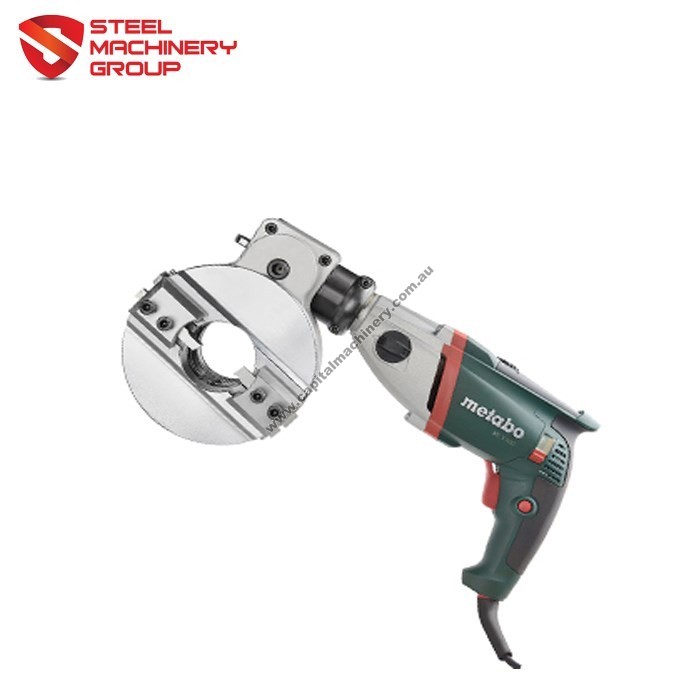

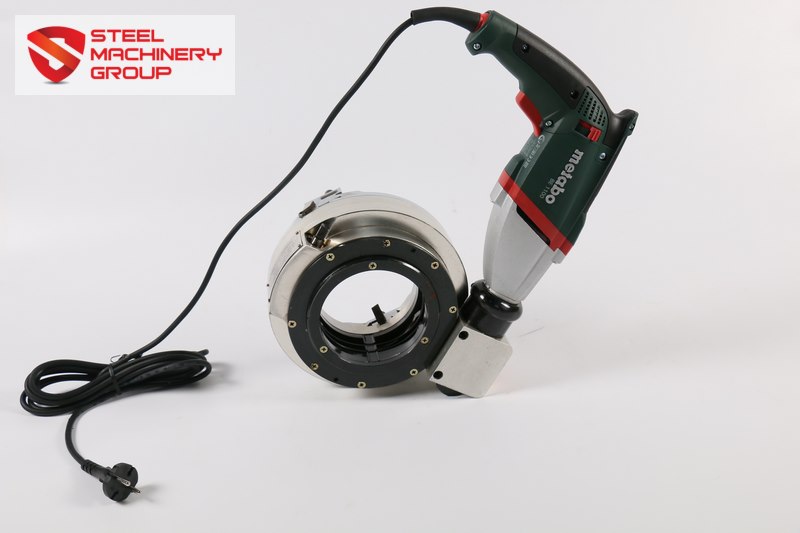

This SMG model is equipped with a Metabo motor. With its high strength and precision ring structure, it presents the perfect tool for cutting and beveling pipe, especially for batch cutting, beveling for thin wall thickness pipes. Like all products under the SMG line, this machine delivers stable performance, quiet operation and unmatched durability and comes with a perfect speed adjustment function.
Power Supply: 220-240v 1 ph 50-60 HZ
|Model No.||Working Range||Thickness||Speed||Machine Weight|
|SMG 63OA||φ14-63mm||≤12mm||30-120 r/min||13 KGS|
|SMG 114OA||φ57-114mm||≤12mm||30-120 r/min||16 KGS|
- Self-centering, no need adjust work of concentricity & perpendicularity
- Compact structure and good appearance, high strength aluminium body
- Adopt new synchronous feeding mechanism, feeding uniformity, tool bits have longer working life
- Easy setup, operation and maintenance
- Cutting & beveling finished at the same time, high working effective
- Cold working, no spark, won’t make the material affected
- Perfect working precision, no burrs
- Well-adapted, you can make the speed adjust depend on the working conditions.
