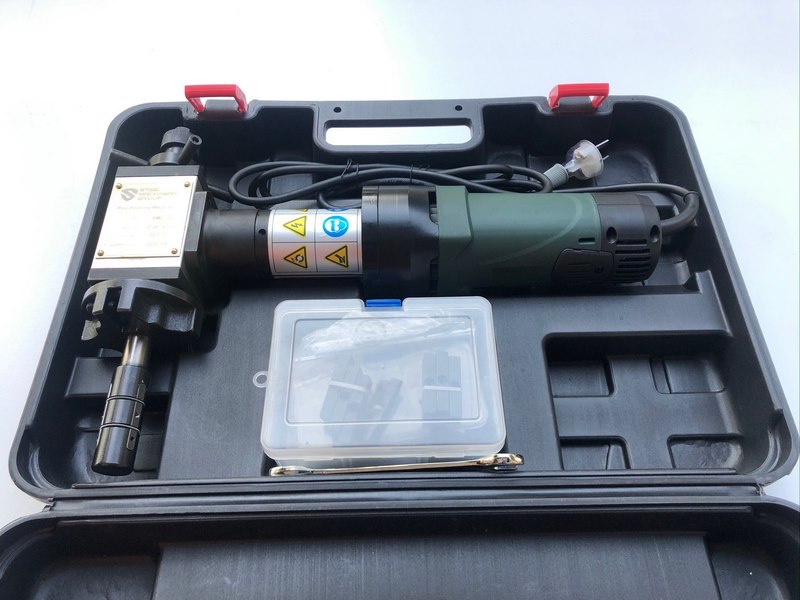

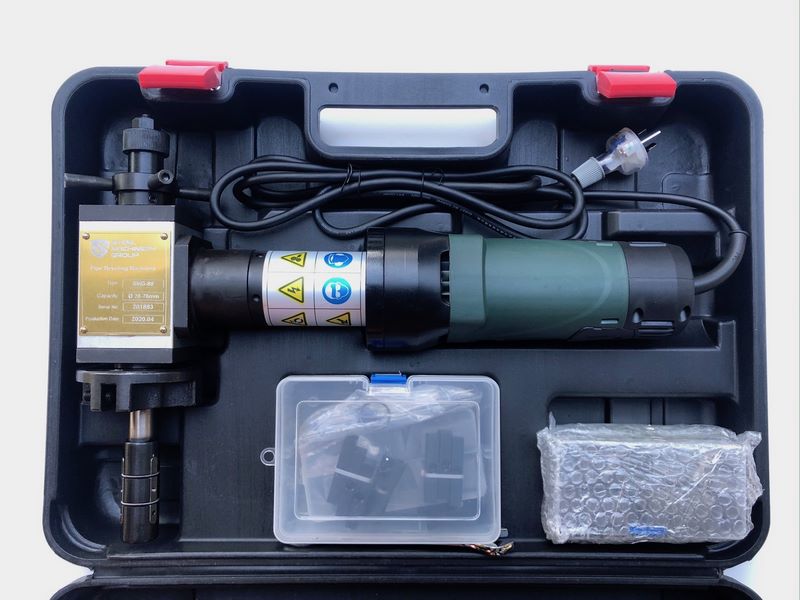

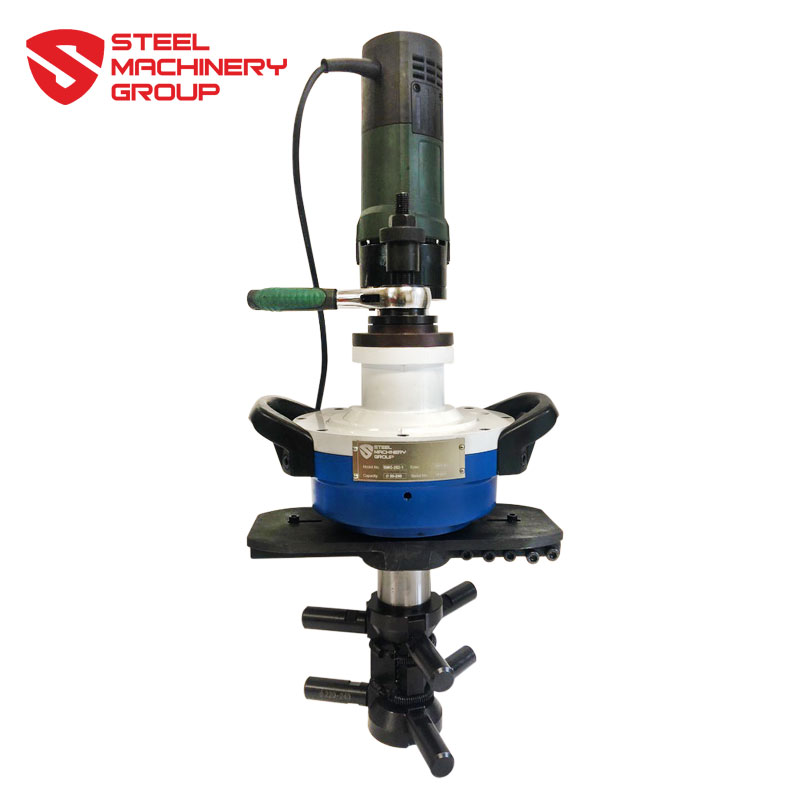

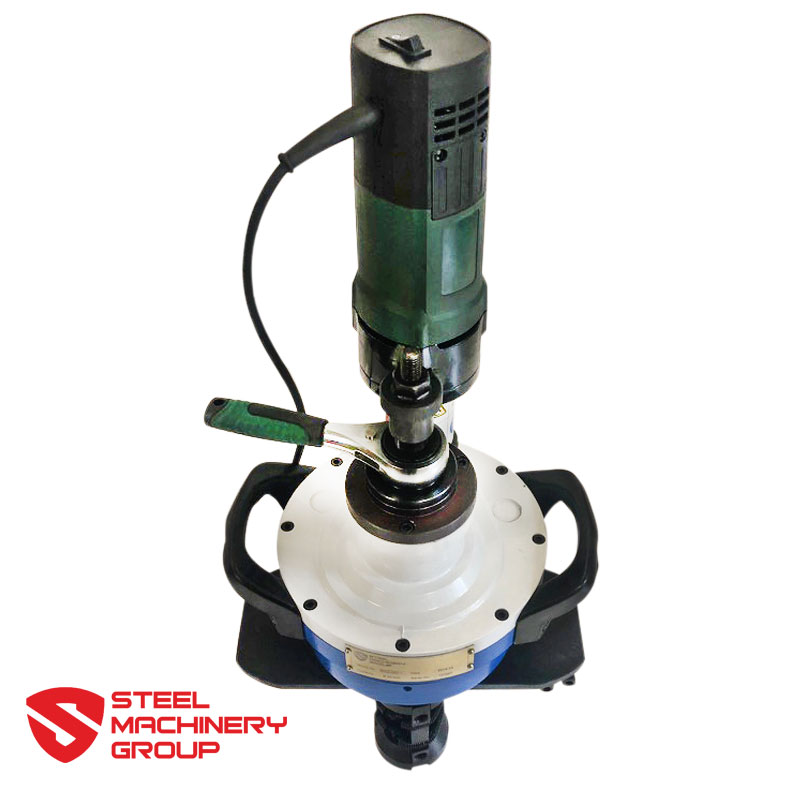

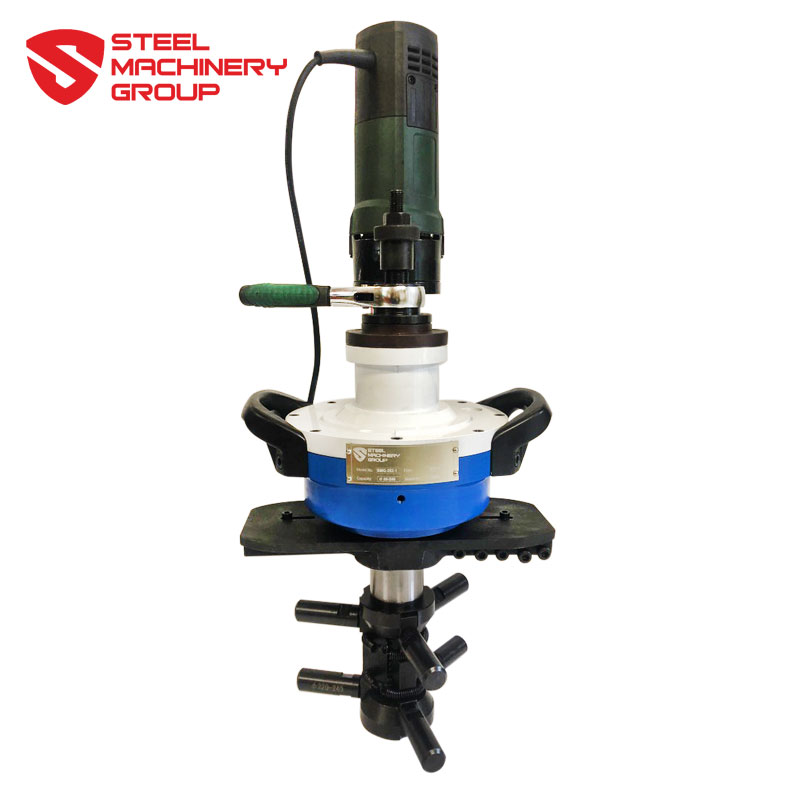

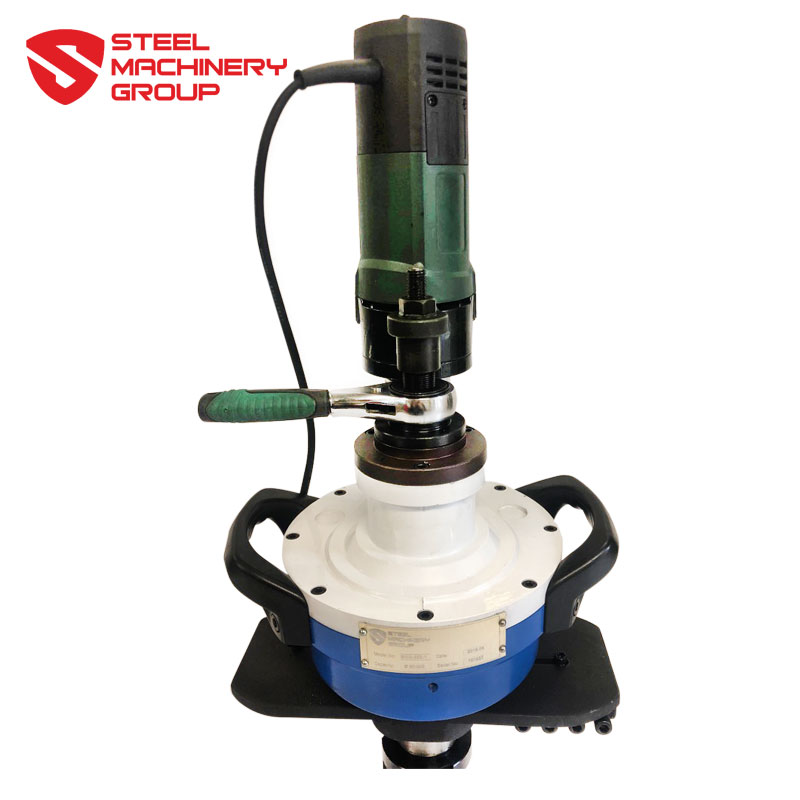

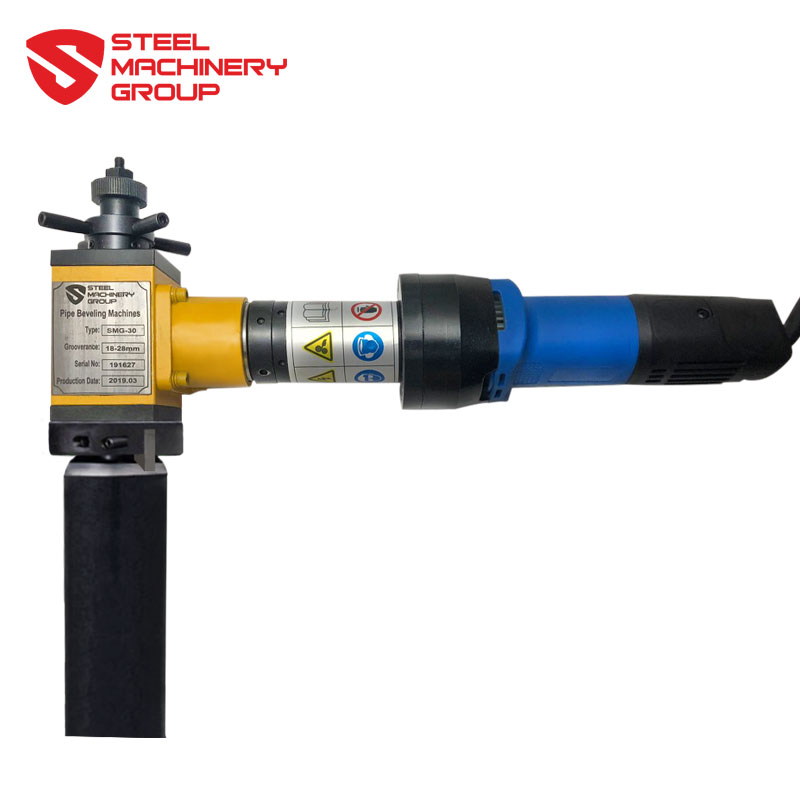

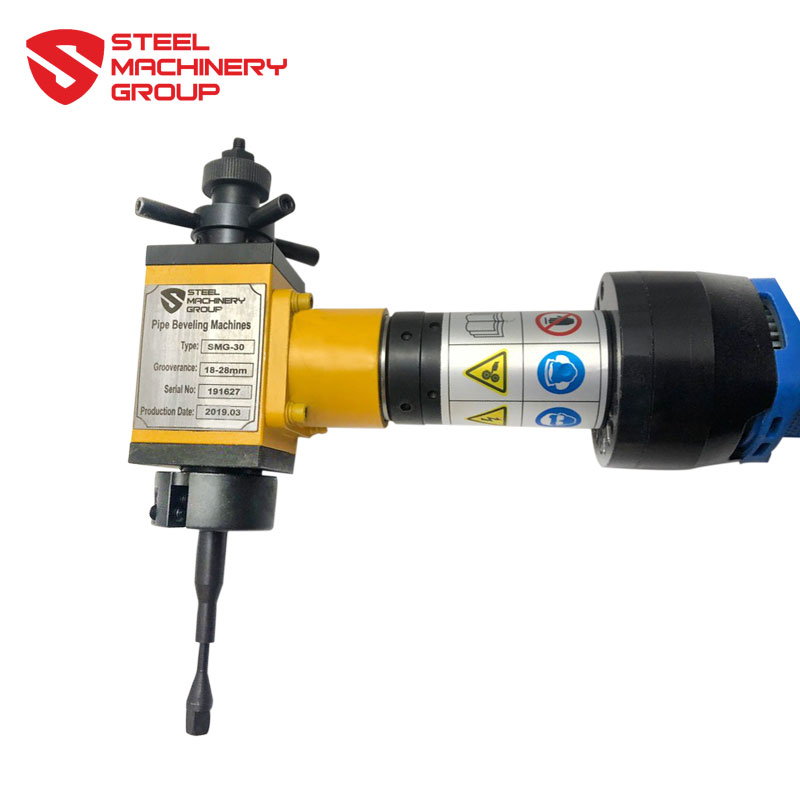

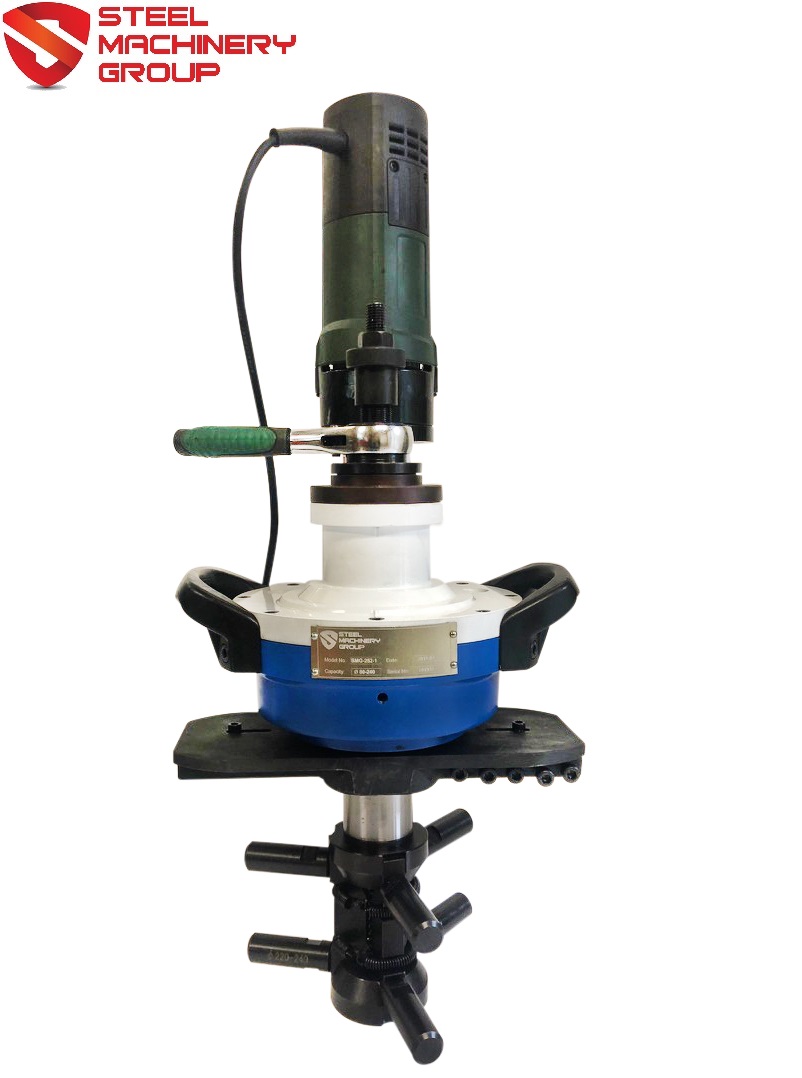

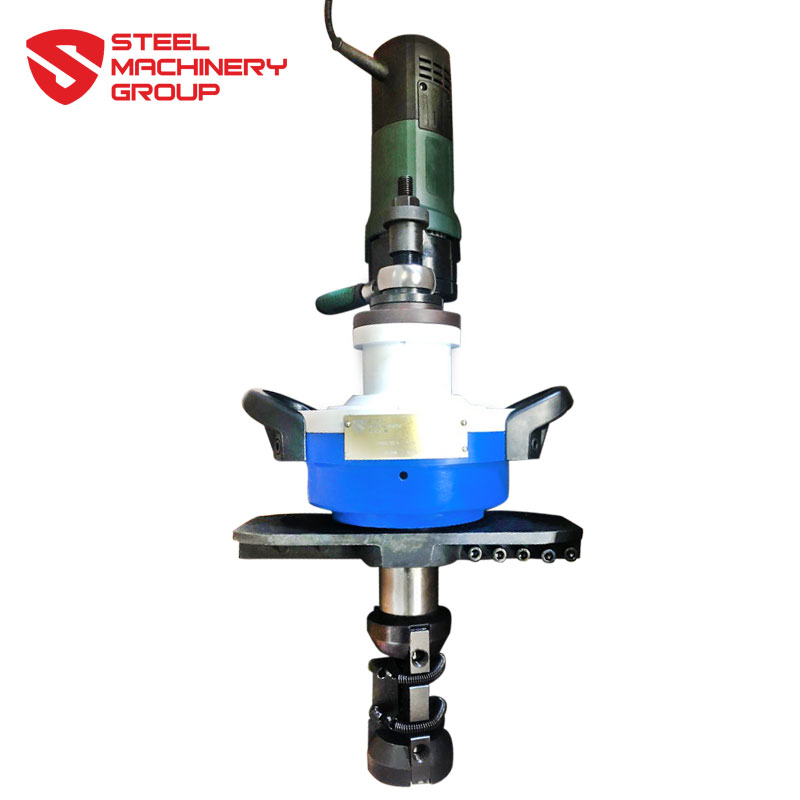

SMG Electric Pipe Beveling Machine
$1,143.00
- AUD: A$1,785.25
- GBP: £969.63
- EUR: €1,118.88
- JPY: ¥158,706
- CNY: ¥8,152.45
The SMG Electric Pipe Bevelling Machine is constructed with the latest technological advancements in bevelling machinery, designed to be compact and lightweight for flexible ergonomic operation. Features include adjustable variable cutter speed controller for efficient milling performance and increased cutter life, smooth operation, Self-centring adjustable mandrel for fast, easy setup and low maintenance design. Capital Machinery is committed to providing you with all your needs in beveling machine operations. We carry top-brands that are able to produce quality results.
Description

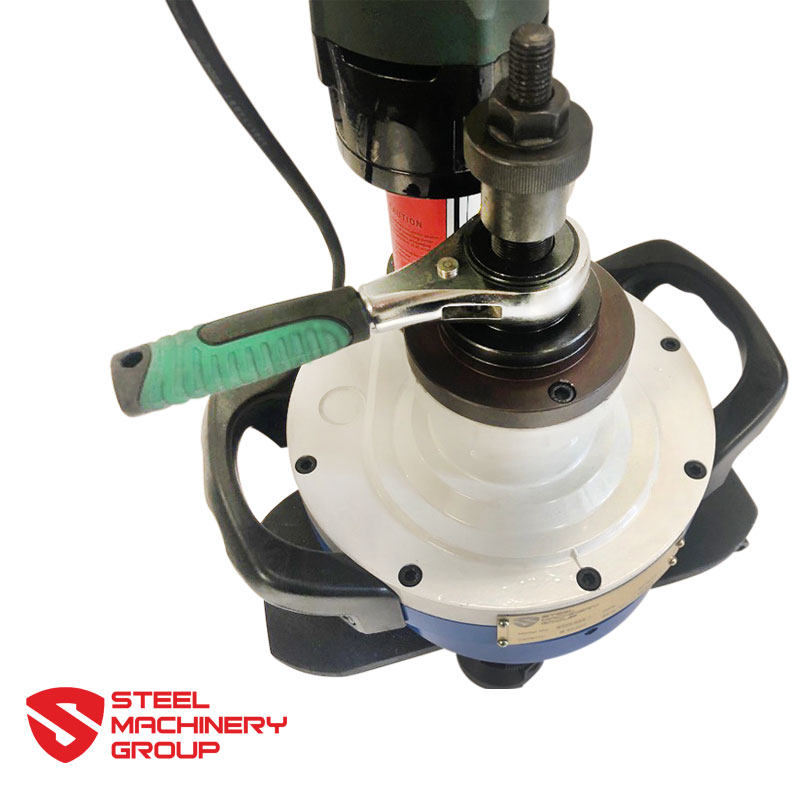

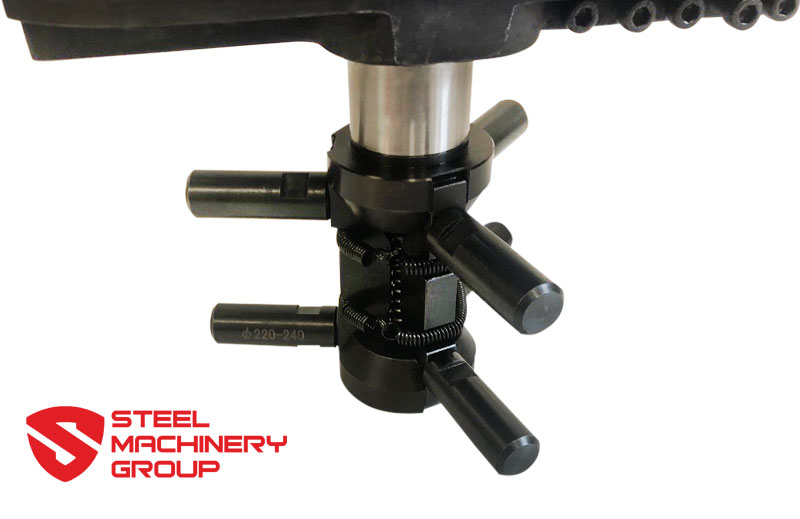

Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. By tightening the draw nut, you can expand the mandrel block up a ramp and against the ID surface for positive mounting, self-centered and squared to the bore. It can work with various pipe materials, beveling angles as per your specific requirements.
Specification
Power Supply: 220-240V 1ph 50-60HZ Motor Power:1.4-2kw
| Model No. | Working Range | Wall thickness | Rotation Speed | |
| SMG-30 | φ18-30 | 1/2”-3/4” | ≤15mm | 50 r/min |
| SMG-80 | φ28-89 | 1”-3” | ≤15mm | 55 r/min |
| SMG-120 | φ40-120 | 11/4”-4” | ≤15mm | 30 r/min |
| SMG-159 | φ65-159 | 21/2”-5” | ≤20mm | 35 r/min |
| SMG-252-1 | φ80-273 | 3”-10” | ≤20mm | 16 r/min |
| SMG-252-2 | φ80-273 | ≤75mm | 16 r/min | |
| SMG-352-1 | φ150-356 | 6”-14” | ≤20mm | 14 r/min |
| SMG-352-2 | φ150-356 | ≤75mm | 14 r/min | |
| SMG-426-1 | φ273-426 | 10”-16” | ≤20mm | 12 r/min |
| SMG-426-2 | φ273-426 | ≤75mm | 12 r/min | |
| SMG-630-1 | φ300-630 | 12”-24” | ≤20mm | 10 r/min |
| SMG-630-2 | φ300-630 | ≤75mm | 10 r/min | |
| SMG-850-1 | φ490-850 | 24”-34” | ≤20mm | 9 r/min |
| SMG-850-2 | φ490-850 | ≤75mm | 9 r/min | |

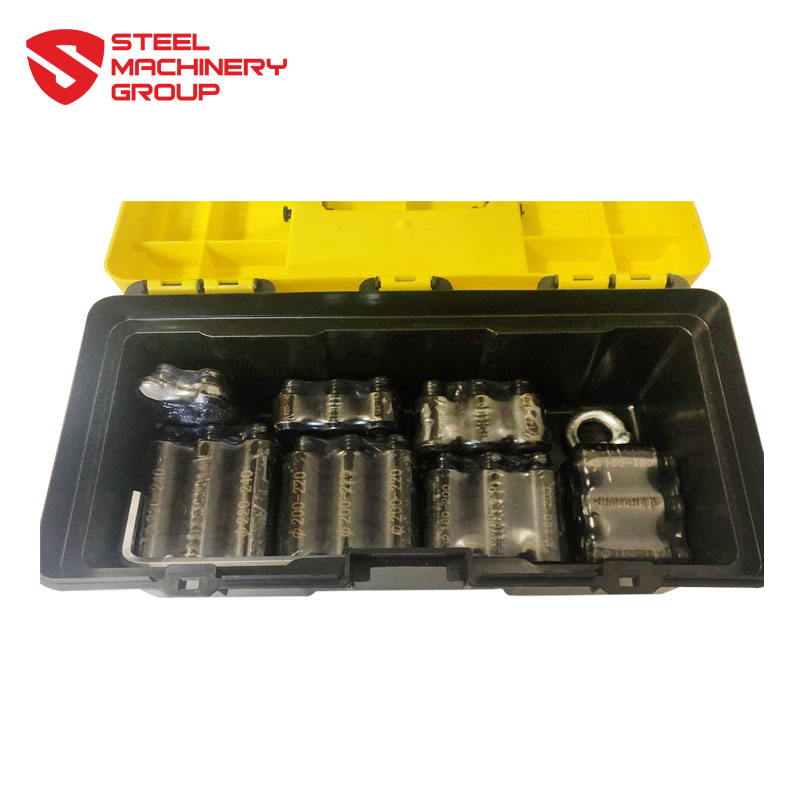

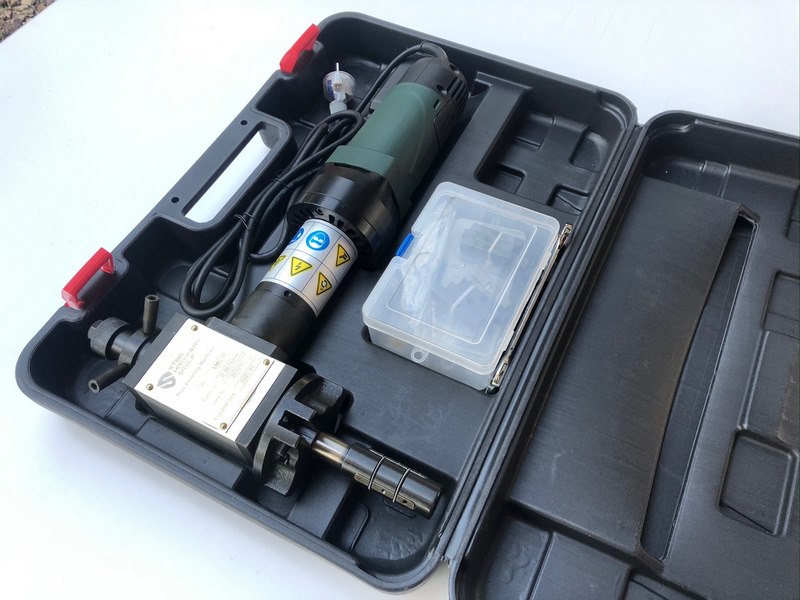

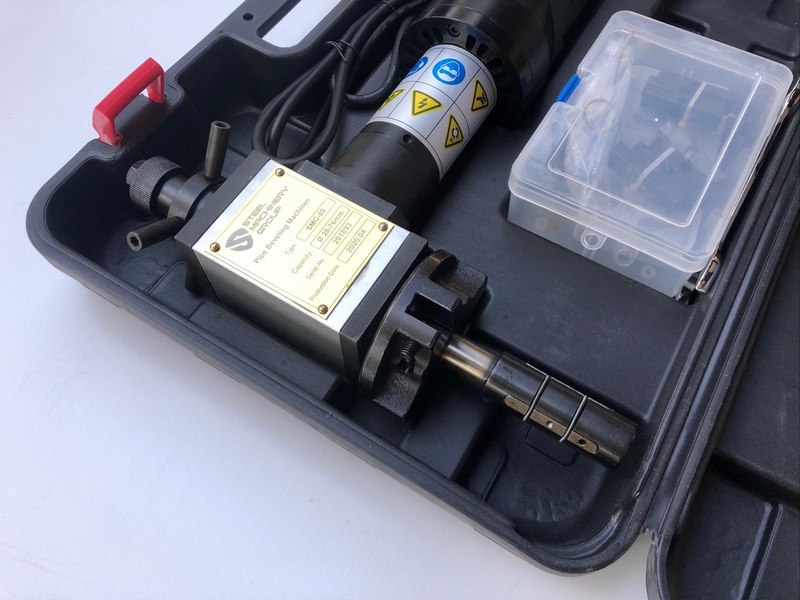

Note: Standard machines include:
- 3 pcs of bevel tool (0 ,30,37.5 degree)
- Tools
- Operation Manual
Feature
- Portable light weight construction
- Compact machine design for easy operation and maintenance
- High performance beveling tools for fast milling
- Suitable for processing different types of pipe materials: Carbon steel, stainless steel, alloys etc.
- Adjustable speed and self centering
- Powerful drive system optional Pneumatic or Electric
Specification
Additional information
| Weight | 255 kg |
|---|---|
| Condition | New |
