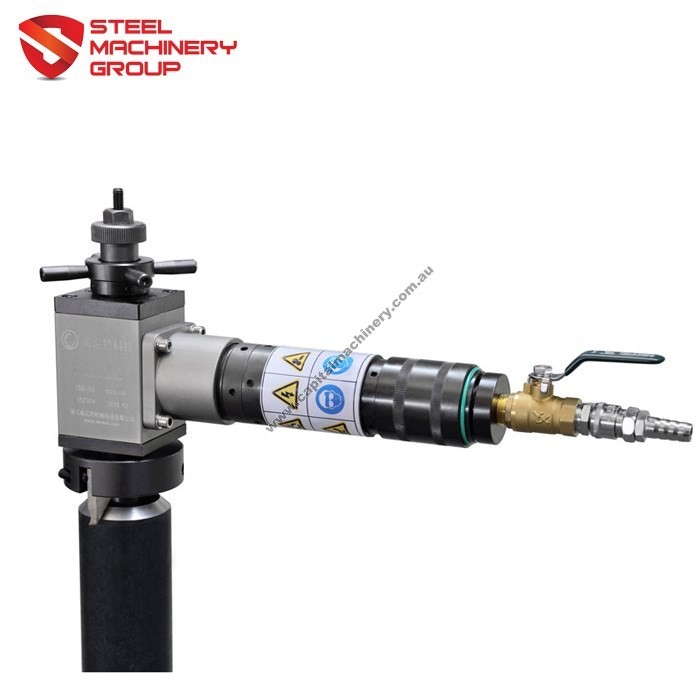

SMG Roto-Edge Pneumatic Pipe Beveling Machine
From
$1,049.00
- AUD: A$1,621.45
- GBP: £904.06
- EUR: €1,019.73
- JPY: ¥139,328
- CNY: ¥7,275.55
The SMG Roto-Edge Pneumatic Pipe Beveling Machine is engineered with the latest technology in beveling machines. It has different features such as lightweight in a structure for portable operations, compact in design for easier operation and maintenance, a powerful drive for optimal performance and efficiency and more.
Description
This series features an id-mounted portable pipe beveling machine. Like with all SMG products, this machine is designed to be lightweight and comes with a powerful drive, fast working speed and extremely easy to operate. By tightening the draw nut, you expand the mandrel block up a ramp and against the ID surface for positive mounting, self-centered and squared to the bore. It can work with various pipe materials, and beveling angles as per specific requirements. Specifications Power Supply: 0.6-0.8 MPa @ 900-1500 L/min
| Model No. | Working Range | Wall thickness | Rotation Speed | Air Pressure | Air Consumption | |
| SMG-30P | φ18-30 | 1/2”-3/4” | ≤15mm | 60 r/min | 0.6 MPa | 900 L/min |
| SMG-80P | φ28-89 | 1”-3” | ≤15mm | 50 r/min | 0.6 MPa | 900 L/min |
| SMG-120P | φ40-120 | 11/4”-4” | ≤15mm | 38 r/min | 0.6 MPa | 900 L/min |
| SMG-159P | φ65-159 | 21/2”-5” | ≤20mm | 35 r/min | 0.6 MPa | 1000 L/min |
| SMG-252-1P | φ80-273 | 3”-10” | ≤20mm | 16 r/min | 0.6 MPa | 1000 L/min |
| SMG-252-2P | φ80-273 | ≤75mm | 16 r/min | 0.6 MPa | 1000 L/min | |
| SMG-352-1P | φ150-356 | 6”-14” | ≤20mm | 14 r/min | 0.7 MPa | 1200 L/min |
| SMG-352-2P | φ150-356 | ≤75mm | 14 r/min | 0.7 MPa | 1200 L/min | |
| SMG-426-1P | φ273-426 | 10”-16” | ≤20mm | 12 r/min | 0.7 MPa | 1500 L/min |
| SMG-426-2P | φ273-426 | ≤75mm | 12 r/min | 0.7 MPa | 1500 L/min | |
| SMG-630-1P | φ300-630 | 12”-24” | ≤20mm | 10 r/min | 0.7 MPa | 1500 L/min |
| SMG-630-2P | φ300-630 | ≤75mm | 10 r/min | 0.7 MPa | 1500 L/min | |
| SMG-850-1P | φ490-850 | 24”-34” | ≤20mm | 9 r/min | 0.8 MPa | 1500 L/min |
| SMG-850-2P | φ490-850 | ≤75mm | 9 r/min | 0.8 MPa | 1500 L/min | |
Note: Standard machines include:
- 3 pcs of bevel tool (0 ,30,37.5 degree)
- Tools
- Operation Manual
Features
- Portable with light weight.
- Compact machine design for easy operation and maintenance
- Bevel tools milling with high previous and stable performance
- Available for vary metal material such as carbon steel, stainless steel, Ally etc.
- Adjustable speed, self centering
- Powerful driven with option of Pneumatic, Electric.
- Bevel angel and joint could be made as per processing needs.
Specification
Additional information
| Weight | 255 kg |
|---|---|
| Condition | New |
| Model Number | SMG-30P, SMG-80P, SMG-120P, SMG-159P, SMG-252-1P, SMG-252-2P, SMG-352-1P, SMG-352-2P, SMG-426-1P, SMG-426-2P, SMG-630-1P, SMG-630-2P, SMG-850-1P, SMG-850-2P, |
