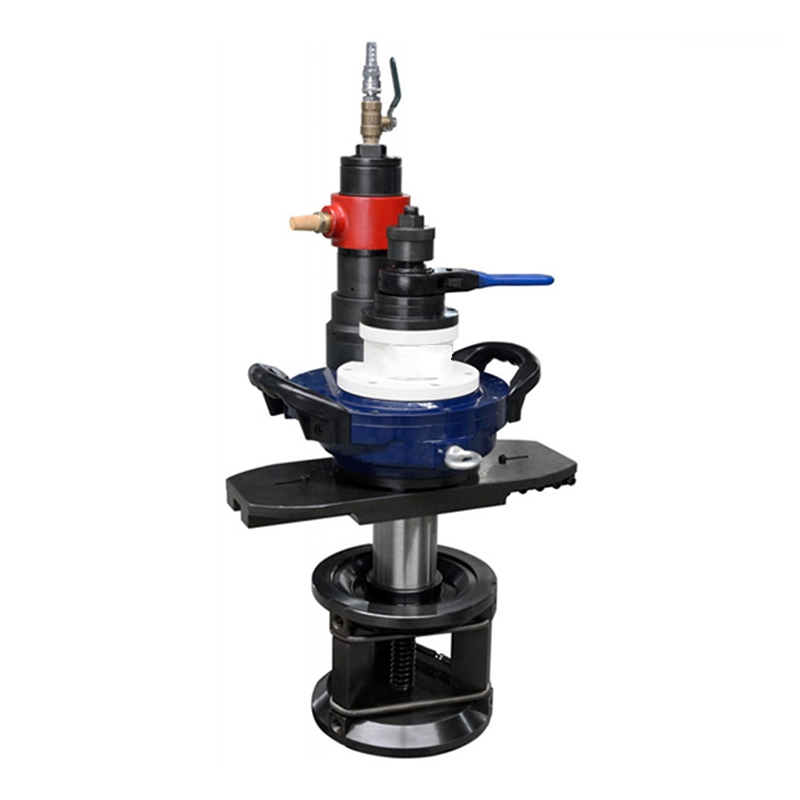

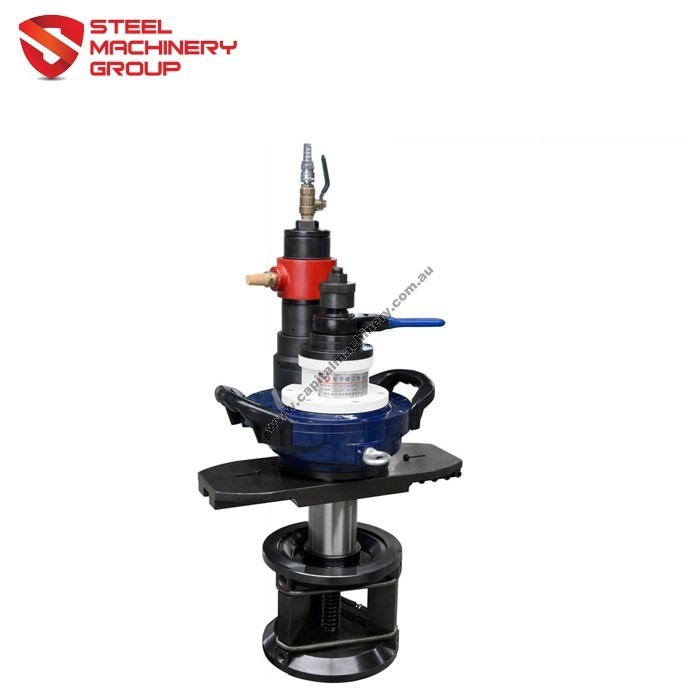

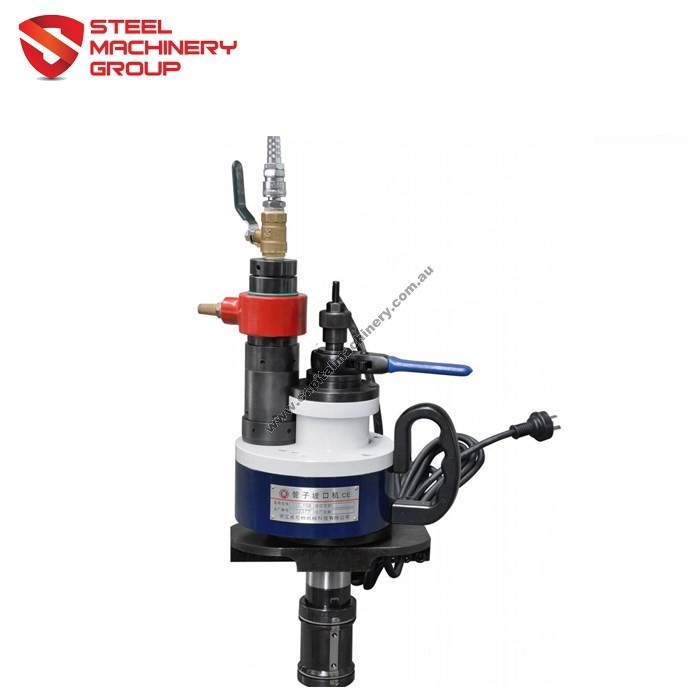

SMG Pneumatic Pipe End Chamfering Machine Tool
$1,049.00
- AUD: A$1,638.43
- GBP: £889.89
- EUR: €1,026.87
- JPY: ¥145,654
- CNY: ¥7,481.99

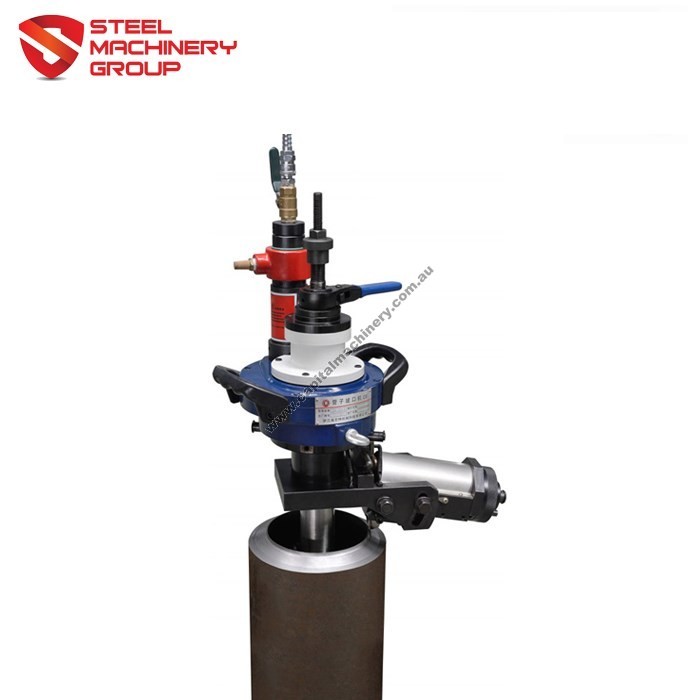

The SMG Pneumatic Pipe End Chamfering Machine Tool is a mounted portable pipe beveling machine. Designed with a lightweight structure for easy operations and optimal performance. A draw nut is tightened which expands the mandrel blocks up a ramp and against the id surface for positive mounting, self-centered and squared to the bore. It can work with various material pipe, beveling angel as per requirements
Description
Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. By tightening the draw nut, you can expand the mandrel block up a ramp and against the ID surface for positive mounting, self-centered and squared to the bore. It can work with various pipe materials, beveling angles as per your specific requirements.
Specifications
Power Supply: 0.6-0.8 MPa @ 900-1500 L/min
| Model No. | Working Range | Wall thickness | Rotation Speed | Air Pressure | Air Consumption | |
| SMG-30 | φ18-30 | 1/2”-3/4” | ≤15mm | 60 r/min | 0.6 MPa | 900 L/min |
| SMG-80 | φ28-89 | 1”-3” | ≤15mm | 50 r/min | 0.6 MPa | 900 L/min |
| SMG-120 | φ40-120 | 11/4”-4” | ≤15mm | 38 r/min | 0.6 MPa | 900 L/min |
| SMG-159 | φ65-159 | 21/2”-5” | ≤20mm | 35 r/min | 0.6 MPa | 1000 L/min |
| SMG-252-1 | φ80-273 | 3”-10” | ≤20mm | 16 r/min | 0.6 MPa | 1000 L/min |
| SMG-252-2 | φ80-273 | ≤75mm | 16 r/min | 0.6 MPa | 1000 L/min | |
| SMG-352-1 | φ150-356 | 6”-14” | ≤20mm | 14 r/min | 0.7 MPa | 1200 L/min |
| SMG-352-2 | φ150-356 | ≤75mm | 14 r/min | 0.7 MPa | 1200 L/min | |
| SMG-426-1 | φ273-426 | 10”-16” | ≤20mm | 12 r/min | 0.7 MPa | 1500 L/min |
| SMG-426-2 | φ273-426 | ≤75mm | 12 r/min | 0.7 MPa | 1500 L/min | |
| SMG-630-1 | φ300-630 | 12”-24” | ≤20mm | 10 r/min | 0.7 MPa | 1500 L/min |
| SMG-630-2 | φ300-630 | ≤75mm | 10 r/min | 0.7 MPa | 1500 L/min | |
| SMG-850-1 | φ490-850 | 24”-34” | ≤20mm | 9 r/min | 0.8 MPa | 1500 L/min |
| SMG-850-2 | φ490-850 | ≤75mm | 9 r/min | 0.8 MPa | 1500 L/min | |
Note: Standard machines include:
- 3 pcs of bevel tool (0 ,30,37.5 degree)
- Tools
- Operation Manual
Features
- Portable with light weight.
- Compact machine design for easy operation and maintenance
- Bevel tools milling with high previous and stable performance
- Available for metal material such as carbon steel, stainless steel, Ally etc.
- Adjustable speed, self-centering
- Powerful driven with option of Pneumatic, Electric.
- Bevel angel and joint could be made as per processing needs.
Specification
Additional information
| Weight | 45 kg |
|---|---|
| Condition | New |
