Description

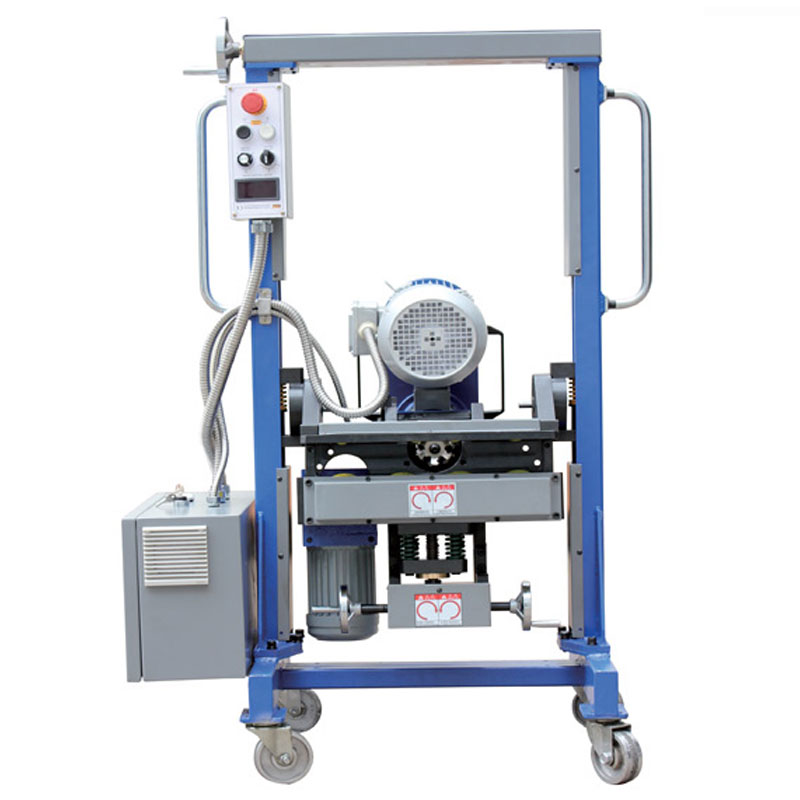

The SMG Rapid-Edge 55DM Double Sided Milling Type Plate Beveling Machine is a turntable for double side edge beveling & milling process for weld preparation. It comes with a wide working range clamp thickness 6-60mm, bevel angle10-60 degree and -10 to -60 degree as an option. This machine offers easy processing operation with high efficiency and previous at Ra 3.2-6.3.
Two processing options available:
- Model 1: Cutter catches the steel and leads into the machine to complete the job while processing small steel plates.
- Model 2: Machine will move along the edge of steel and complete the job while processing large steel plates.
Specifications
Model No. | SMG-RE55DM |
Power Supply | AC 415V 50HZ |
Total Power | 3400W |
Spindle Speed | 1050r/min |
Feed Speed | 0-1500mm/min |
Clamp Thickness | 6-600mm |
Clamp Width | >80mm |
Process Length | >300mm |
Bevel angel | 10-60 degree adjustable |
Single Bevel Width | 10-20mm |
Bevel Width | 0-55mm |
Cutter Plate | 63mm |
Cutter QTY | 6PCS |
Worktable Height | 700-760mm |
Travel Space | 800*800mm |
Weight | N.W 225KGS G.W 275KGS |
Packaging Size | 1035*685*1485mm |
Note: Standard Machine includes:
- 1pc cutter head
- 2 set of Inserts
- Tools in case
- Manual Operation
Features
- Available for metal plate Carbon steel, stainless steel, aluminium etc
- Can process “V”,”Y”, 0 degree milling, vary type of bevel joint
- Milling Type with High Previous can reach Ra 3.2-6.3 for surface
- Cold Cutting, energy saving and Low Noise, More safe and environmental with OL protection
- Wide working range with Clamp thickness 3-30mm and bevel angel 25-80 degree adjustable
- Easy Operation and high efficiency
- Turntable for double side beveling
