Description

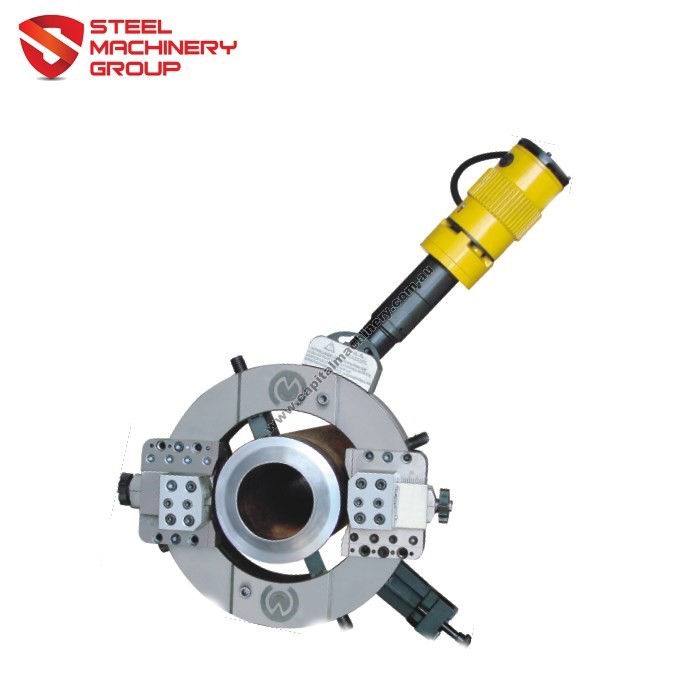

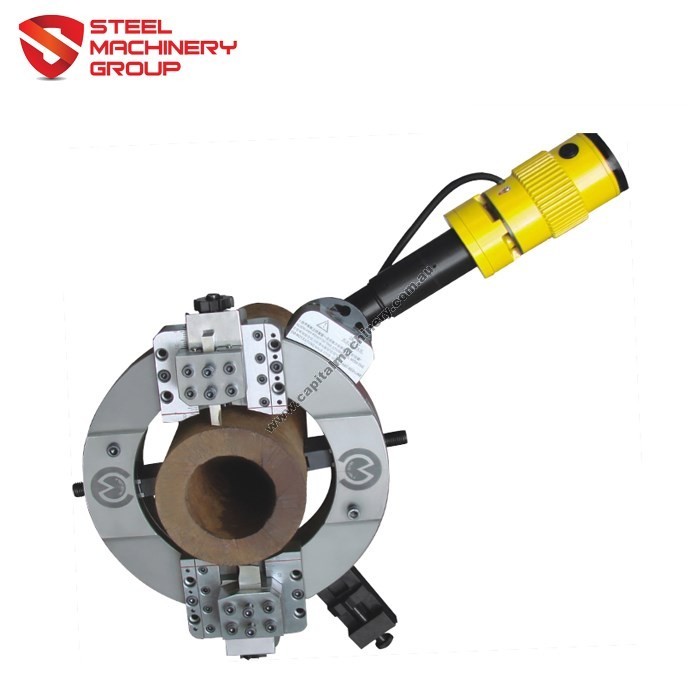

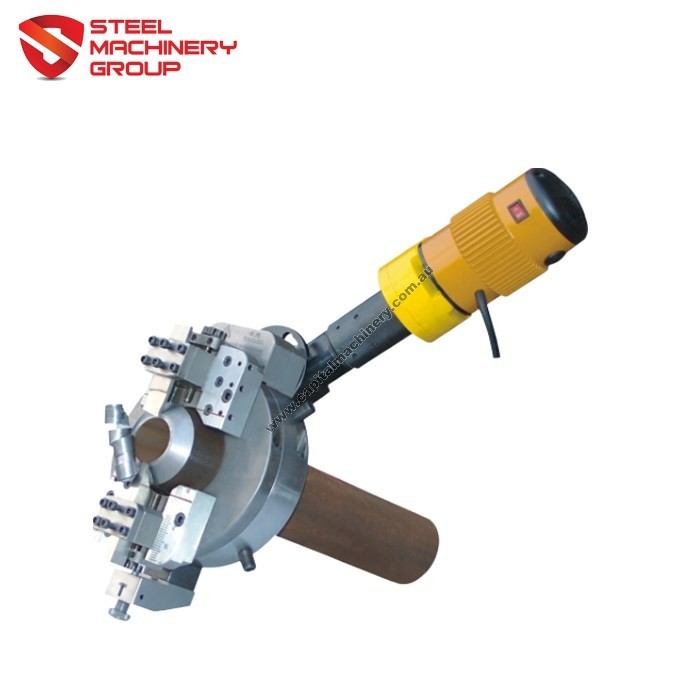

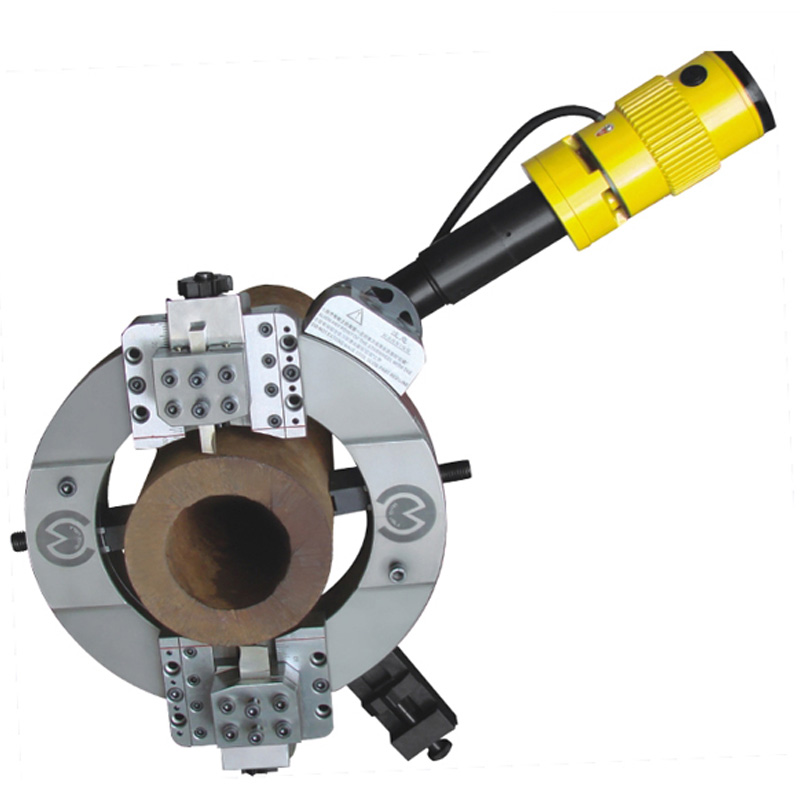

This series is portable od-mounted frame type pipe cold cutting and beveling machine with advantages of lightweight, minimal radial space, easy operation and so on. Split frame design can separate mount the od of the in-line pipe for strong and stable clamping to process cutting and beveling simultaneously.
Specifications
Power Supply: 220-240v 1 ph 50-60 HZ
Motor Power: 1.5-2KW
Model No. | Working Range | Wall Thickness | Rotation Speed | |
SMG-89-OCE | φ 25-89 | 3/4‘’-3‘’ | ≤35mm | 42 r/min |
SMG-168-OCE | φ50-168 | 2‘’-6‘’ | ≤35mm | 18 r/min |
SMG-230-OCE | φ80-230 | 3‘’-8‘’ | ≤35mm | 15 r/min |
SMG-275-OCE | φ125-275 | 5‘’-10‘’ | ≤35mm | 14 r/min |
SMG-305-OCE | φ150-305 | 6‘’-10‘’ | ≤35mm | 13 r/min |
SMG-325-OCE | φ168-325 | 6‘’-12‘’ | ≤35mm | 13 r/min |
SMG-377-OCE | φ219-377 | 8‘’-14‘’ | ≤35mm | 12 r/min |
SMG-426-OCE | φ273-426 | 10‘’-16‘’ | ≤35mm | 12 r/min |
SMG-457-OCE | φ300-457 | 12‘’-18‘’ | ≤35mm | 12 r/min |
SMG-508-OCE | φ355-508 | 14‘’-20‘’ | ≤35mm | 12 r/min |
SMG-560-OCE | φ400-560 | 16‘’-22‘’ | ≤35mm | 12 r/min |
SMG-610-OCE | φ457-610 | 18‘’-24‘’ | ≤35mm | 11 r/min |
SMG-630-OCE | φ480-630 | 20‘’-24‘’ | ≤35mm | 11 r/min |
SMG-660-OCE | φ508-660 | 20‘’-26‘’ | ≤35mm | 11 r/min |
SMG-715-OCE | φ560-715 | 22‘’-28‘’ | ≤35mm | 11 r/min |
SMG-762-OCE | φ600-762 | 24‘’-30‘’ | ≤35mm | 11 r/min |
SMG-830-OCE | φ660-813 | 26‘’-32‘’ | ≤35mm | 10 r/min |
SMG-914-OCE | φ762-914 | 30‘’-36‘’ | ≤35mm | 10 r/min |
SMG-1066-OCE | φ914-1066 | 36‘’-42‘’ | ≤35mm | 10 r/min |
SMG-1230-OCE | φ1066-1230 | 42‘’-48‘’ | ≤35mm | 10 r/min |
Note: Standard machine packaging including :
- 2 pcs cutter
- 2 pcs of bevel tool
- Tools
- Operation Manual
Features
- Low axial and radial clearance lightweight suitable for working at a narrow and complicated site
- Split frame design can separate to 2 half, easy to process when two ends not open
- This machine can process cold cutting and beveling simultaneously
- With an option for electric, Pneumatic, Hydraulic, CNC based on site condition
- Tool feed automatically with Low noise, long life and stable performance
- Cold working without Spark, will not affect the pipe material
- Can process different pipe material: Carbon steel, stainless steel, alloys etc.
