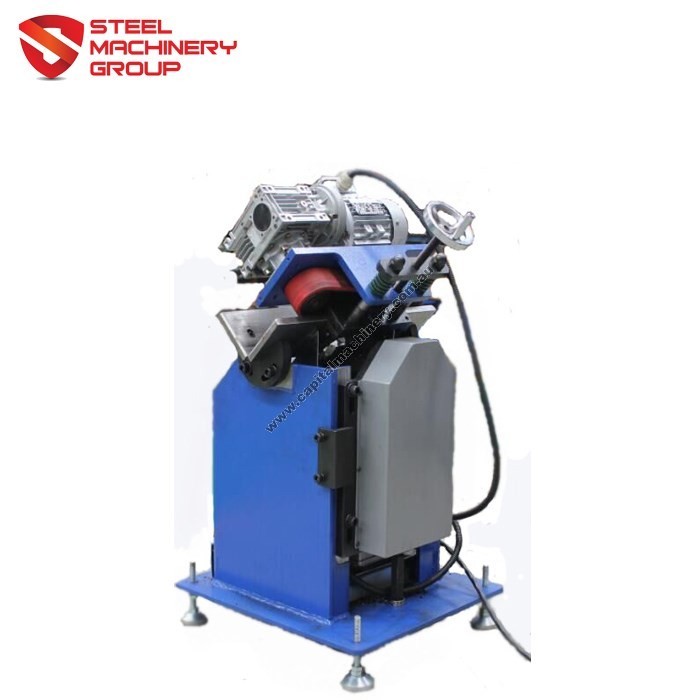

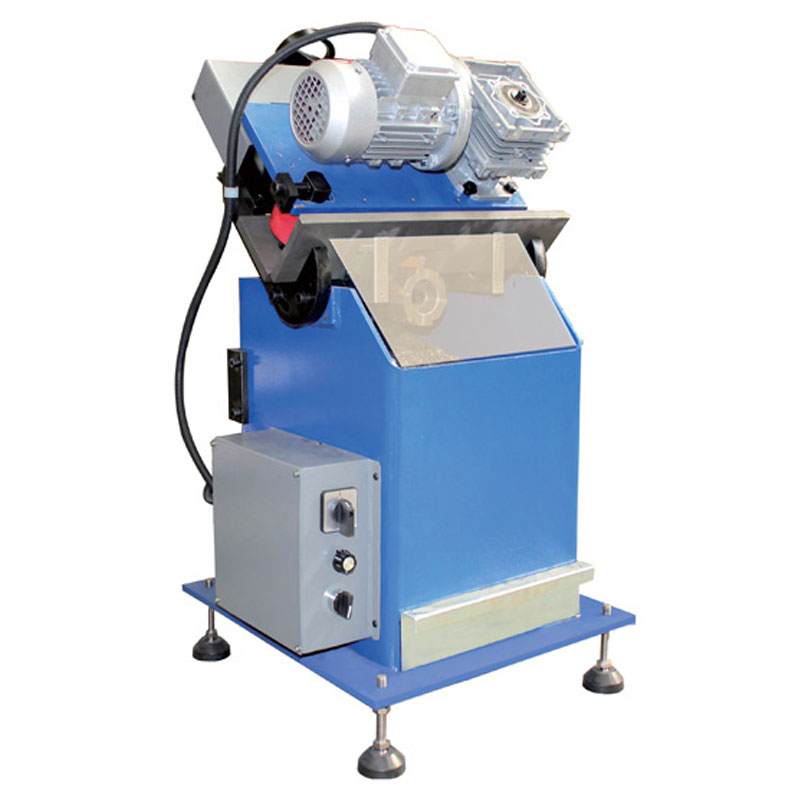

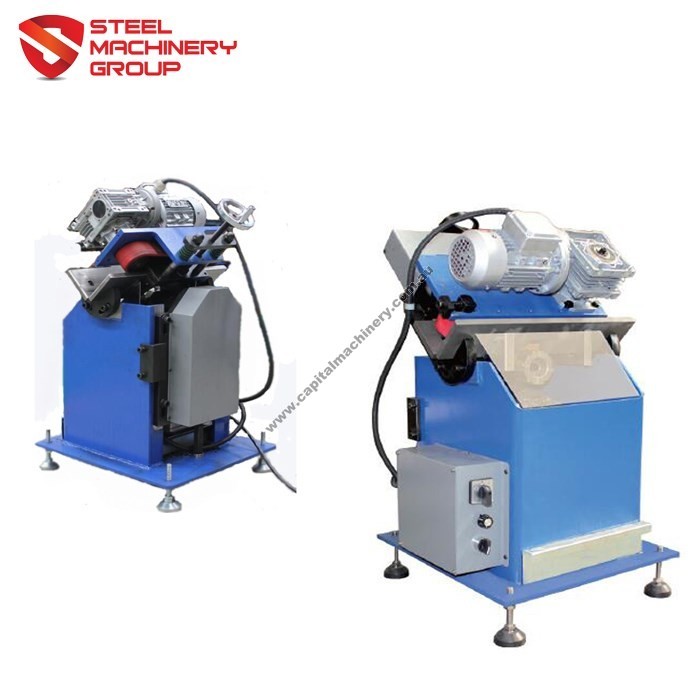

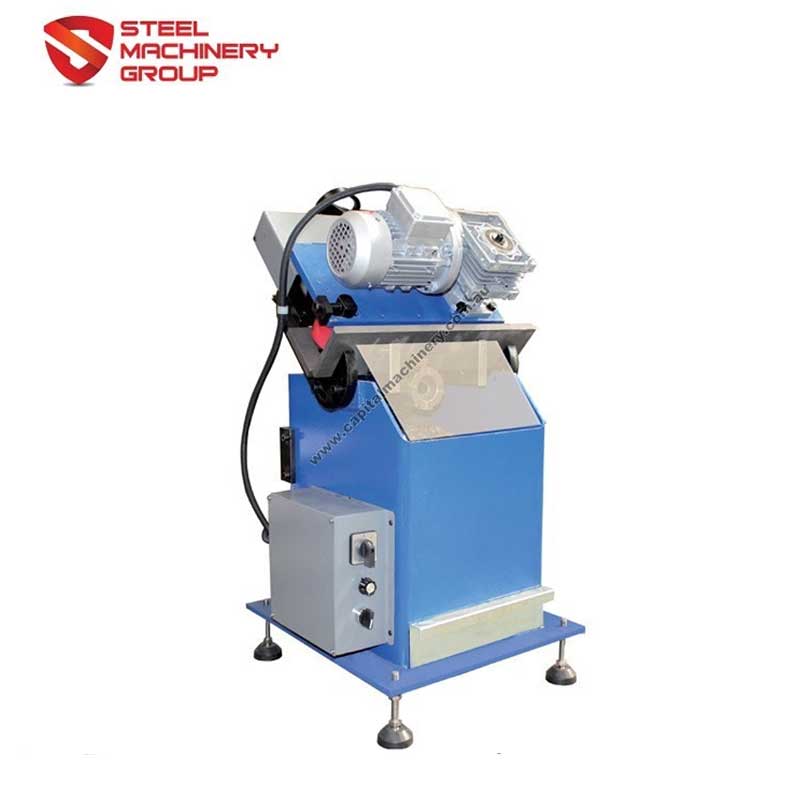

SMG-20T-GMMA Table Type Beveling Machine for Small Plates

$5,799.00

  • AUD: A$8,804.10
  • GBP: £5,022.11
  • EUR: €5,797.90
  • JPY: ¥784,025
  • CNY: ¥40,993.13

In stock

Get the best deals for Beveling Machine here at Capital Machinery. We are committed in providing you quality products at very competitive prices online. The SMG-20T-GMMA Table Type Beveling Machine for Small Plates is able to provide efficient and precise performance in terms of welding and bevel joint processing. It is able to work with a wide range of plate thickness up to 4-100mm, a bevel angle of 0-90 degrees and customized machines for better options.

  Chat Now
SKU: BEVELING-SMG-20T-GMMA Categories: , Brand:

$5,799.00

  • AUD: A$8,804.10
  • GBP: £5,022.11
  • EUR: €5,797.90
  • JPY: ¥784,025
  • CNY: ¥40,993.13

Description

The SMG-20T-GMMA is a table type Milling machine designed specifically for small plates beveling and milling for weld preparation. This machine offers a wide working range of clamp thickness 3-30mm, bevel angle of 25-80 degree adjustable. With high speed and precious at Ra 3.2-6.3, you can expect easy operation and stable performance every single time.

Two processing ways:
  • Model 1: Cutter catches the steel and leads into the machine to complete the job while processing small steel plates.
  • Model 2: Machine will travel along the edge of steel and complete job while processing large steel plates.

Specifications

Model No. SMG20T
Power Supply AC 415V 50HZ
Total Power 1620W
Spindle Speed 1050r/min
Feed Speed 1000mm/min
Clamp Thickness 3-30mm
Clamp Width >15mm
Process Length >50mm
Bevel angel 25-80 degree adjustable
Single Bevel Width 0-12mm
Bevel Width 0-30mm
Cutter Plate 80mm
Cutter QTY 9PCS
Worktable Height 580mm
Travel Space 450*100mm
Weight N.W 155KGS G.W 185KGS
Packaging Size 600*600*1100mm

Note: Standard Machine includes:

  • 1pc cutter head
  • 2 set of Inserts
  • Tools in case
  • Manual Operation
Features
  1. Available for metal plate Carbon steel, stainless steel, aluminium etc
  2. Can process “V”,”Y”, 0 degree milling, vary type of bevel joint
  3. Milling Type with High Previous can reach Ra 3.2-6.3 for surface
  4. Cold Cutting, energy saving and Low Noise, More safe and environmental with OL protection
  5. Wide working range with Clamp thickness 3-30mm and bevel angel 25-80 degree adjustable
  6. Easy Operation and high efficiency

Specification

Additional information

Weight 155 kg
Condition

New
