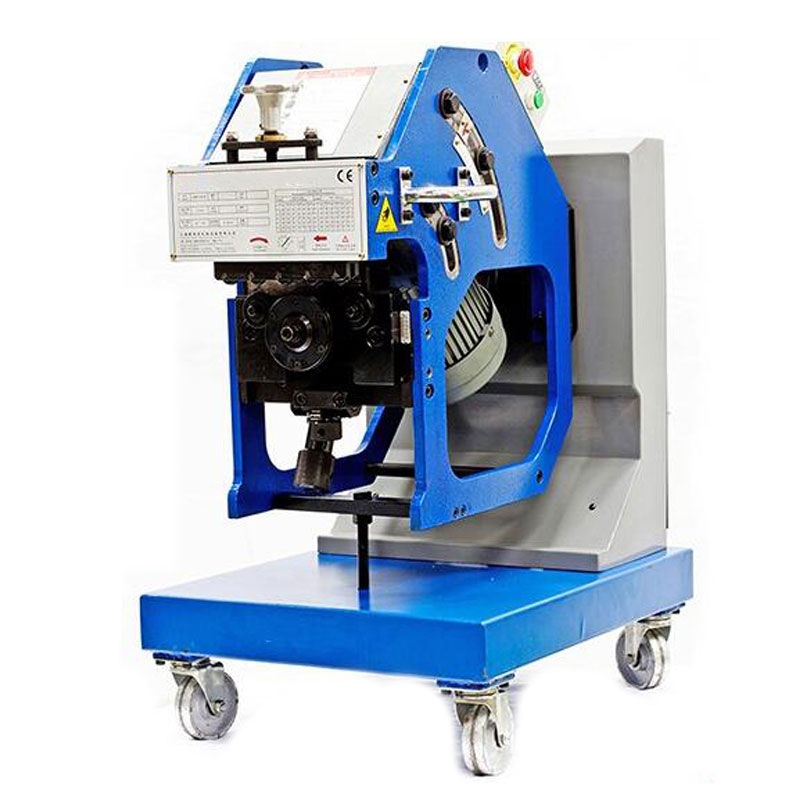

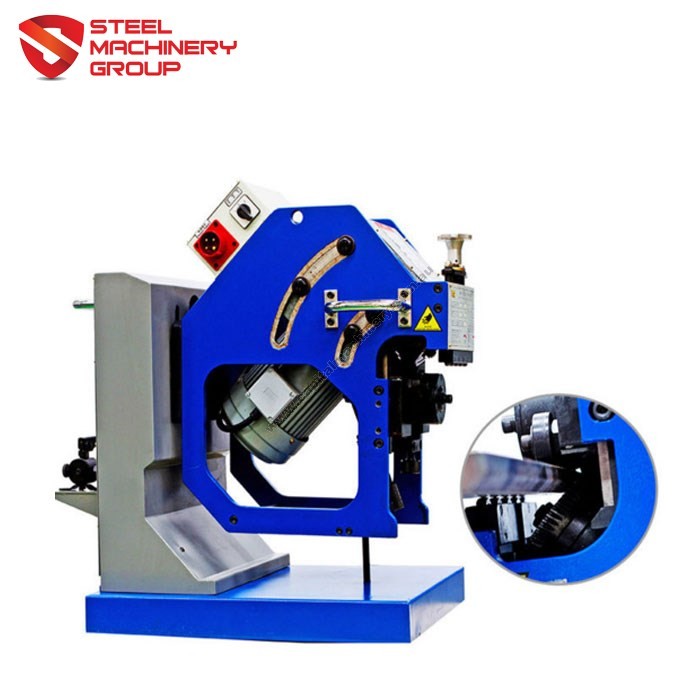

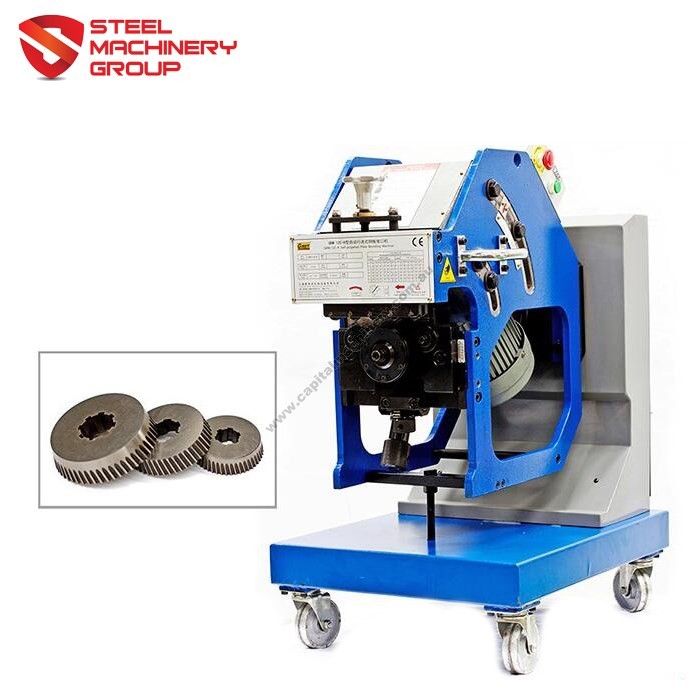

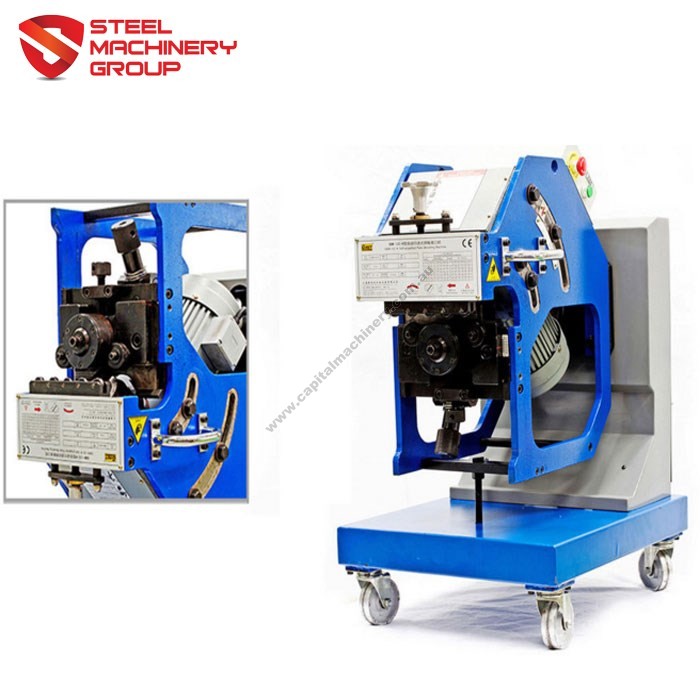

SMG-16D-R-GBM Double Side Bevel Cutting Machine

$16,454.00

  • AUD: A$24,960.55
  • GBP: £14,244.56
  • EUR: €16,455.65
  • JPY: ¥2,227,181
  • CNY: ¥116,698.35

In stock

SMG-16D-R-GBM Double Side Bevel Cutting Machine works well with different plate specification. It is designed to provide accurate and high-quality results in terms of weld preparations. Take advantage of our top-quality beveling machines here at Capital Machinery. Our products are built to provide easy-processing with high-speed finishing.

  Chat Now
SKU: BEVELING-SMG-16D-R-GMMA Categories: , Brand:

$16,454.00

  • AUD: A$24,960.55
  • GBP: £14,244.56
  • EUR: €16,455.65
  • JPY: ¥2,227,181
  • CNY: ¥116,698.35

Description

SMG 16D-R-GBM This Double Side Bevel Cutting Machine is widely used in the construction industry for weld preparation. It comes with a turntable option for double side beveling. Clamp thickness 9-40mm and bevel angle range of 25-45degree, offering you a highly adjustable with high efficiency processing performance of 1.2-1.6meters per min. Maximum bevel width can be set to reach 28mm, which is ideal for heavy duty plates.

Two processing ways:

  • Model 1: Cutter catches the steel and leads into the machine to complete the job while processing small steel plates.
  • Model 2: Machine will travel along the edge of steel and complete the job while processing large steel plates.

Specifications

Model No. SMG-16D-R-GBM Double Side Bevel Cutting Machine
Power Supply AC 415V 50HZ
Total Power 1500W
Motor Speed 1450r/min
Feed Speed 1.2-1.6metesr/min
Clamp Thickness 9-40mm
Clamp Width >115mm
Process Length >100mm
Bevel angel 25-45 degree as customer’s requirement
Single Bevel Width 16mm
Bevel Width 0 – 28mm
Cutter Plate φ 115mm
Cutter QTY 1 PC
Worktable Height 700mm
Travel Space 800*800mm
Weight N.W 212KGS G.W 365KGS
Weight for Turntable option SMG-12D-R N.W 315KGS G.W 360KGS

Note: Standard Machine includes:

  • 3 pcs cutter
  • Tools in case
  • Manual Operation

Features

  1. Available for material: Carbon steel, stainless steel, aluminium etc
  2. IE3 Standard motor at 1500w
  3. Hight Efficiency can reach up to 1.2-1.6meter /min
  4. Imported reduction gearbox for cold cutting and non-oxidation
  5. No Scrap Iron Splash, more safe
  6. Max bevel Width can reach up to 28mm
  7. Easy Operation and turnable for double side bevel processing.

Specification

Additional information

Weight 212 kg
Condition

New
