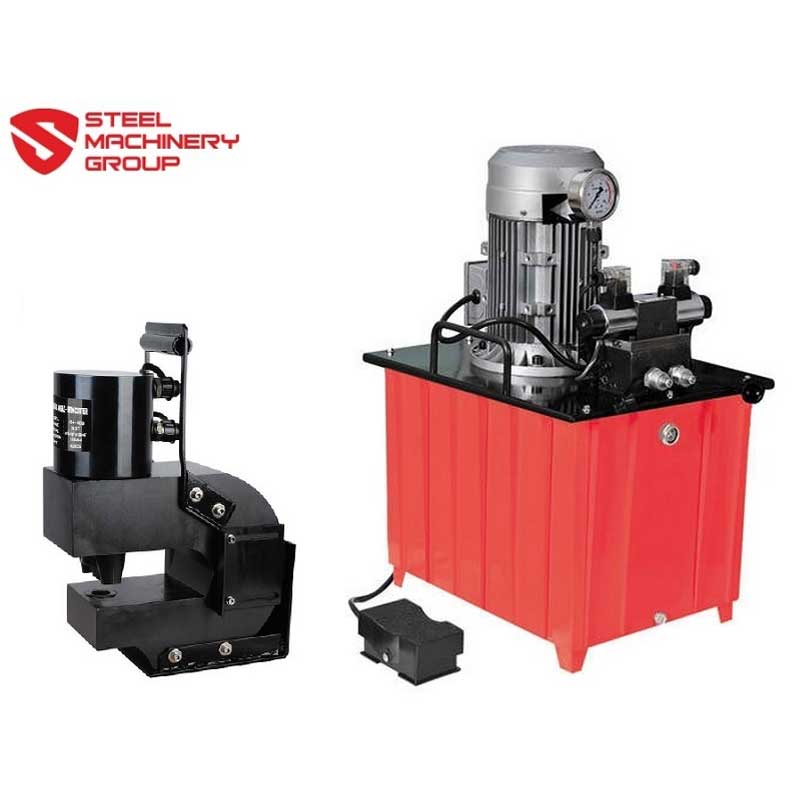

SMG 50 Ton Deep Reach Punch With Hydraulic Pump

$3,766.00

  • AUD: A$5,730.72
  • GBP: £3,251.87
  • EUR: €3,759.97
  • JPY: ¥505,924
  • CNY: ¥26,621.85

In stock

SMG 50 Ton Deep Reach Punch With Hydraulic Pump

  Chat Now
SKU: SMG-BNDL-02 Categories: , Brand:

$3,766.00

  • AUD: A$5,730.72
  • GBP: £3,251.87
  • EUR: €3,759.97
  • JPY: ¥505,924
  • CNY: ¥26,621.85

Description

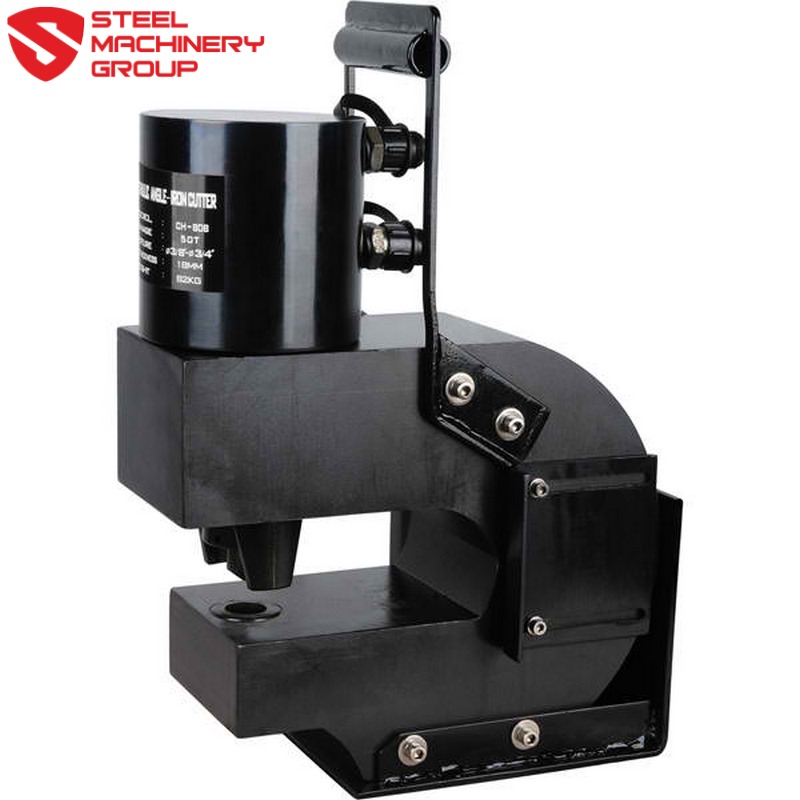

Hydraulic Puch

Features

  1. Suitable for punching holes on L and H shape Iron plate, Copper and Aluminum Busbars.
  2. Flat pedestal ensures steadiness in operation.
  3. Punch dies are made of high carbon tungsten steel for longer work life.

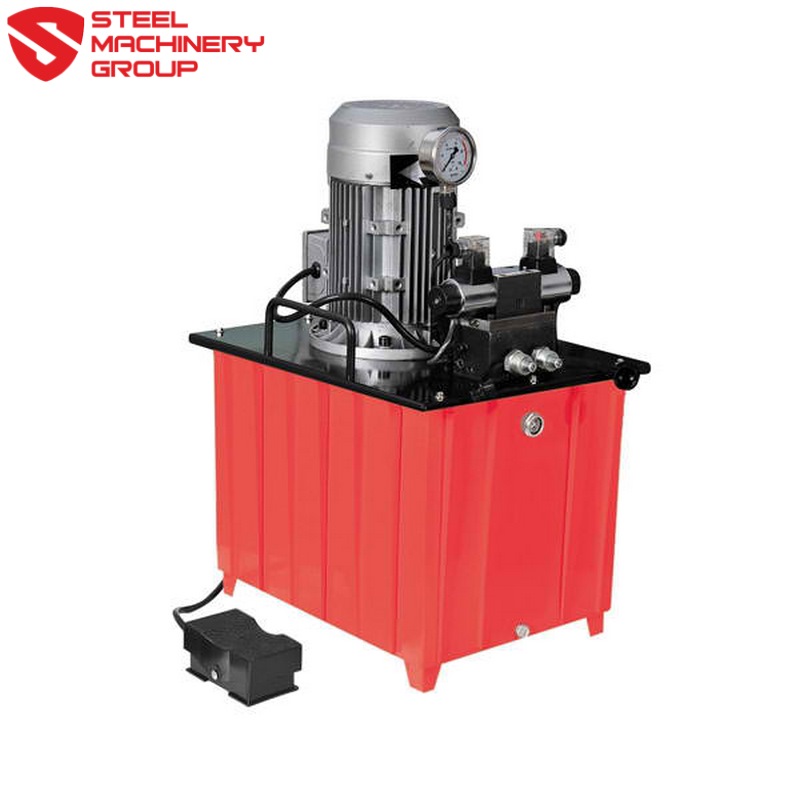

Hydraulic Pump

Features

  1. Electromagnetic valve control allows you to withdraw piston from any position.
  2. High and low 2-way speed for quick oil output.
  3. The pressure safety valve automatically releases pressure at 700kg/cm to prevent over pressure damage.
  4. High pressure is for driving piston and low pressure is for piston reset (CTE-25AD).
  5. Oil pipe fitted with quick coupling, which could be ordered at any length.
  6. Oil Pipe coupling fitted with PT3/8″ thread.

Specifications

MODEL SMG 50 Ton Deep Reach Punch With Hydraulic Pump
HYDRAULIC PUNCH
CAPACITY (ton) 50
APERTURE (in) Ø16 – Ø20
MAXIMUM THICKNESS (mm) Iron Steel – 18 Copper Busbar – 22
REACH (mm) 140
HYDRAULIC PUMP
WORKING PRESSURE (MPa) 63
CURRENT (L/min) 1.6
VOLTAGE (vac) 240 or 415
POWER (kw) 1.5 – 2.2
OIL CAPACITY (L) 36
WEIGHT (kg) 132
DIMENSIONS (mm) Punch – 380 x 220 x 440 Pump – 470 x 370 x 630

Specification

Additional information

Weight 92 kg
Condition

New
