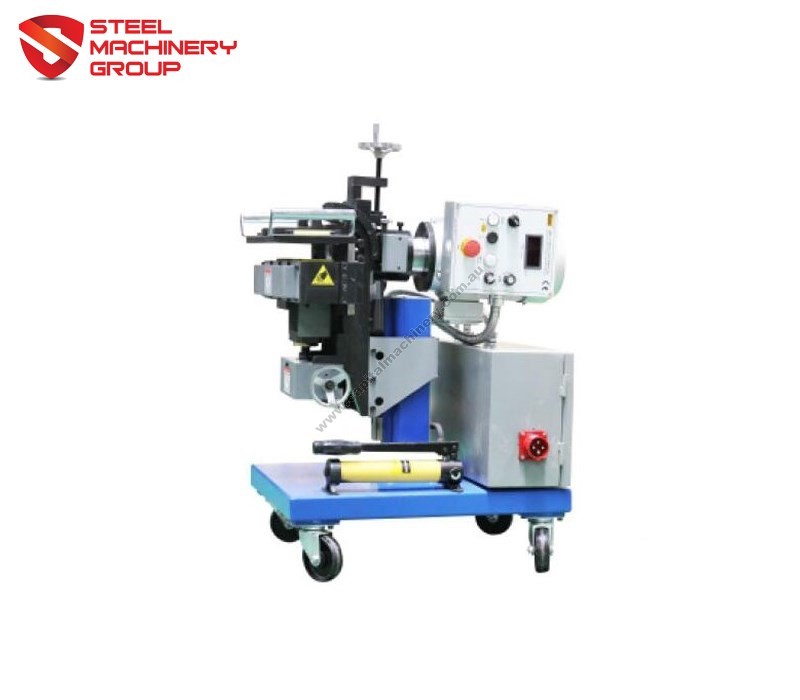

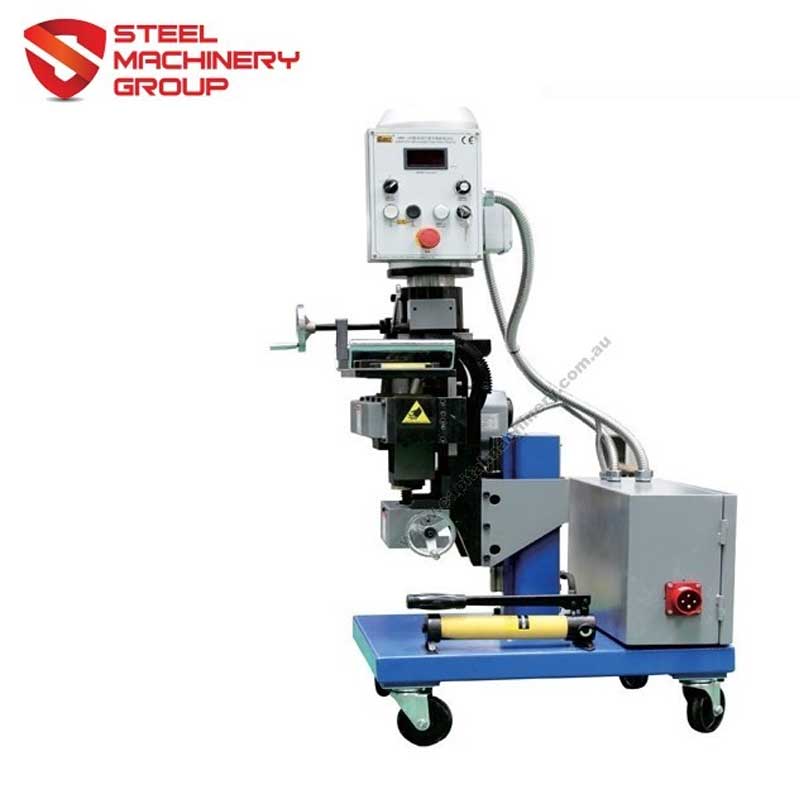

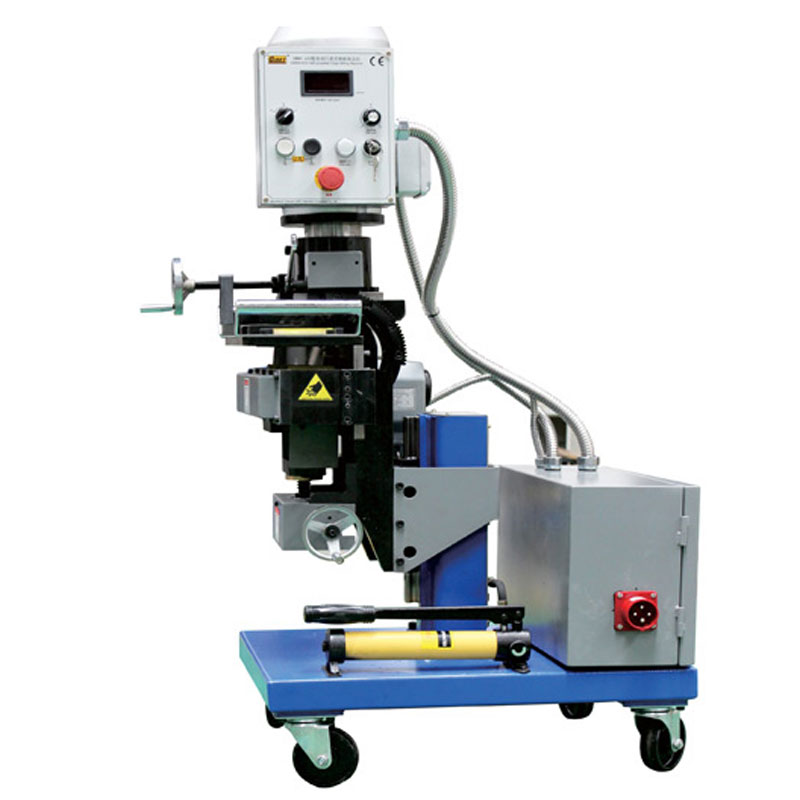

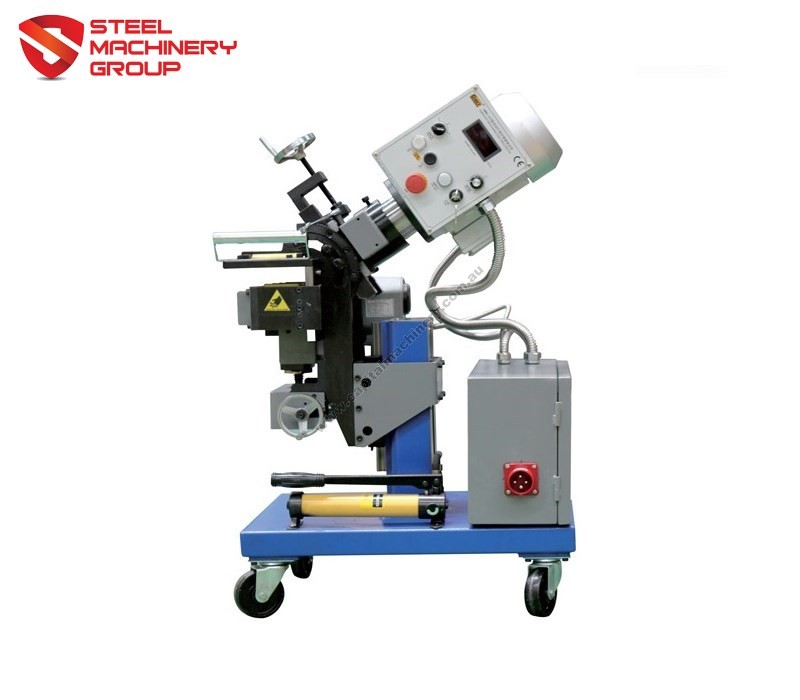

SMG Rapid-Edge 60M Milling Type Plate Beveling Machine
SMG Rapid-Edge 60M Milling Type Plate Beveling Machine works well on a wide range of plates with a thickness of 4-100mm and bevel angle of 0-90 degree, and customized machines for the option. It is able to provide efficient and high-quality results in terms of welding bevel and joint processing. Capital Machinery offers cost-effective, low noise, top-quality beveling machines. We are committed to bring you the finest products to help you with your steel fabrication processing.
Description
SMG Rapid-Edge 60M Milling Type Plate Beveling Machine with working range of Clamp thickness 6-60mm, bevel angel 0-90 degree adjustable on metal plate edge beveling & milling for weld preparation. With advantages of high speed and high finishing surface Ra 3.2-6.3, easy processing and adjustable on a wide working range. One machine can handle most bevel requirements.
Two processing ways:
Model 1: Cutter catches the steel and leads into the machine to complete the job while processing small steel plates. Model 2: Machine will travel along the edge of steel and complete job while processing large steel plates.
Specifications
| Model No. | SMG Rapid-Edge 60M Milling Type Plate Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 3400W |
| Spindle Speed | 1050r/min |
| Feed Speed | 0-1500mm/min |
| Clamp Thickness | 6-60mm |
| Clamp Width | ＞80mm |
| Process Length | ＞300mm |
| Bevel angel | 0-90 degree adjustable |
| Single Bevel Width | 10-20mm |
| Bevel Width | 0-55mm |
| Cutter Plate | 63mm |
| Cutter QTY | 5PCS |
| Worktable Height | 700-760mm |
| Travel Space | 800*800mm |
| Weight | N.W 195KGS G.W 235KGS |
| Packaging Size | 800*690*1140mm |
Note: Standard Machine includes:
- 1pc cutter head
- 2 set of Inserts
- Tools in case
- Manual Operation
Features
- 1. Available for metal plate Carbon steel, stainless steel, aluminium etc
- 2. Can process “V”,”Y”,”U”,”J” Vertical and horizontal vary type of bevel joint
- 3. Milling Type with High Previous can reach Ra 3.2-6.3 for surface
- 4.Cold Cutting, energy saving and Low Noise, More safe and environmental
- 5. Wide working range with Clamp thickness 6-60mm and bevel angel 0-90 degree adjustable
- 6. Easy Operation and high efficiency
Specification
Additional information
| Weight | 195 kg |
|---|---|
| Condition | New |
