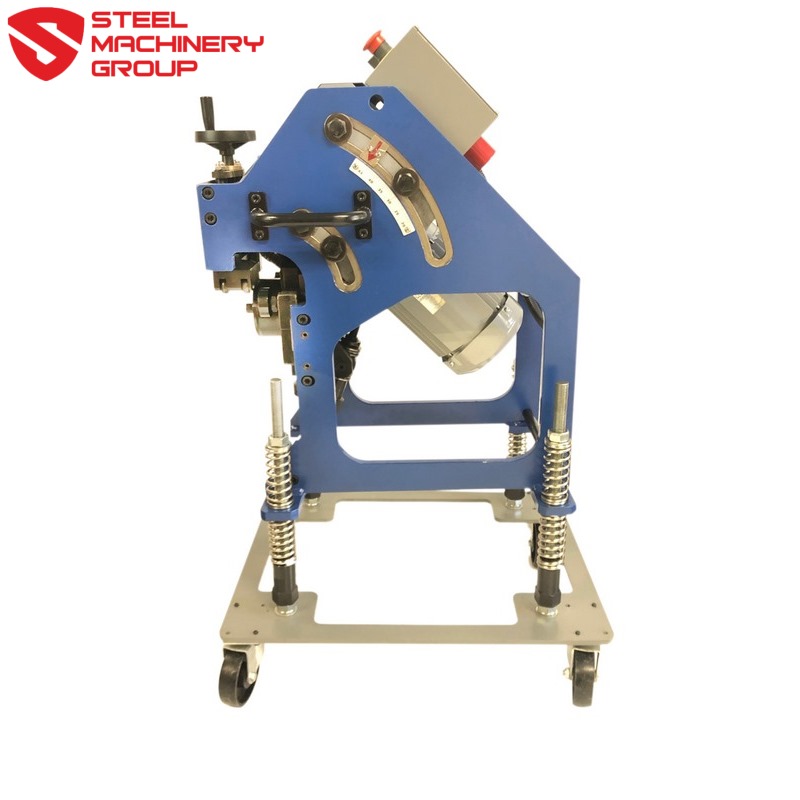

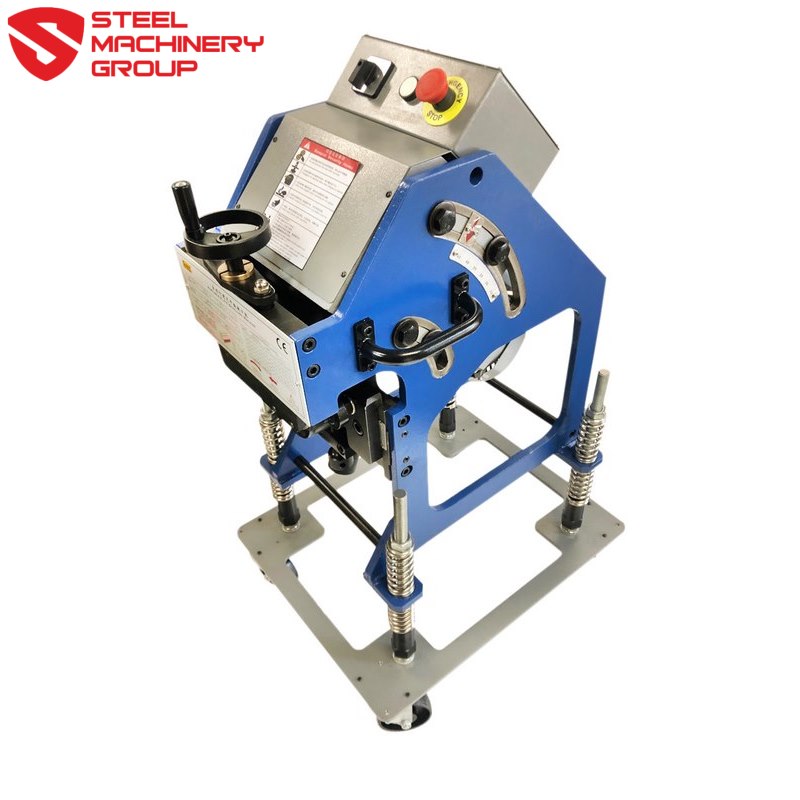

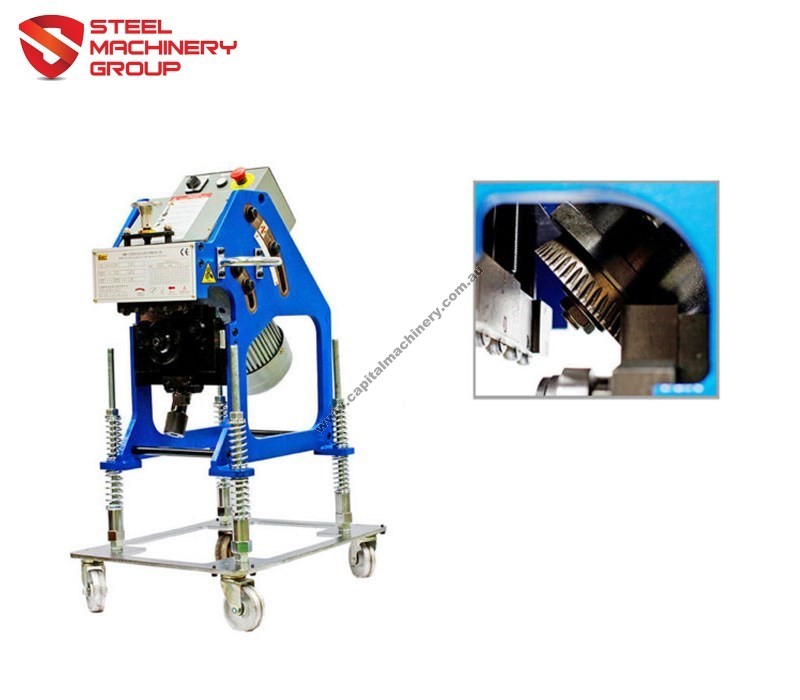

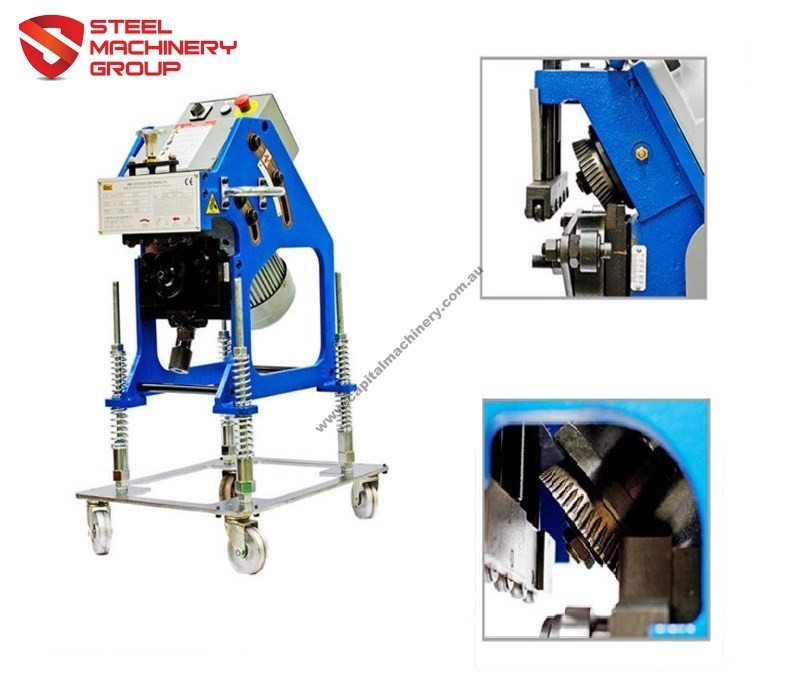

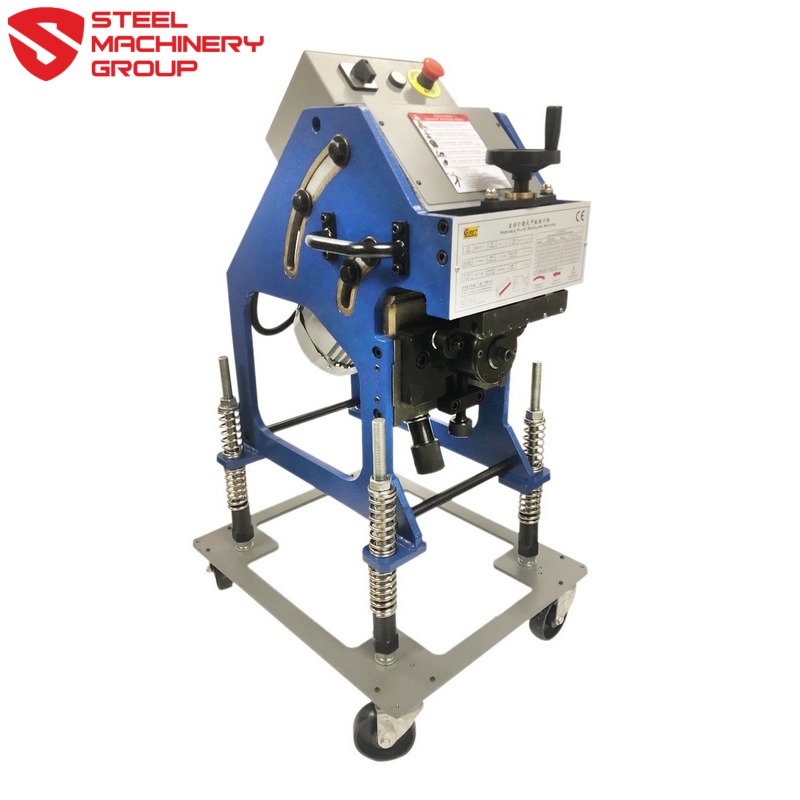

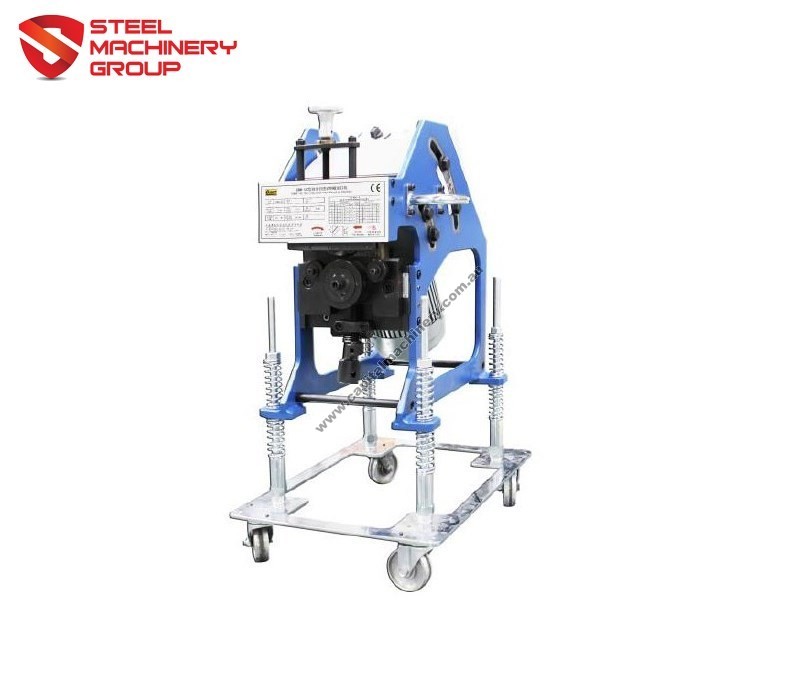

SMG 12D – GBM Plate Beveling Machine

£6,157.84

  • USD: $7,488.60
  • AUD: A$11,472.25
  • EUR: €7,046.42
  • JPY: ¥1,052,669
  • CNY: ¥52,463.70

In stock

SMG-12D-GBM A high-efficiency steel plate beveling machine widely used in the construction industry for ideal weld preparations.

With a clamping thickness 6 – 30 mm and adjustable bevelling angle range of 25 – 45 degrees.

Efficient processing speeds of 1.5 – 2.6 meters per min.

Single bevel pass width of up to 16mm, Designed for use with heavy steel plates.

  Chat Now
SKU: BEVELING-SMG-12D-GBM Categories: , Brand:

£6,157.84

  • USD: $7,488.60
  • AUD: A$11,472.25
  • EUR: €7,046.42
  • JPY: ¥1,052,669
  • CNY: ¥52,463.70

Description

SMG-12D-GBM High-Efficiency Metal Plate Beveling Machine widely used in construction industry for weld preparation.Clamp thickness 6-30mm and bevel angle range 25-45degree adjustable with high efficiency at processing 1.5-2.6meters per min. It helps a lot in saving labours.

Two processing ways:

  • Model 1: Cuttcatchestch the steel and lead into the machine to complete the job while processing small steel plates.
  • Model 2: Machine will travel along the edge of steel and complete the job while processing large steel plates.

Specifications

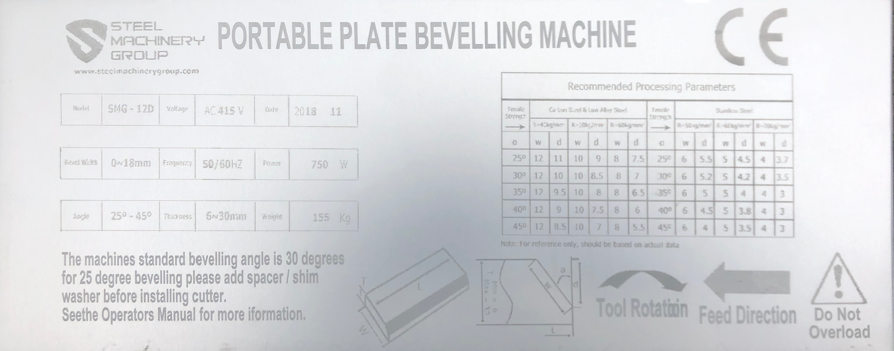

Model No. SMG-12D-GBM Metal Plate Beveling Machine
Power Supply AC 415V 50HZ

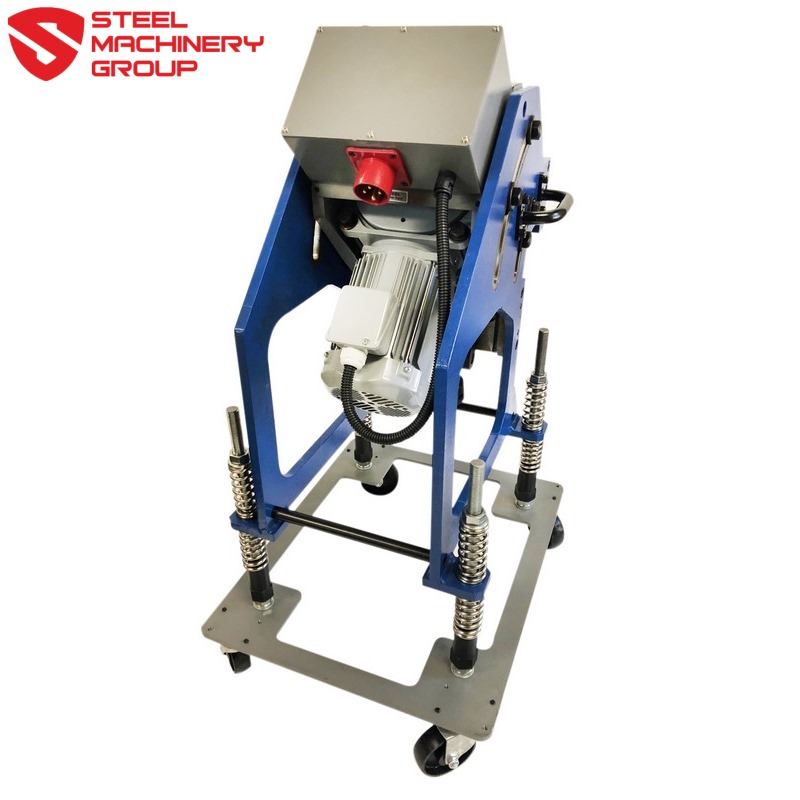

Total Power 1500W
Motor Speed 1450r/min
Feed Speed 1.5-2.6metesr/min
Clamp Thickness 6-30mm
Clamp Width >75mm
Process Length >70mm

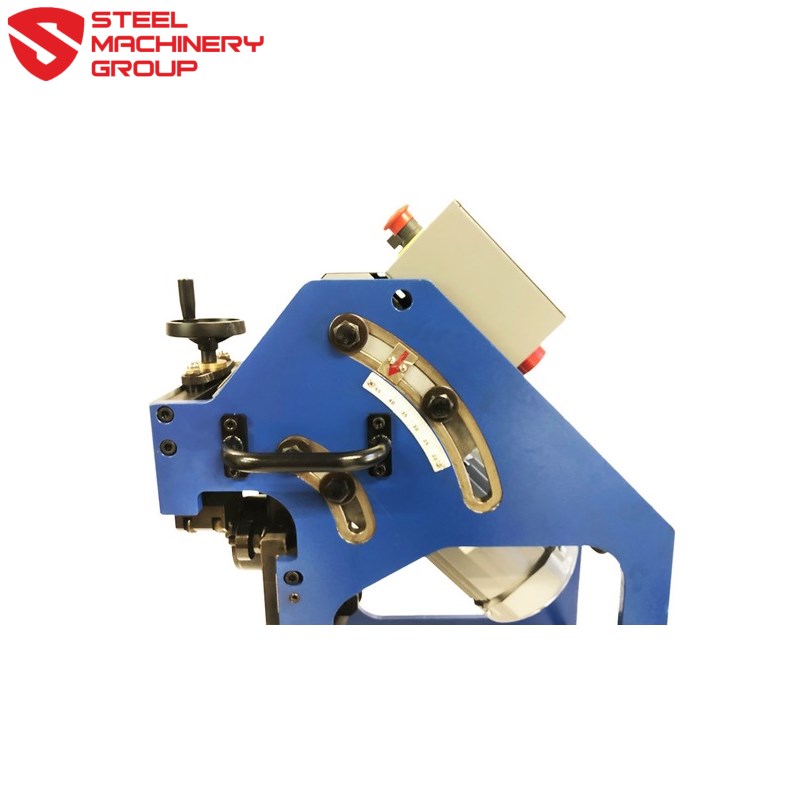

Bevel Angle 25-45 degree as customer’s requirement
Single Bevel Width 12mm
Bevel Width 0 – 18mm

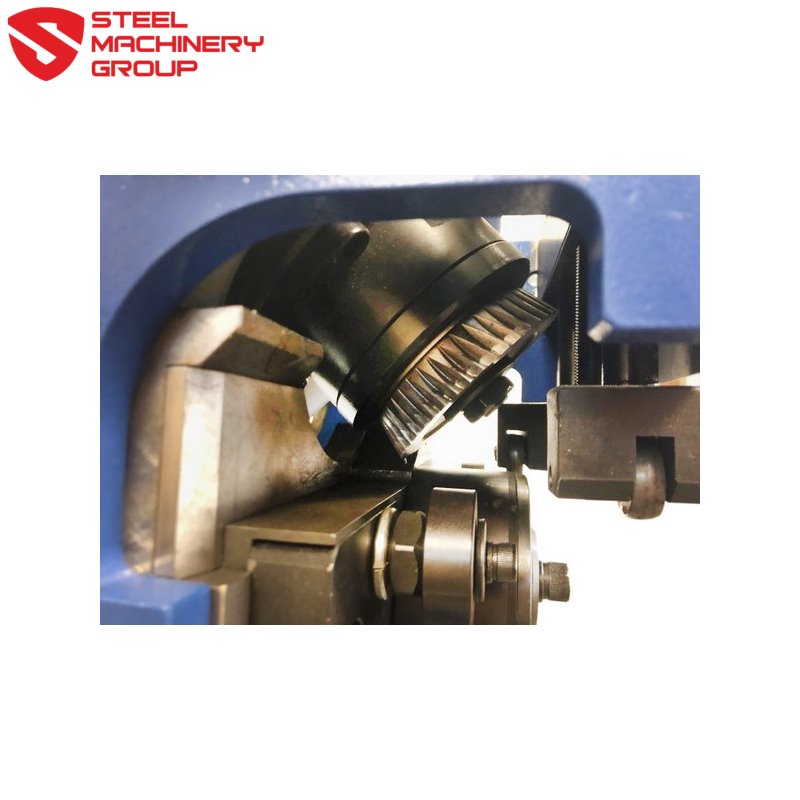

Cutter Plate φ 93mm
Cutter QTY 1 PC
Worktable Height 700mm
Travel Space 800*800mm
Weight N.W 155KGS G.W 195KGS

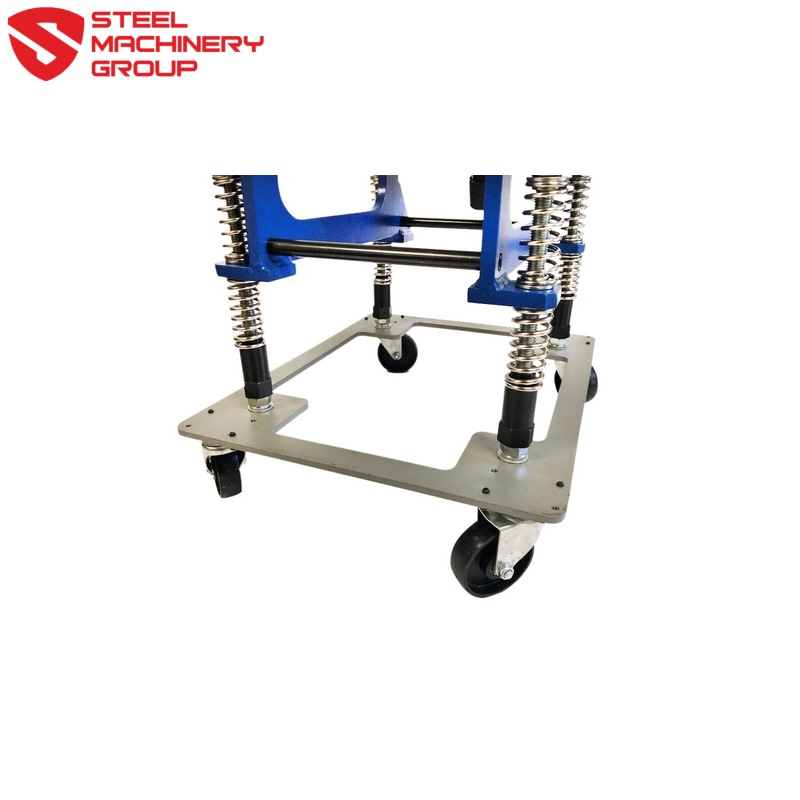

Weight with Car N.W 236KGS G.W 285KGS

Note: Standard Machine includes:

  • 3 pcs cutter
  • Tools in case
  • Manual Operation

Features

  1. Available for material: Carbon steel, stainless steel, aluminium etc
  2. IE3 Standard motor at 400w
  3. Hight Efficiency can reach up to 1.5 – 2.6 meter /min
  4. Imported reduction gearbox for cold cutting and non-oxidation
  5. No Scrap Iron Splash, more safer
  6. Max bevel Width can reach up to 18mm

Attachments (PDF)


Specification

Additional information

Weight 155 kg
Condition

New
