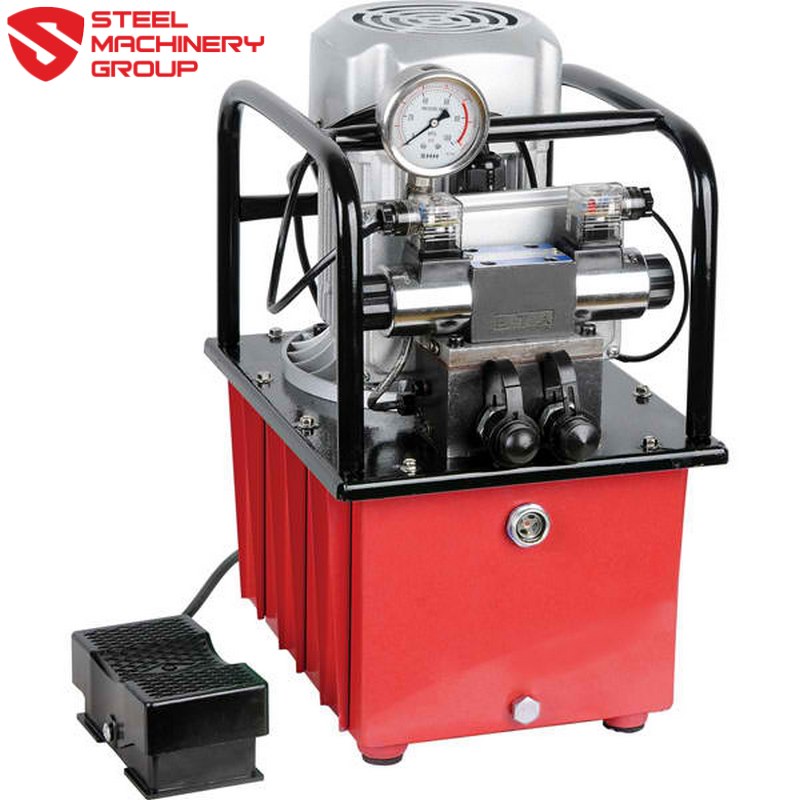

SMG ZCB-65B Electric Oil Pump
$1,052.00
- AUD: A$1,626.09
- GBP: £906.65
- EUR: €1,022.65
- JPY: ¥139,727
- CNY: ¥7,296.36
SMG ZCB-65B Electric Oil Pump
Description
Features
- Electromagnetic valve control allows you to withdraw piston from any position.
- High and low 2-way speed for quick oil output.
- The pressure safety valve automatically releases pressure at 700kg/cm to prevent over pressure damage.
- High pressure is for driving piston and low pressure is for piston reset (CTE-25AD).
- Oil pipe fitted with quick coupling, which could be ordered at any length.
- Oil Pipe coupling fitted with PT3/8″ thread.
Specifications
| MODEL | WORKING PRESSURE (MPa) |
CURRENT (L/min) |
VOLTAGE (vac) |
POWER (kw) |
OIL CAPACITY (L) |
WEIGHT (kg) |
DIMENSIONS (mm) |
| SMG ZCB-65B | 63 | 0.6 | 240 or 415 | 0.75 | 8 | 24 | 270 x 290 x 490 |
Specification
Additional information
| Weight | 28 kg |
|---|---|
| Condition | New |
