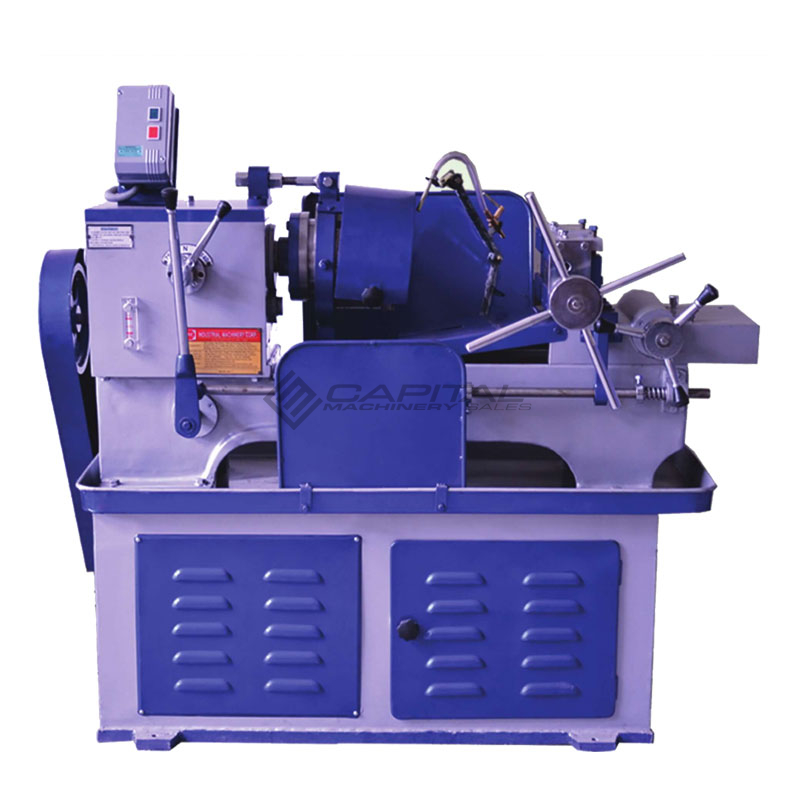

SMG 6 – 25 Bed Type Rebar Bar Threading Machine (1/4 – 1″)

In stock

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times.

A wide range of Tangential Die Chasers are available for:

BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.

  Chat Now
SKU: SMG-6-25BT Categories: , Brand:

Description

SMG 6 – 25 Bed Type Bar Threading Machine (1/4 – 1″) Video Demo

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times.

A wide range of Tangential Die Chasers are available for: BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.

  • Robust headstock fitted with case hardened gears and oversized spindle bearings.
  • Hard chrome plated pillar type slideways
  • Hardened heat-treated vice jaws
  • High-Speed Steel Tangential Die Chasers
  • Recirculating lubrication system
  • 2 Speed spindle

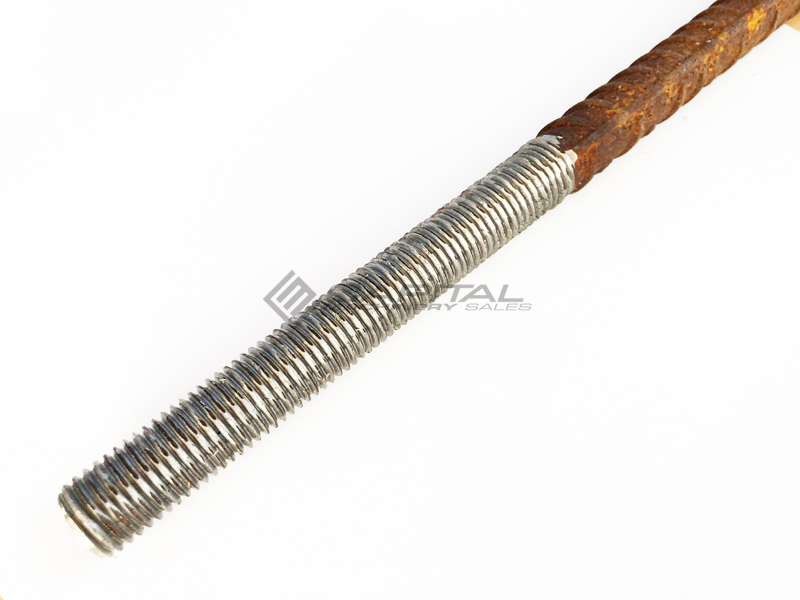

Steel Bar Threading Machine Die Heads Available

Diameter 6 – 25mm (1/4 – 1″)

Metric & Imperial Thread Pitches

Bar Threading Machine Specifications

MODEL 1/4″ TO 1″ (BED TYPE)
Saddle Movement 10″
Spindle Speed Range 75-140
Number of Spindle Speed 2
Threading Capacity 1/4″ to 1″
Production per Hour 60-80
H.P. Required 3 H.P.
Lead Screw Optional
Weight (KG) Approx. 500

Specification

Additional information

Weight 500 kg
Condition

New
