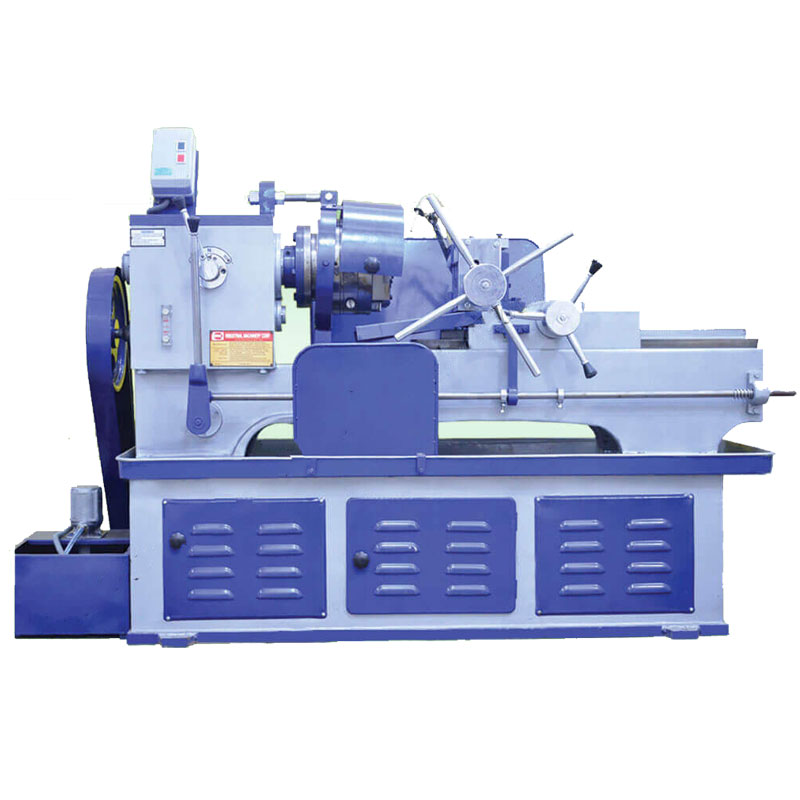

SMG Bolt Threading Machine

In stock

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times. A wide range of Tangential Die Chasers are available for BSW, UNF, METRIC, UNC, ACME Bolt and bar threading. .

  Chat Now
SKU: BLT-TM-1 Categories: , Brand:

Description

SMG Bolt Threading Machinery Demo Video

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times.

A wide range of Tangential Die Chasers are available for:

BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.

  • Robust headstock fitted with case hardened gears and oversized spindle bearings.
  • Hard chrome plated pillar type slideways
  • Hardened heat-treated vice jaws
  • High-Speed Steel Tangential Die Chasers
  • Recirculating lubrication system
  • 2 Speed spindle

Threading Die Heads Available

Diameter 1/4″ to 1″

Diameter 3/8″ to 1.1/2″

Diameter 1/2″ to 2.1/2″

Diameter 1″ to 4″

Bar / Bolt Threading Machine Specification



MODEL 1/4″ TO 1″(BED TYPE) 3/8″ TO 1.1/2″(BED TYPE) 1/2″ TO 2.1/2″(BED TYPE) 1″ TO 4″(PILLAR TYPE)
Saddle Movement 10″ 13″ 22″ 10″ – 12″
Spindle Speed Range 75 – 140 75 – 140 45 – 90 40-75-115
Number of Spindle Speed 2 2 2 3
Diameter Capacity 1/4″ to 1″ 3/8″ to 1.1/2″ 1/2″ to 2.1/2″ 1″ to 4″
Production per Hour 60-80 60-80 70-90 35-40
H.P. Required 3 H.P. 3 H.P. 7.5 H.P. 12.5 H.P. 960
Lead Screw Optional Optional Optional Provided
Weight (KG) Approx. 500 550 990 1600

Specification

Additional information

Condition

New
