SMG 10 – 40 Bed Type Rebar Bar Threading Machine (3/8 – 1 1.2″)

¥86,060.68

  • USD: $12,281.85
  • AUD: A$18,995.23
  • GBP: £10,221.42
  • EUR: €11,715.72
  • JPY: ¥1,749,848

In stock

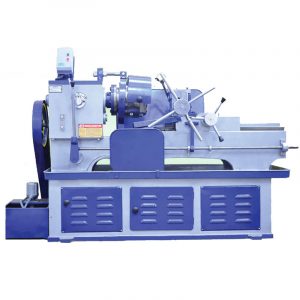

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times.

A wide range of Tangential Die Chasers are available for:

BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.

  Chat Now
SKU: SMG-10-40BT Categories: , Brand:

¥86,060.68

  • USD: $12,281.85
  • AUD: A$18,995.23
  • GBP: £10,221.42
  • EUR: €11,715.72
  • JPY: ¥1,749,848

Description

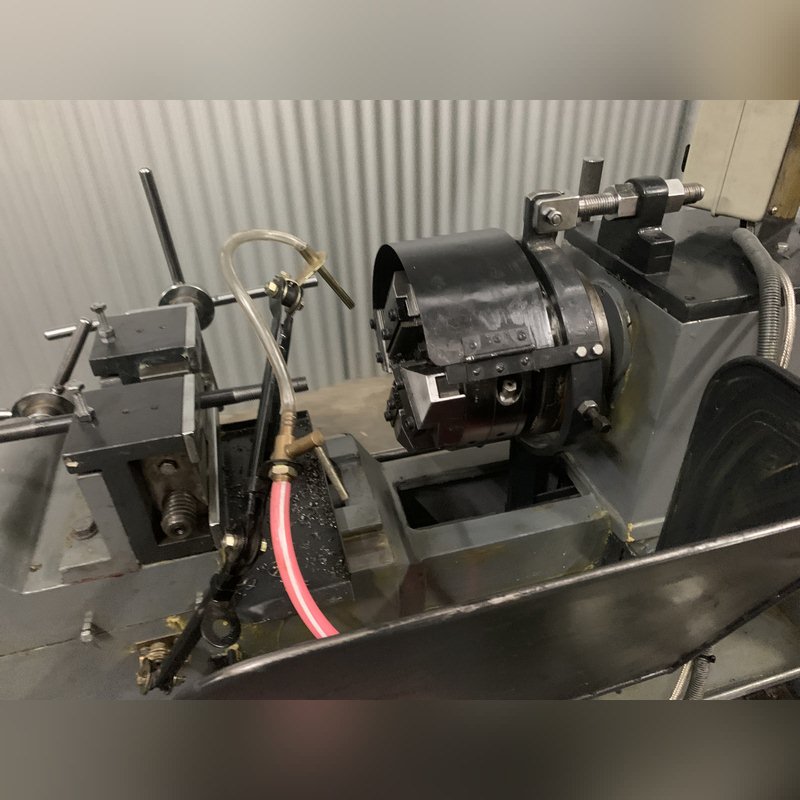

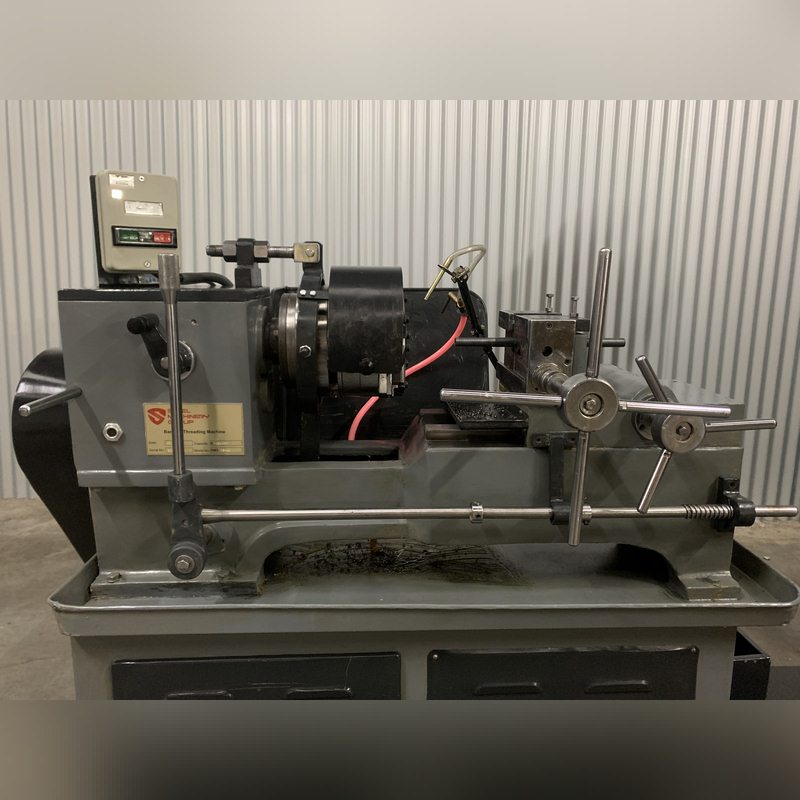

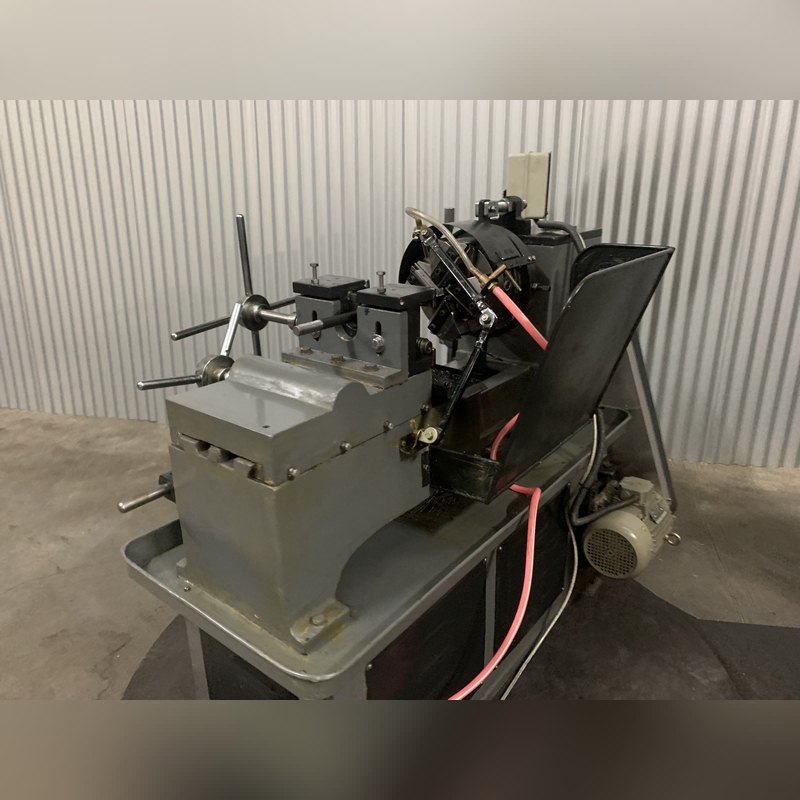

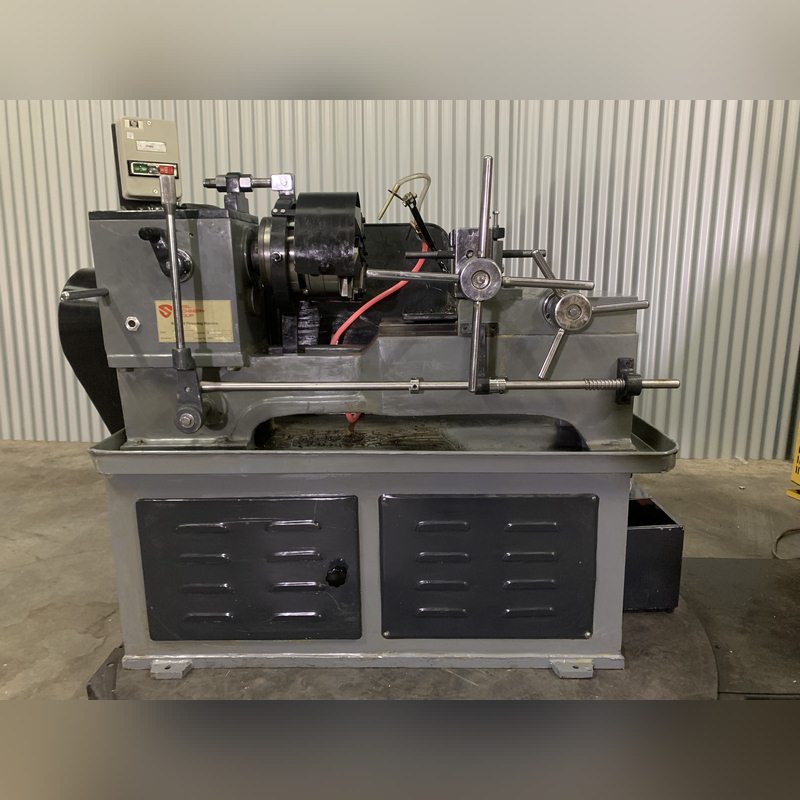

SMG 10 – 40 Bed Type Bar Threading Machine

How to Use SMG 10-40 Bar Threading Machine

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times.

A wide range of Tangential Die Chasers are available for: BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.

  • Robust headstock fitted with case hardened gears and oversized spindle bearings.
  • Hard chrome plated pillar type slideways
  • Hardened heat-treated vice jaws
  • High-Speed Steel Tangential Die Chasers
  • Recirculating lubrication system
  • 2 Speed spindle

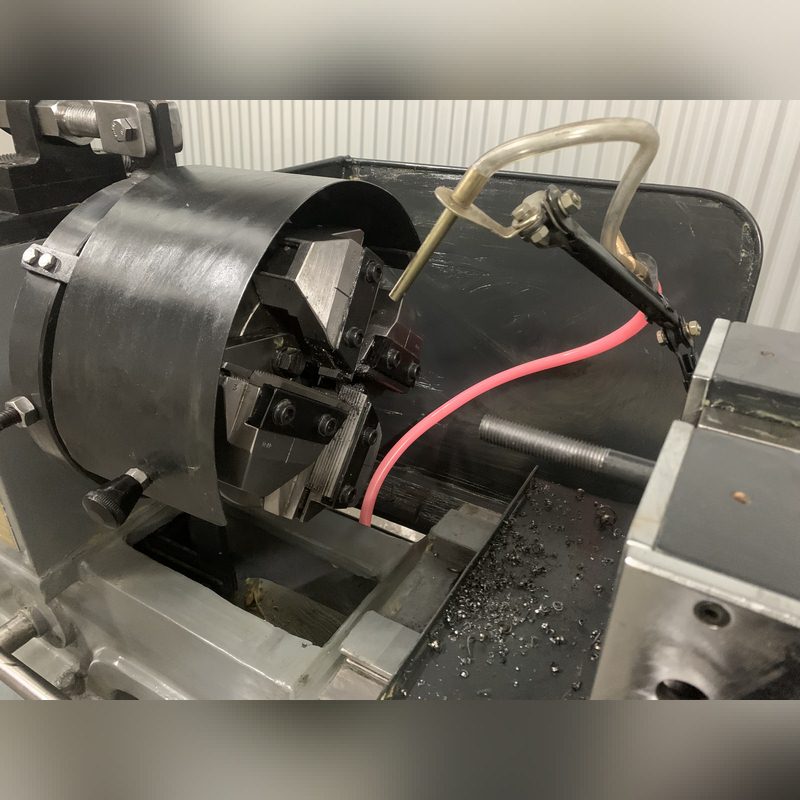

Steel Bar Threading Machine Die Heads Available

Diameter 10 – 40mm (3/8″ to 1.1/2″)

Metric & Imperial Thread Pitches

Bar Threading Machine Specifications

MODEL SMG 10/40 (3/8″ to 1.1/2″) BED TYPE
Saddle Movement 330mm (13″)
Spindle Speed Range 75 -140rpm
Number of Spindle Speed 2
Threading Capacity 10 – 40mm (3/8″ to 1.1/2″)
Production per Hour 60-80
Drive Motor Kw / H.P. 2.2kw / 3 H.P.
Lead Screw Optional
Weight (KG) Approx. 550

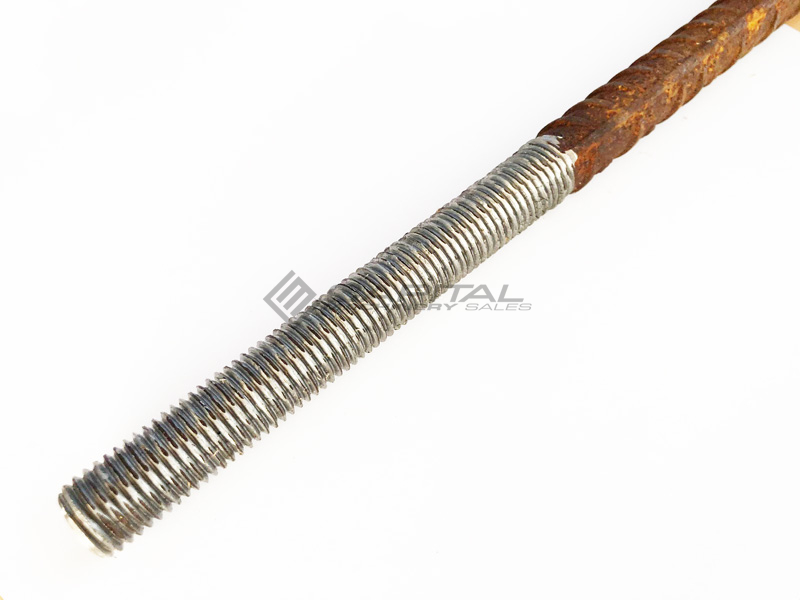

Round bar threading machine for sale

Attachments (PDF)


Specification

Additional information

Weight 550 kg
Condition

New
