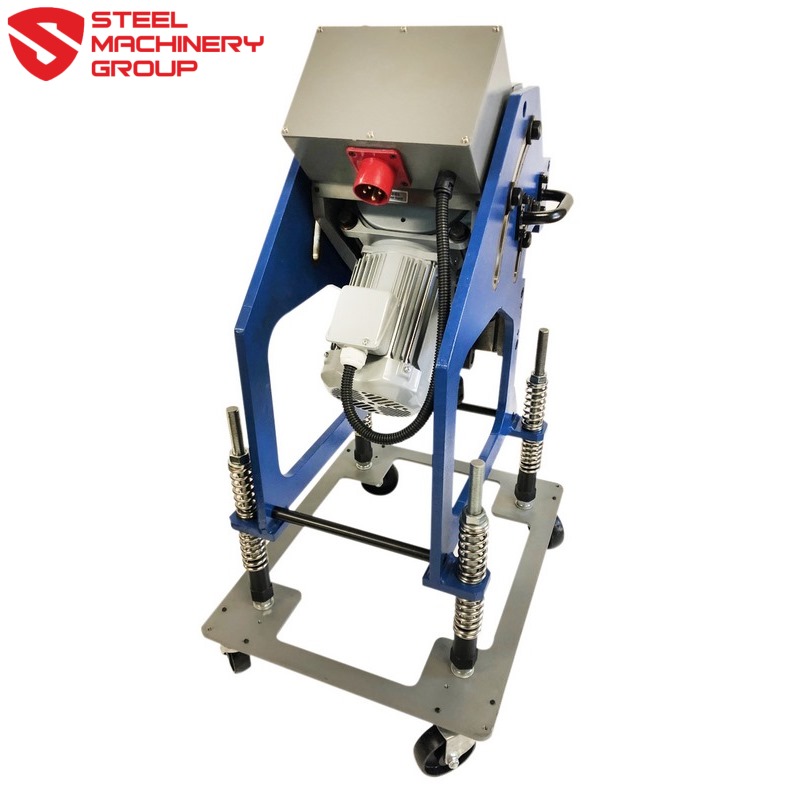

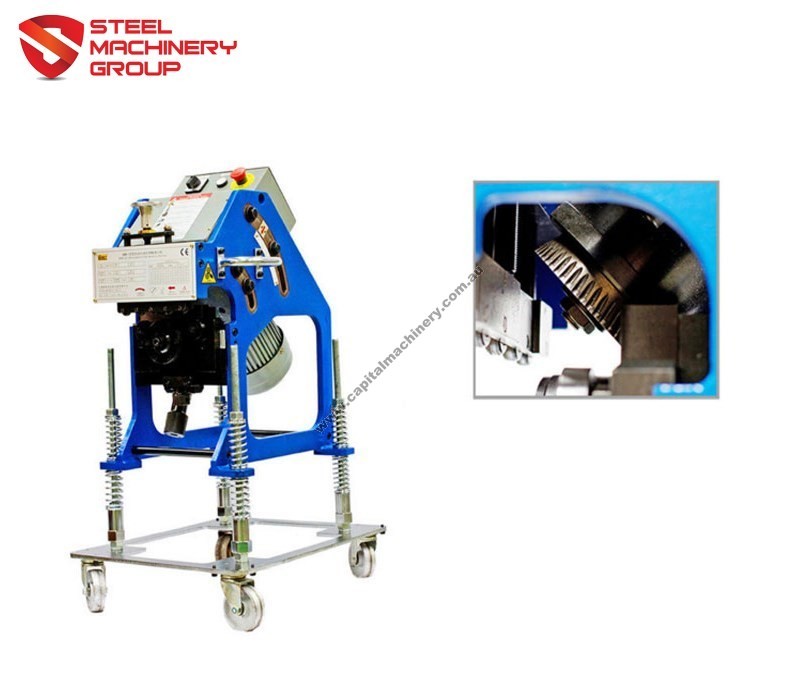

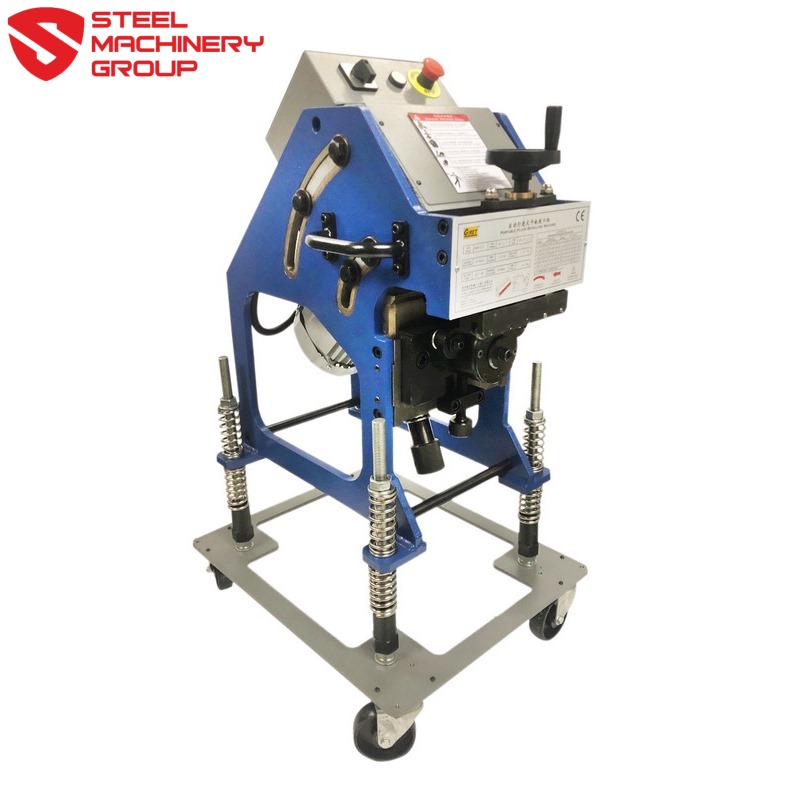

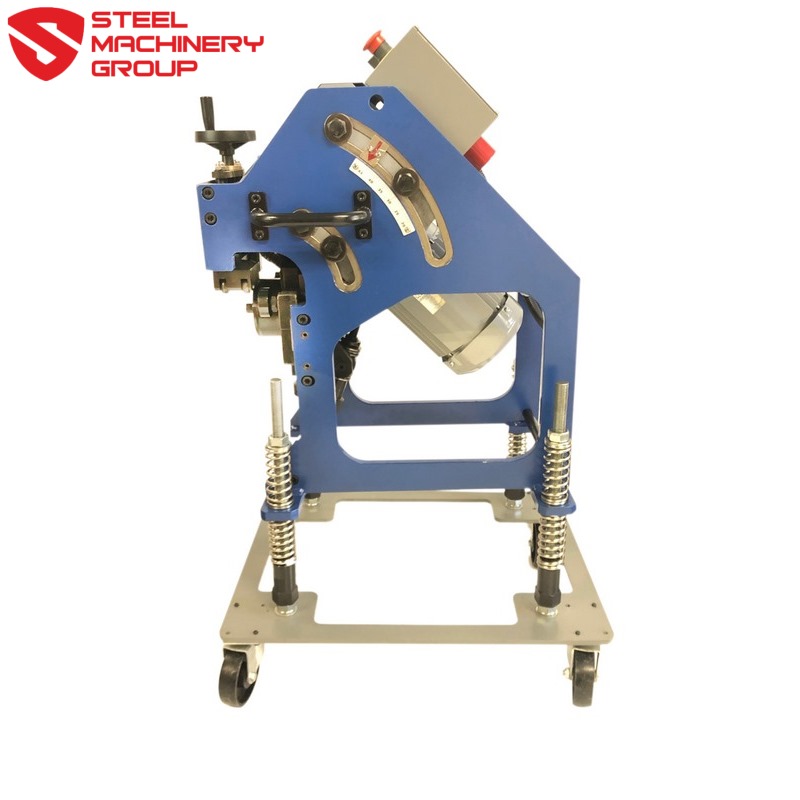

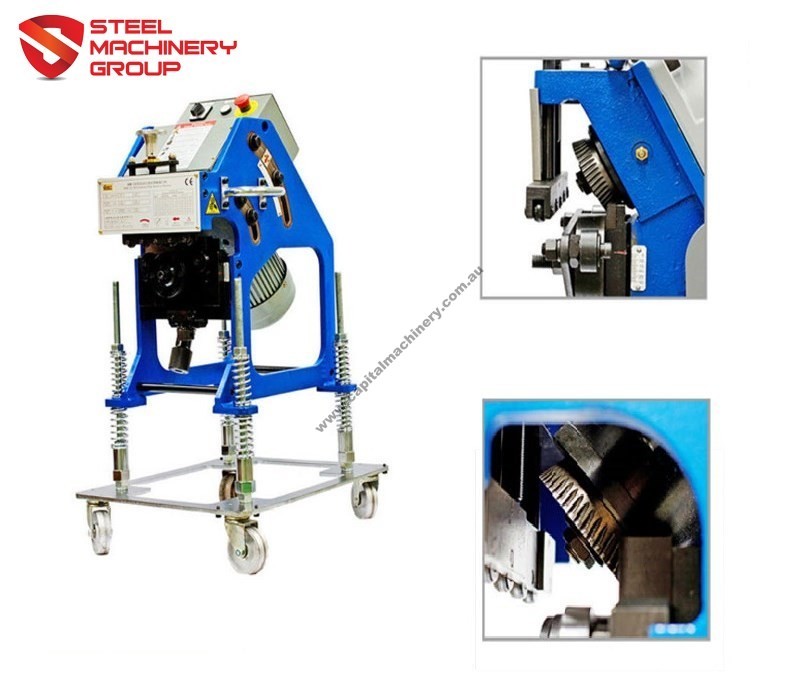

SMG Rapid-Edge 18G Gear Type Plate Beveling Machine
$7,151.00
- AUD: A$11,105.29
- GBP: £5,960.22
- EUR: €6,940.76
- JPY: ¥1,124,194
- CNY: ¥52,178.70

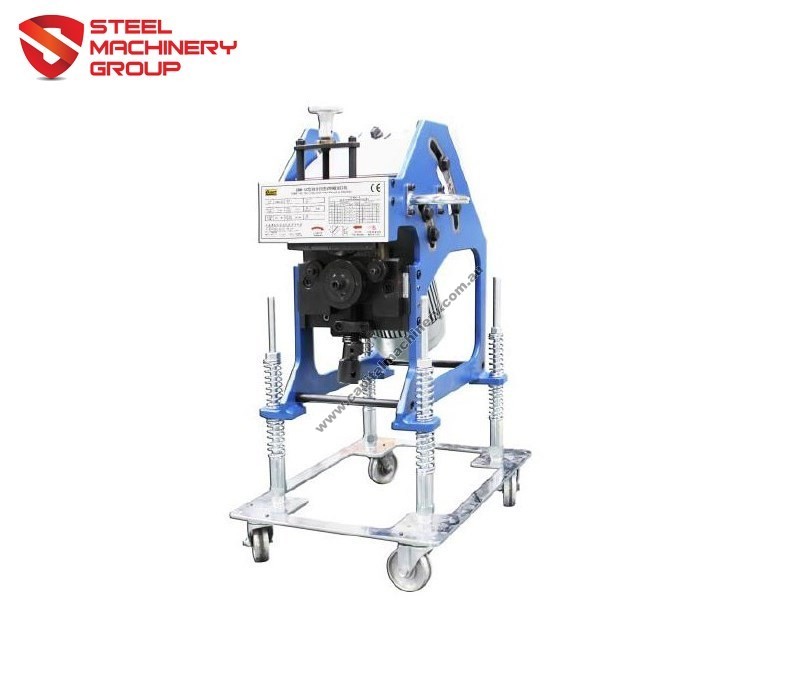

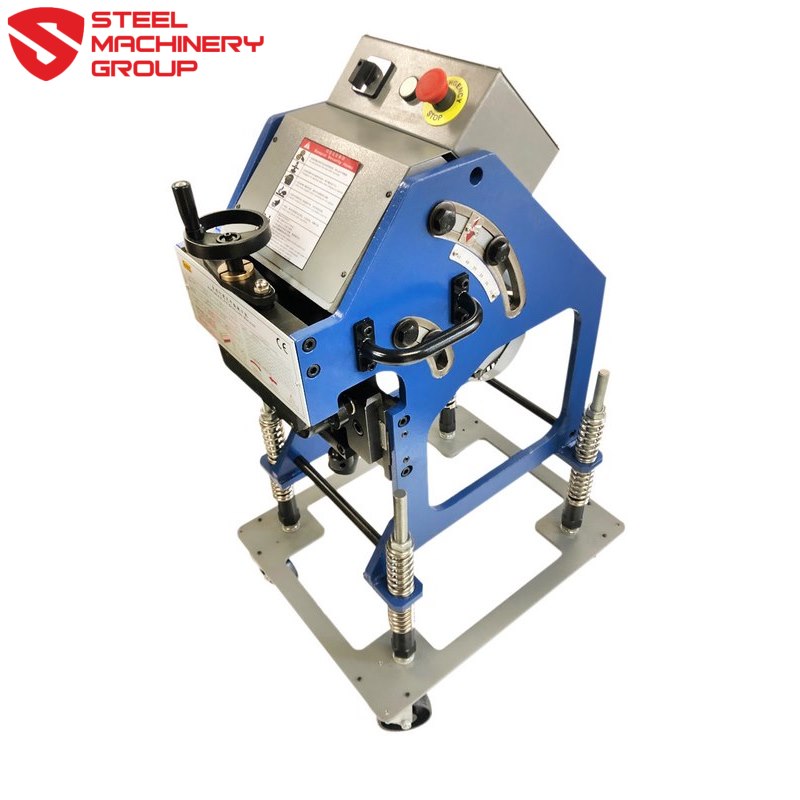

SMG Rapid-Edge 18G-R Auto Feed Gear Type Plate Beveling Machine A high-efficiency steel plate beveling machine widely used in the construction industry for ideal weld preparations.
With a clamping thickness 6 – 30 mm and adjustable beveling angle range of 25 – 45 degrees.
Efficient processing speeds of 1.5 – 2.6 meters per min.
Single bevel pass width of up to 16mm, Designed for use with heavy steel plates.
Product Video
Product Video
Description
SMG Rapid-Edge 18G-R Auto Feed Gear Type Plate Beveling Machine High-Efficiency Metal Plate Beveling Machine widely used in construction industry for weld preparation. Clamp thickness 6-30mm and bevel angle range 25-45degree adjustable with high efficiency at processing 1.5-2.6meters per min. It helps a lot in saving labors.
Two processing ways:
- Model 1: Cutter catches the steel and lead into the machine to complete the job while processing small steel plates.
- Model 2: Machine will travel along the edge of steel and complete the job while processing large steel plates.
Specifications
| Model No. | SMG Rapid-Edge 18G-R Auto Feed Gear Type Plate Beveling Machine |
| Power Supply | AC 415V 50HZ |
| Total Power | 1500W |
| Motor Speed | 1450r/min |
| Feed Speed | 1.5-2.6metesr/min |
| Clamp Thickness | 6-30mm |
| Clamp Width | ＞75mm |
| Process Length | ＞70mm |

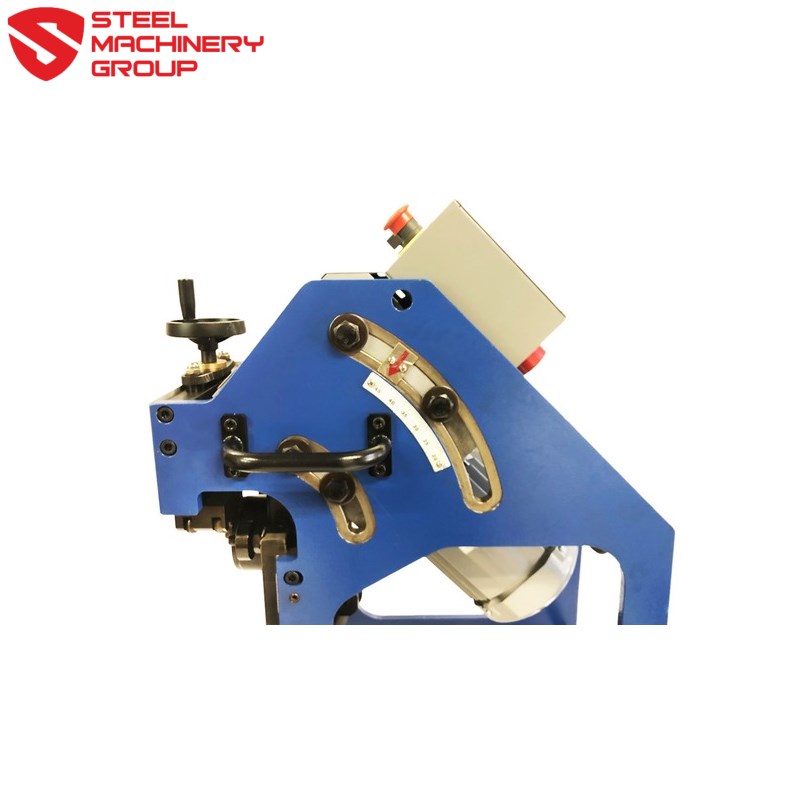

| Bevel Angle | 25-45 degrees as required |
| Single Bevel Width | 12mm |
| Bevel Width | 0 – 18mm |

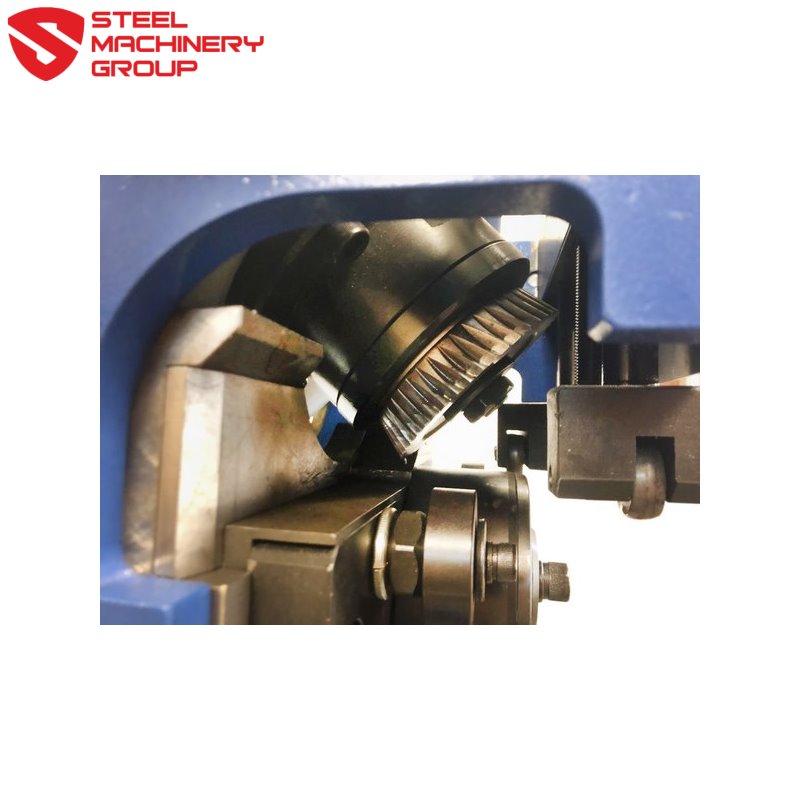

| Cutter Plate | φ 93mm |
| Cutter QTY | 1 PC |
| Worktable Height | 700mm |
| Travel Space | 800*800mm |
| Weight | N.W 155KGS G.W 195KGS |

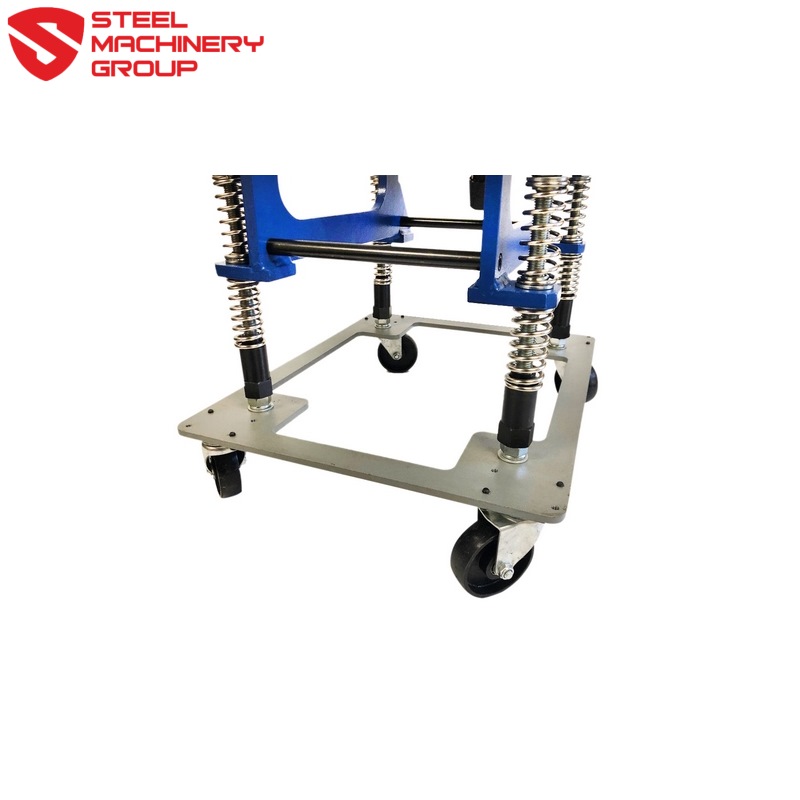

| Weight with Car | N.W 236KGS G.W 285KGS |
Standard Machine includes:
- Beveling Cutters
- Tools in case
- Manual Operation
Features
- Available for material: Carbon steel, stainless steel, aluminum etc.
- IE3 Standard motor at 400w
- Hight Efficiency can reach up to 1.5 – 2.6 meter /min
- Imported reduction gearbox for cold cutting and non-oxidation
- No Scrap Iron Splash, more safer
- Max bevel Width can reach up to 18mm
Specification
Additional information
| Weight | 155 kg |
|---|
