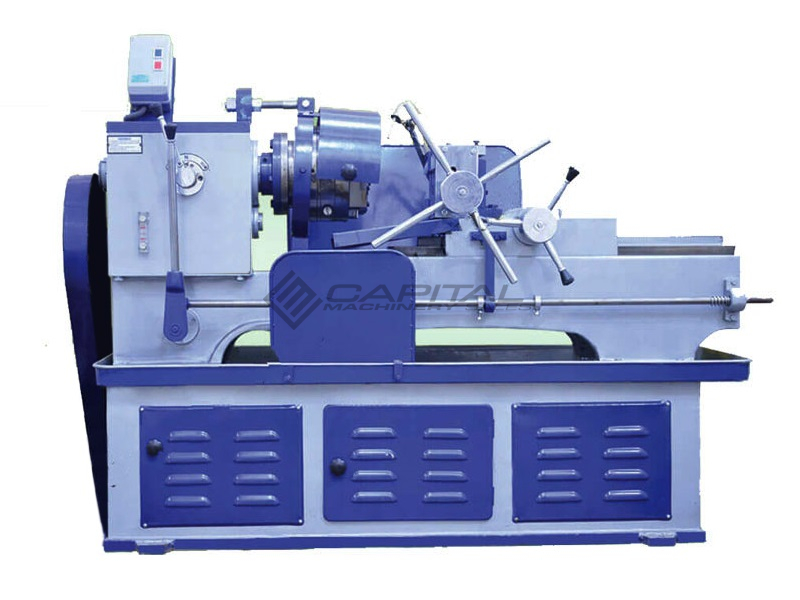

SMG 12 – 60 Bed Type Rebar Bar Threading Machine (1/2″ – 2.1/2″)

In stock

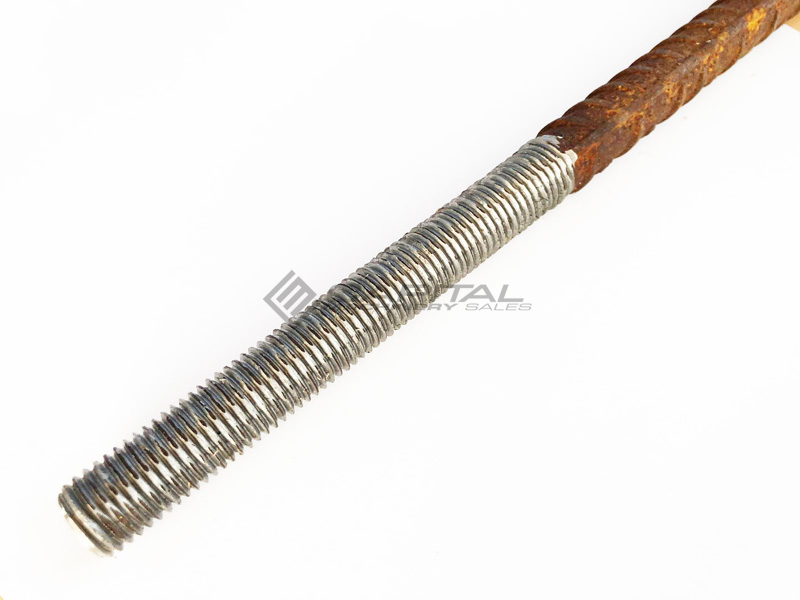

  • Bar threading machines designed to cut external threads on bars using a tangential chaser design.
  • A threading chaser is used for cutting the thread onto the bar allowing the bar to remain stationary while the die-head rotates cutting the thread.
  • Different types of threads can be cut on the bar such as BSW, NPT, UNF, METRIC, UNC, ACME, BSF threads, etc.
  • Threading Capacity: 1/2″ to 2.1/2″
  Chat Now
SKU: SMG-12-60BT Categories: , Brand:

Description

SMG 12 – 60 Bed Type Bar Threading Machine (1/2″ – 2.1/2″) Video Demo

SMG Bar Threading Machines are ideal for rapid external bolt and bar threading. The rotating head allows for the bar to be clamped securely on the saddle, increasing rigidity for excellent efficiency and faster threading times.

A wide range of Tangential Die Chasers are available for: BSW, UNF, METRIC, UNC, ACME Bolt and bar threading.

  • Robust headstock fitted with case hardened gears and oversized spindle bearings.
  • Hard chrome plated pillar type slideways
  • Hardened heat-treated vice jaws
  • High-Speed Steel Tangential Die Chasers
  • Recirculating lubrication system
  • 2 Speed spindle

Steel Bar Threading Machine Die Heads Available

Diameter 12 – 60mm (1/2″ – 2.1/2″)

Metric & Imperial Thread Pitches

Bar Threading Machine Specifications

MODEL 1/2″ to 2.1/2″ (BED TYPE)
Saddle Movement 22″
Spindle Speed Range 45 – 90
Number of Spindle Speed 2
Threading Capacity 1/2″ to 2.1/2″
Production per Hour 70-90
H.P. Required 7.5 H.P.
Lead Screw Optional
Weight (KG) Approx. 990

Attachments (PDF)


Specification

Additional information

Weight 990 kg
Condition

New
