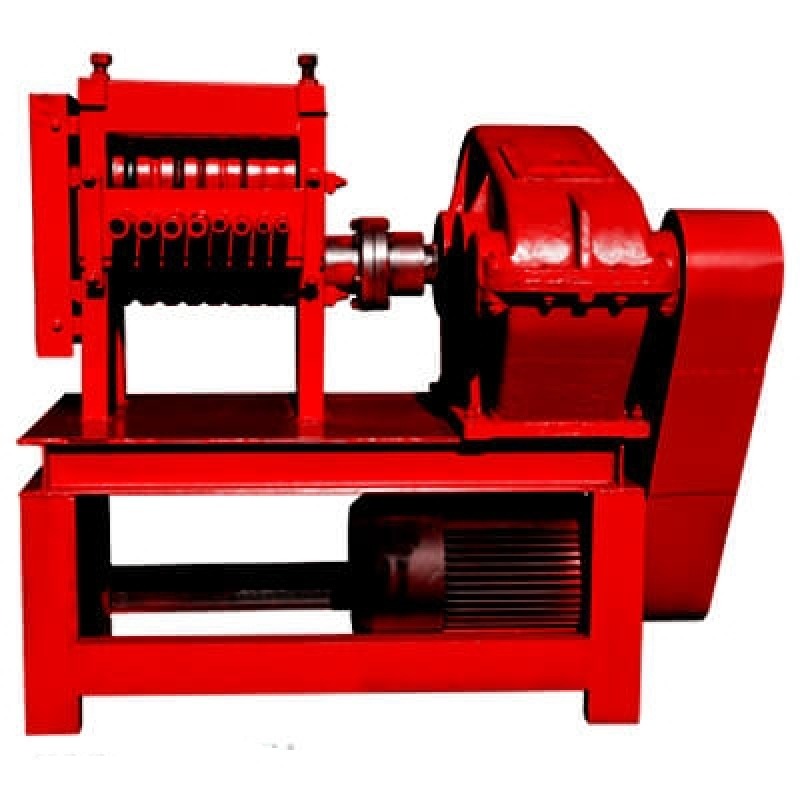

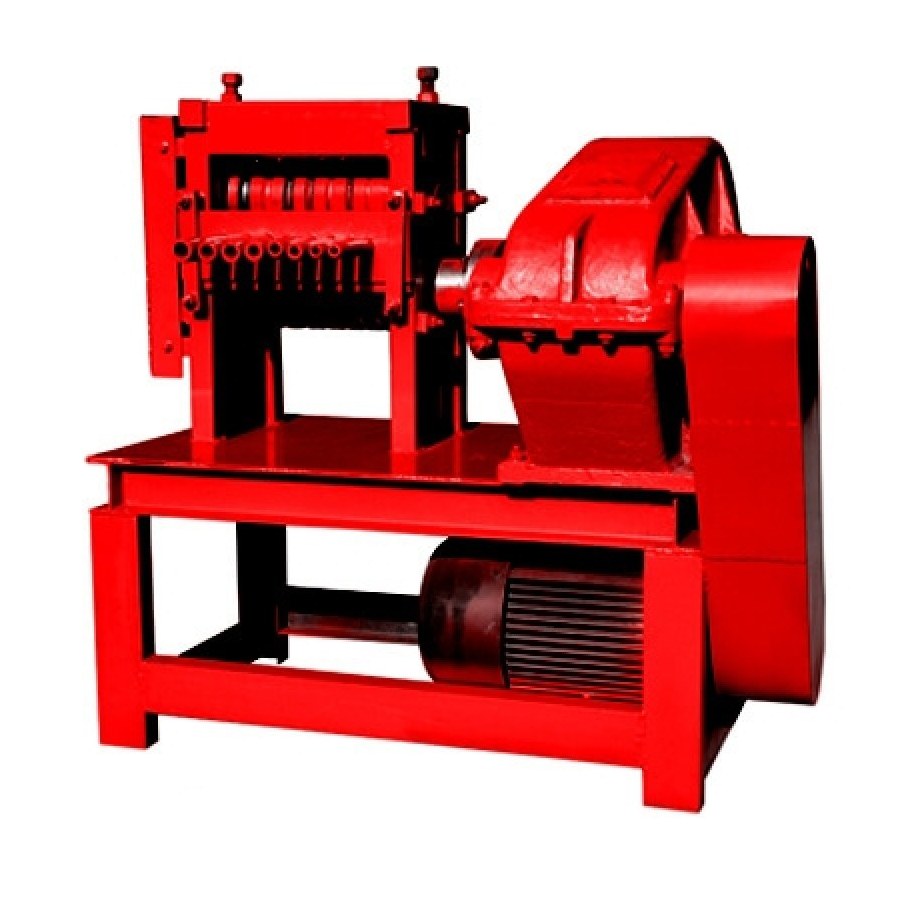

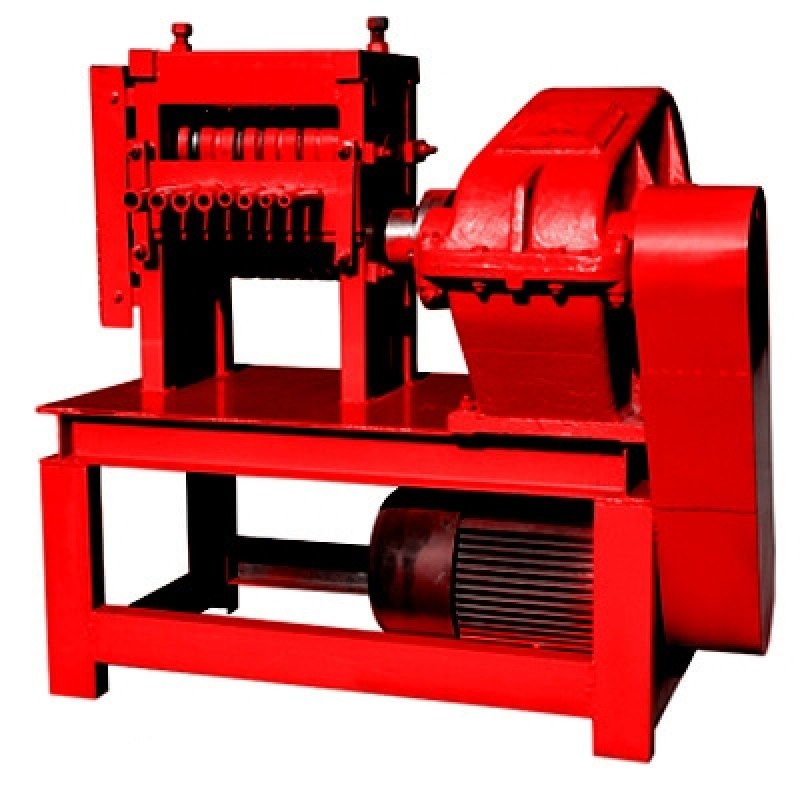

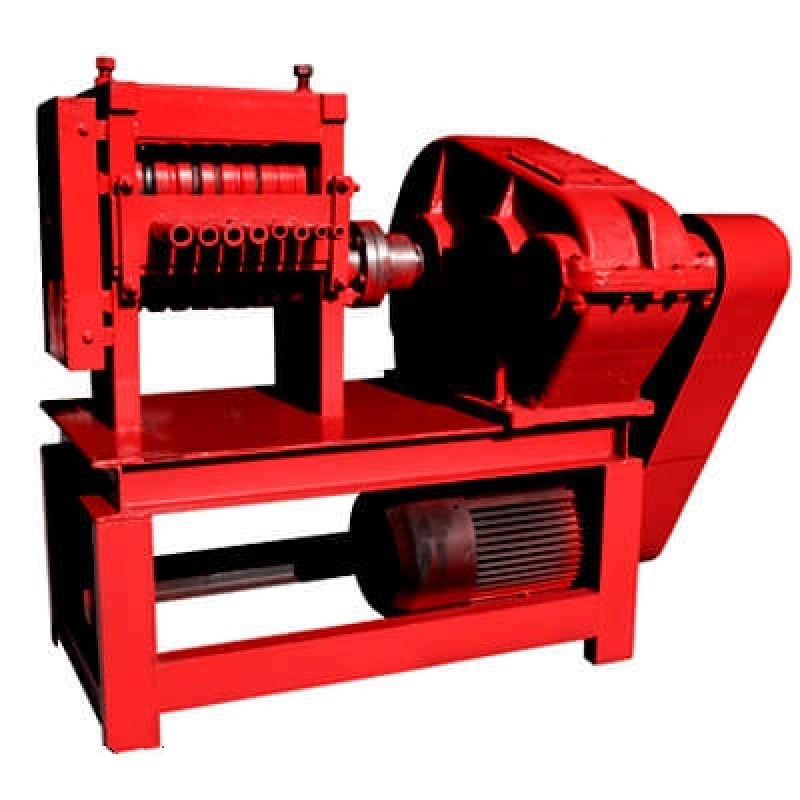

SMG RS10-25 Rebar Straightening Machine

The SMG RS10-25 Rebar Straightening Machine is designed to effortlessly straighten bent, twisted, or scrap bars with an impressive accuracy rate of over 90%. Its user-friendly operation involves inserting the scrap rod into a suitable channel, allowing the machine to automatically guide and straighten it. Covering a range from 10mm to 25mm through various holes and channels, this machine offers a simple and effective solution for rebar straightening needs.

How to SMG RS10-25 Rebar Straightening Machine, let’s introduce the machine composition as follows,

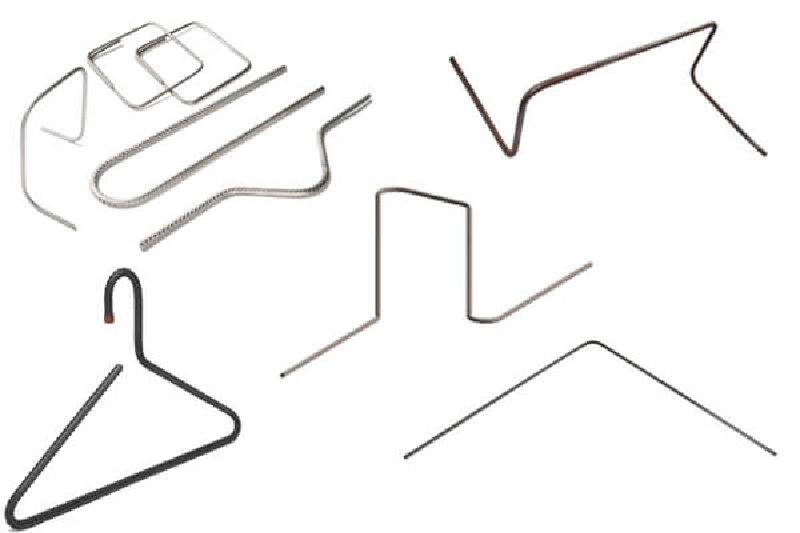

Any shapes of bent bar

Not only such shapes in the above picture, it can also straight any shapes of bent bar, scrap bar, most shapes of scrap bar

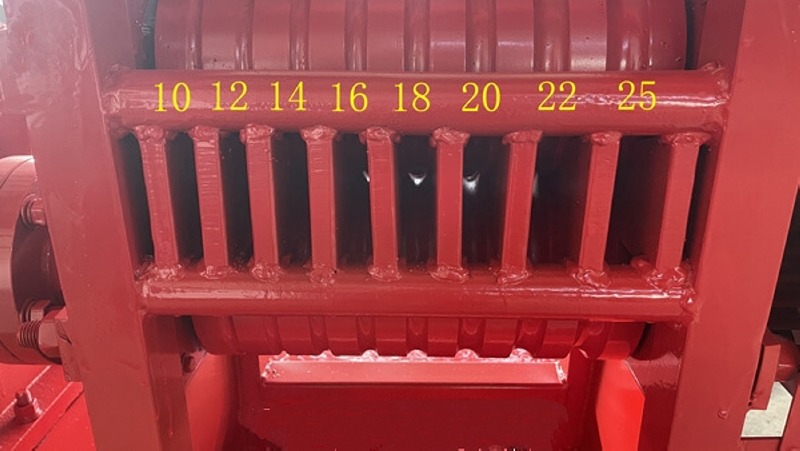

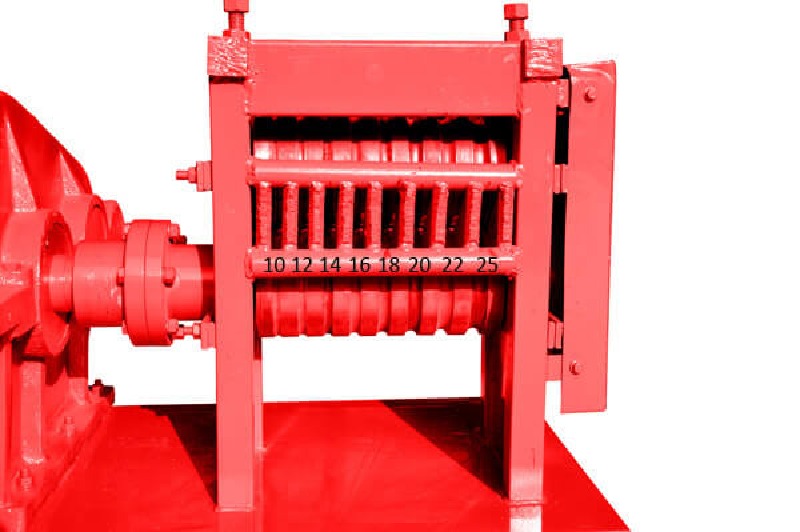

Import Hole – 10mm-25mm range

Import hole, import iron bar through these holes, it has 8 holes adapt to different size iron bar, there are 8 numbers which indicate hole size,10mm,12mm,14mm,16mm,18mm,20mm,22mm,25mm

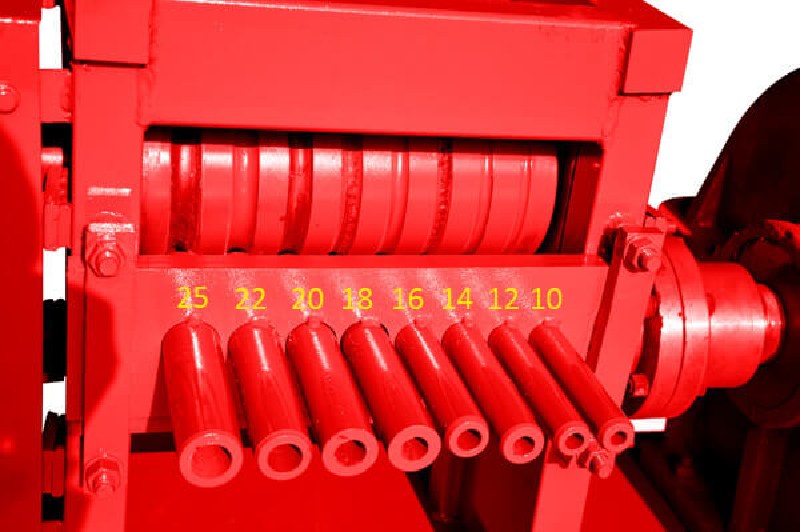

Export hole

Straighten iron bar will be exported through these holes, different with import hole, export hole has 8 pcs conduits, which also indicate hole size,

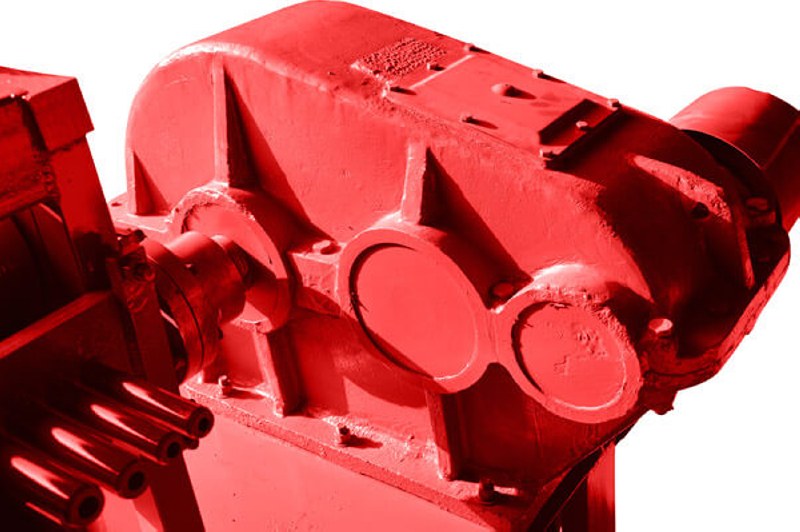

Reduction gears box

This is a powerful reduction gears box, it can pull and straight 25mm iron bar easily,

25kgs machine oil

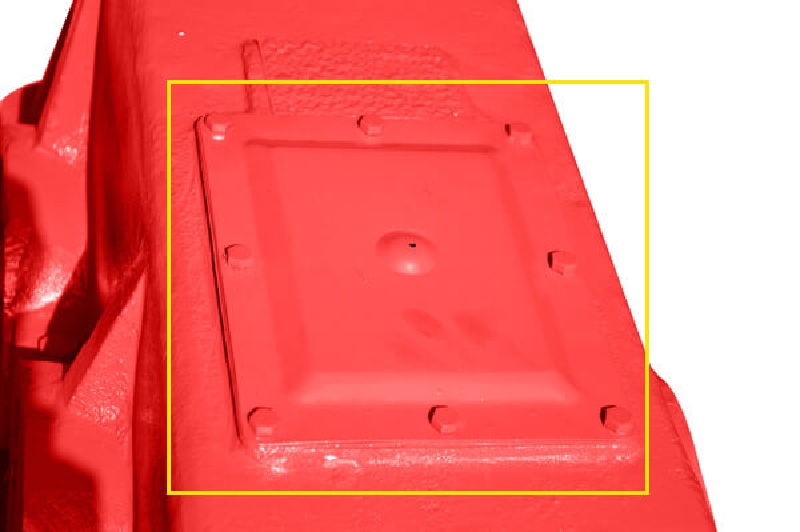

Before using the machine, it needs 25kgs machine oil, open the square cover, and inject 25kgs machine oil to keep gears working in lubricating state

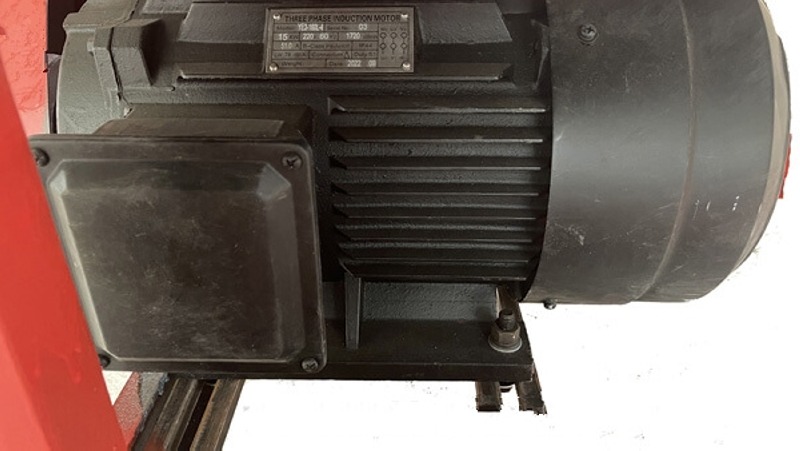

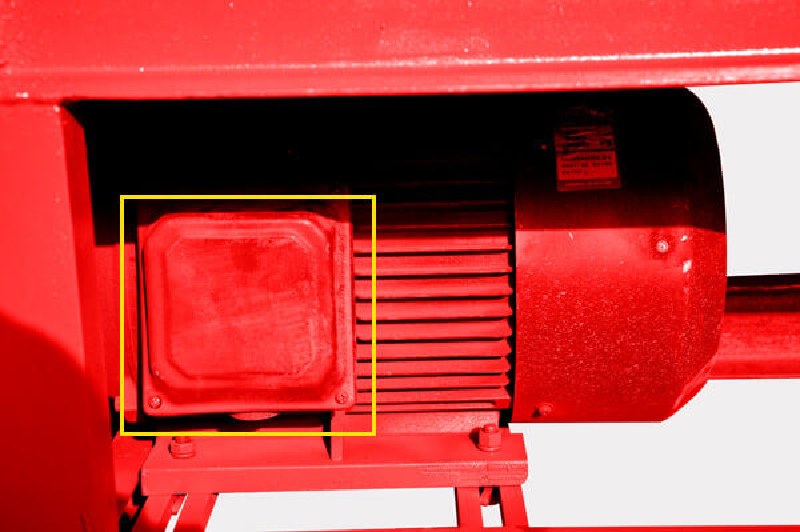

15Kw electric motor

This machine fixed with a 15kw electric motor, three phase, 380V or any other voltage as you  eed, we supply customized electric motor. Connect power line to this square box

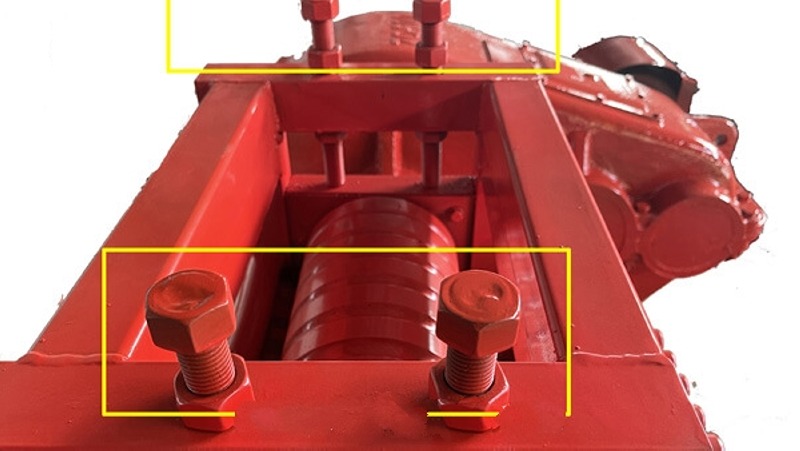

Press Bolts

4 bolts used for press the rollers

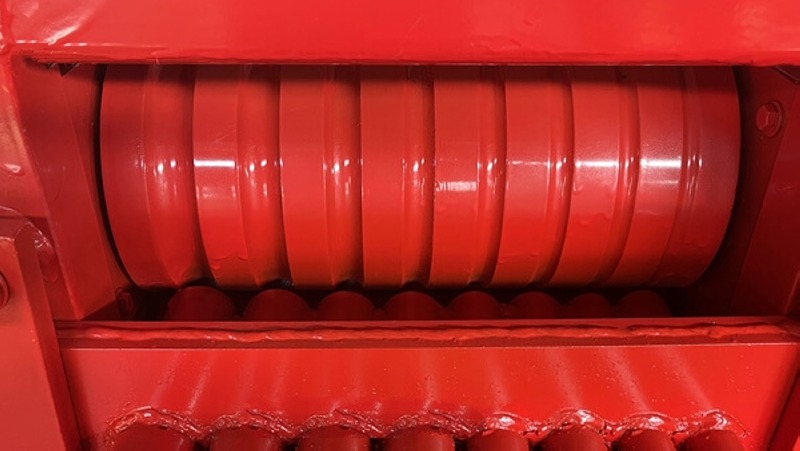

Rollers

Anti-wear treatment, longlife time

Transmission Shaft

Strong transmission shaft

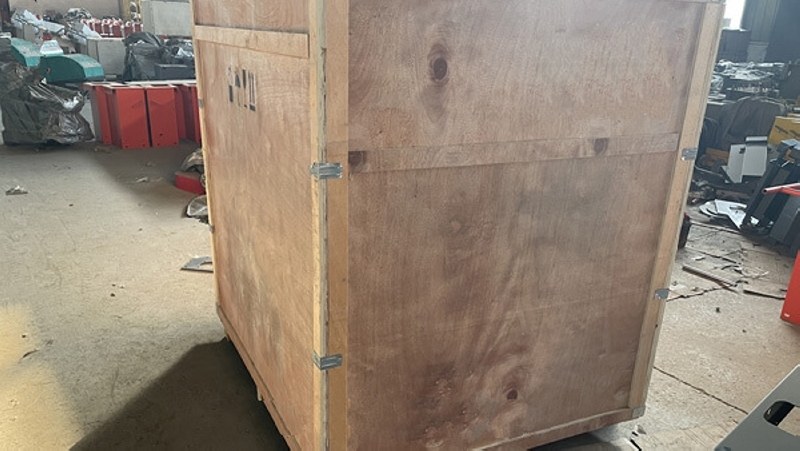

The Package

• Plywood case, avoiding solid wood problems
• Strong for shipping,

SMG RS10-25 Specifications
