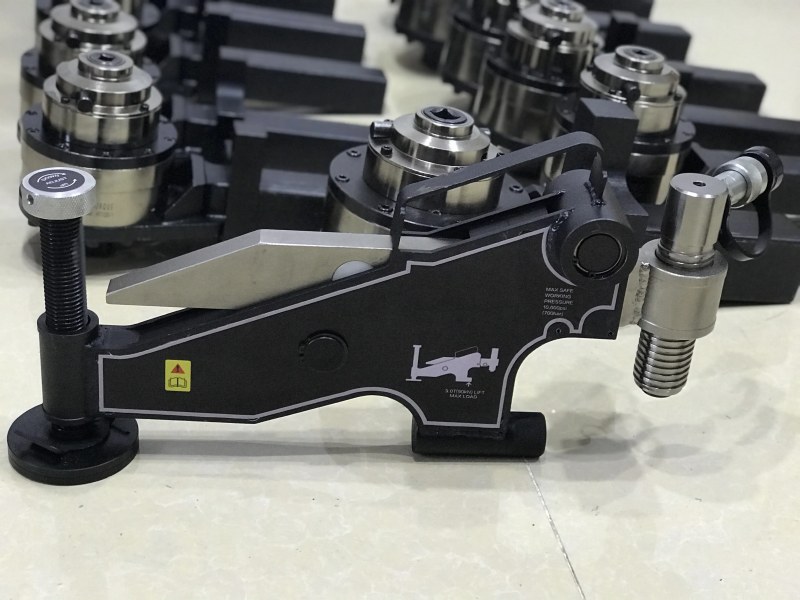

SMG F990M Flange Alignment Tool

$4,558.37

  • AUD: A$7,102.40
  • GBP: £3,806.19
  • EUR: €4,429.37
  • JPY: ¥715,614
  • CNY: ¥33,247.84

In stock

The SMG F990M Flange Alignment Tool is a specialized and robust tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is ideal for a wide range of industrial applications.

  Chat Now
SKU: SMGF990M Categories: , Brand:

$4,558.37

  • AUD: A$7,102.40
  • GBP: £3,806.19
  • EUR: €4,429.37
  • JPY: ¥715,614
  • CNY: ¥33,247.84

Description

The SMG F990M Flange Alignment Tool is a specialized and robust tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), this tool is ideal for a wide range of industrial applications.

Operating at a maximum working pressure of 700bar, it ensures precise alignment and connection of flanges. Its main purpose is to rectify any linear or rotational misalignment, ensuring optimal performance and reliability.

The SMG F990M Flange Alignment Tool is versatile and can be used in various settings, whether offshore or onshore. It is a valuable tool for complex engineering projects and demanding industrial tasks, delivering accurate and efficient results.

Specification:
  • Max Bolt Size:16-31.5mm
  • Cap:1-9ton(10-90kN)
  • Max Working Pressure:700bar
  • Suitable for offshore and onshore application
  • Designed for large diameter high-pressure flanges
  • Rectifies linear or rotational misalignment

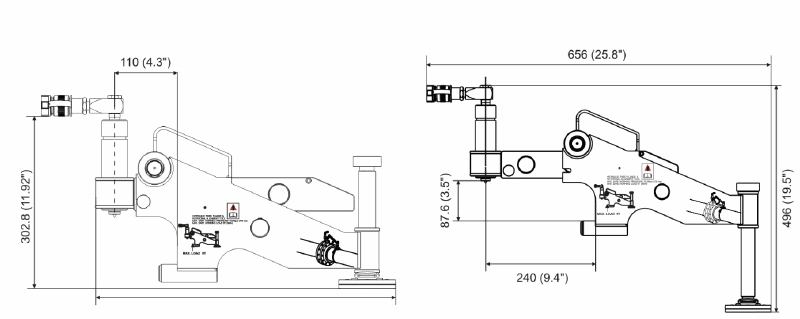

Minimum (upper) and Maximum (lower) Extension in mm (inch)

Smg F990M Flange Alignment Tool Min Max
Steel Machinery Group Flange Alignment Tool Series Table
Model Capacity Ton/kN Operation Type Min. Bolt Size (mm) Flange Thickness (mm) Reaction Force 2 Max (Ton) Bole Hole Diameter Min (mm) Misalignment Min (mm) N.W (kg)
SMG F110M 1 Ton 10 kN Mechanical Mechanical 0.63 / 16 0.55-3.29/14-82 1 16 0 3
SMG F440M 4 Ton 40kN Mechanical Mechanical 0.95 / 24 1.18-5.23/30-133 4 25 0 9
SMG F990M 9 Ton 90kN Mechanical Mechanical 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
SMG F990H 9 Ton 90kN Hydraulic Hydraulic 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
SMG F990S 9 Ton 90kN Set (w/ Cylinder and Pump) Hydraulic 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16

Attachments (PDF)


Specification

Additional information

Weight 16 kg
Dimensions 69 × 48.5 × 15 cm
