Description
SMG F350 Portable Flange Facing Machine Video
SMG F350 Portable Flange Facing Machine.mp4 from Capital Machinery Sales on Vimeo.
Facing diameter: 25.4-350mm(1-13.78”)
Material: Aluminum

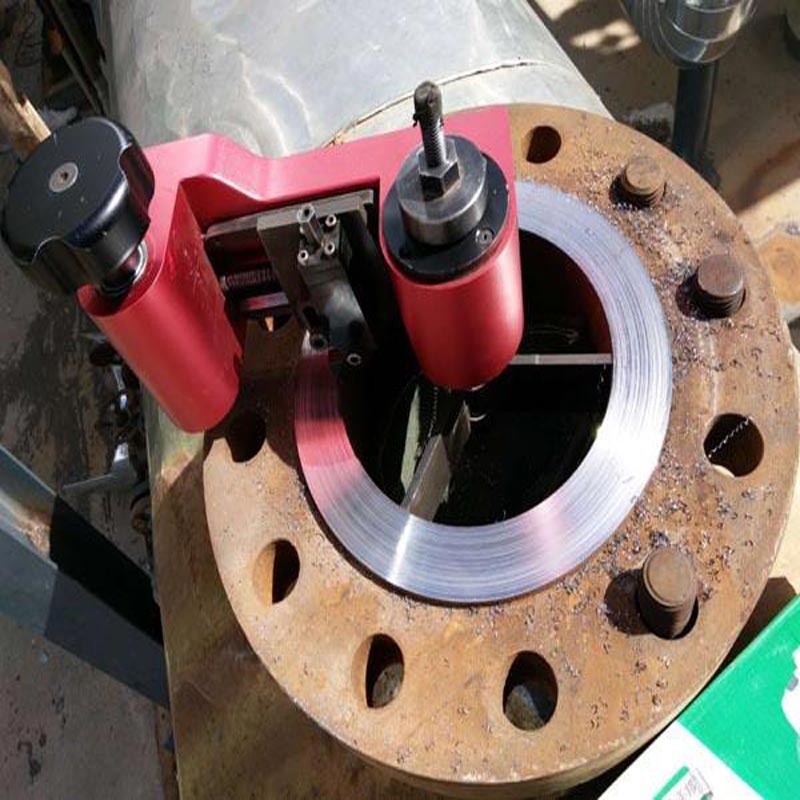

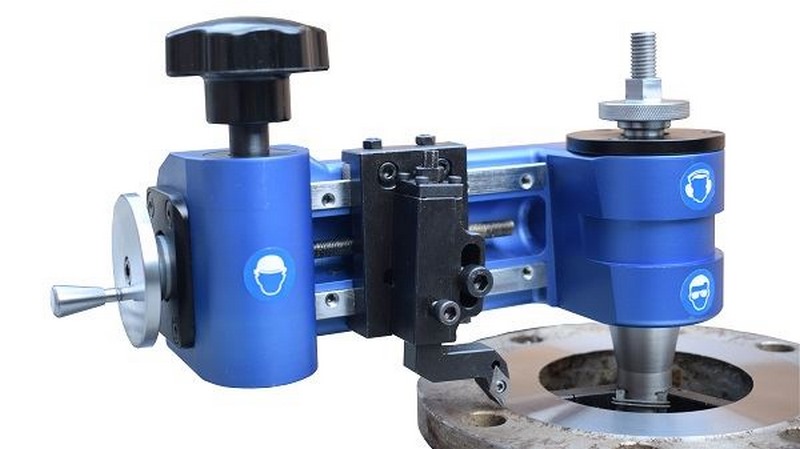

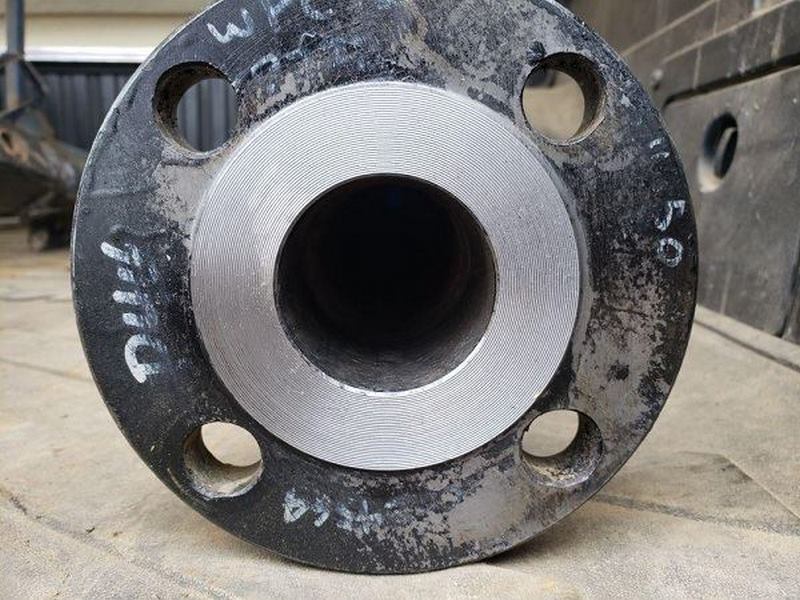

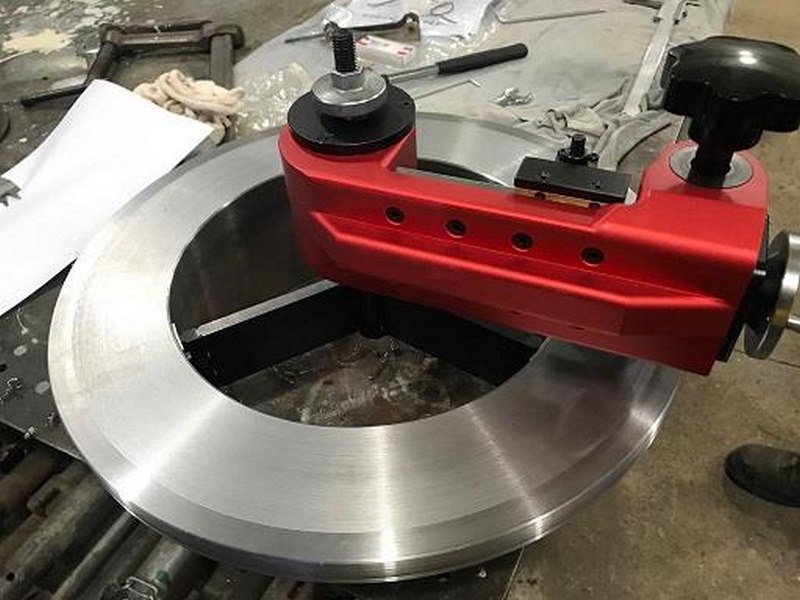

SMG F350 Portable Flange Facing Machine is manually operated and is a very using onsite tool designed for refacing of flat face flanges of various materials, providing a gramophone finish thus to create optimum gasket contact and gasket seating conditions.
Technical Specification | ||
Facing Diameter: | ||
Min Facing Diameter | 1 inches | 25.4 mm |
Max Facing Diameter | 13.78 inches | 350mm |
ID Mounting Diameter | ||
Min I.D. Mount | 1 inches | 25.4 mm |
Max I.D. Mount | 10 inches | 252 mm |
Stroke: | ||
Tool Feed Stroke | 2.76 inches | 70 mm |
Tool Post Swivel Angle | + / – 30⁰ | |
Overall length | 12.5 inches | +/- 320mm |
Height from flange face upwards | 8 inches | +/- 200mm |
Minimum swing diameter | 18 inches | 457.2mm |
Approximately Operational Weight | 15.43 lbs | 7 kg |
Approximately Shipping Weight | 24 lbs | 11 kg |
Approximately Shipping Dimensions
Length x Width x Height |
7.8 x 11.8 x 15.7 inches | 200 x 300 x 400 mm |
Due to the integrated feed spindle , which is taking care of the cutting tool feed ,whiles turning the machine and keeping the feed knob , the required surface finish is obtained .
SMG F350 Portable Flange Facing Machine tool is supplied with 2 feed spindles. Standard the ASME B 16.5 spindle is mounted . And the other spindle is in the case . Both spindles are engraved on the feed nut .
