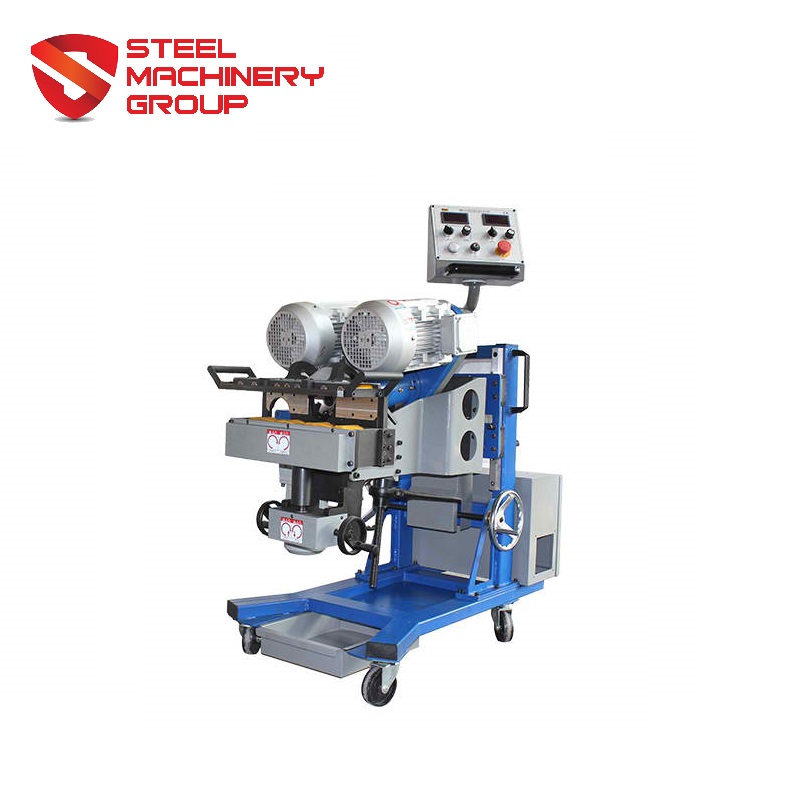

SMG-80-R Double-sided Plate Beveling Machine

$10,733.00

  • AUD: A$16,294.95
  • GBP: £9,295.10
  • EUR: €10,730.96
  • JPY: ¥1,451,102
  • CNY: ¥75,871.58

In stock

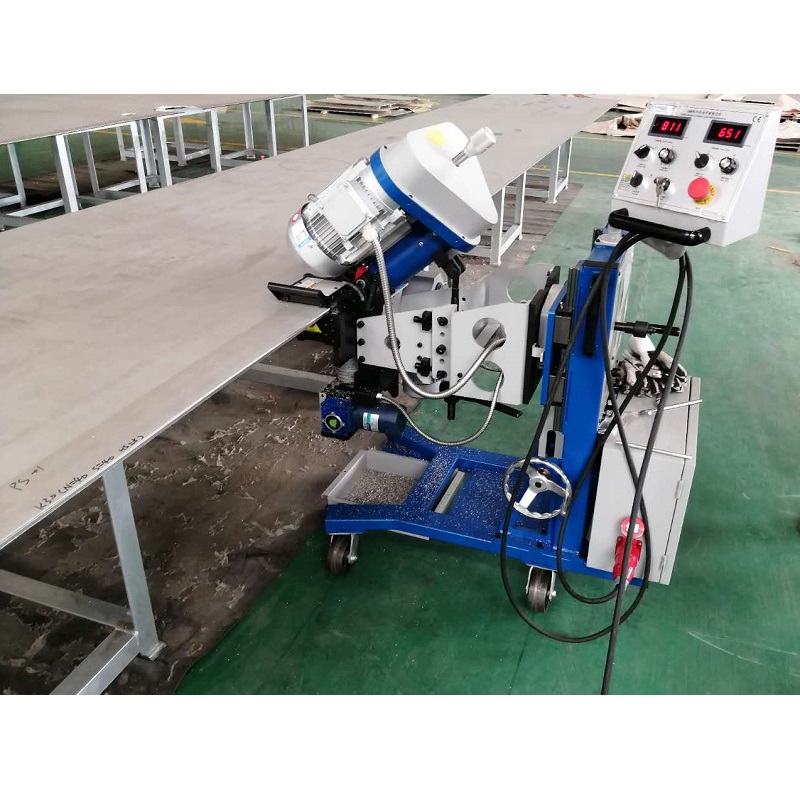

The SMG-80-R Double-sided Plate Beveling Machine is designed to provide high- quality, efficient results for plate preparations.

This machine is designed to work with a wide range of plate sizes and is fitted with an indexable rotating head for double-sided plate beveling. With an extra-large beveling capacity for 80mm plate, the maximum bevel face width is 70mm and an adjustable beveling angle from 0-60 degrees.

Capital Machinery supplies a large range of Plate Beveling Machine in Australia. We offer top-quality brands and provide quality service for all your beveling requirements.

  Chat Now
SKU: BEVELING-SMG-80R Categories: , Brand:

$10,733.00

  • AUD: A$16,294.95
  • GBP: £9,295.10
  • EUR: €10,730.96
  • JPY: ¥1,451,102
  • CNY: ¥75,871.58

Description

Specifications

Model No. SMG-80-R Double-sided Plate Beveling Machine
Power Supply AC 415V 50HZ
Total Power 4800 W
Variable Motor Speed 750-1050 r/min
Feed Rate Speed 0 -1500mm/min
Clamp Thickness 6 – 80mm
Maximum Clamping Width > 100mm
Minimum Process Length > 300mm
Bevel Angle Range 0 – ± 60 degrees adjustable
Single Pass Bevel Width 20 mm
Maximum Bevel Width 70 mm
Milling Cutter Tool Diameter φ 80mm
Milling Tooling Cutting Inserts 6 pcs
Adjustable Worktable Height Range 700 – 760mm
Travel Space 800 x 800mm
Weight N.W 325 kgs G.W 385 kgs
Packaging Size 1200 x 750 x 1300mm

Includes:

  • 1 Milling cutter head
  • 2 Sets of Cutting Inserts

Specification

Additional information

Weight 385 kg
Dimensions 120 × 75 × 130 cm
Condition

New
