CJM280 500mm Small Lathe Machine for Metal Work
A$5,398.51
- USD: $3,650.06
- GBP: £2,897.38
- EUR: €3,374.05
- JPY: ¥546,494
- CNY: ¥25,365.15
Description
Attention please!!!

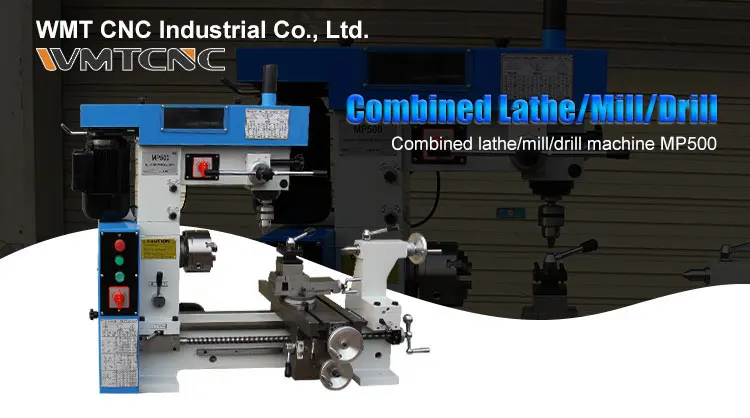

MP500 500mm Lathe Machine Lathe Drill Mill Combo Multi-purpose
Features:
1. Turning,milling,drilling and treading
2. Metric or imperial thread cutting
3. Suitable for processing metal,wood and other materials
4. Excellent advantage of various functions,small occupation and economic
|
Specifications |
MODEL |
MP500/ MP800(HQ500/HQ800) |
|
TURNING |
Swing over bed |
420mm(16-5/9″) |
|
Distance between centers |
500mm/ 800mm(20″/31-1/2″) |
|
|
Max. longitudinal travel |
440mm/740mm(17-1/3″/29-1/8″) |
|
|
Max. cross travel |
200mm(7-7/8″) |
|
|
Taper of spindle |
MT4 |
|
|
Spindle hole |
φ28mm(1-1/9″) |
|
|
Step of spindle speed |
7 steps |
|
|
Range of spindle speed |
160-1360rpm |
|
|
Barrel travel |
70mm(2-3/4″) |
|
|
Taper of center |
MT3 |
|
|
Metric thread range |
0.2-6mm |
|
|
Inch thread range |
4-120T.P.I |
|
|
Longitudinal range of automatic feeding |
0.05-0.35mm/ 0.002-0.014″ |
|
|
Cross range of automatic feeding |
0.05-0.35mm/0.002-0.014″ |
|
|
DRILLING & MILLING |
Max. drilling capacity |
φ22mm(7/8″) |
|
Worktable size (L×W) |
475×160mm(18/1-2″×6-2/7) |
|
|
Max. end mill |
φ28mm(1-1/9″) |
|
|
Max. face mill |
φ80mm(3-1/7″) |
|
|
Distance between spindle center and column |
285mm(11-2/9″) |
|
|
Distance between spindle and worktable |
306mm(12″) |
|
|
Headstock travel of up and down |
110mm(4-1/3″) |
|
|
Spindle taper |
MT3 |
|
|
Step of spindle speed |
16steps |
|
|
Range of spindle speed |
120-3000r.p.m |
|
|
Swivel degree of headstock |
±360° |
|
|
MOTOR |
Motor power |
0.55kw |
|
SHIPMENT DATA |
Packing size |
1130×580×1100mm |
|
N. weight/G .weight |
245kg/280kg |
|
|
Loading amount |
40pcs/20’container |
|
Specification
Additional information
| Weight | 100 kg |
|---|
