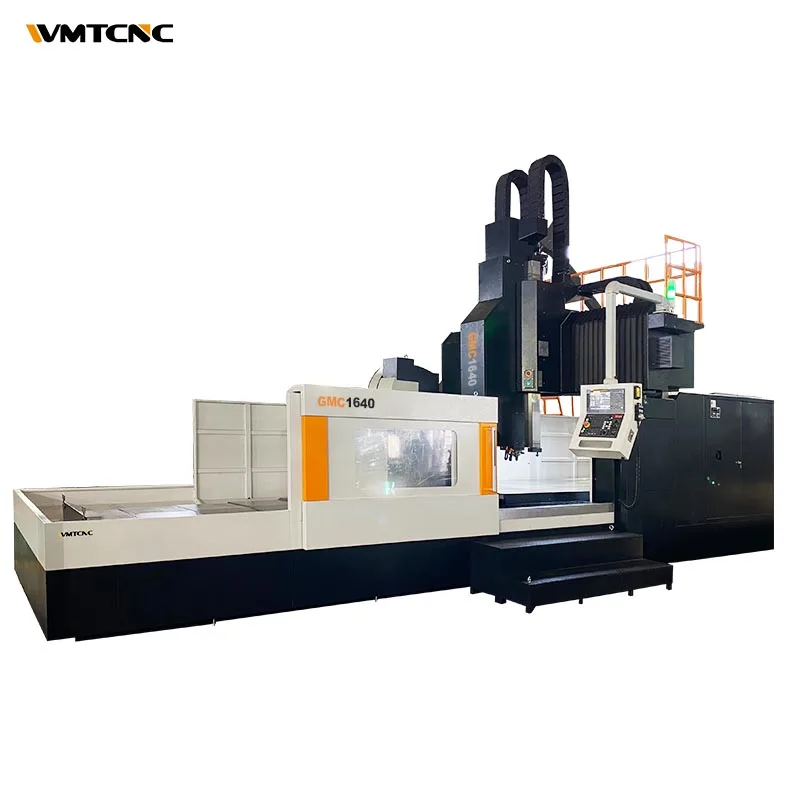

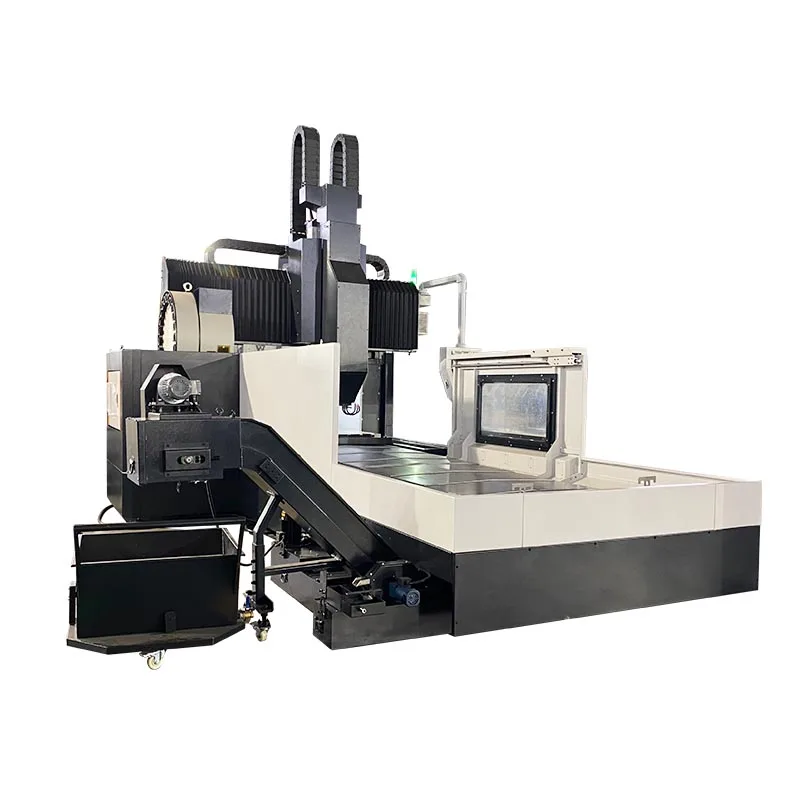

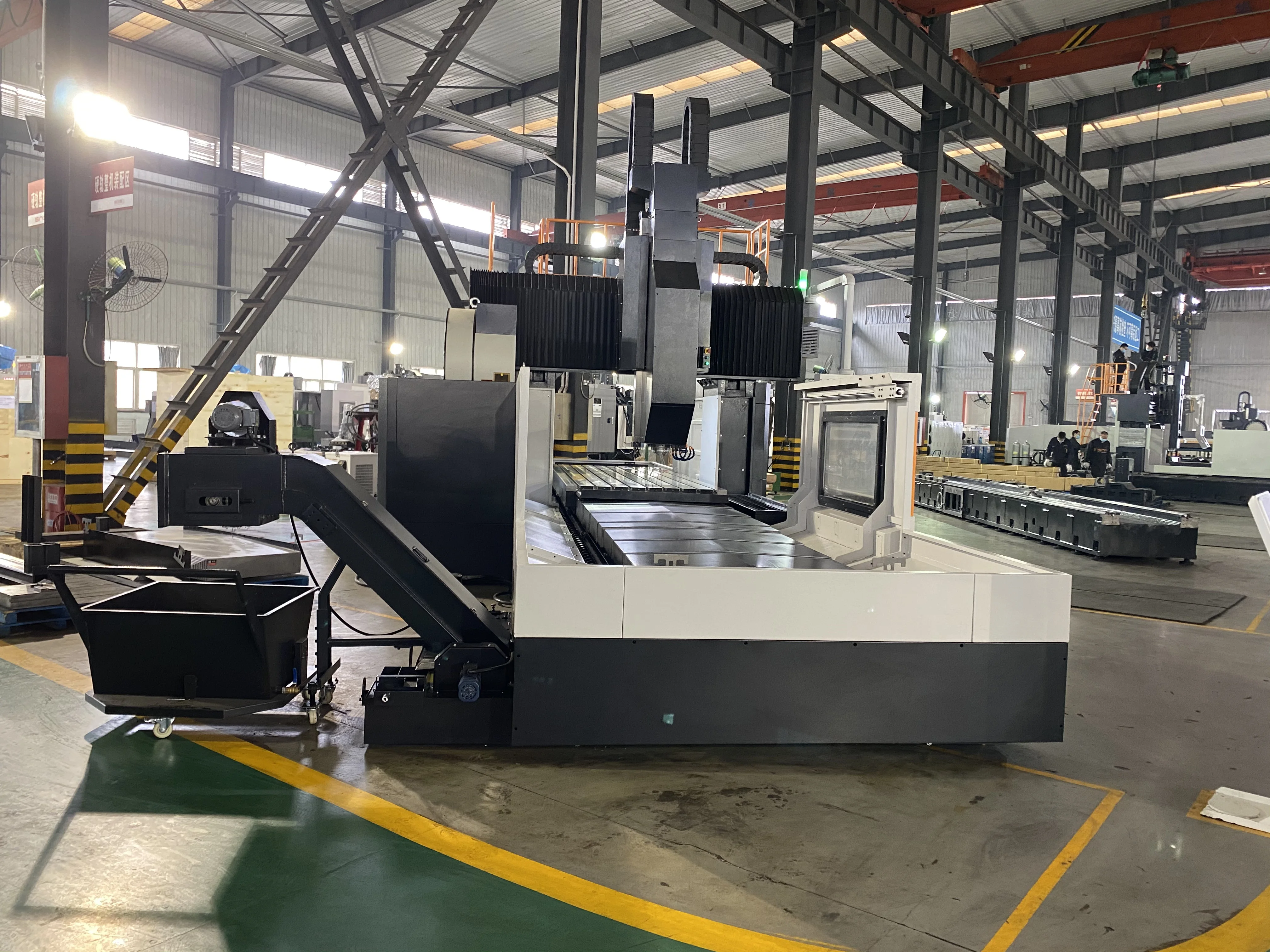

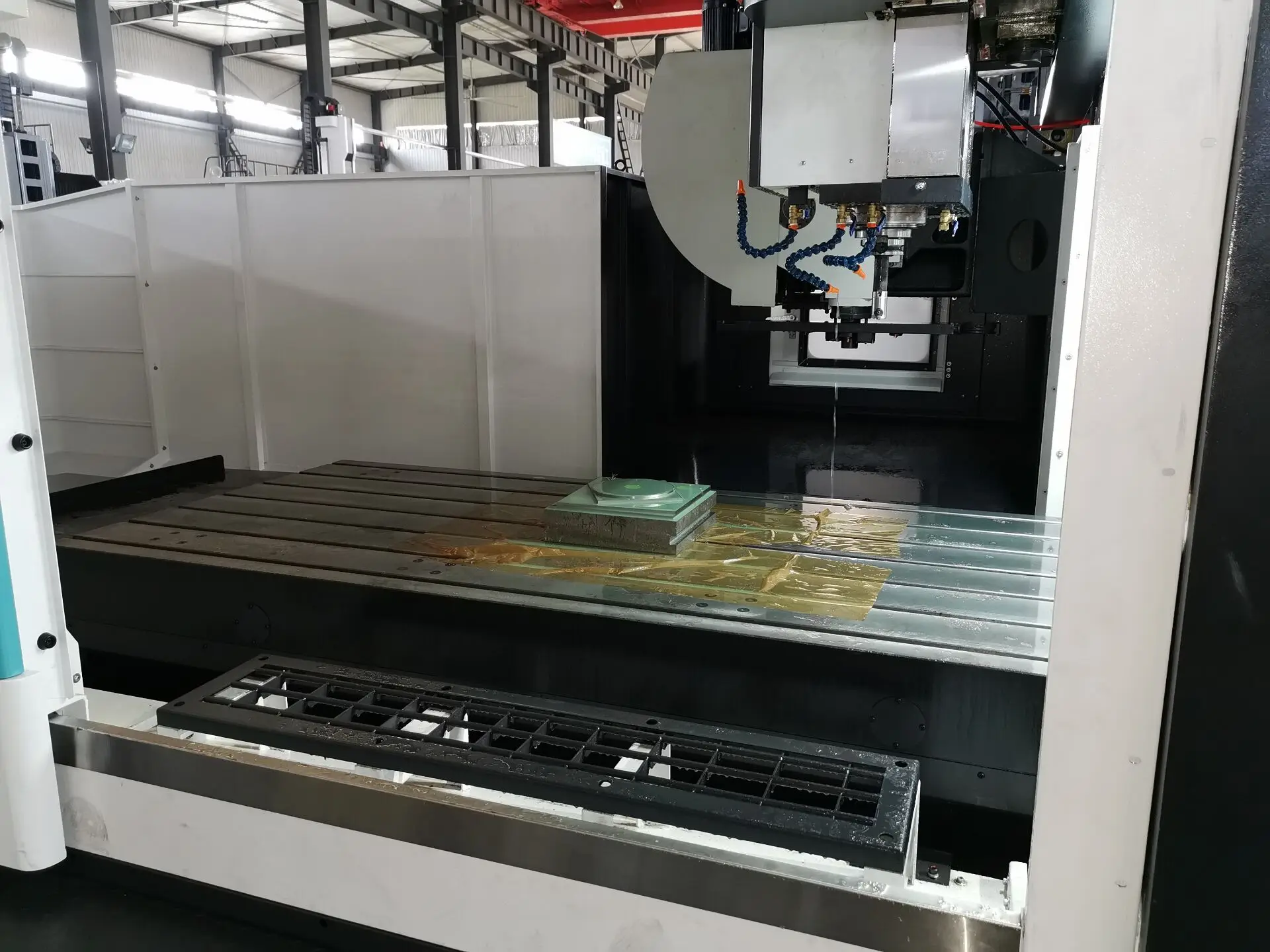

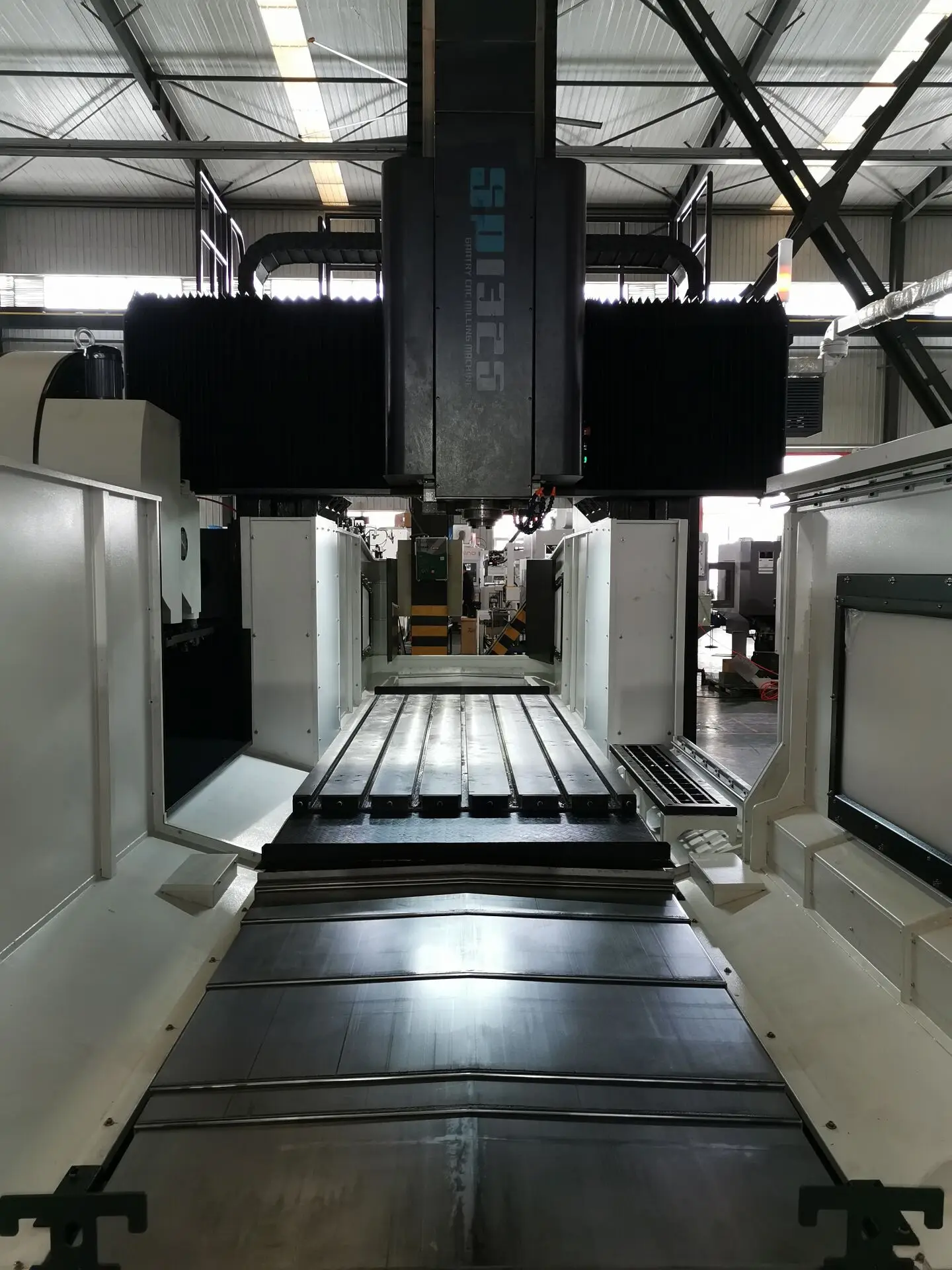

GMC1640 Accuracy CNC Gantry Milling Machining Center from China
$194,400.00
- AUD: A$301,897.36
- GBP: £162,028.51
- EUR: €188,684.64
- JPY: ¥30,561,236
- CNY: ¥1,418,478.44
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
|
Specification |

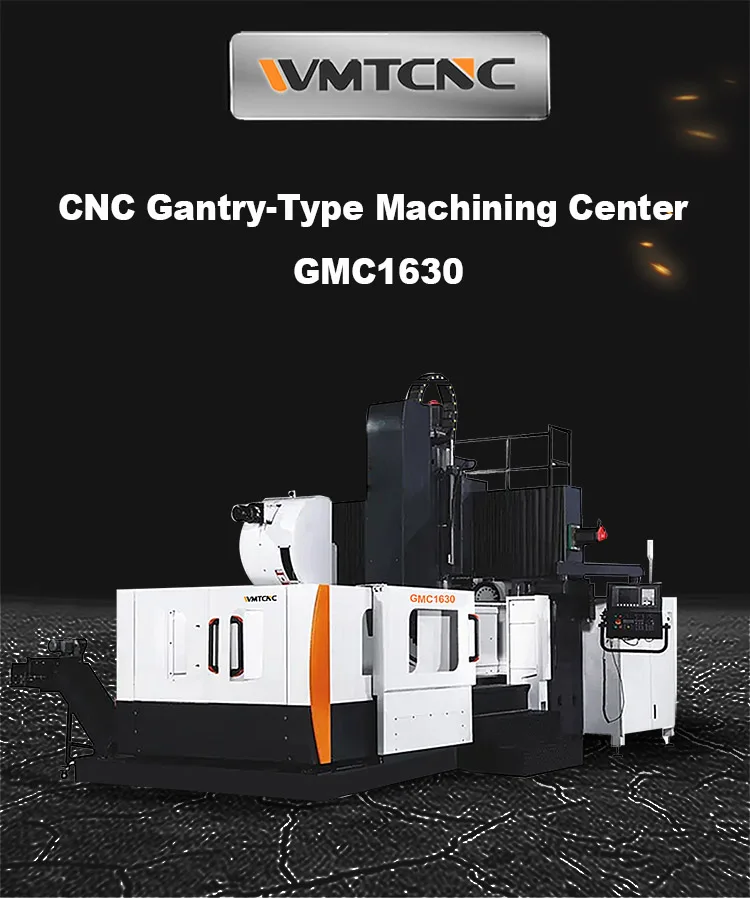

GMC1630 |
|
Worktable |
|
|
Worktable size (L×W) |
3000×1500mm |
|
T-slots size (N×W×D) |
9-22×160mm |
|
Travel |
|
|
X/Y/Z axis travel |
3100/1650/800mm |
|
Capacity |
|
|
Distance from spindle nose to worktable surface |
160-960mm |
|
Distance between two columns |
1650mm |
|
Spindle |
|
|
Spindle taper |
BT50 |
|
Spindle power |
15/18.5kw |
|
Max. spindle speed |
6000rpm |
|
Spindle torque |
143N·m |
|
Feed |
|
|
Rapid feed speed (X/Y/Z) |
10/10/10m/min |
|
Ball screw (diameter+lead) |
|
|
X/Y/Z axis ball screw |
6316/5016/5016 |
|
X/Y/Z guideway type |
X/Y:roller linear guideways, Z:box guideway |
|

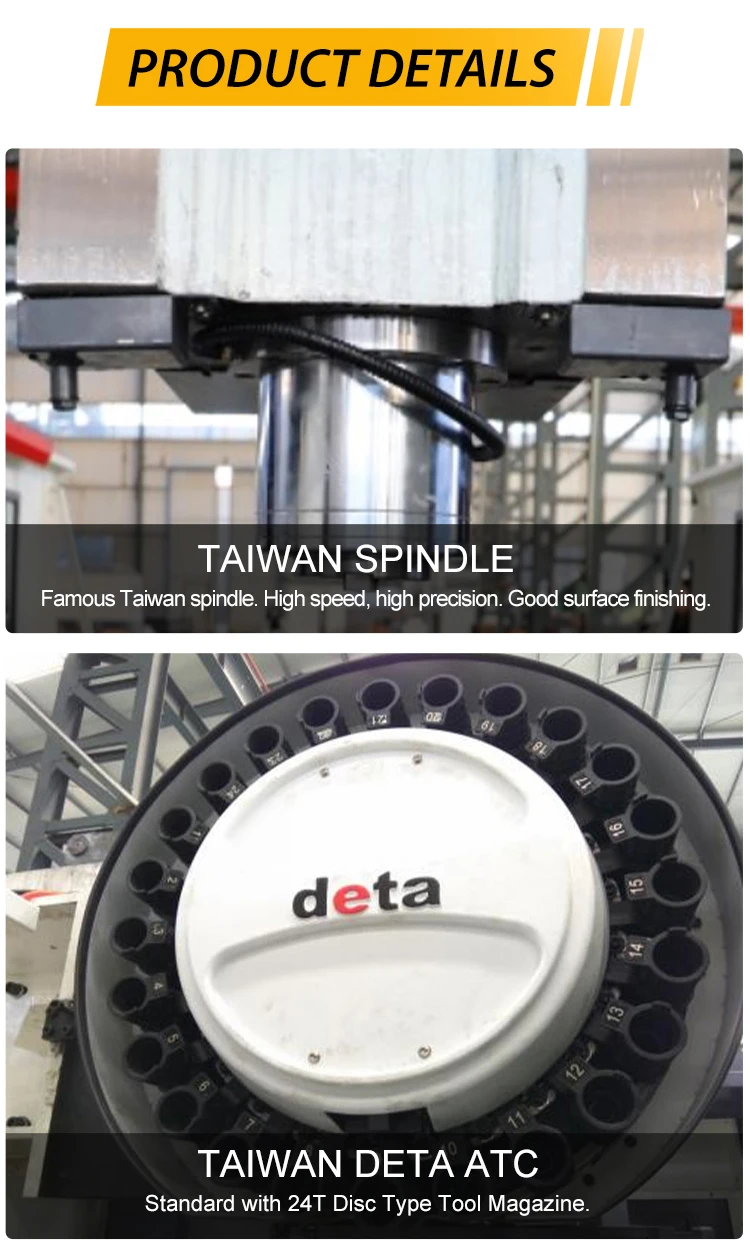

Tool magazine |
|
|
Tool magazine capacity |
24T |
|
Max. length of tool |
350mm |
|
Tool change time (T-T) |
3s |
|
Positioning accuracy (GB standard) |
|
|
Positioning accuracy（X/Y/Z） |
0.03mm |
|
Re-positioning accuracy（X/Y/Z） |
0.018mm |
|
Machine dimension |
|
|
L×W×H |
8000×5800×5000mm |
|
Machine weight |
|
|
Max. loading of worktable |
7t |
|
N.W |
26t |
