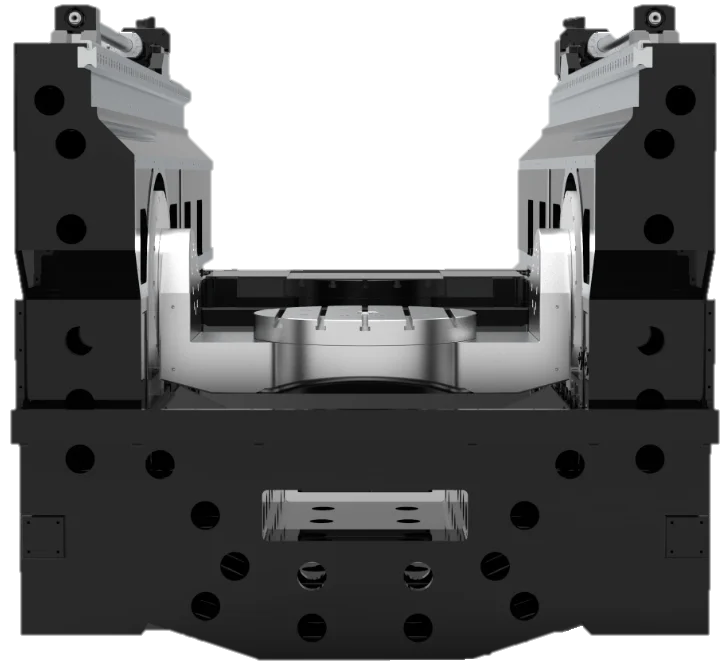

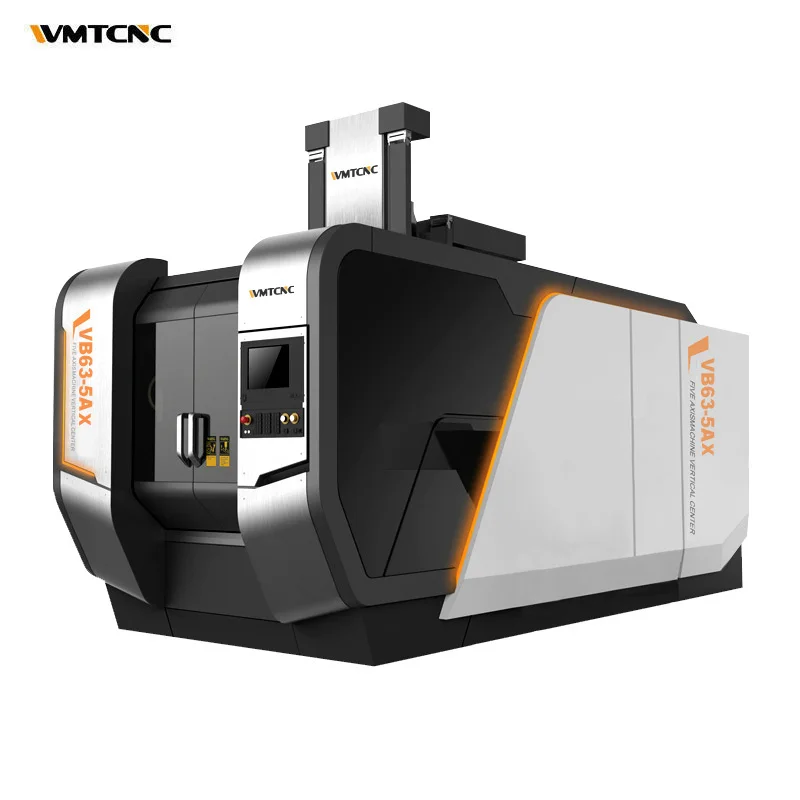

Name: ▷ Buy New Vertical Machining Center VB63-5AX High Power and Precision 5 Axis CNC Machining Center () - Available at MachineryGenie.com
SKU: 1005005888283657
Price: 567000.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Features:

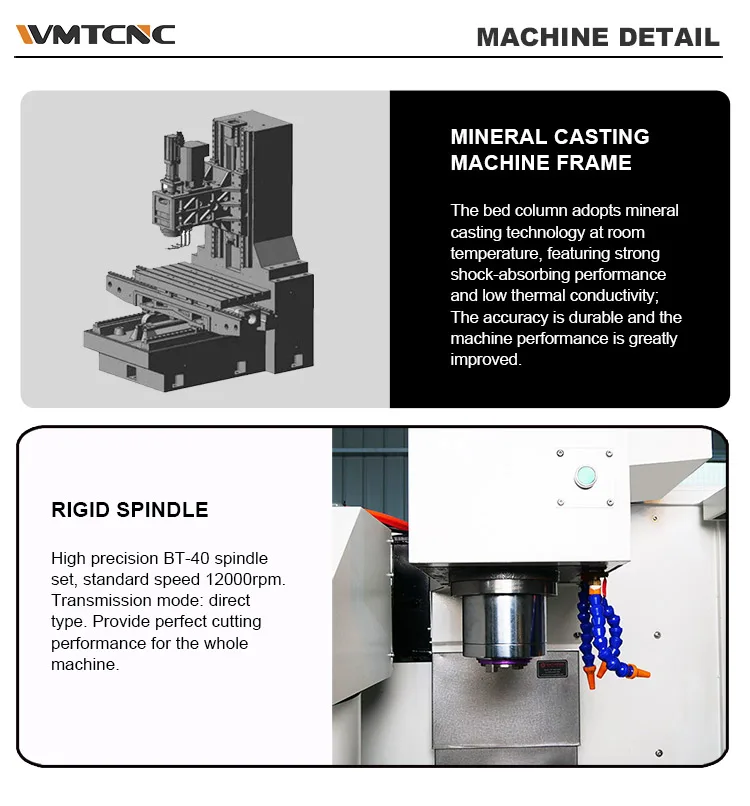

1. The spindle set is assembled with imported bearings. And equipped with spindle constant temperature cooling system.
2. Z-axis adopts no counterweight design, with automatic motor holding function, providing more perfect 3D machining performance for machining.
3. The electrical control cabinet adopts fully enclosed structure. It can prevent dust and oil mist, has good sealing, and the air inside and outside the cabinet is not exchanged directly.

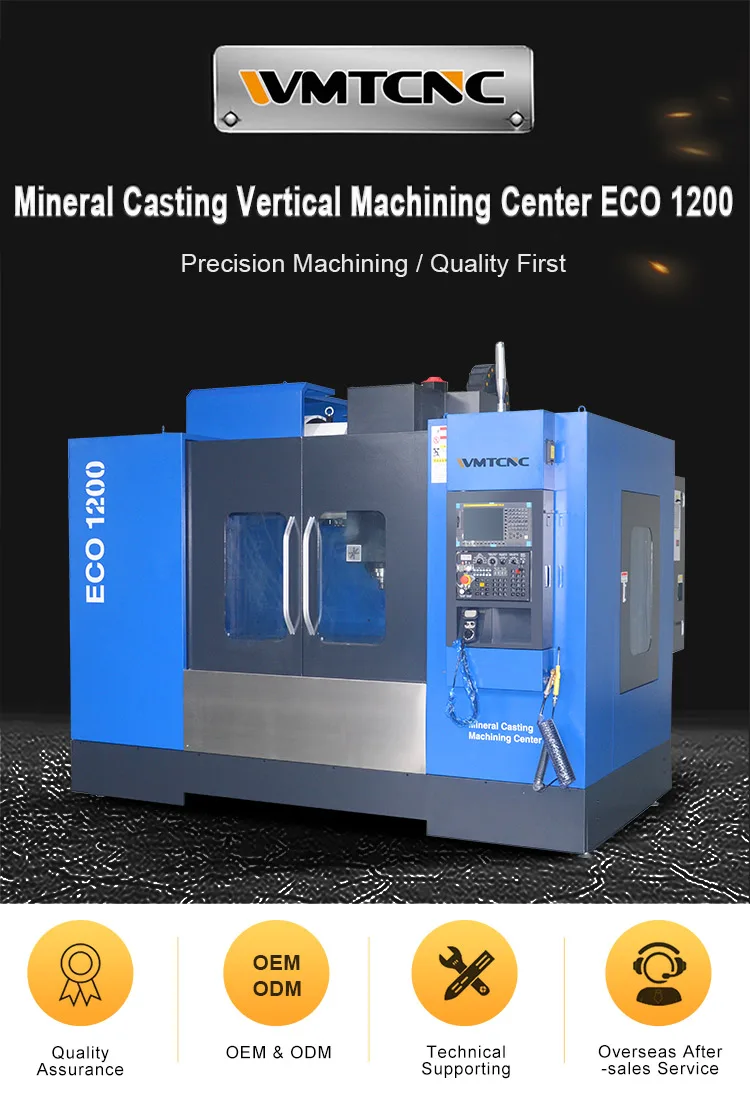

Specification	ECO1200
X/Y/Z axis travel	1200×680×600mm
Distance from spindle center to column	695mm
Distance from spindle nose to workable surface	150/750mm

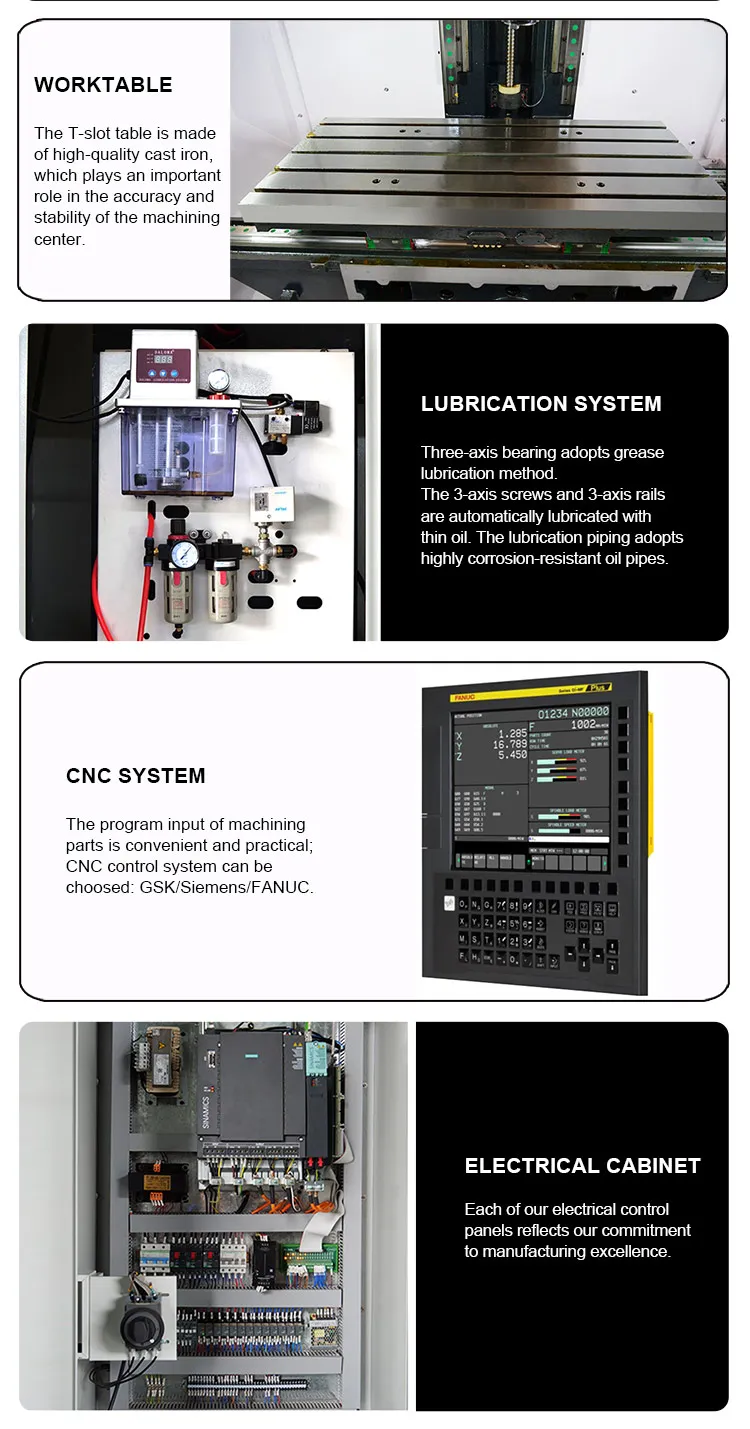

Mesa form	T-slot 18×5
Worktable size(L×W)	1300×600mm
Max.loading of worktable	1200kg
Spindle taper	BT40
Spindle speed	12000rpm
Power transmission mode	Direct connection
Main motor power(V/H)	15/22.5kw
Rapid feed speed(X/Y/Z)	30/30/24 m/min
Cutting feed	1-16000mm/min
Minimum input unit	0.001mm
Tool number	24position
Tool selection method	Bothway
Tool change time	1.5s
Maximum diameter of adjacent tool	80mm
Tool length	300mm
Tool weight	8kg
Overall positioning accuracy	0.008mm
Repositioning accuracy(X/Y/Z)	0.004mm
Guideway type	Roller line rail
Diameter/screw	40/12mm
Cutting fluid tank	180L
Lubrication system	3L
Nc system brand	Windwin21s
Barometric demand	0.55-0.65mpa
power capacity	25kva
Machine weight	9500kg
Floor space	3450x2650x2600mm

FAQ

Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What’s the MOQ?
A4: One set only.Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
