Double Column CNC Gantry Milling Machine Center GMC2960 for Metalworking
A$599,601.71
- USD: $405,405.00
- GBP: £321,806.62
- EUR: €374,748.66
- JPY: ¥60,698,011
- CNY: ¥2,817,255.80
Description
Attention please!!!

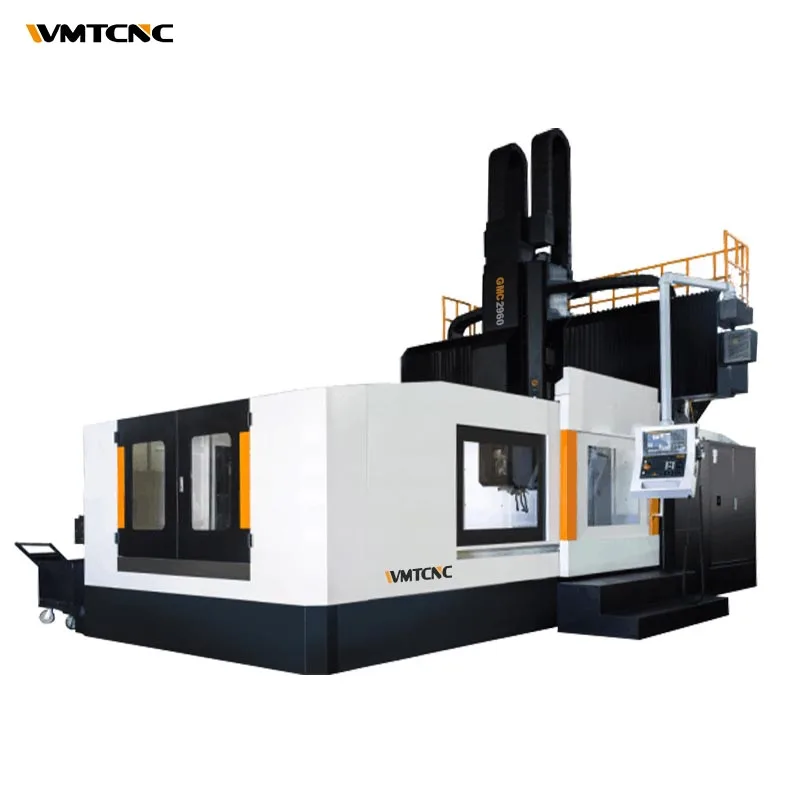

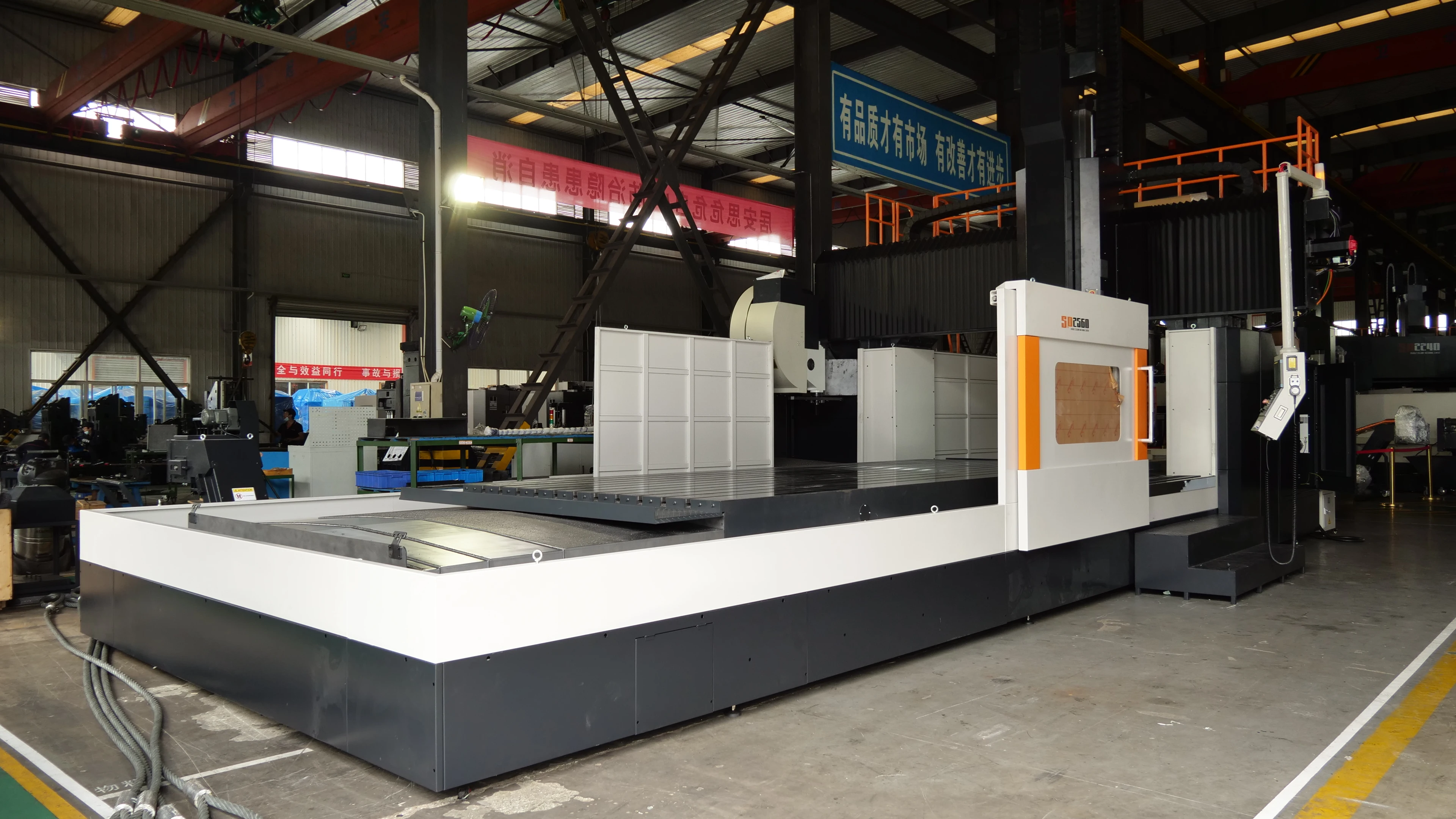

Double Column CNC Gantry Milling Machine Center GMC2960 for Metal Machining
Features:
1. High performance cost ratio.
2. Energy consumption decrease by 20%, high stability.
3. Easy to operate, programme and maintenance.
|
Specification |
GMC2960 |
|
Worktable |
|
|
Worktable size (L×W) |
6000×2500mm |
|
T-slots size (N×W×D) |
11-28×200mm |
|
Travel |
|
|
X/Y/Z axis travel |
6200/2900/1000mm |
|
Capacity |
|
|
Distance from spindle nose to worktable surface |
220-1220mm |
|
Distance between two columns |
3050mm |
|

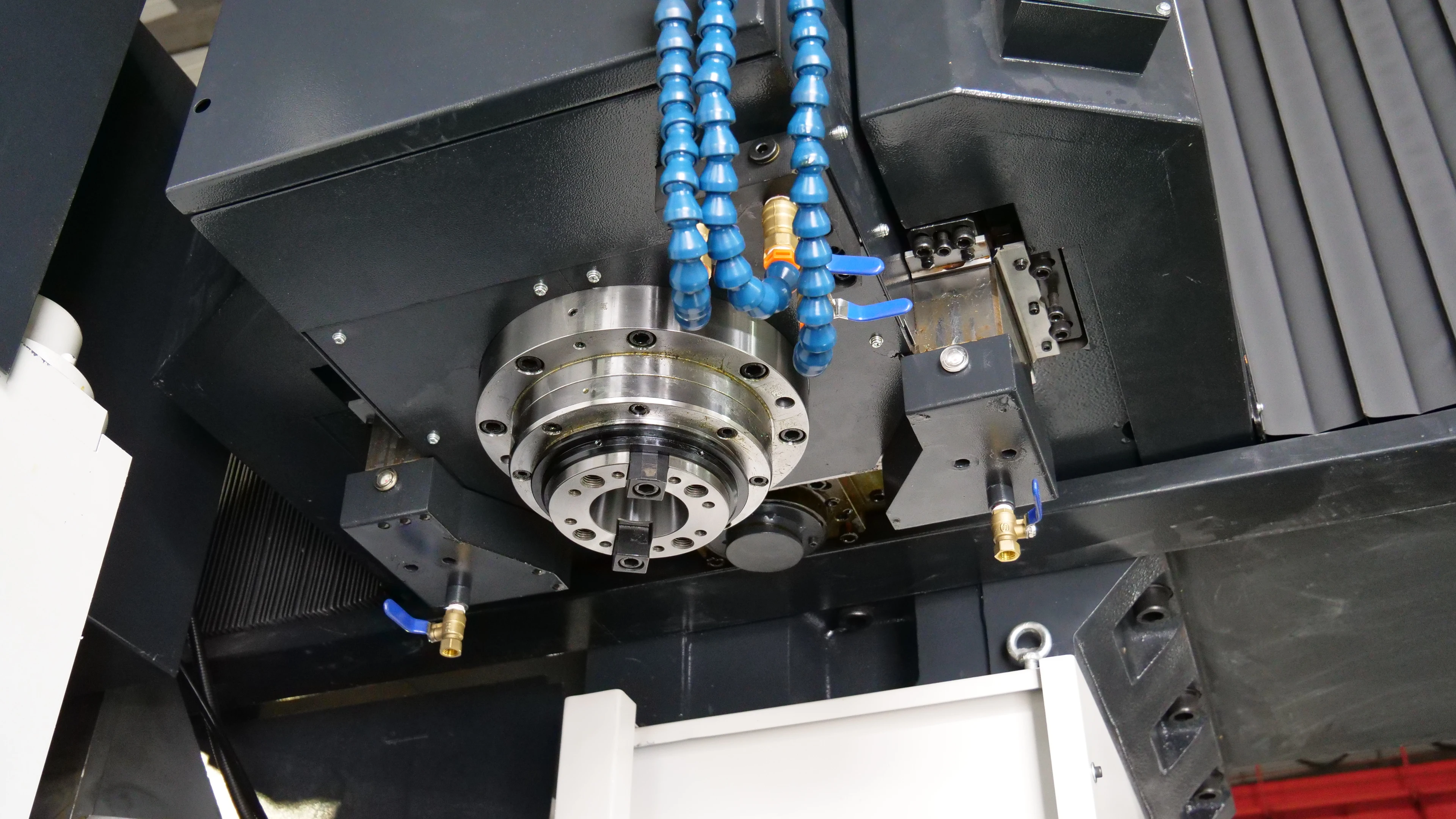

Spindle |
|
|
Spindle taper |
BT50 |
|
Spindle power |
22/26kw |
|
Max. spindle speed |
6000rpm |
|
Spindle torque |
560N·m |
|
Feed |
|
|
Rapid feed speed (X/Y/Z) |
10/10/10m/min |
|
Ball screw (diameter+lead) |
|
|
X/Y/Z axis ball screw |
8020/6320/5016 |
|
X/Y/Z guideway type |
X/Y:roller linear guideways, Z:box guideway |
|

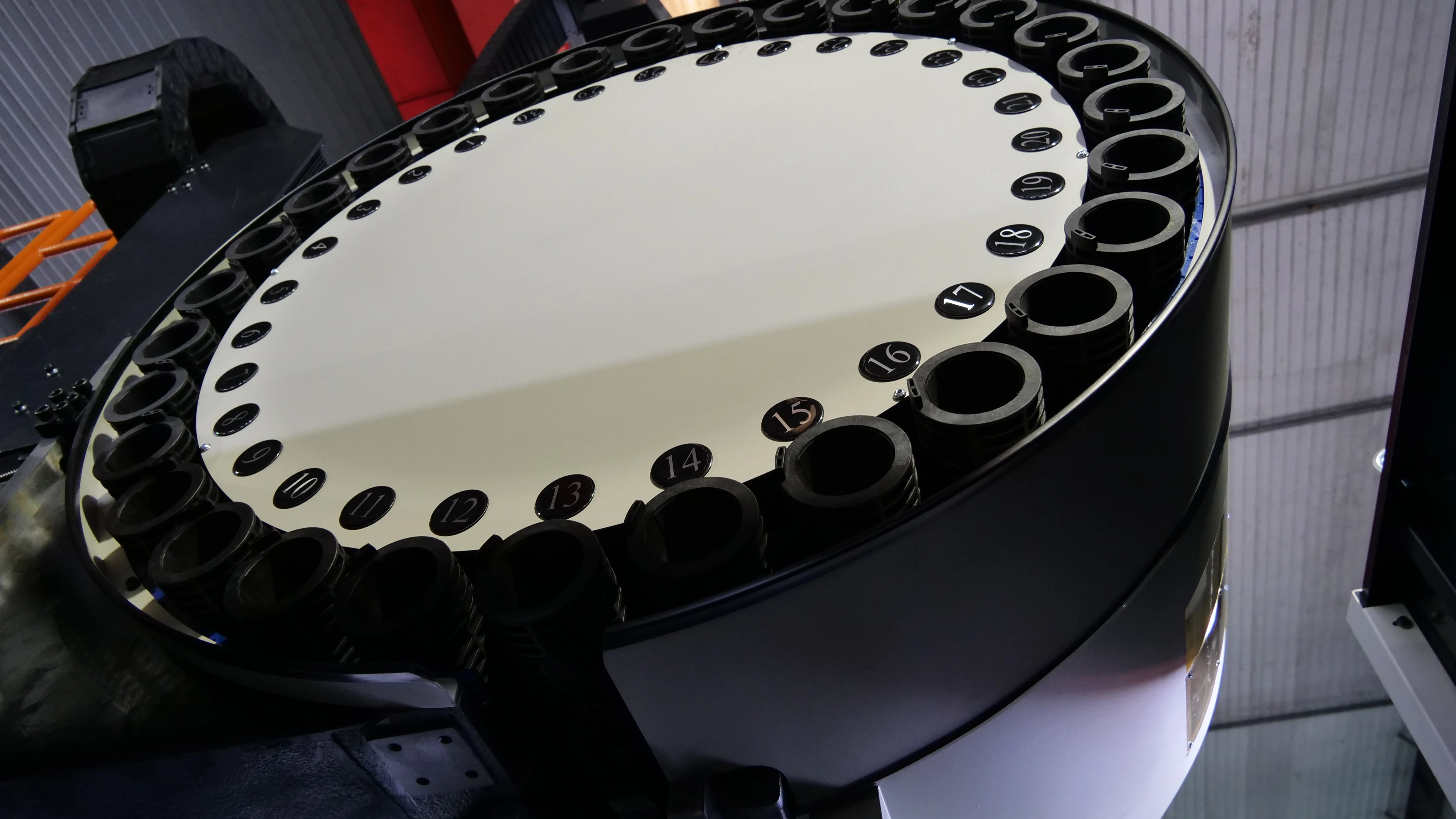

Tool magazine |
|
|
Tool magazine capacity |
24T |
|
Max. length of tool |
350mm |
|
Tool change time (T-T) |
3s |
|
Positioning accuracy (GB standard) |
|
|
Positioning accuracy（X/Y/Z） |
0.045mm |
|
Re-positioning accuracy（X/Y/Z） |
0.03mm |
|
Machine dimension |
|
|
L×W×H |
16000×7200×5700mm |
|
Machine weight |
|
|
Max. loading of worktable |
24t |
|
N.W |
50t |
