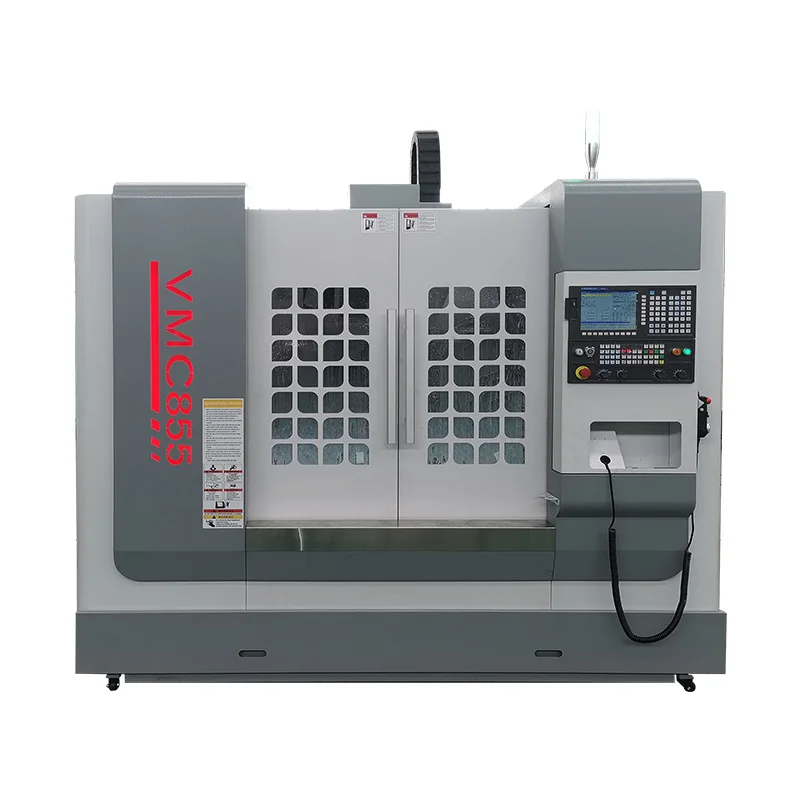

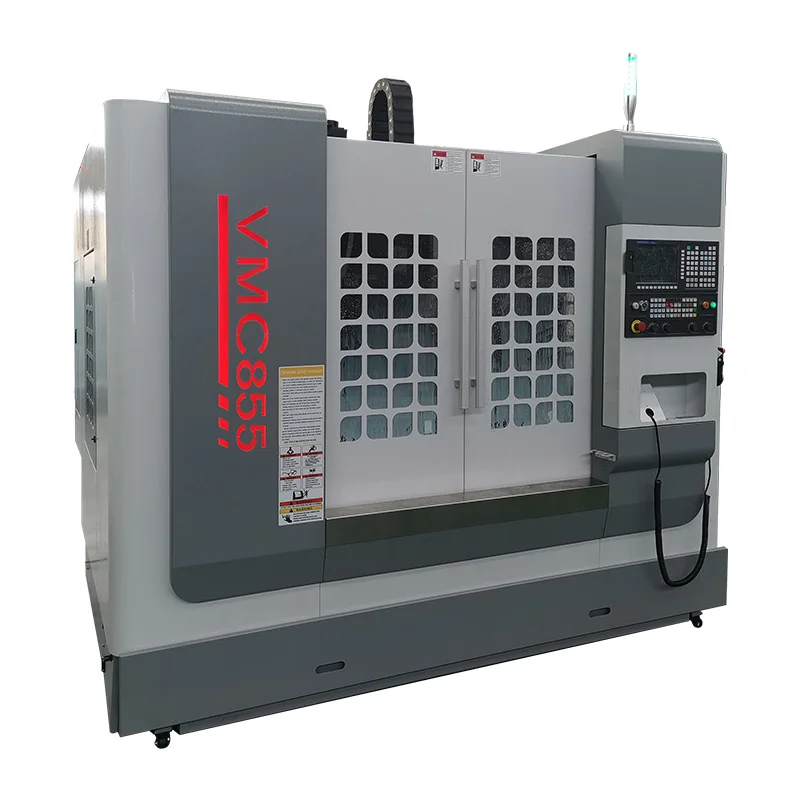

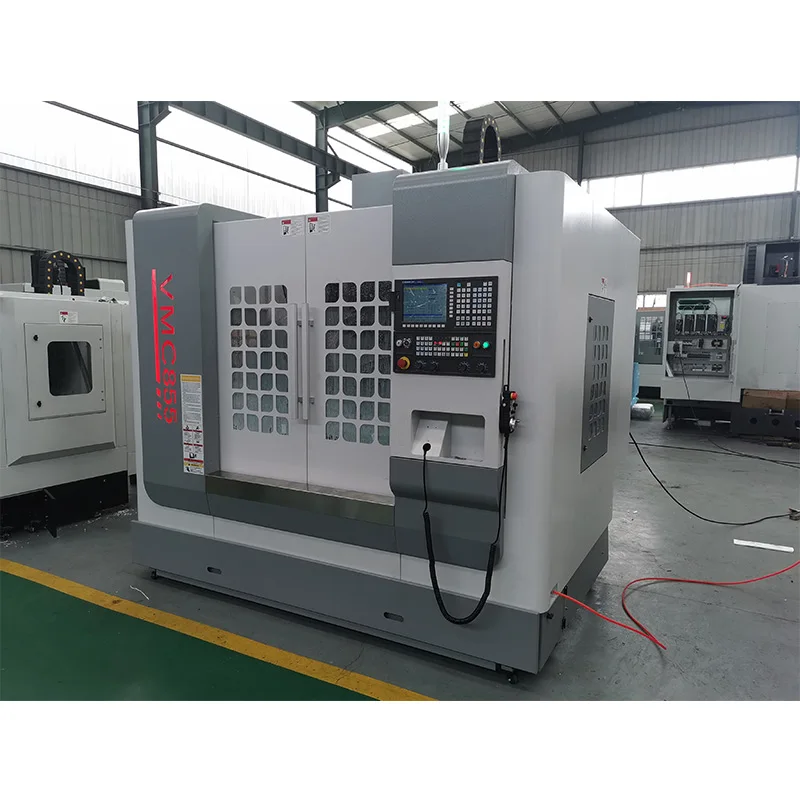

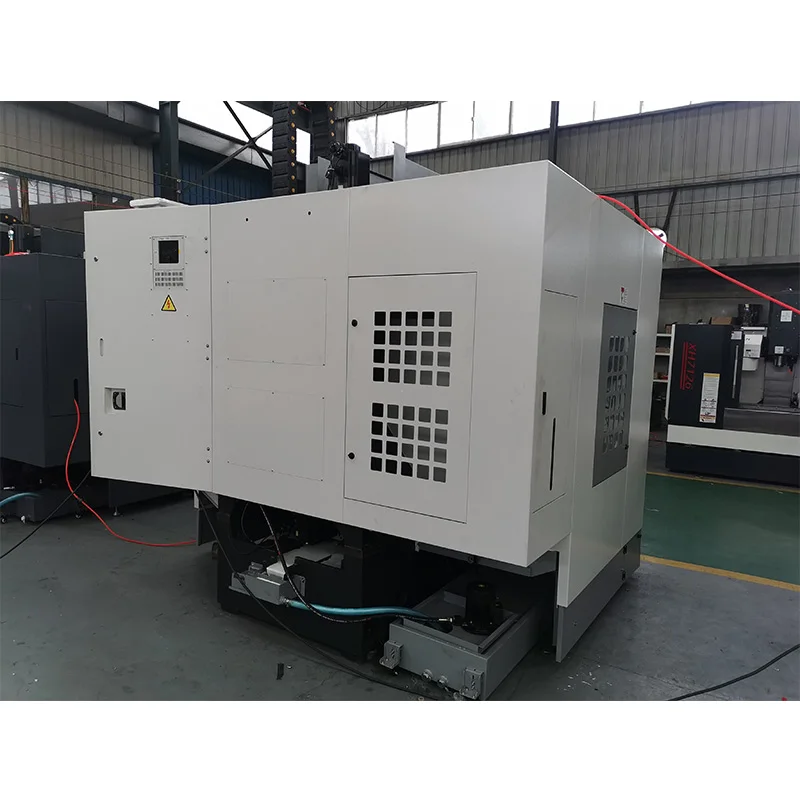

High Precision Vertical Machining Center VMC855L for Metalworking
A$71,281.32
- USD: $48,195.00
- GBP: £38,256.73
- EUR: €44,550.54
- JPY: ¥7,215,847
- CNY: ¥334,918.52
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
|
Specification
|
Unit
|
VMC855
|
|
Worktable size
|
mm
|
1000*550
|
|
T-slot size
|
mm
|
5-18*100
|
|
Max. load bearing of worktable
|
kg
|
700
|
|
3 axis Travel X/Y/Z
|
mm
|
850/550/650
|
|
Distance from column to spindle center
|
mm
|
610
|
|
Distance from table surface to spindle nose
|
mm
|
125-775
|
|
Spindle hole taper
|
BT40
|
|
|
Spindle power
|
kw
|
11/15
|
|
Max. spindle speed
|
rpm
|
8000
|
|
Max. feed speed
|
mm/min
|
10000
|
|
Rapid feed speed
|
m/min
|
15/15/12
|
|
Tool magazine capacity
|
T
|
24
|
|
Tool change time
|
S
|
2.5
|
|
Positioning accuracy
|
mm
|
0.01
|
|
Re-positioning accuracy
|
mm
|
0.005
|
|
Machine dimension
|
mm
|
2700*2510*3000
|
|
Machine weight
|
kg
|
6200
|
