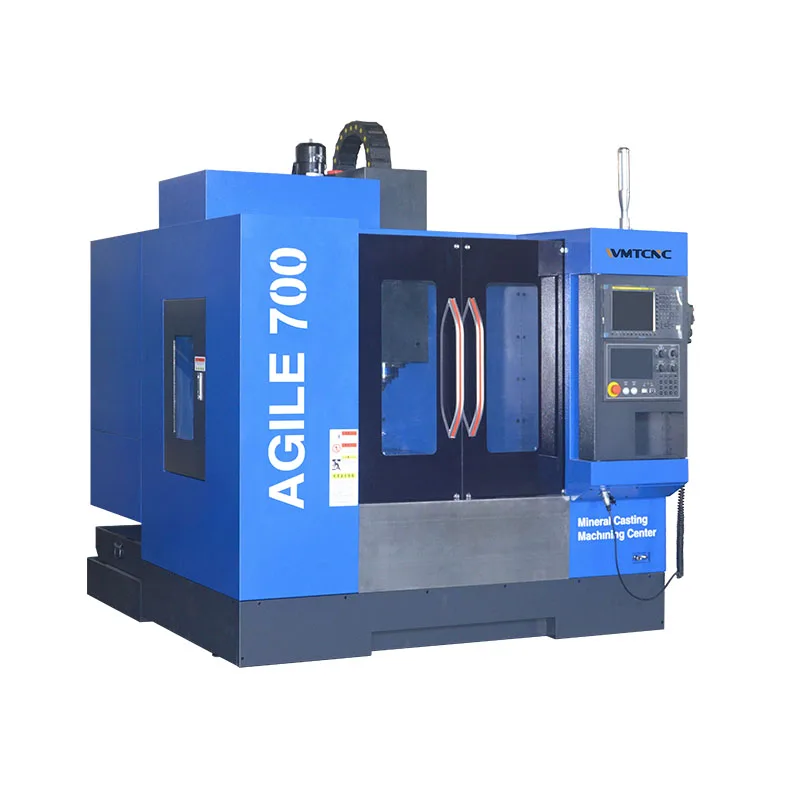

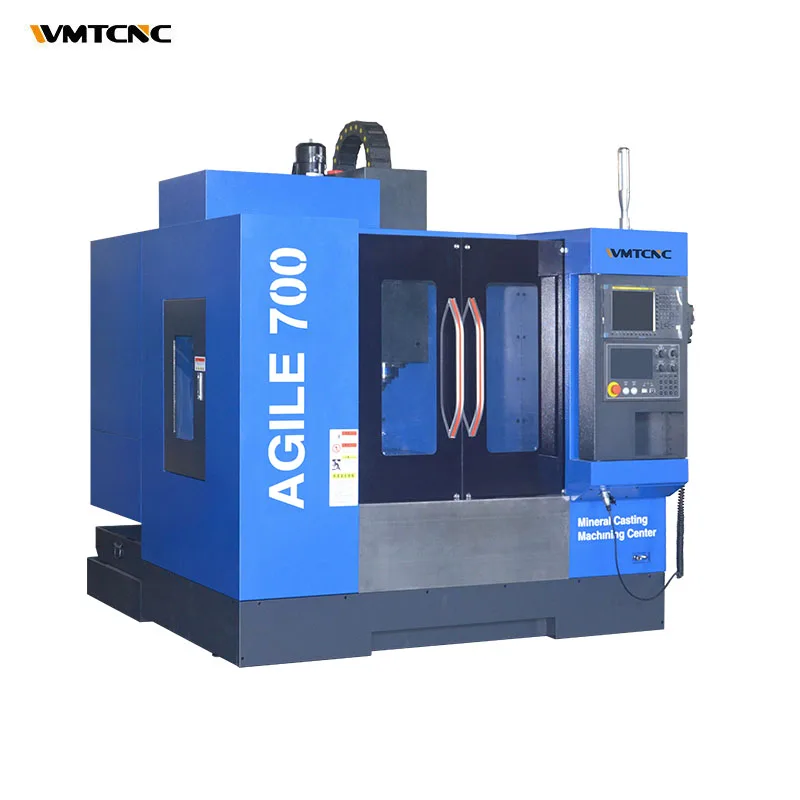

Vertical Machining Center AGILE 700 CNC High Speed Milling Turning with CE
A$109,018.49
- USD: $73,710.00
- GBP: £58,510.30
- EUR: €68,136.12
- JPY: ¥11,036,002
- CNY: ¥512,228.33
Description
Attention please!!!
Main Features:

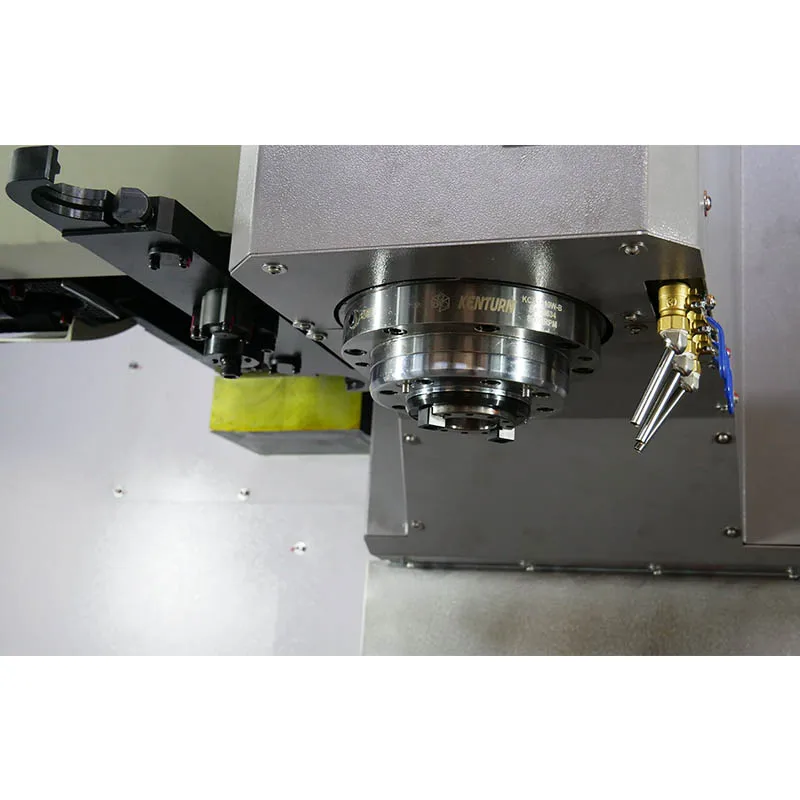

1.The spindle group is assembled with imported bearings and equipped with a constant temperature cooling system for the spindle.The Z-axis adopts the design of no counterweight, with the function of automatic motor holding brake, which provides more perfect 3D machining performance for machining.
2. X/Y/Z axis adopts line rail design and C3 grade high precision ball screw. Linear rail precision grade P.
3. The high flow rate flushing system in the chassis flushes the chips to the rear chip conveyor, which is convenient and easy to clean. Chain plate type chip conveyor lifting system and chip collecting trolley are optional.
|
Specification
|
ECO 800
|
|
X/Y/Z axis travel
|
800×550×550mm
|
|
Distance from spindle center to column
|
590mm
|
|
Distance from spindle nose to workable surface
|
120/170mm
|
|
Mesa form
|
T-slot 18×5
|
|

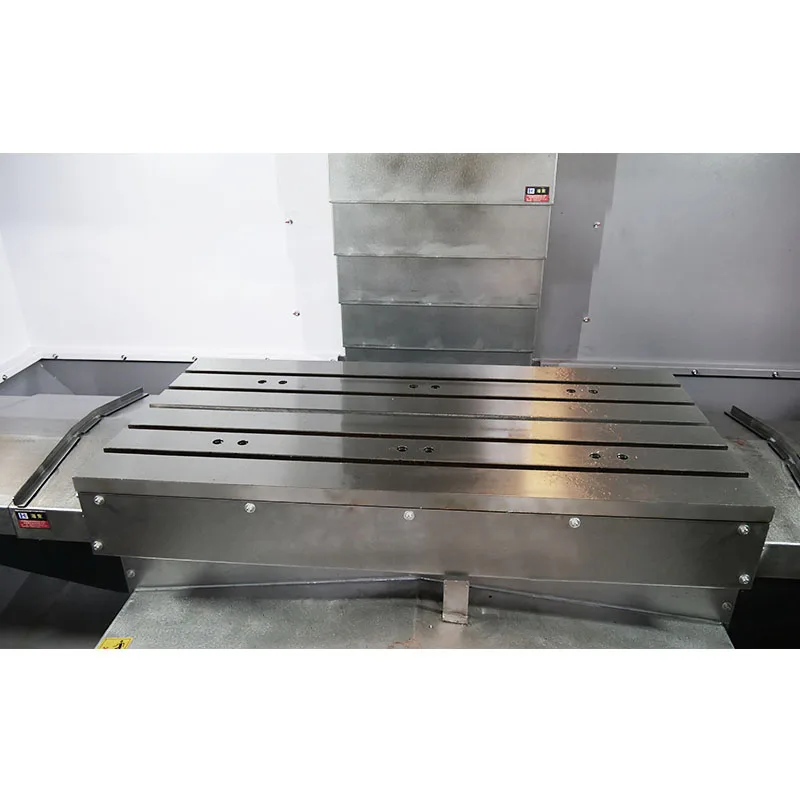

Worktable size(L×W)
|
1200×550mm
|
|
Max.loading of worktable
|
500kg
|
|
Spindle taper
|
BT40
|
|
Spindle speed
|
8000rpm
|
|
Power transmission mode
|
Synchronous belt type
|
|
Main motor power(V/H)
|
15/22.5kw
|
|
Rapid feed speed(X/Y/Z)
|
36/36/36 m/min
|
|
Cutting feed
|
1-16000mm/min
|
|
Minimum input unit
|
0.001mm
|
|
Tool number
|
24T
|
|
Tool selection method
|
Bothway
|
|
Tool change time
|
1.5s
|
|
Maximum diameter of adjacent tool
|
80mm
|
|
Tool length
|
300mm
|
|
Tool weight
|
8kg
|
|
Guideway type
|
Roller line rail
|
|
Overall positioning accuracy
|
0.008mm
|
|
Repositioning accuracy(X/Y/Z)
|
0.004mm
|
|
Cutting fluid tank
|
180L
|
|
Lubrication system
|
3L
|
|
Nc system brand
|
Windwin21s
|
|
Barometric demand
|
0.55-0.65mpa
|
|
power capacity
|
25kva
|
|
Machine weight
|
6500kg
|
|
Floor space
|
2650x2250x2650mm
|
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What’s the MOQ?
A4: One set only.Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
