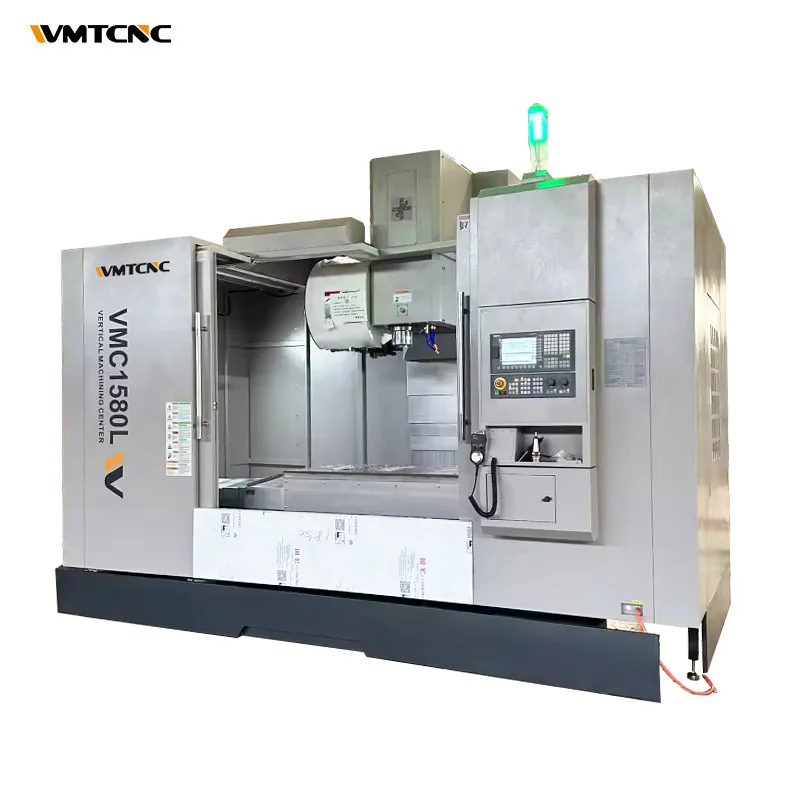

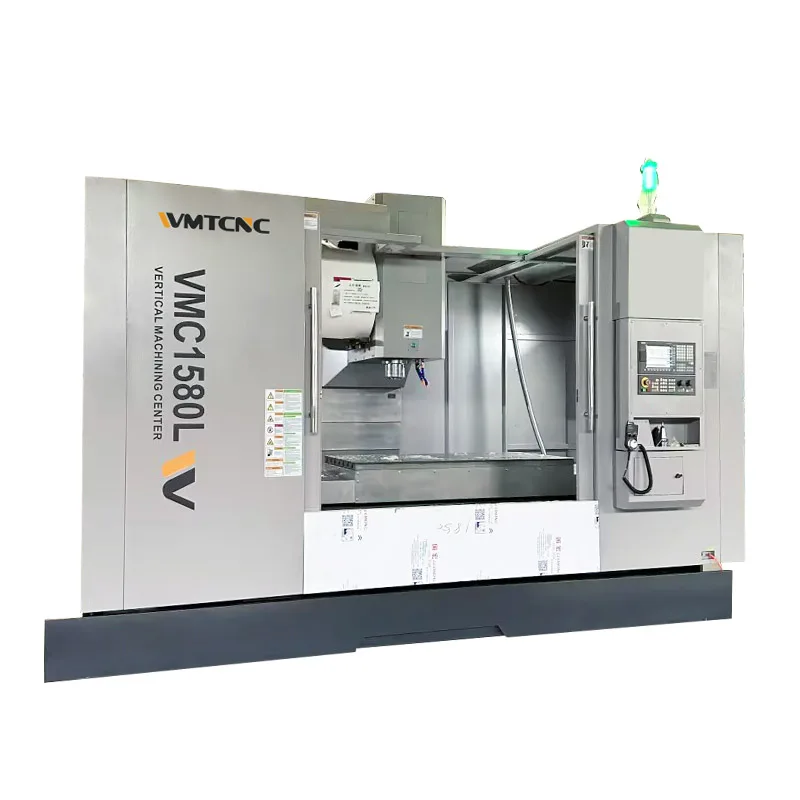

VMC1580L High Speed CNC Machining Center with Wide Range of Applications
A$144,659.15
- USD: $97,807.50
- GBP: £77,638.66
- EUR: €90,411.39
- JPY: ¥14,643,926
- CNY: ¥679,687.59
Description
Attention please!!!
Main Features:
1. The whole machine tool adopts full protection design, and through the optimized design of man-machine interface, the operator can work in a safe and comfortable environment.
2. X/Y/Z three axes adopt: high-precision linear guideway; high-precision ball screw.

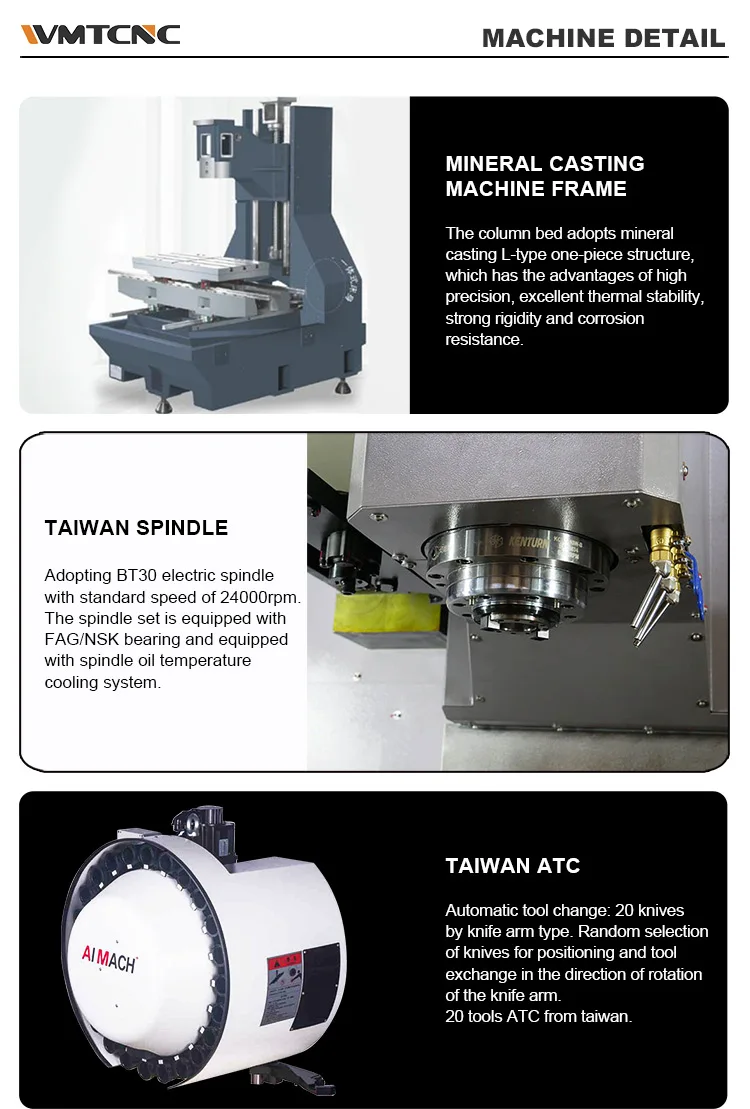

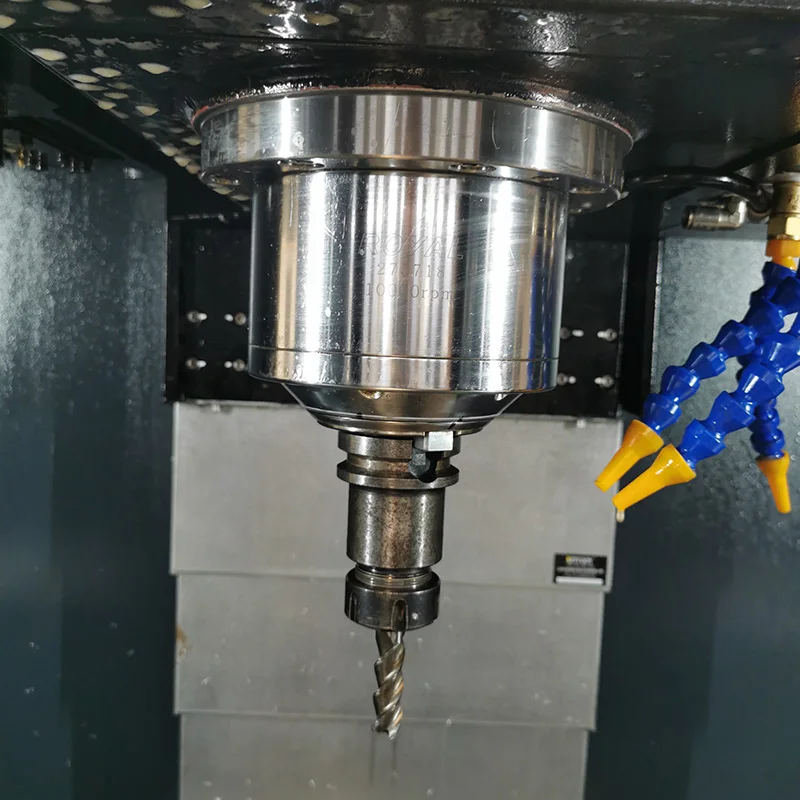

3. The spindle adopts forced circulation cooling system, standard configuration spindle thermostatic oil cooler, through the cooling oil circulation refrigeration, to ensure the spindle temperature stability, extend the life of the spindle bearings, for processing to provide a more stable performance.

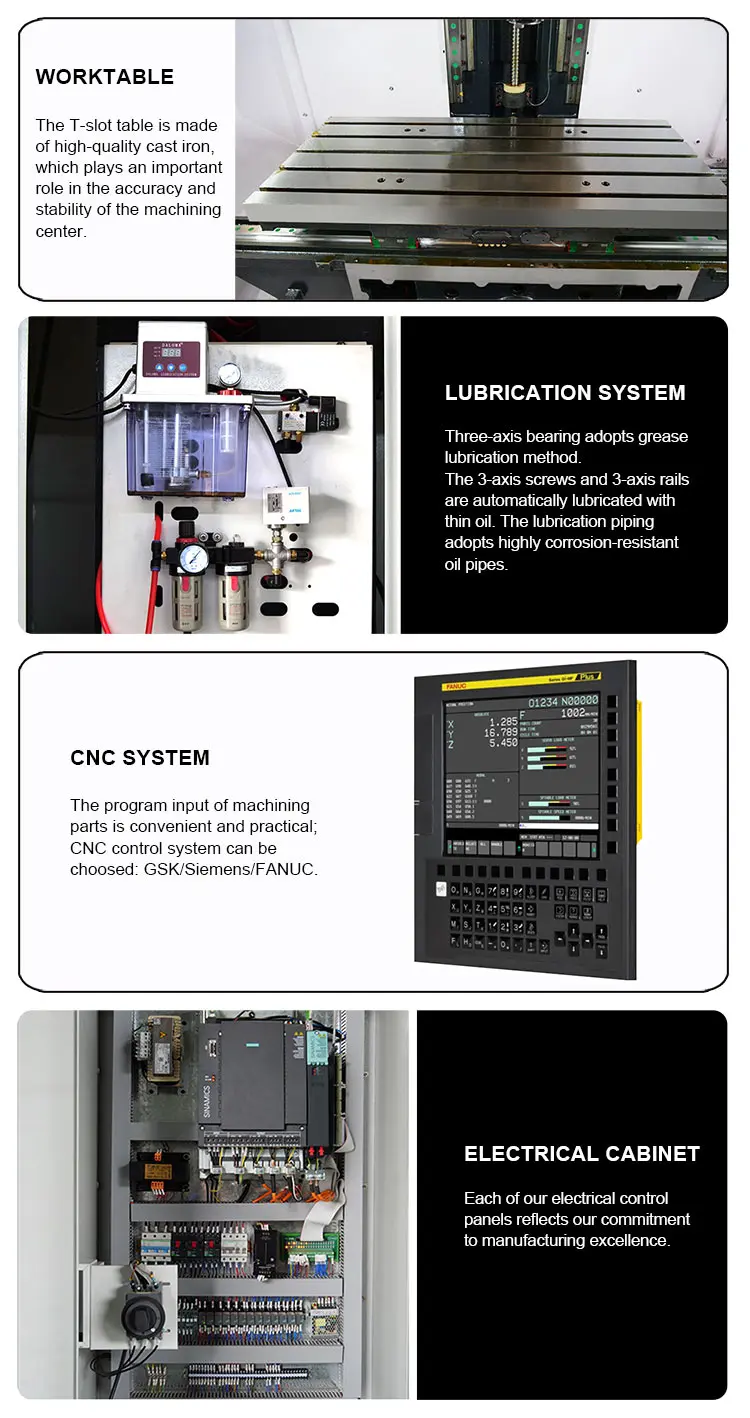

4. The electrical control cabinet adopts fully closed structure. It can prevent dust and oil mist, has good sealing, and the air inside and outside the cabinet is not directly exchanged. The machine control cabinet is equipped with constant temperature air conditioner for temperature adjustment and air purification inside the control cabinet to ensure the stability and reliability of the electrical control.
|
Specification
|

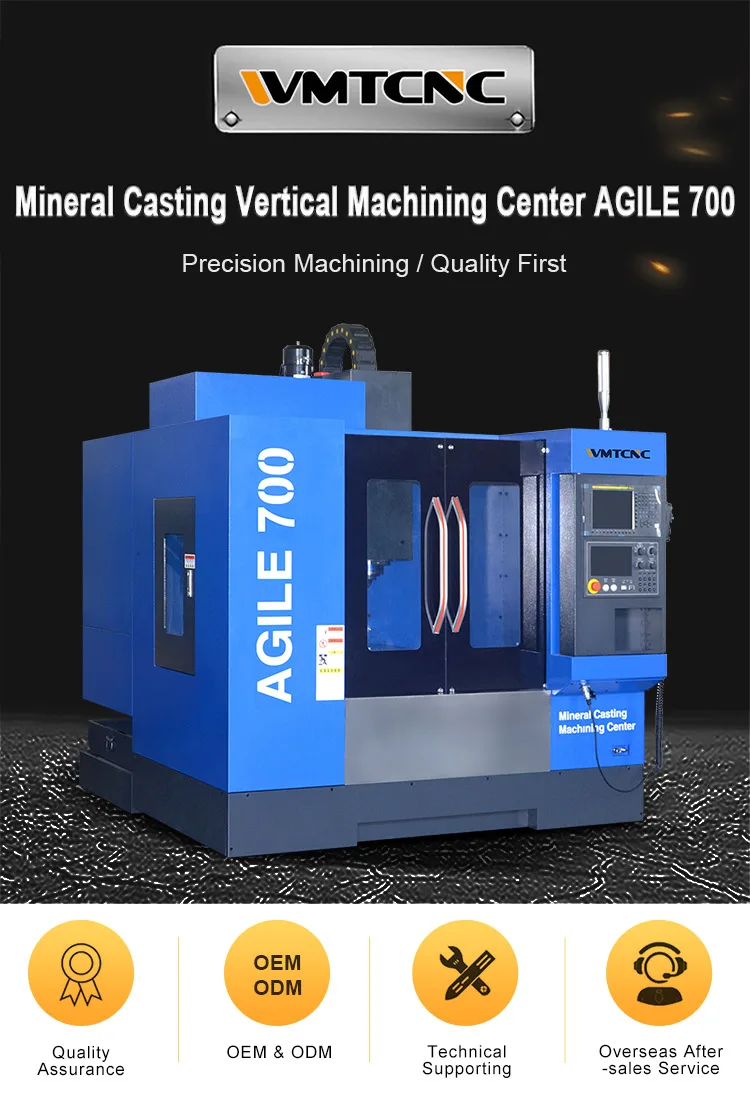

AGILE 700
|
|
X/Y/Z axis travel
|
700×400×500mm
|
|
Distance from spindle center to column
|
430mm
|
|
Distance from spindle nose to workable surface
|
130mm
|
|

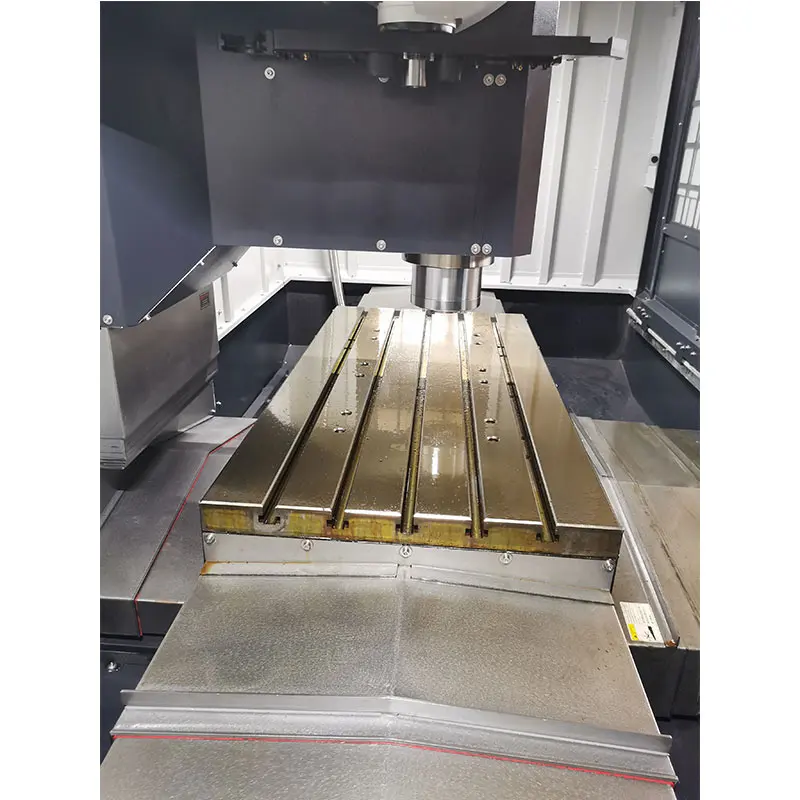

Mesa form
|
T-slot
|
|
Worktable size(L×W)
|
800×400mm
|
|
Max.loading of worktable
|
160kg
|
|
Spindle taper
|
BT30
|
|
Spindle speed
|
24000rpm
|
|
Power transmission mode
|
motorized spindle
|
|
Rapid feed speed(X/Y/Z)
|
48/48/48m/min
|
|

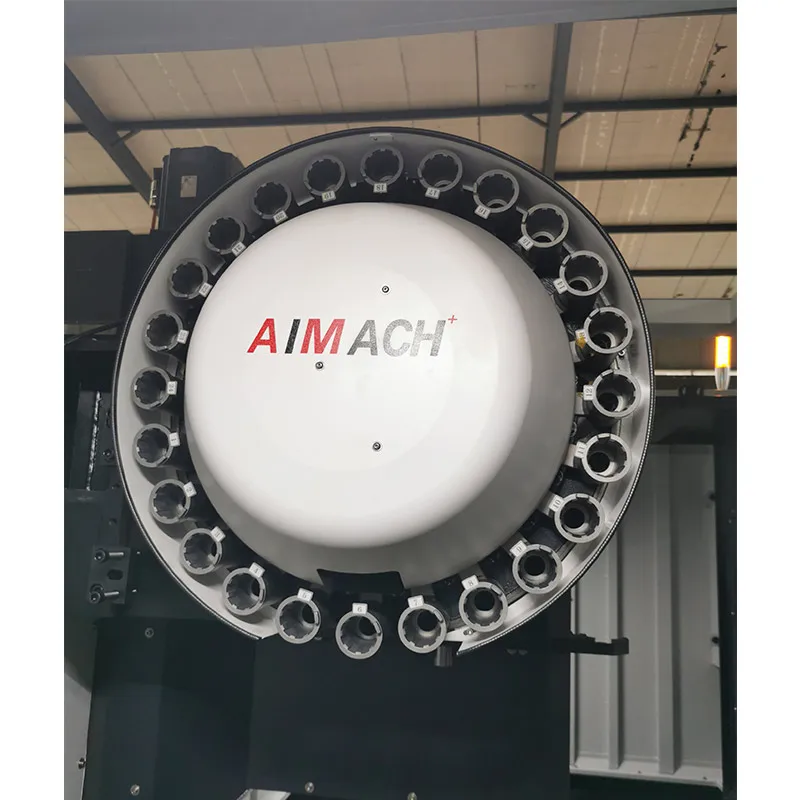

Tool number
|
20 position
|
|
Tool selection method
|
Bothway
|
|
Tool change time
|
1.8s
|
|
Maximum diameter of adjacent tool
|
80mm
|
|
Tool length
|
200mm
|
|
Tool weight
|
6kg
|
|
Main motor power(V/H)
|
6.2/7.5kw
|
|
X/Y/Z feed motor power
|
1.8/1.8/3
|
|
Overall positioning accuracy
|
0.008mm
|
|
Repositioning accuracy(X/Y/Z)
|
0.005mm
|
|
Guideway type
|
Linear guide rail
|
|
Cutting fluid tank
|
150L
|
|
Lubrication system
|
3L
|
|
CNC system brand
|
FANUC 0i MF plus
|
|
Barometric demand
|
0.55-0.65mpa
|
|
power capacity
|
25kva
|
|
Machine weight
|
3600kg
|
|
Floor space
|
1970×2200mm
|
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What’s the MOQ?
A4: One set only.Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
