Name: ▷ Buy New In Stock VMC1370L Vertical Machinig Center for Industry () - Available at MachineryGenie.com
SKU: 1005005353650850
Price: 63585.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

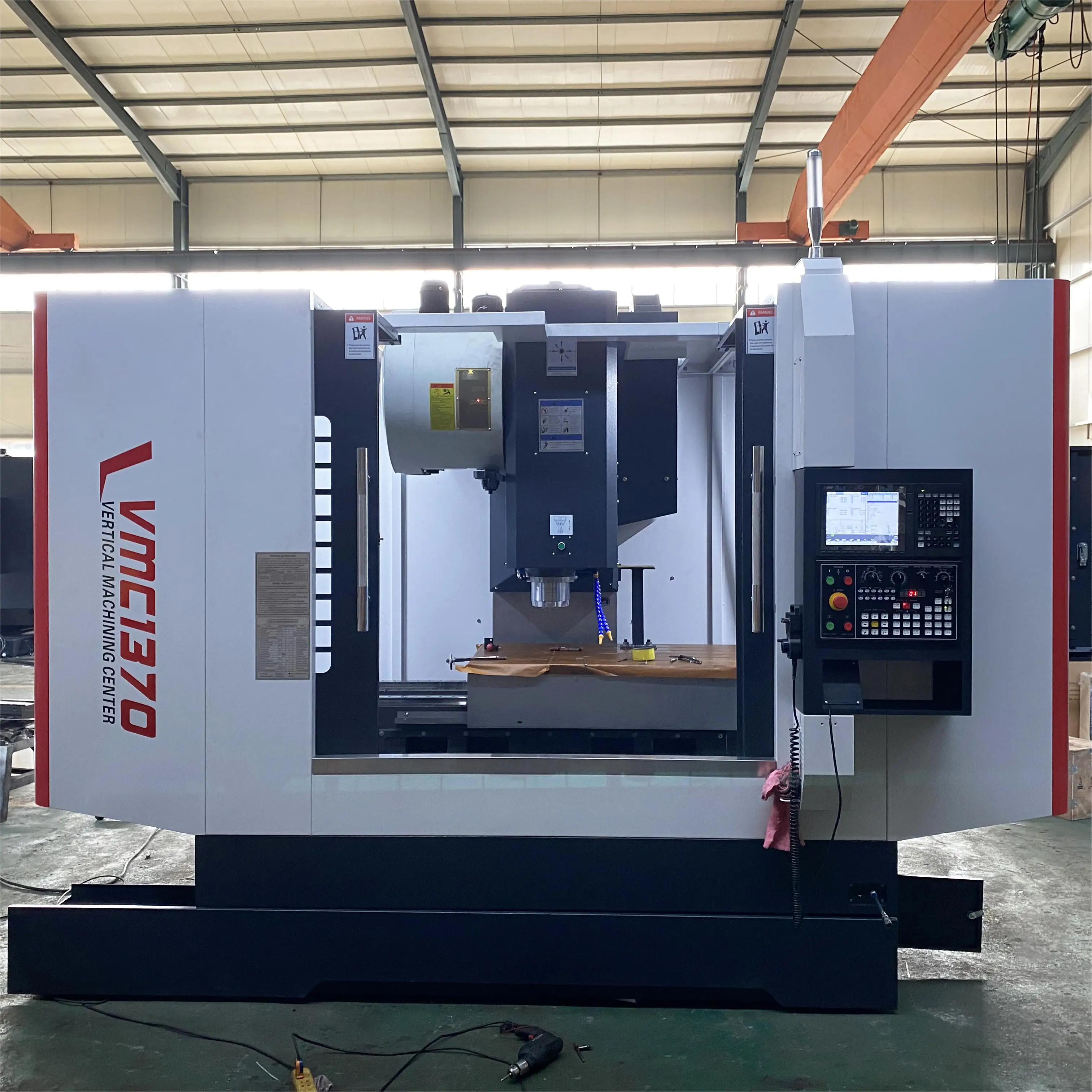

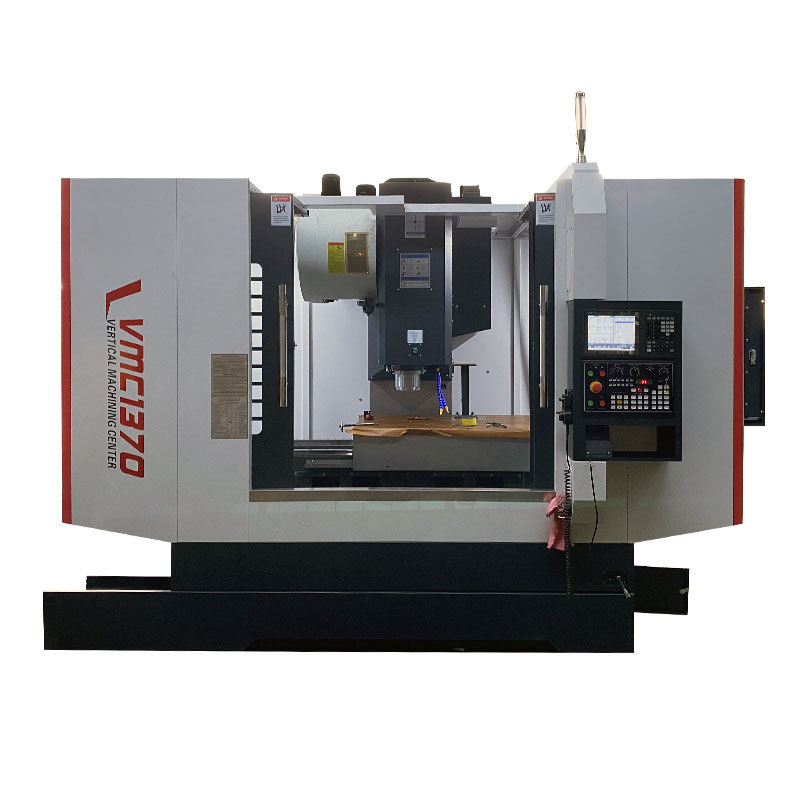

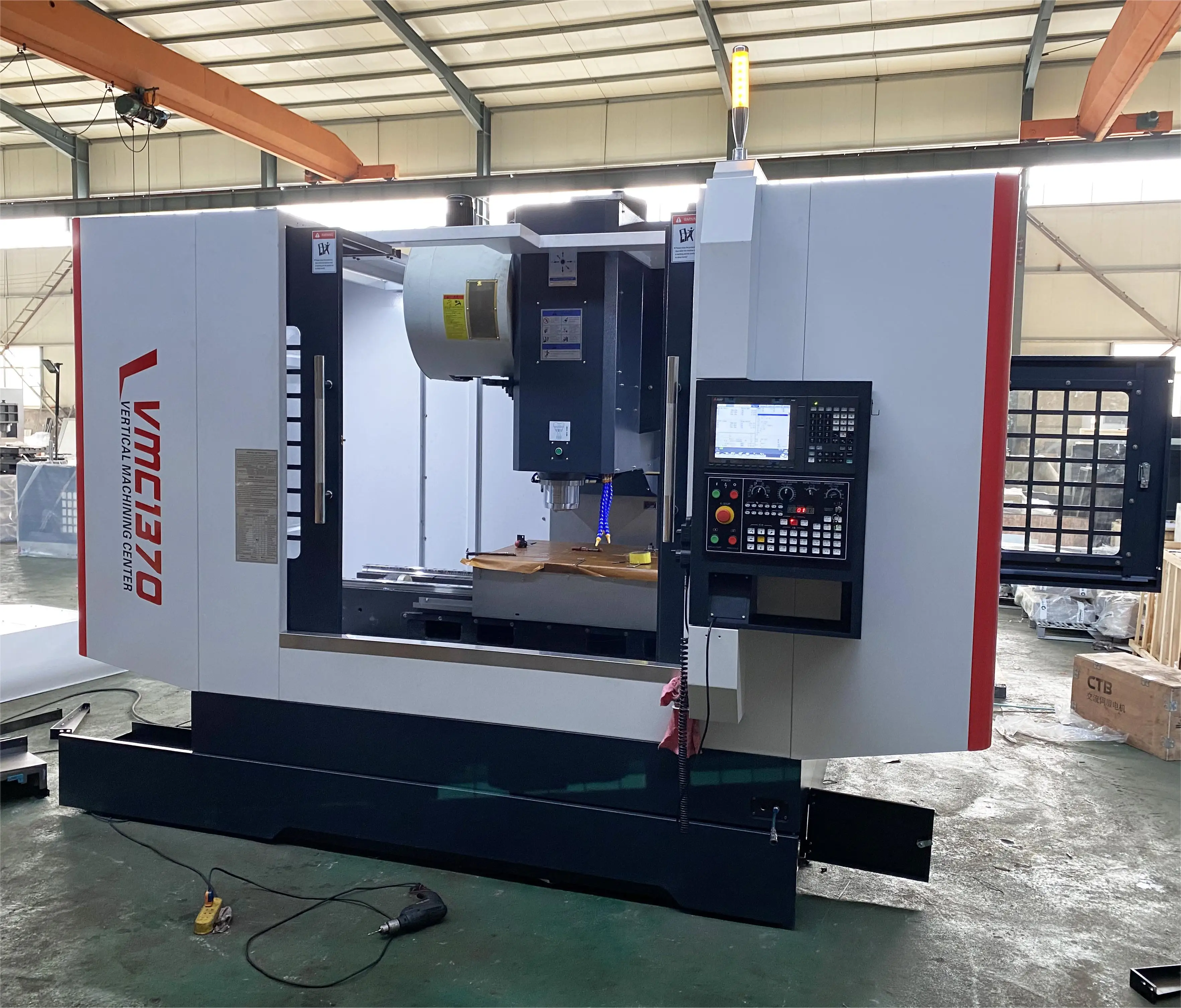

VMC1370L Vertical Machinig Center for Industry

Features:

1. Robust construction for efficient machining.

2. Chip conveyor and purge system for optimum chip removal.

3. Easy accessibility of work table for easy setup and tooling.

4. Enclosed work space ensures safe and contamination-free work.

Specification	VMC1370
Worktable size(LxW)	1400×700mm
T-slot (NxWxD)	5x18x110mm
X/Y/Z axis travel	1300/700/700mm
Distance from spindle center to column	750mm
Distance from spindle nose to worktable surface	110-810mm
Spindle taper	BT40
Spindle power	11kw
Max.spindle speed	8000rpm
Max.feed speed	10m/min
Rapid feed speed(X/Y/Z)	24/24/20 m/min
X/Y/Z axis ball screw	4512
Tool magazine capacity	24T
Max.tool length	300mm
Tool change time(T-T)	2.5s
Positioning accuracy(X/Y/Z)	±0.008mm
Re-positioning accuracy(X/Y/Z)	±0.003mm
Machine size(LxWxH)	3200×2540×2600mm
Max.loading of worktable	1000kgs
Machine weight	8200kgs
