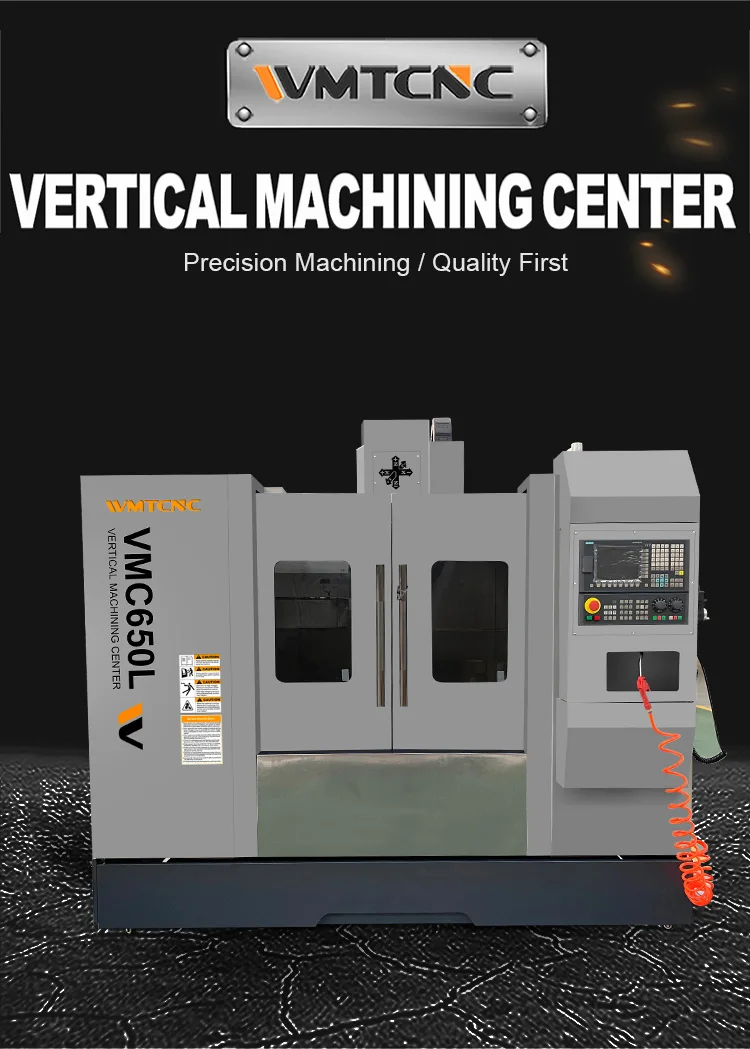

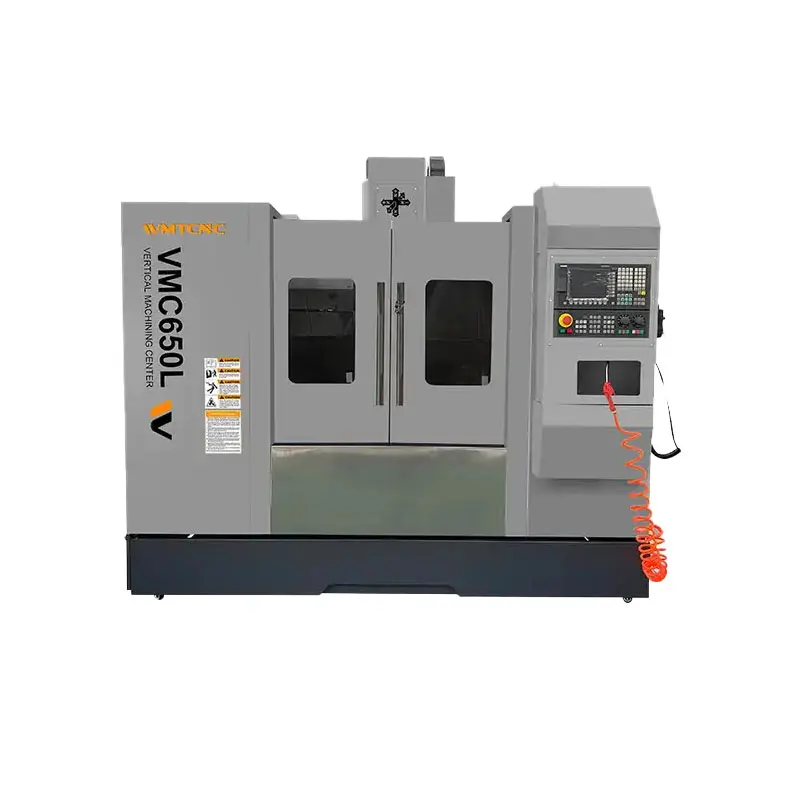

CNC 5-axis Vertical Milling Machining Center VMC650L of High Precision in China
$27,405.00
- AUD: A$42,559.14
- GBP: £22,841.52
- EUR: €26,599.29
- JPY: ¥4,308,285
- CNY: ¥199,966.06
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]
Main Features:
1. Robust construction for efficient machining.
2. Integrated coolant system.
3. Chip conveyor and purge system for optimum chip removal.
4. Easy accessibility of work table for easy setup and tooling.
5. Enclosed work space ensures safe and contamination-free work.
5. Enclosed work space ensures safe and contamination-free work.
|
Specification
|
VMC650L
|
|
Worktable size(LxW)
|
900x400mm
|
|
T-slot (NxWxD)
|
5x16x75mm
|
|
X/Y/Z axis travel
|
650/450/500mm
|
|
Distance from spindle center to column
|
500mm
|
|
Distance from spindle nose to worktable surface
|
120-620mm
|
|
Spindle taper
|
BT40
|
|
Spindle power
|
5.5/7.5kw
|
|
Max.spindle speed
|
8000rpm
|
|
Max.feed speed
|
10m/min
|
|
Rapid feed speed(X/Y/Z)
|
24/24/20 m/min
|
|
X/Y/Z axis ball screw
|
4012
|
|
Tool magazine capacity
|
16T
|
|
Max.tool length
|
250mm
|
|
Tool change time(T-T)
|
8s
|
|
Positioning accuracy(X/Y/Z)
|
±0.007mm
|
|
Re-positioning accuracy(X/Y/Z)
|
±0.005mm
|
|
Machine size(LxWxH)
|
2300x2200x2400mm
|
|
Max.loading of worktable
|
400kgs
|
|
Machine weight
|
3800kgs
|
