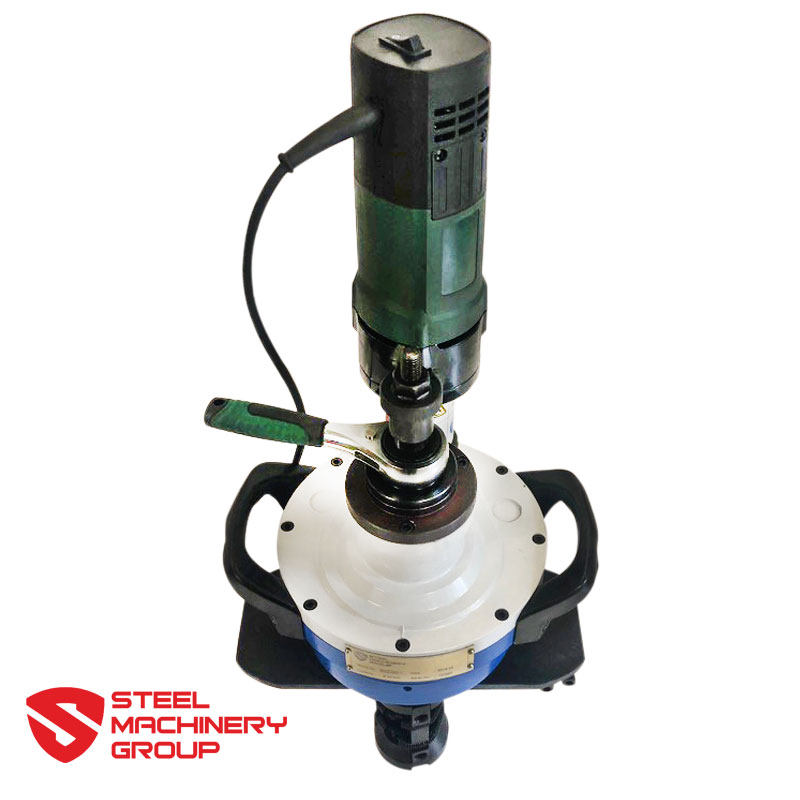

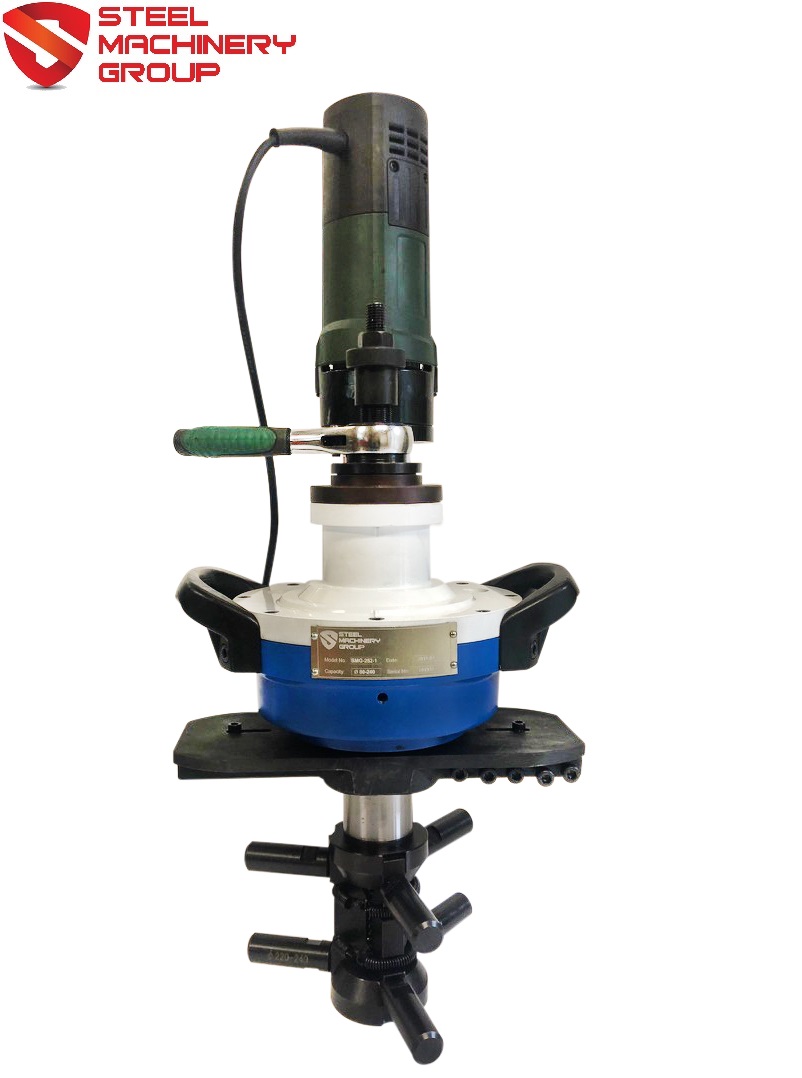

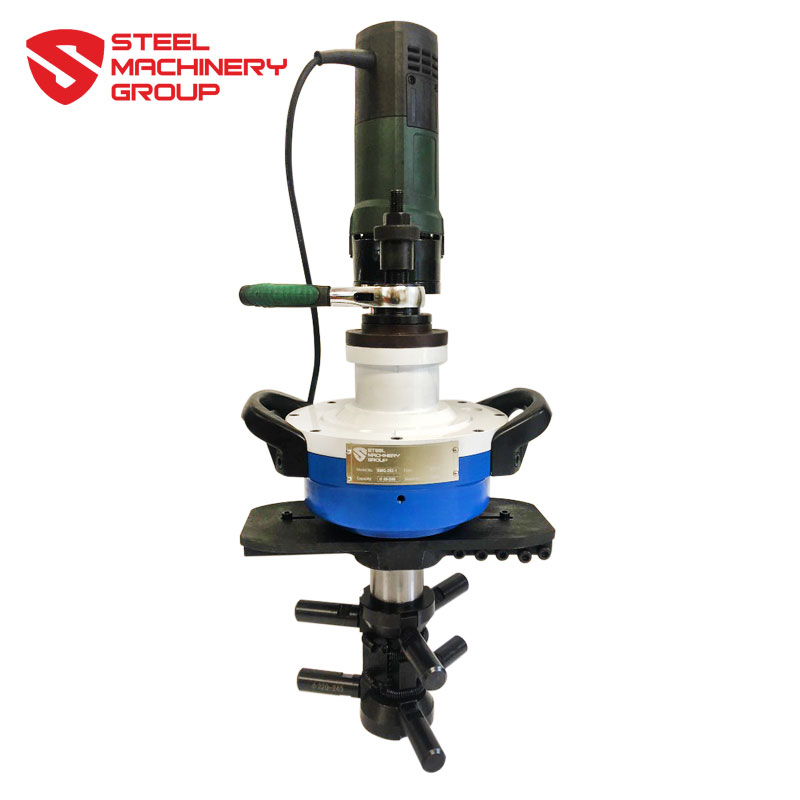

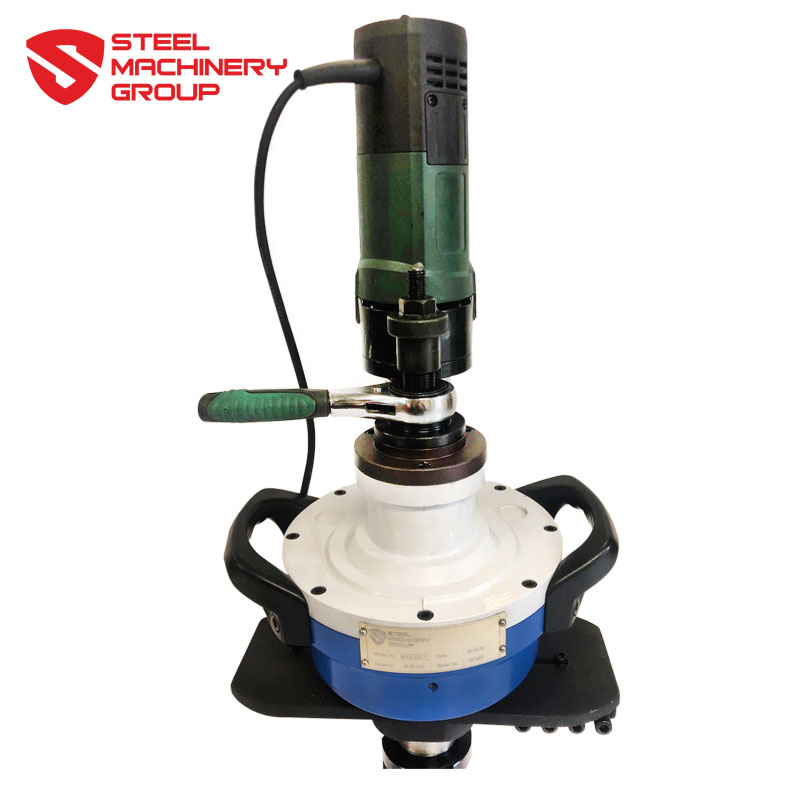

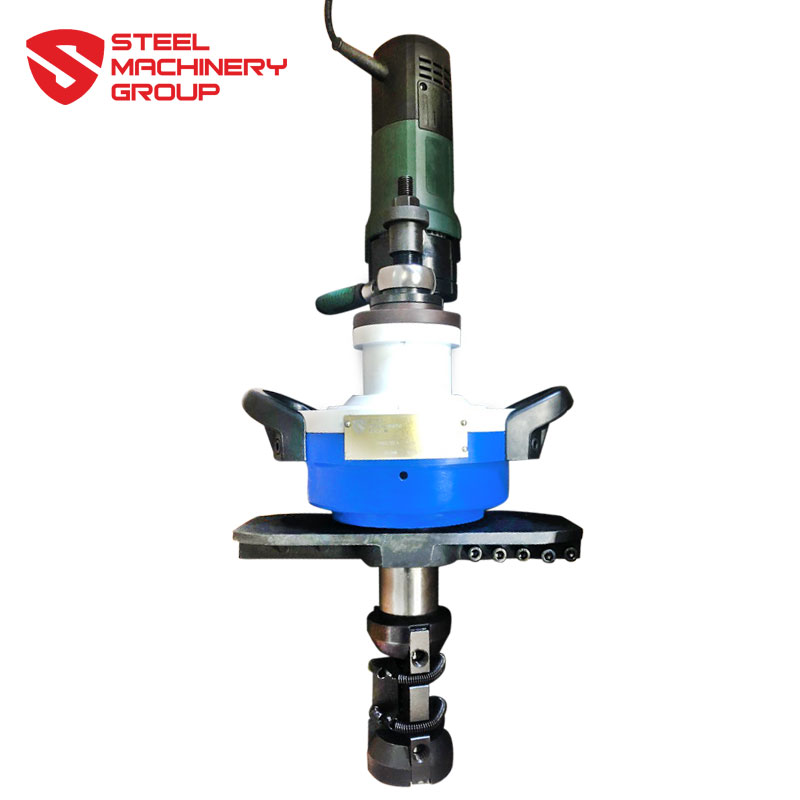

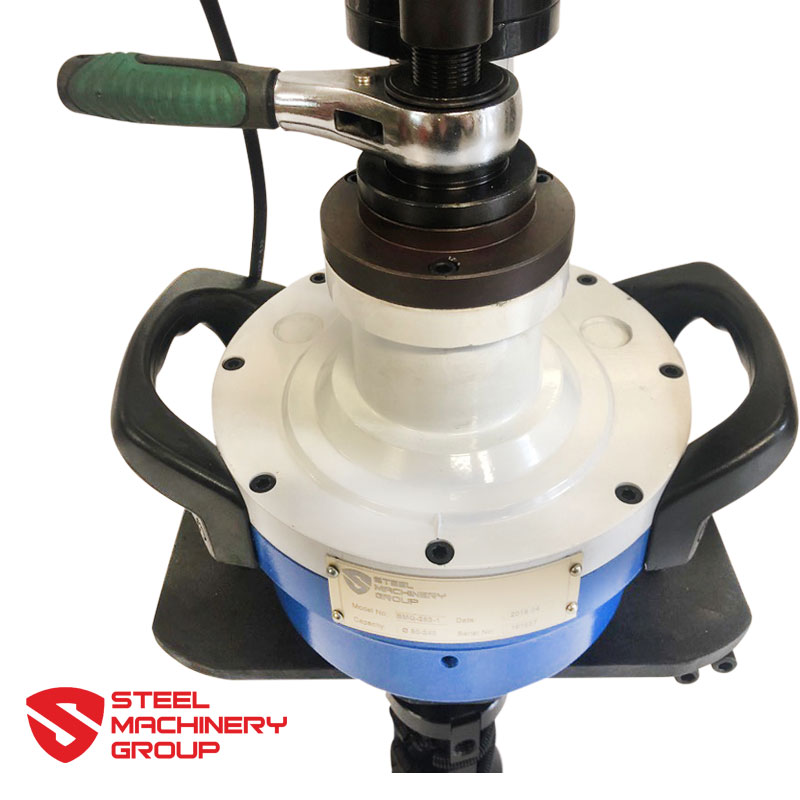

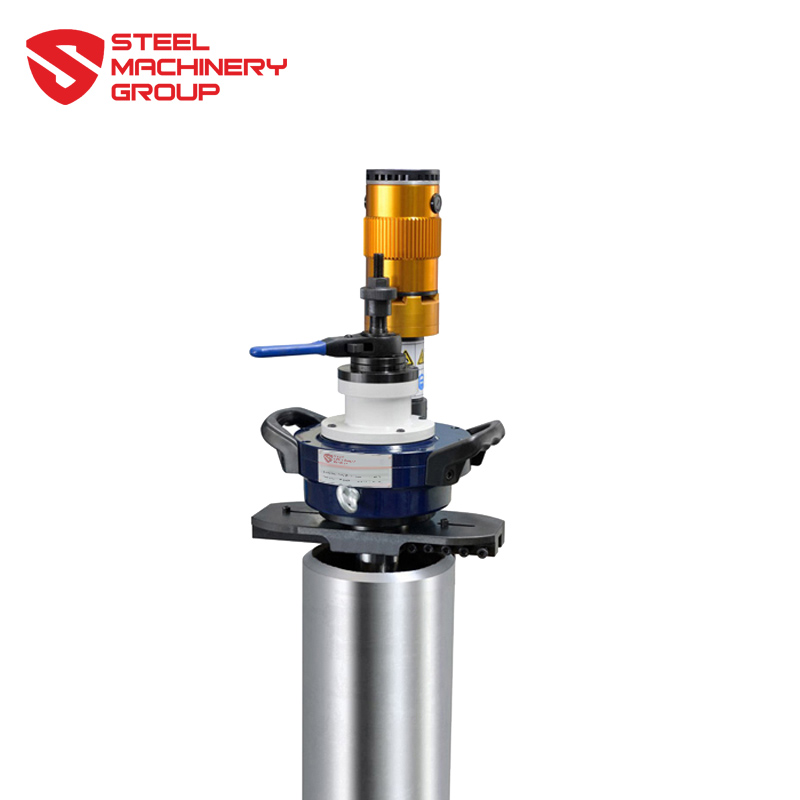

SMG Roto-Edge Electric Pipe Beveling Machine – Heavy Duty

$1,804.00

  • AUD: A$2,810.81
  • GBP: £1,506.32
  • EUR: €1,752.95
  • JPY: ¥283,208
  • CNY: ¥13,158.02

In stock

The SMG Roto-Edge Electric Pipe Beveling Machine is constructed with the latest technological advancements in bevelling machinery, designed to be compact and lightweight for flexible ergonomic operation. Features include adjustable variable cutter speed controller for efficient milling performance and increased cutter life, smooth operation, Self-centring adjustable mandrel for fast, easy setup and low maintenance design. Capital Machinery is committed to providing you with all your needs in beveling machine operations. We carry top-brands that are able to produce quality results.

  Chat Now
SKU: BEVELING-SMG-RE-ELEC-HD Categories: , Brand:

$1,804.00

  • AUD: A$2,810.81
  • GBP: £1,506.32
  • EUR: €1,752.95
  • JPY: ¥283,208
  • CNY: ¥13,158.02

Product Video

Product Video

Description

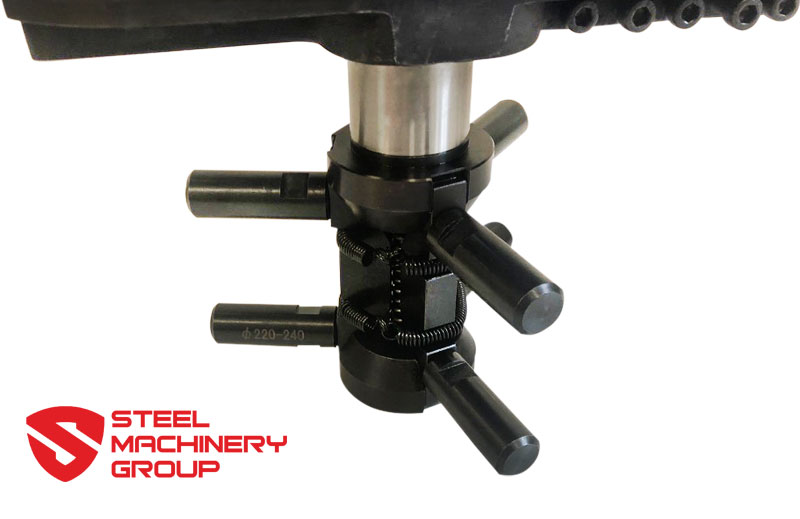

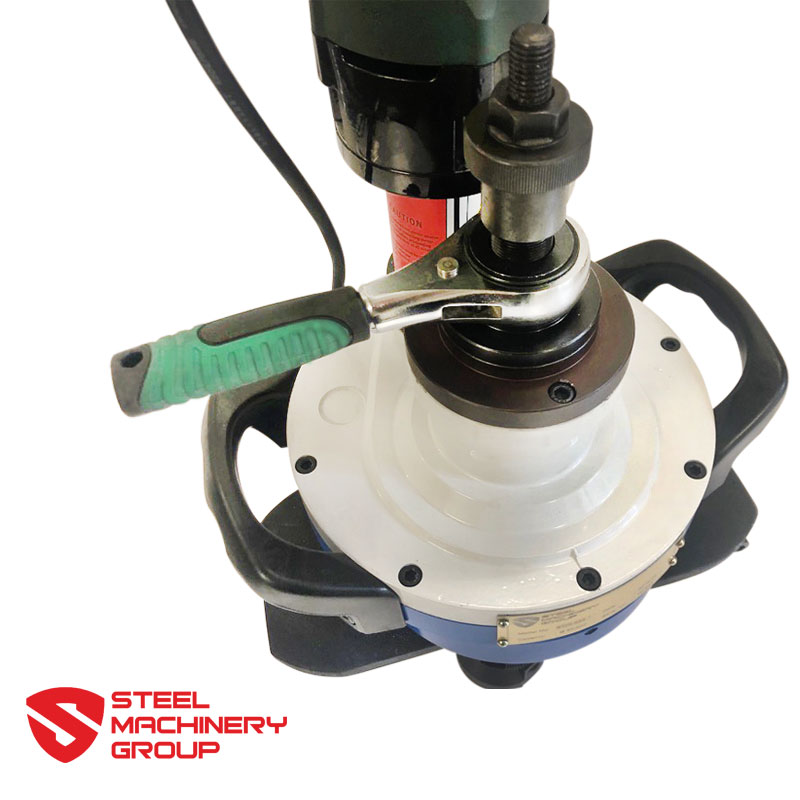

Like with all SMG products, this machine is designed to be lightweight and requires minimal radial space, and extremely easy to operate. By tightening the draw nut, you can expand the mandrel block up a ramp and against the ID surface for positive mounting, self-centered and squared to the bore. It can work with various pipe materials, beveling angles as per your specific requirements.

Feature
  1. Portable light weight construction
  2. Compact machine design for easy operation and maintenance
  3. High performance beveling tools for fast milling
  4. Suitable for processing different types of pipe materials: Carbon steel, stainless steel, alloys etc.
  5. Adjustable speed and self centering
  6. Powerful drive system optional Pneumatic or Electric

Note: Standard machines include:

  • 3 pcs of bevel tool (0 ,30,37.5 degree)
  • Tools
  • Operation Manual
Specification

Power Supply: 220-240V 1ph 50-60HZ Motor Power:1.4-2kw

Model No. Working Range Wall thickness Rotation Speed
SMG-30E φ18-30 1/2”-3/4” ≤15mm 50 r/min
SMG-80E φ28-89 1”-3” ≤15mm 55 r/min
SMG-120E φ40-120 11/4”-4” ≤15mm 30 r/min
SMG-159E φ65-159 21/2”-5” ≤20mm 35 r/min
SMG-252-1E φ80-273 3”-10” ≤20mm 16 r/min
SMG-252-2E φ80-273 ≤75mm 16 r/min
SMG-352-1E φ150-356 6”-14” ≤20mm 14 r/min
SMG-352-2E φ150-356 ≤75mm 14 r/min
SMG-426-1E φ273-426 10”-16” ≤20mm 12 r/min
SMG-426-2E φ273-426 ≤75mm 12 r/min
SMG-630-1E φ300-630 12”-24” ≤20mm 10 r/min
SMG-630-2E φ300-630 ≤75mm 10 r/min
SMG-850-1E φ490-850 24”-34” ≤20mm 9 r/min
SMG-850-2E φ490-850 ≤75mm 9 r/min

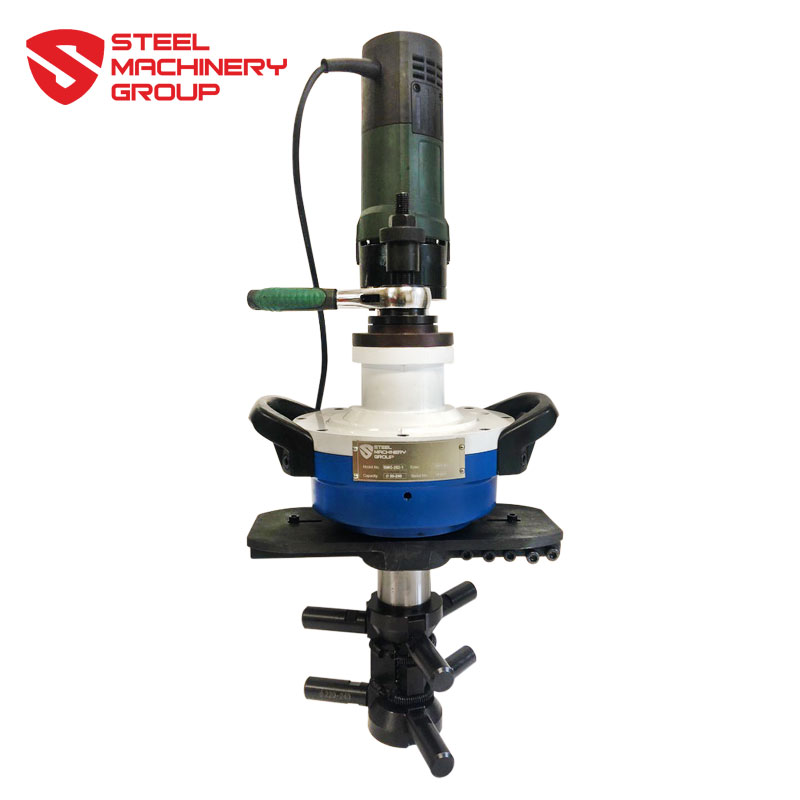

SMG Roto-Edge Electric Heavy Duty Pipe Beveling Machine

SMG 30P Roto-Edge Electric Pipe Beveling – Boiler Pipe Demo Machine

Attachments (PDF)


Specification

Additional information

Weight 255 kg
