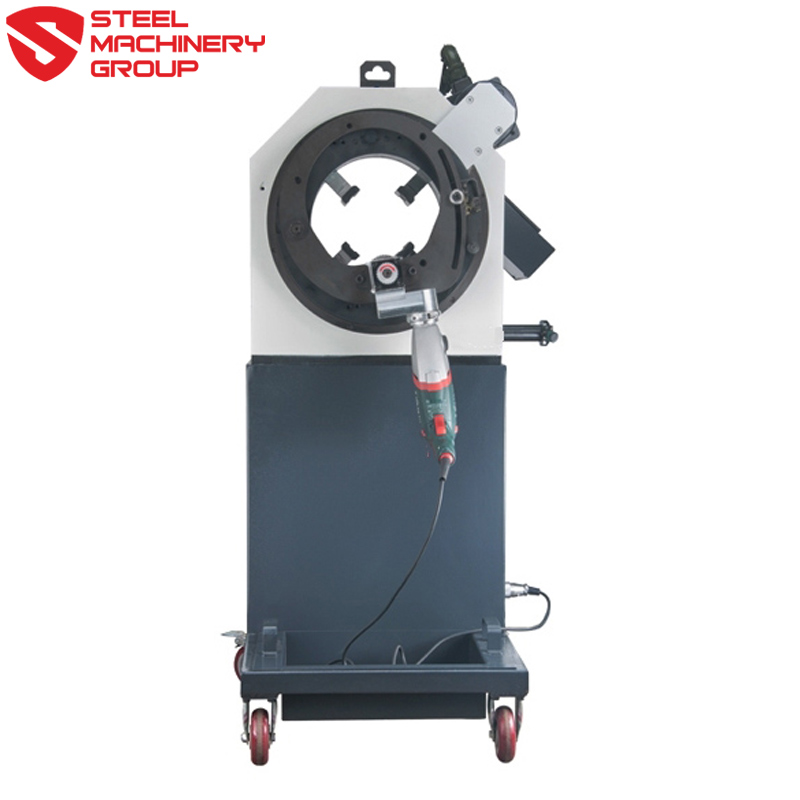

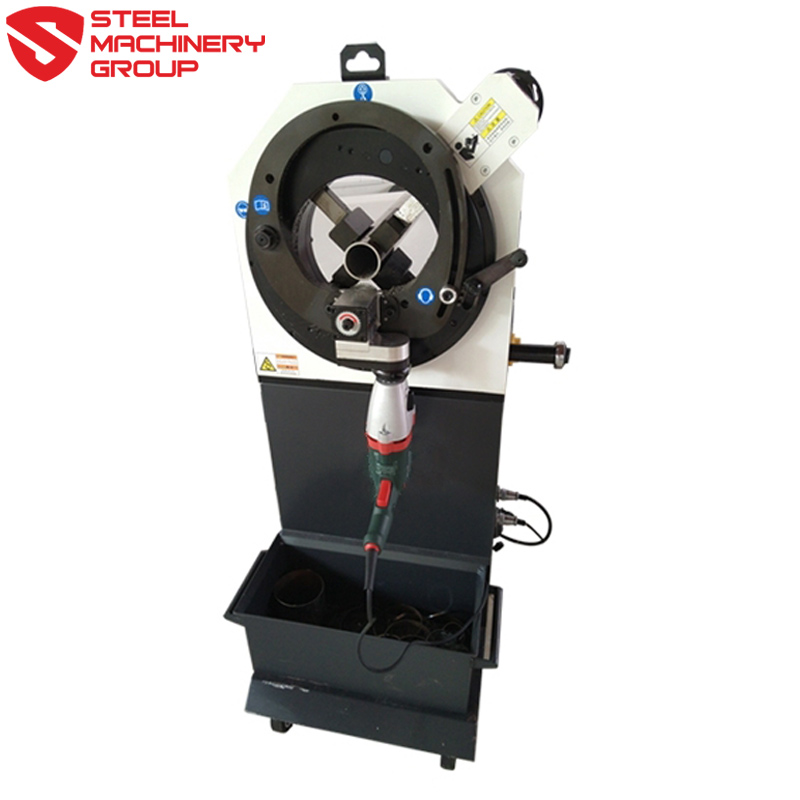

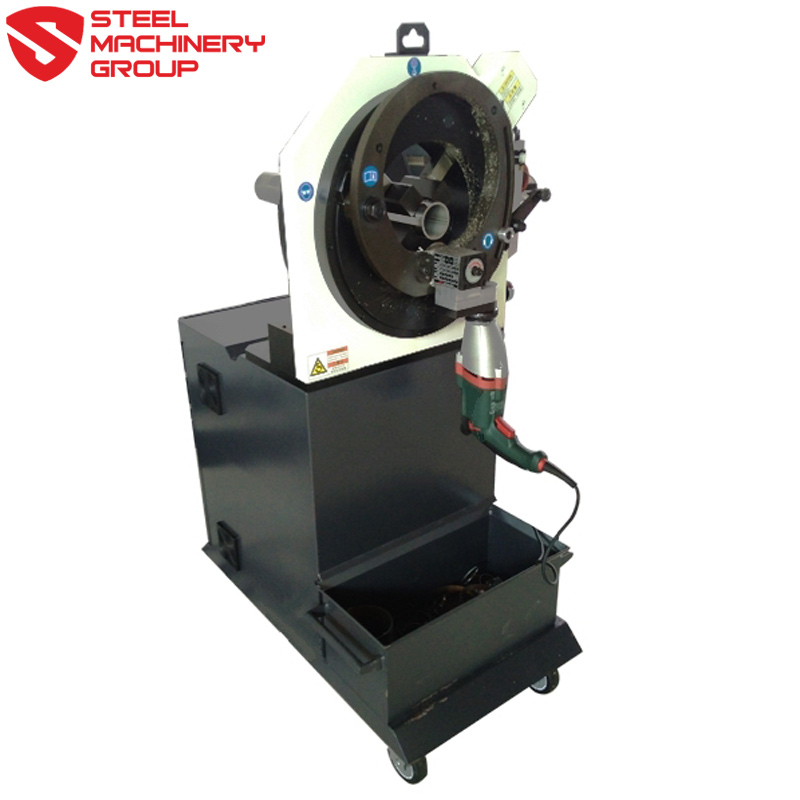

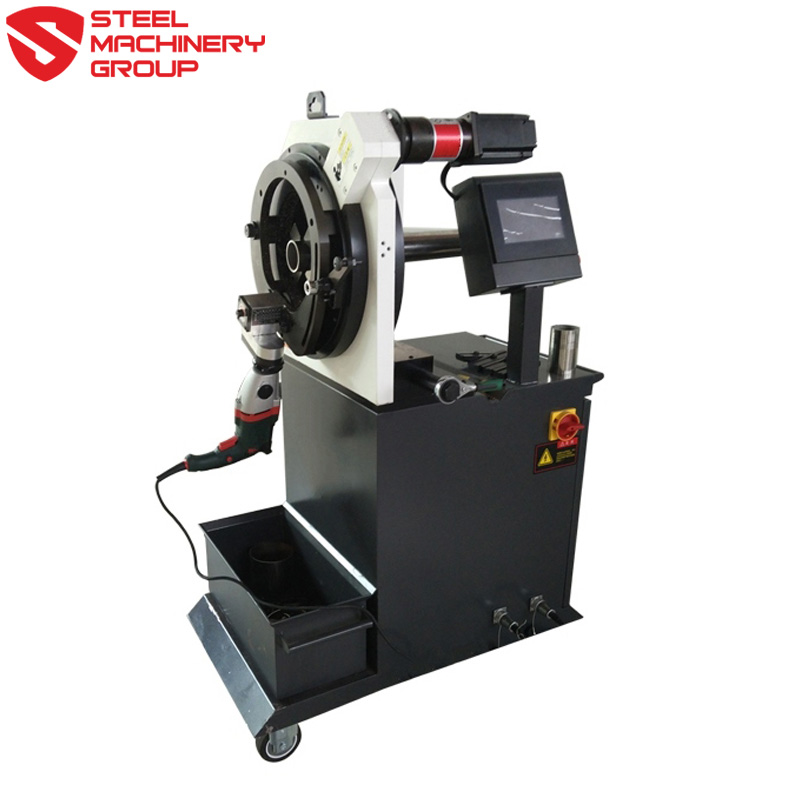

SMG OPC Orbital Pipe Cutting Beveling Machine

In stock

The SMG OPC Orbital Pipe Cutting Beveling Machine is the best choice for stainless steel thin-wall pipe cutting. This machine adopts Metabo motor drive to ensure strong power. It is necessary equipment for pipe welding prep. Optimize design, save space, operate simply, install quickly.” Self-centering “type pipe clamping device,Saw blade cutting head can cut off the pipe by rotating around the steel pipe once a week.

  Chat Now
SKU: SMG-OPC-OPCBM Categories: , Brand:

Description

The SMG OPC Orbital Pipe Cutting Beveling Machine is the best choice for stainless steel thin-wall pipe cutting. This machine adopts Metabo motor drive to ensure strong power. It is necessary equipment for pipe welding prep. Optimize design, save space, operate simply, install quickly.” Self-centering “type pipe clamping device,Saw blade cutting head can cut off the pipe by rotating around the steel pipe once a week. The end face is absolutely vertical without burrs, and the steel pipe is not deform, providing quality assurance for the welding of steel pipes. It can be used to cut pipe with carbon steel, alloy steel, non-ferrous metals, engineering plastics, etc., widely used in semiconductor, electronics, beer, pharmaceuticals, biotechnology, beverages, dairy, pressure vessels, chemical, oil and gas, ships, water treatment and other industries Processing.

FEATURES
  1. Quickly install the blade
  2. Cold cutting ,don’t influence the pipe’s material
  3. Vertical incision without deformation, burr-free end surface

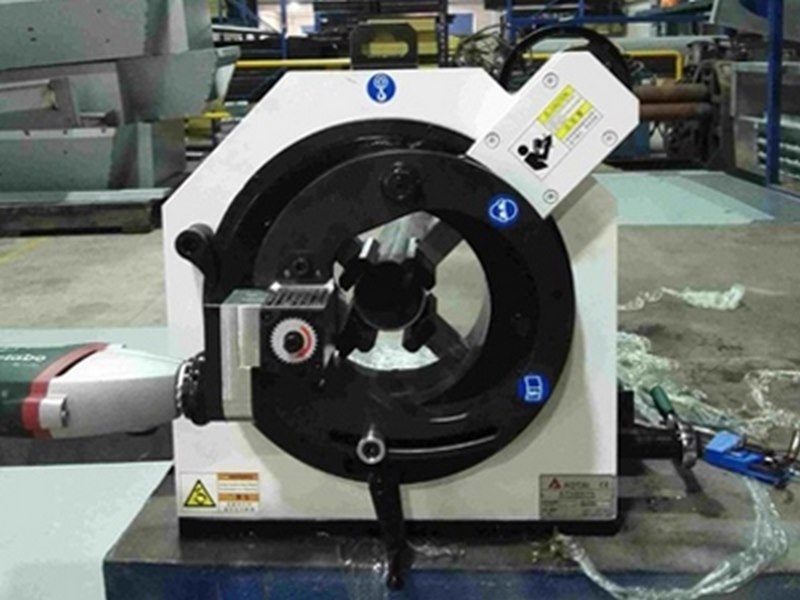

  4. Deformable clamping device, automatic centering, quick clamping of the pipe
  5. Option beveling saw for pipe cutting and beveling
  6. Unique orbital cutting, thin wall tube cutting best equipment
  7. High safety, stationary pipe, cutting head rotation completed
  8. Dry cutting, kept cleaning, be welded directly after cutting
  9. Saw blade compatible with AXXAIR, +GF+, DCS and other brand pipe cutting machine
Capability
  1. Pipe cut off
  2. Pipe beveling
  3. Cutting and beveling
Specification
Model Working Range Wall Thickness Rotating
Automatic OD mm CS mm SS mm rpm
OPC-120 Ф15~120 ≤12 ≤4 80~120
OPC-170 Ф30~170 ≤12 ≤4 80~120
OPC-220 Ф60~225 ≤12 ≤4 80~120
OPC-320 Ф140~330 ≤12 ≤4 80~120
OPC-420 Ф215~420 ≤12 ≤4 80~120
OPC-520 Ф315~520 ≤12 ≤4 80~120
OPC-620 Ф346~630 ≤12 ≤4 80~120
OPC-720 Ф486~760 ≤12 ≤4 80~120

Above parameters just for reference only, not acceptance criteria

POWER SUPPLIES

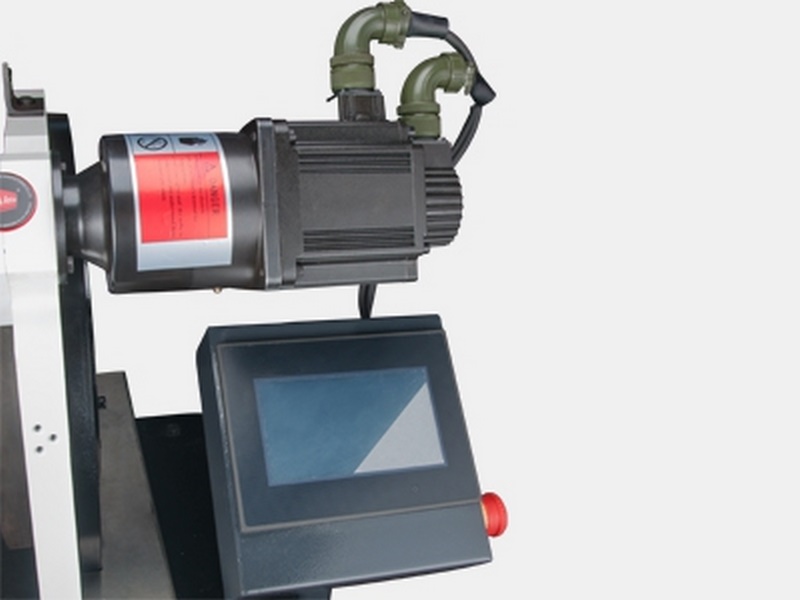

Feed motor: Servo motor Electric Requirements: 220-230V, 50-60Hz, 1P Power:0.75KW Speed: adjustable by program Saw blade drive motor: Brand: Metabo Electric Requirements: 220-230V, 50-60Hz, 1P Power:1.3KW Speed: 6-speed adjustable

Attachments (PDF)


Specification

Additional information

Condition

New
