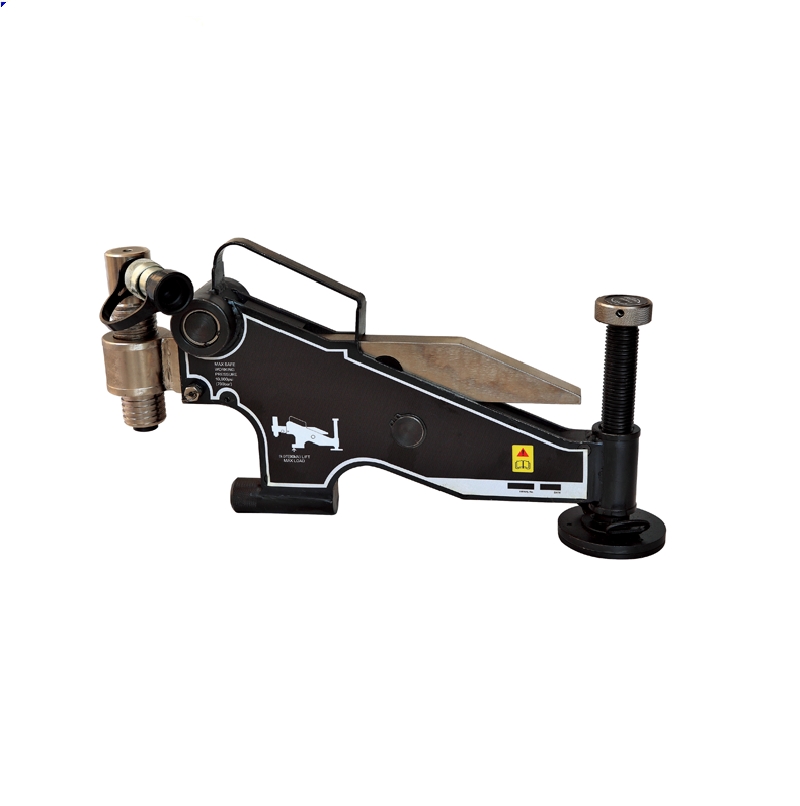

The SMG F990S Flange Alignment Tool Package includes all the necessary components for efficient flange alignment. This package includes a hydraulic hose, and hand pump, making it a comprehensive and convenient solution for your alignment needs.

  Chat Now
SKU: SMG-F990S Categories: , Brand:

$5,225.08

  • AUD: A$8,141.20
  • GBP: £4,362.89
  • EUR: €5,077.21
  • JPY: ¥820,280
  • CNY: ¥38,110.69

Description

The SMG F990S Flange Alignment Tool Package includes all the necessary components for efficient flange alignment. This package includes a hydraulic hose, and hand pump, making it a comprehensive and convenient solution for your alignment needs.

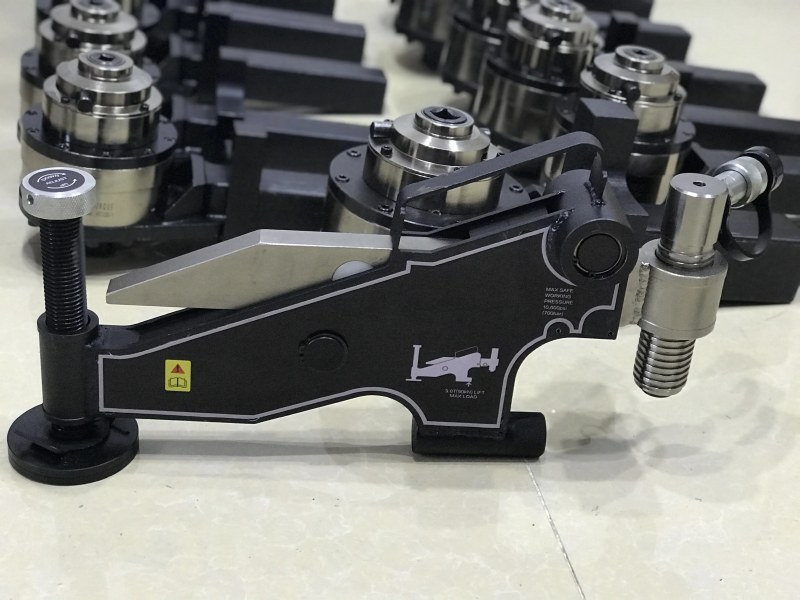

The SMG F990S Flange Alignment Tool itself is a specialized and robust tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-9 tons (10-90kN), it is suitable for a wide range of industrial applications. Operating at a maximum working pressure of 700bar, it ensures precise alignment and connection of flanges. Its primary function is to rectify any linear or rotational misalignment, ensuring optimal performance and reliability.

The SMG F990S Flange Alignment Tool Package is suitable for both offshore and onshore applications. It is designed to handle the challenges of large diameter high-pressure flanges and deliver accurate and efficient results. Whether you are working on complex engineering projects or demanding industrial tasks, this package provides a comprehensive solution for your flange alignment needs.

Specification:
  • Max Bolt Size:16-31.5mm
  • Cap:1-9ton(10-90kN)
  • Max Working Pressure:700bar
  • Suitable for offshore and onshore application
  • Designed for large diameter high-pressure flanges
  • Rectifies linear or rotational misalignment

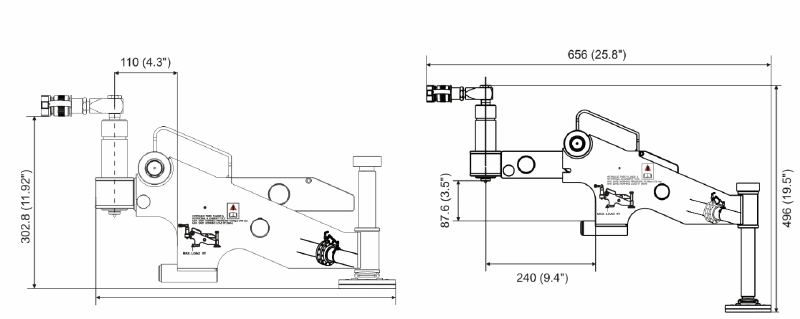

Minimum (upper) and Maximum (lower) Extension in mm (inch)

Smg F990S Flange Alignment Tool Package Min Max


Steel Machinery Group Flange Alignment Tool Series Table
Model Capacity Ton/kN Operation Type Min. Bolt Size (mm) Flange Thickness (mm) Reaction Force 2 Max (Ton) Bole Hole Diameter Min (mm) Misalignment Min (mm) N.W (kg)
SMG F110M 1 Ton 10 kN Mechanical Mechanical 0.63 / 16 0.55-3.29/14-82 1 16 0 3
SMG F440M 4 Ton 40kN Mechanical Mechanical 0.95 / 24 1.18-5.23/30-133 4 25 0 9
SMG F990M 9 Ton 90kN Mechanical Mechanical 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
SMG F990H 9 Ton 90kN Hydraulic Hydraulic 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
SMG F990S 9 Ton 90kN Set (w/ Cylinder and Pump) Hydraulic 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16

Attachments (PDF)


Specification

Additional information

Weight 16 kg
Dimensions 69 × 48.5 × 15 cm
