SMG F110M Flange Alignment Tool

$1,959.63

  • AUD: A$3,053.30
  • GBP: £1,636.27
  • EUR: €1,904.17
  • JPY: ¥307,640
  • CNY: ¥14,293.15

In stock

The SMG F110M Flange Alignment Tool is a robust and specialized tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-10 tons (10-100kN), it is well-equipped to handle various industrial applications.

  Chat Now
SKU: SMG-F110M Categories: , Brand:

$1,959.63

  • AUD: A$3,053.30
  • GBP: £1,636.27
  • EUR: €1,904.17
  • JPY: ¥307,640
  • CNY: ¥14,293.15

Description

The SMG F110M Flange Alignment Tool is a robust and specialized tool designed specifically for large diameter high-pressure flanges. With a maximum bolt size range of 16-31.5mm and a capacity of 1-10 tons (10-100kN), it is well-equipped to handle various industrial applications.

Operating at a maximum working pressure of 700bar, this tool ensures precise alignment and connection of flanges. Its main purpose is to rectify any linear or rotational misalignment, guaranteeing optimal performance and reliability.

Whether you’re working on complex engineering projects or demanding industrial tasks, the SMG F110M Flange Alignment Tool is an indispensable tool that will deliver accurate and efficient results.

Specification:
  • Max Bolt Size:16-31.5mm
  • Cap:1-10ton(10-100kN)
  • Max Working Pressure:700bar
  • Suitable for offshore and onshore application
  • Designed for large diameter high-pressure flanges
  • Rectifies linear or rotational misalignment

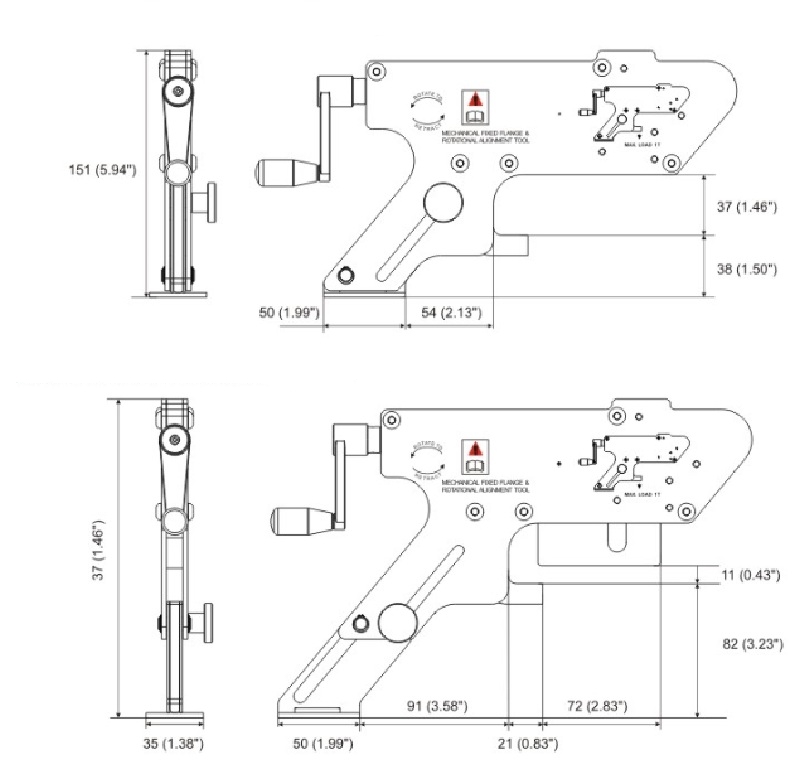

Minimum (upper) and Maximum (lower) Extension in mm (inch)

Smg F110M Flange Alignment Tool Min Max

Steel Machinery Group Flange Alignment Tool Series Table
Model Capacity Ton/kN Operation Type Min. Bolt Size (mm) Flange Thickness (mm) Reaction Force 2 Max (Ton) Bole Hole Diameter Min (mm) Misallignment Min (mm) N.W (kg)
SMG F110M 1 Ton 10 kN Mechanical Mechanical 0.63 / 16 0.55-3.29/14-82 1 16 0 3
SMG F440M 4 Ton 40kN Mechanical Mechanical 0.95 / 24 1.18-5.23/30-133 4 25 0 9
SMG F990M 9 Ton 90kN Mechanical Mechanical 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
SMG F990H 9 Ton 90kN Hydraulic Hydraulic 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
SMG F990S 9 Ton 90kN Set (w/ Cylinder and Pump) Hydraulic 1.24 / 31.5 3.66-9.00/93-228 9 35.5 0 16
