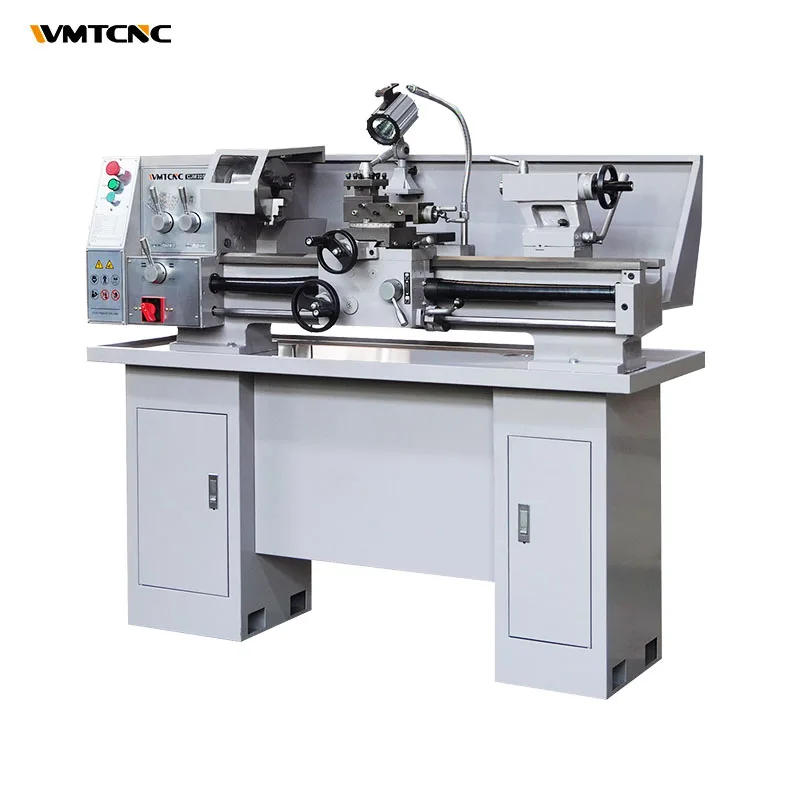

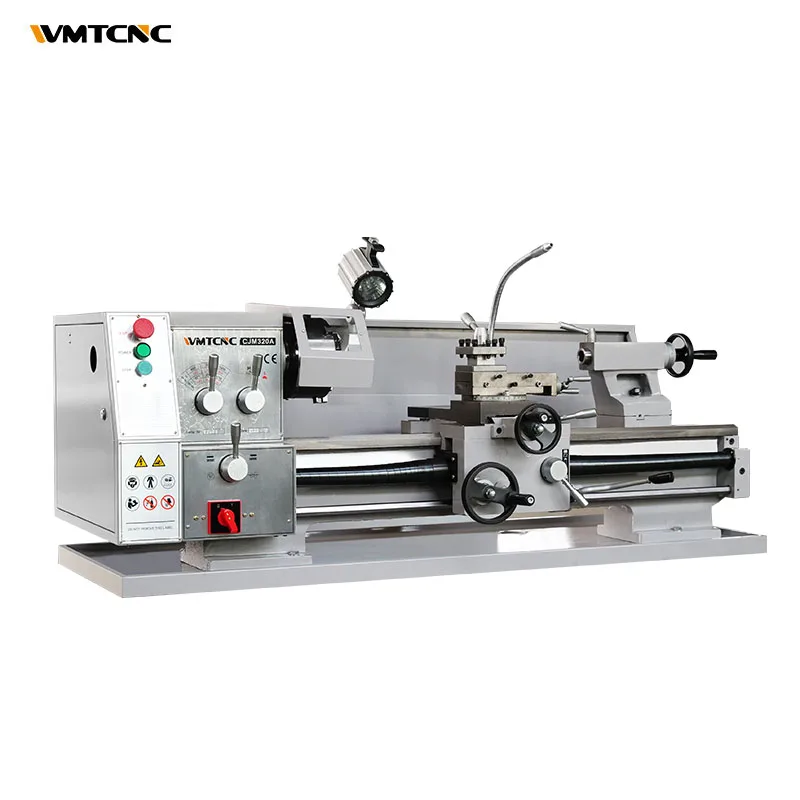

Name: ▷ Buy New Hot Sell Small Lathe CJM320A High Precision Bench Lathe Machine With Variable Speed () - Available at MachineryGenie.com
SKU: 1005005853473426
Price: 2295.00 AUD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

Main Features:

1. Compact, versatile combination machine.
2. Adjustable height drill/mill head increase capacity.
3. Fine feed handle and clutch for precision milling.
4. Headstock provides two step of feeds.
5. Spindle is supported by high precision bearing.

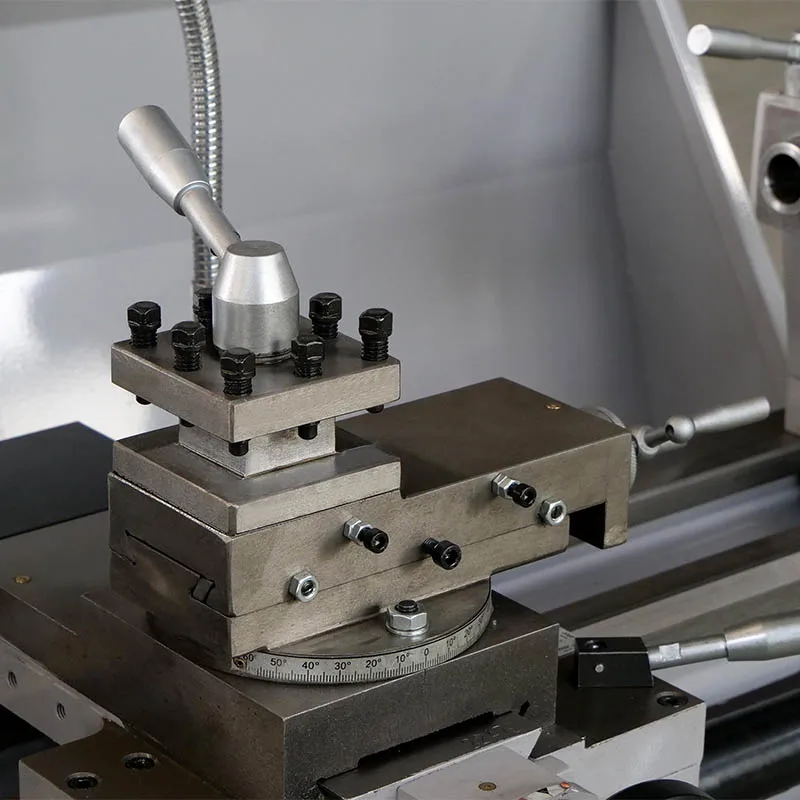

6. T-slot cross slide.
7. Adjustable grids for the slideway.
8. Power longitudinal feed allows threading.
9. High precision chuck.

specification	AT320
Cutting
Max. swing diameter over bed	320mm
Max. length of work piece	750mm
Max. swing diameter over gap	210mm
Spindle bore	38mm
Taper of hole in spindle Morse	MT.5#
Transverse travel of tool post	160mm
Longitudinal travel of small tool post	100mm
Metric thread kinds on processing	17
Metric thread pitch on processing	0.5~4mm
Inch thread kinds on processing	20
Inch thread pitch on processing	9~40 1/n”
Longitudinal feed on spindle tool post	0.135~1.80mm/r
Cross feed on spindle tool post	0.025~0.34mm/r

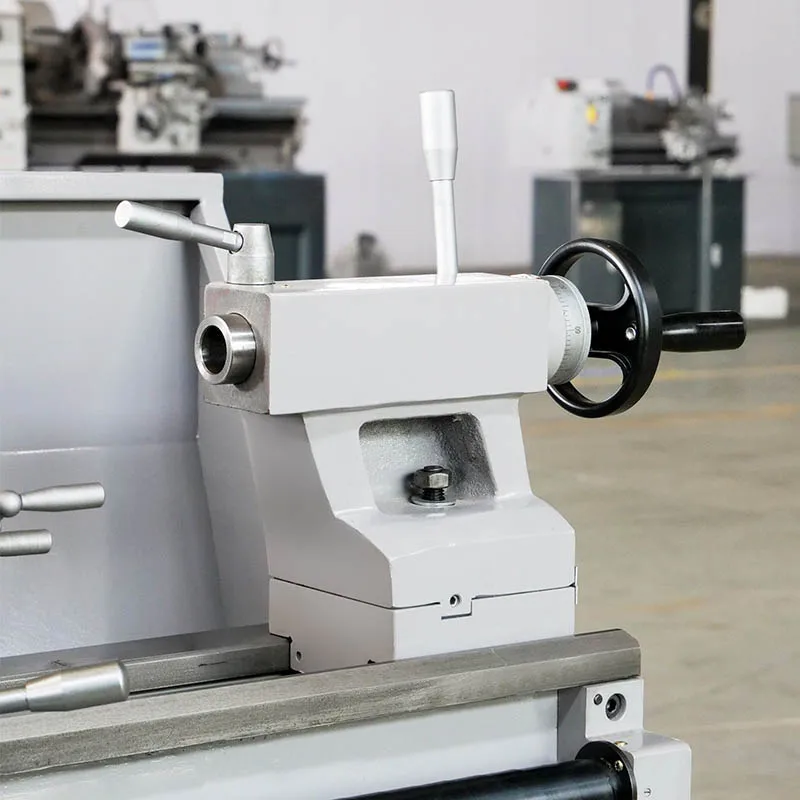

Max. travel of tail stock sleeve	70mm
Taper hole of tail stock sleeve Morse	MT.3#
Spindle speed grade	12
Spindle speed scope	60~1600r/min
Motor	1100W,220V,50Hz

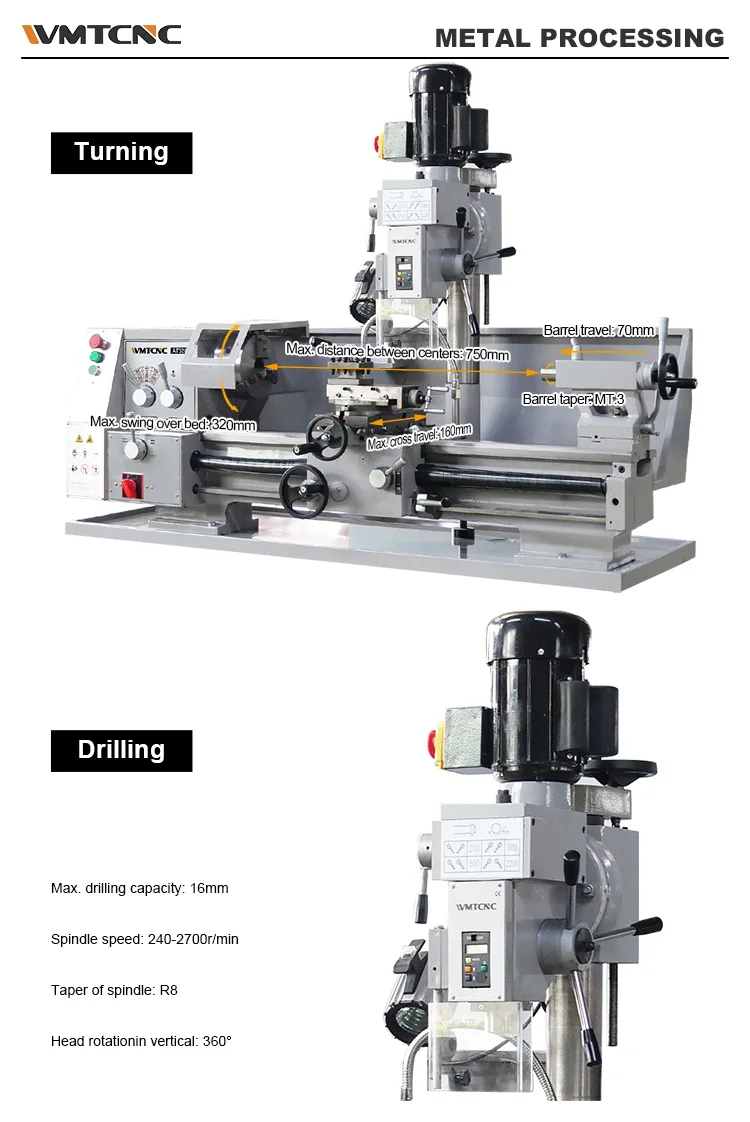

Drilling and milling
Spindle taper	R8
Spindle speed grade	4
Spindle speed range	240~2700r/min
Max. drilling capacity	16mm
Swivel angle around the column	360°
Motor for drill-mill head stock	370W,220V,50Hz
Others
Net weight	390kg
Overall dimension (base not involved ) (L× W×H)	1580×770×1150mm 62.2×30.3×45.3“
Packing dimension (L× W×H)	1580×770×1840mm 62.2×30.3×72.4“

FAQ

Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What’s the MOQ?
A4: One set only.Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
