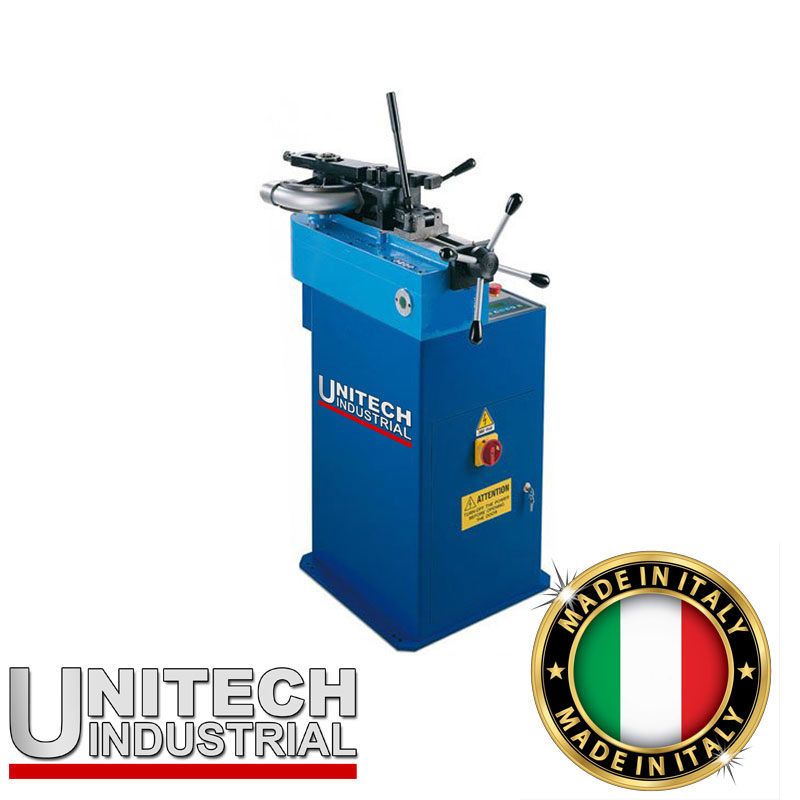

Unitech UNI-70C Digital Pipe and Tube Bender

$13,928.62

  • AUD: A$22,619.24
  • GBP: £12,171.52
  • EUR: €13,950.91
  • JPY: ¥2,083,694
  • CNY: ¥102,479.82

In stock

The UNI 70/C (9200600.2) is an accurate and powerful 3-phase bending machine able to bend large diameters as well as thin tubes.

  Chat Now
SKU: UNITECH-UNI-70C Category: Brand:

$13,928.62

  • AUD: A$22,619.24
  • GBP: £12,171.52
  • EUR: €13,950.91
  • JPY: ¥2,083,694
  • CNY: ¥102,479.82

Description

Unitech UNI-70C Digital Pipe and Tube Mandrel Bender 3 Phase

With an optional and constant bending radii and with very light deformation it is suitable to satisfy every requirement in the sectors operating in:

  • Plumbing
  • Nautical
  • Hydraulic
  • Industrial
  • Implantation

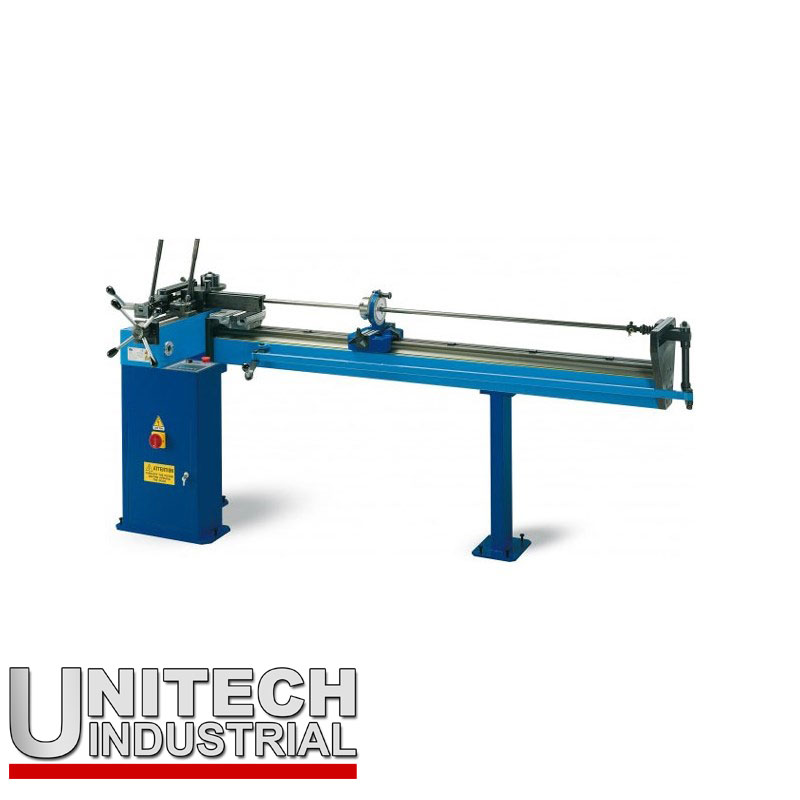

NOTE: Mandrel bending attachments are available in 3, 4, 5 and 6m lengths to suit this machine.

Bending Capacity

  • Spheroidal cast iron body on metal base.
  • 3-phase 415vac 50 HZ asynchronous, self-braking motor, 2 speeds, 2,3/3,1 KW power.
  • Large range of tooling available – ordered separately
  • Digital electronic unit with a display to program and control the required bend angles. Memorises up to 70 bending programs with the possibility to store up to 6 bending angles in sequence in each program.
  • Automatic return to original starting point.
  • Low voltage electronic panel (24V).
  • 180° maximum bending angle.
  • Equipped with quick counter former support position device and 2 interchangeable outlet shafts.
  • Dimensions: Length 810 mm, Width 400 mm, Height 1100 mm.
  • Weight: 210kg
Type of Pipe (Without Mandrel) Ø (mm) Wall Thickness (mm)
Hard & Soft Copper and Annealed Brass Pipes 60 4
Steel Pipes for Electrical Installations 60 2
AISI 304/316 Stainless Steel Pipes 60 3
Hydraulic Steel Tubes ST. 35.4 60 4
Furniture Tubes 60 3
FE Boiler Pipes 60 4
Aluminium Pipes 60 5
Gas Pipes UNI 5745 2″ Standard
Double Coated Aluminium Pipe 50 x 50 4
Standard Bending Radii 3D & 4D

NOTE: Special Diameters and Bending Radii Available on Request.

Features

  • 3-phase 415V/50 HZ asynchronous, self-braking motor
  • Large range of tooling available – ordered separately
  • Mandrel bending attachments available in 3, 4, 5 and 6m lengths.

Attachments (PDF)


Specification

Additional information

Weight 210 kg
Dimensions 81 × 40 × 110 cm
