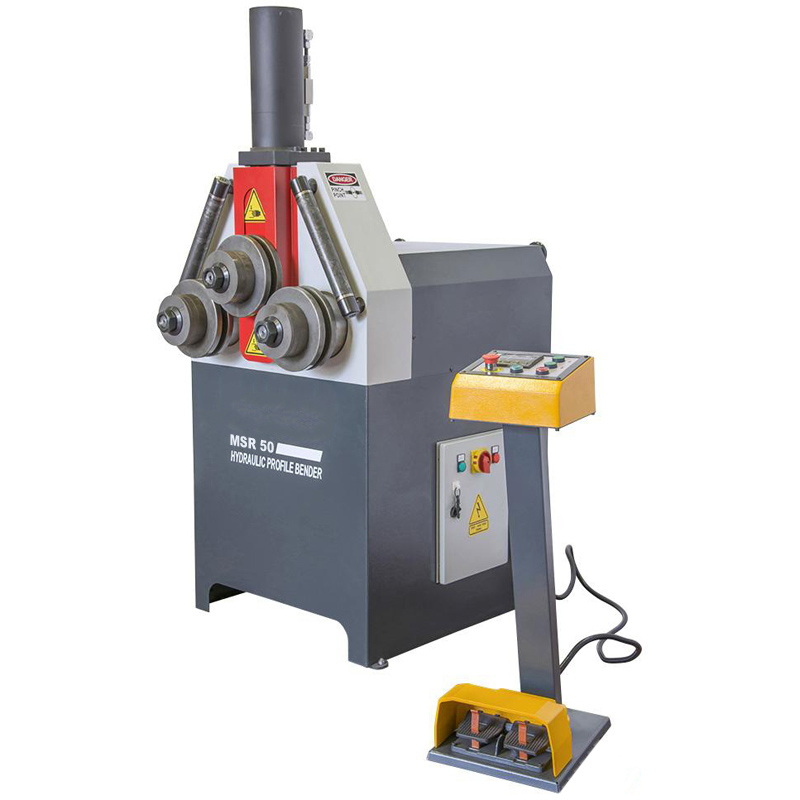

Name: ▷ Buy New Unitech MSR50 Hydraulic Profile Section Rolls Bending Machine (Unitech Industrial) - Available at MachineryGenie.com
Brand: Unitech Industrial
SKU: UNITECH-MSR50
Availability: InStock

Description

Standard Features

Steel frame
Reducer driven gear system
Top roll idle
Top roll up and down movement by hand
Bottom rolls fixed and powered
Rolls and shafts are made of SAE 1050 quality steel
All rolls and shafts are hardened and grinded
Able to bend flat bars and box sections with standard rolls
Standard rolls are interchangeable to adjust gap for bending
Standard guide rolls
Horizontal and vertical position
Manufactured in Europe
Complies with CE Standards

Additional Accessories

Pipe bending rolls for different sizes
Angle bending rolls (leg in and Leg Out)
Aluminium bending rolls made of DELRIN
Angle Guide Rolls
C&S bending attachment for wrought iron
Bar twisting attachment for wrought iron

Model	MSR50
Shaft diameters Ø mm	50
Top Roll Diameter Ø mm	155
Hydraulic Power ton	10
Working Speed m/min	4
Reduced Power kW	1.1
Hydraulic Motor kW	1.1
Length mm	800
Width mm	650
Height mm	1350
Weight kg	350

Capacity Table

No.	Profile Type	Size	Min. Dia	Notes
1		60×10 20×10	600 300	Standard Rolls
2		100×15* 50×10	600 300	Standard Rolls
3		35×35 15×15	600 300	Standard Rolls
4		Ø 35 Ø 20	600 300	Optional Rolls
5		Ø 70×2 Ø 25×1,5	1200 400	Optional Rolls
6		2”x2,9 1/2”x2,3	1000 300	Optional Rolls
7		70x30x3 30x15x2	1500 400	Optional Rolls
8		50×3 20×2	1600 400	Optional Rolls
9		50x50x6 30x30x3	600 400	Optional Rolls
10		50x50x6 30x30x3	900 600	Optional Rolls
11		60×7 30×4	600 400	Standard Rolls
12		60×7 30×4	700 400	Standard Rolls
13		60×7 30×4	700 400	Standard Rolls
14		UPN 80 UPN 30	800 400	Optional Rolls*
15		UPN 80 UPN 30	1200 600	Standard Rolls*
