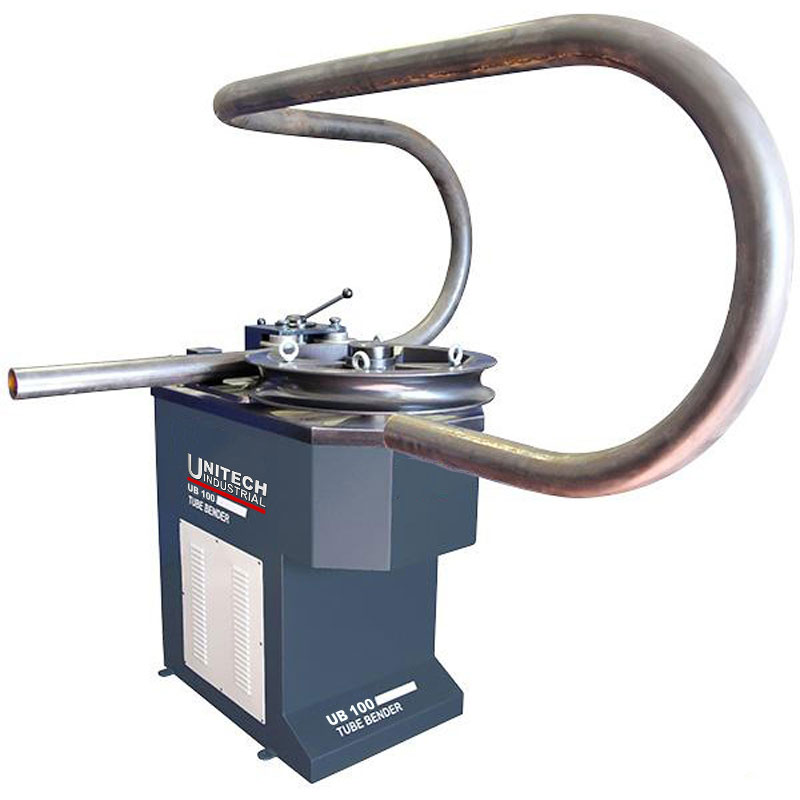

Unitech UB100 Mandrelless Tube Bender
Unitech UB100 Mandrelless Tube Bender
Description
Unitech Mandrelless Tube Bender Video Demo
STANDARD FEATURES:
- CK 45 Monoblock Body
- Heavy-duty multiple stage reduction gearbox
- Heat-treated and ground drive system
- Digital Programmable operator controller
- Precision Compression Counter
- Variable bending speed controller
- Manufactured in Europe
TECHNICAL PARAMETERS:
TYPE AND DIMENSIONS OF MATERIAL TYPE MAX:

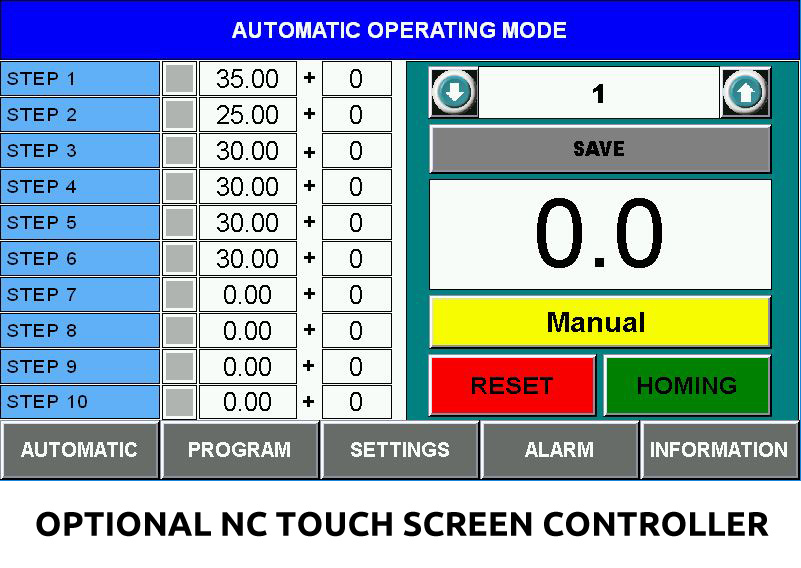

Optional NC Touch Screen
| Model UB 100 | |
| Diameter of the pipe and wall thickness (max) (mm) | 100 × 4 |
| Profile (max) (mm) | 80 × 80 |
| Roller (max) (mm) | 50 |
| Bending radius (max) (mm) | 450 |
| Angle (max) (º) | 180 |
| Bending speed (rev / min) | 2.2 |
| Engine power (kw) | 10 |
| Tension (V) | 400 |
| Weight (kg) | 2000 |
| Length (mm) | 1600 |
| Width (mm) | 1000 |
| Height (mm) | 1600 |
| Material Type | Dimensions in mm |
| 80 x 15 | |
| Ø 50 | |
| Ø 12 – 100 | |
| 80 × 80 |
