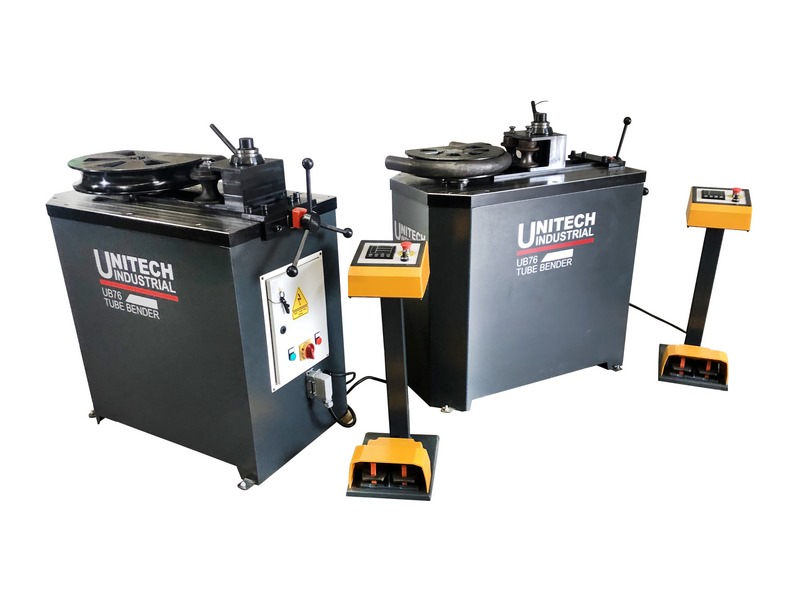

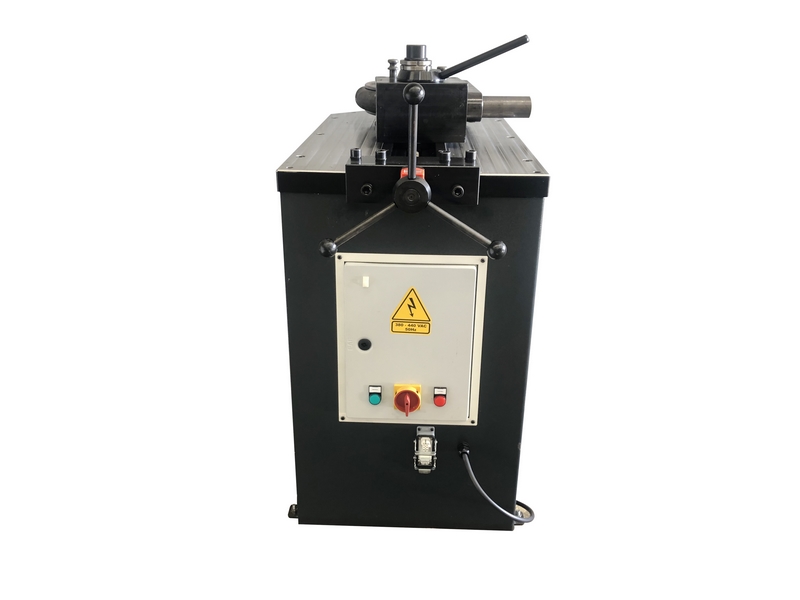

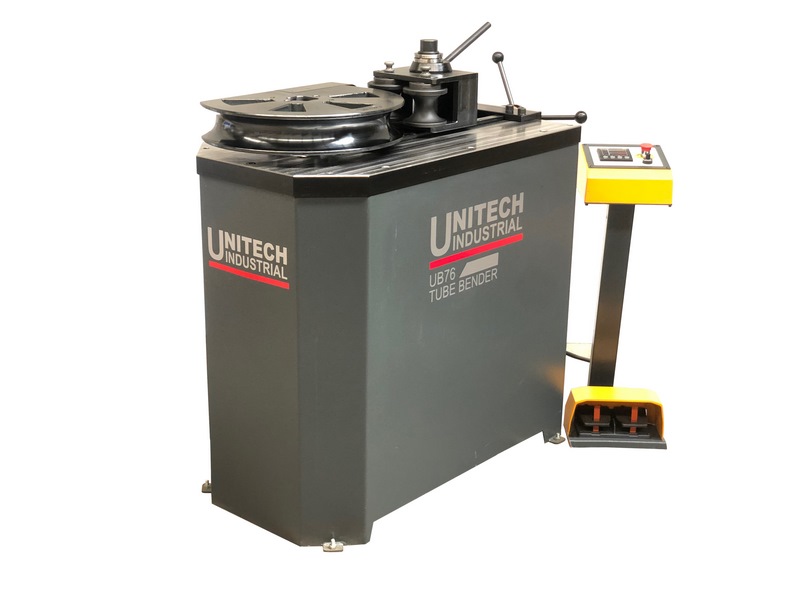

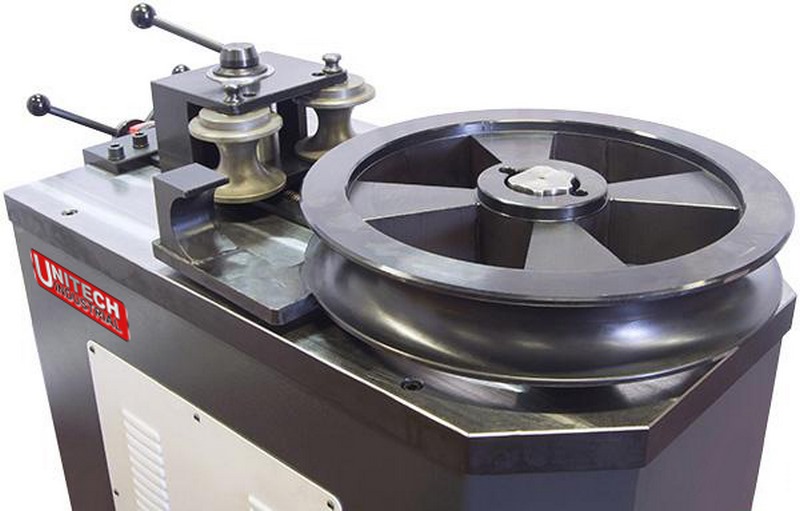

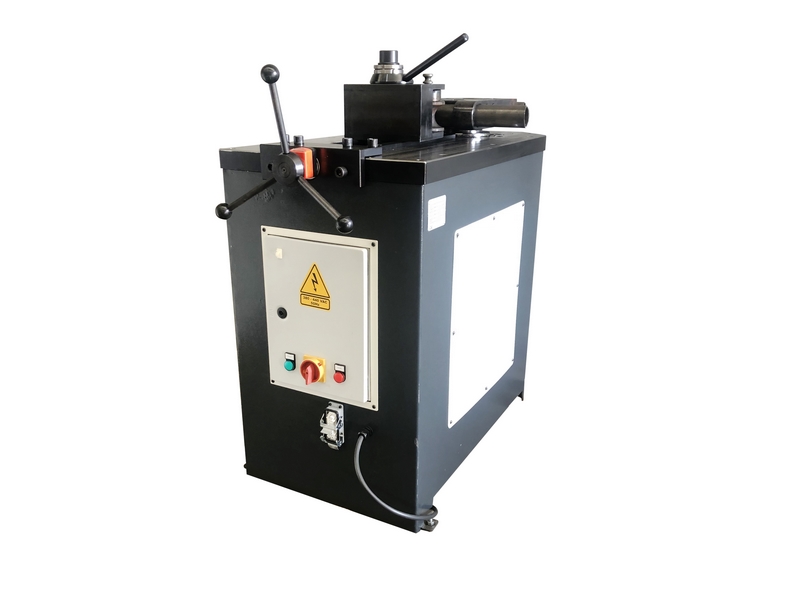

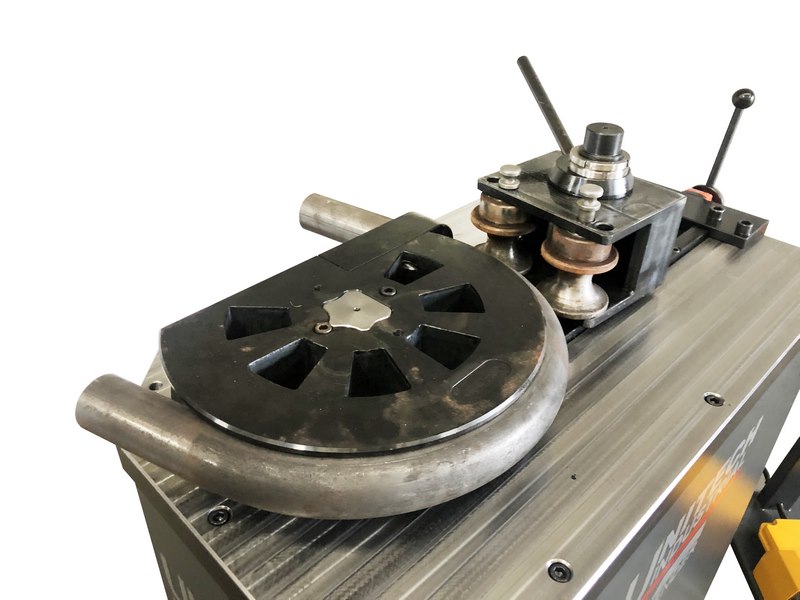

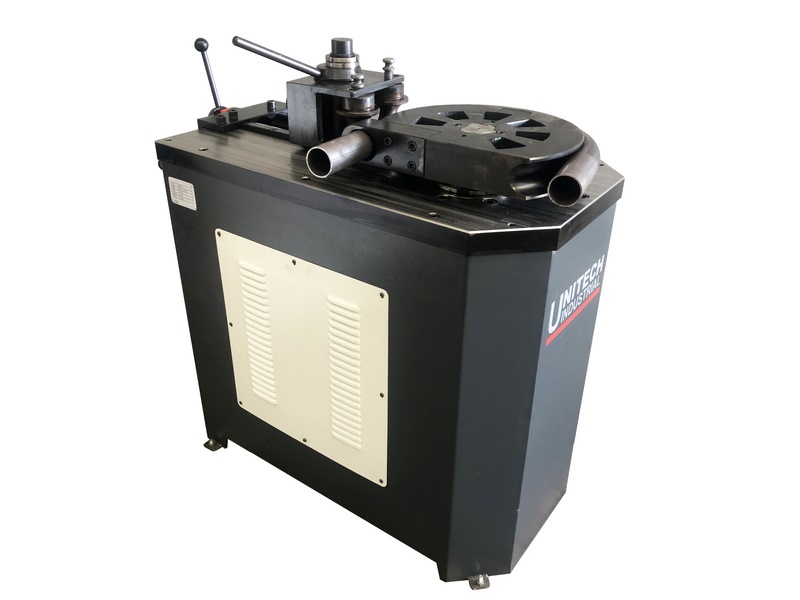

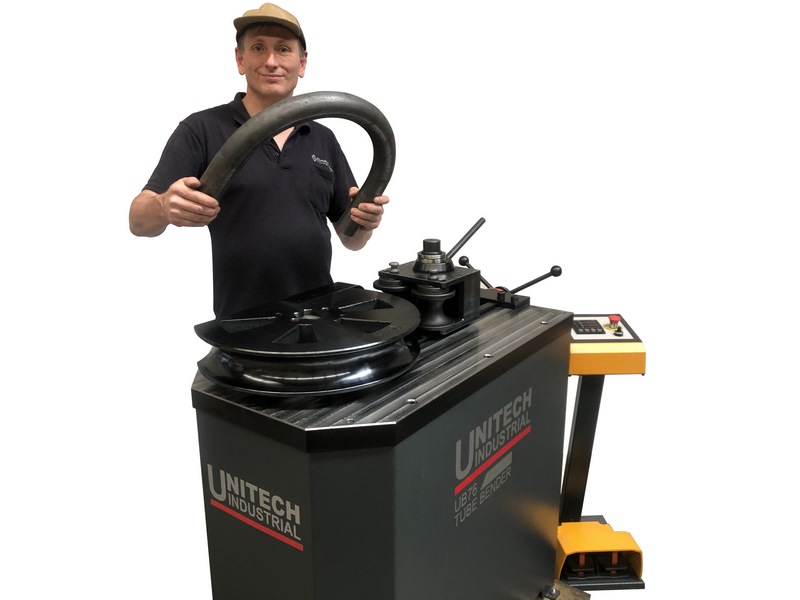

Unitech UB76 Mandrelless Tube Bender
€12,323.47
- USD: $12,918.97
- AUD: A$19,980.60
- GBP: £10,751.66
- JPY: ¥1,840,621
- CNY: ¥90,525.06
Unitech production rotary draw benders are manufactured for rapid accurate pipe and tube bending applications.
Consistent repeatability is assured using only quality electronics and hardware. The user-friendly design allows for fast set up and operation.
Manufactured in Europe to CE Standards.
Description
STANDARD FEATURES:
- CK 45 Monoblock Body

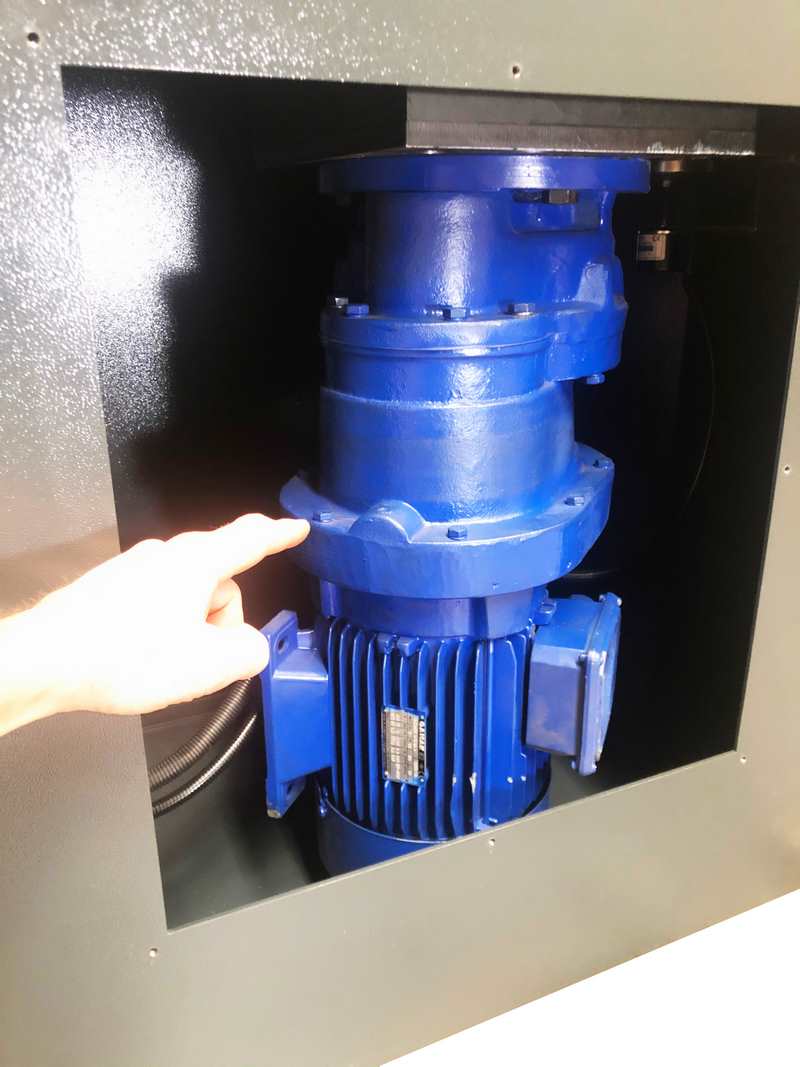

- Heavy-duty reduction gearbox

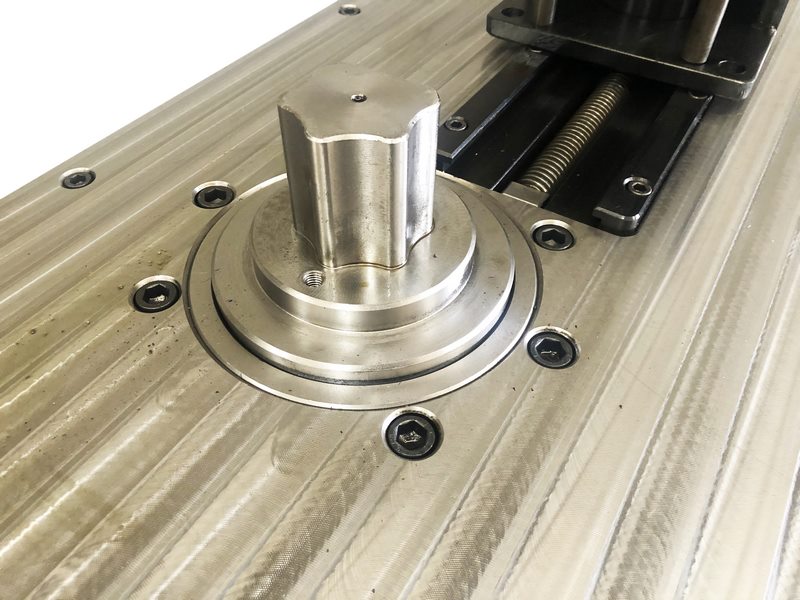

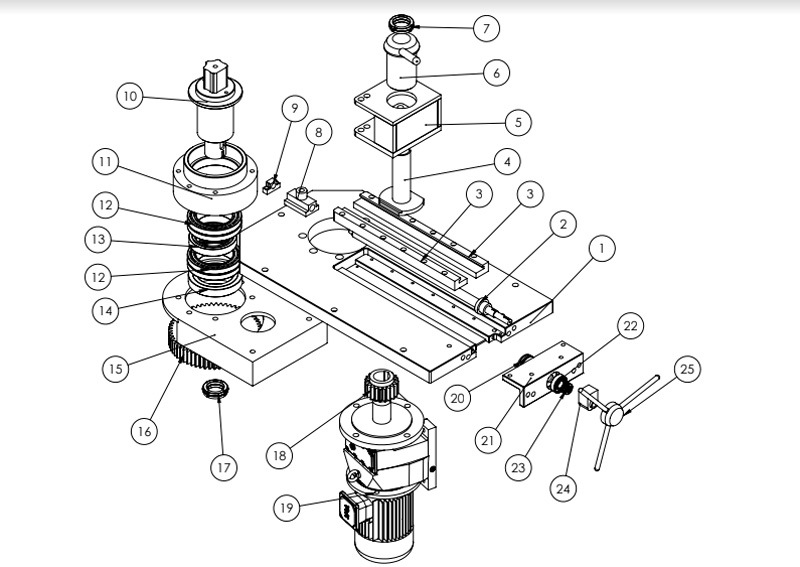

- Heat-treated and ground drive system
- Digital Programmable operator controller
- Precision Compression Counter
- Variable bending speed controller
- Manufactured in Europe
Unitech UB76 Mandrelless Tube Bender Demo Video
TECHNICAL PARAMETERS:
TYPE AND DIMENSIONS OF MATERIAL TYPE MAX:
Optional NC Touch Screen
| Model UB 76 | |
| Diameter of the pipe and wall thickness (max) (mm) | 76 × 4 |
| Profile (max) (mm) | 60 × 60 |
| Roller (max) (mm) | 45 |
| Bending radius (max) (mm) | 450 |
| Angle (max) (º) | 180 |
| Bending speed (rev / min) | 0 – 3 |
| Engine power (kw) | 4 |
| Tension (V) | 400 |
| Weight (kg) | 550 |
| Length (mm) | 1300 |
| Width (mm) | 700 |
| Height (mm) | 1300 |
| Material Type | Dimensions in mm |
| 50 x 10 | |
| Ø 45 | |
| Ø 12 – 76 | |
| 50 × 50 |
