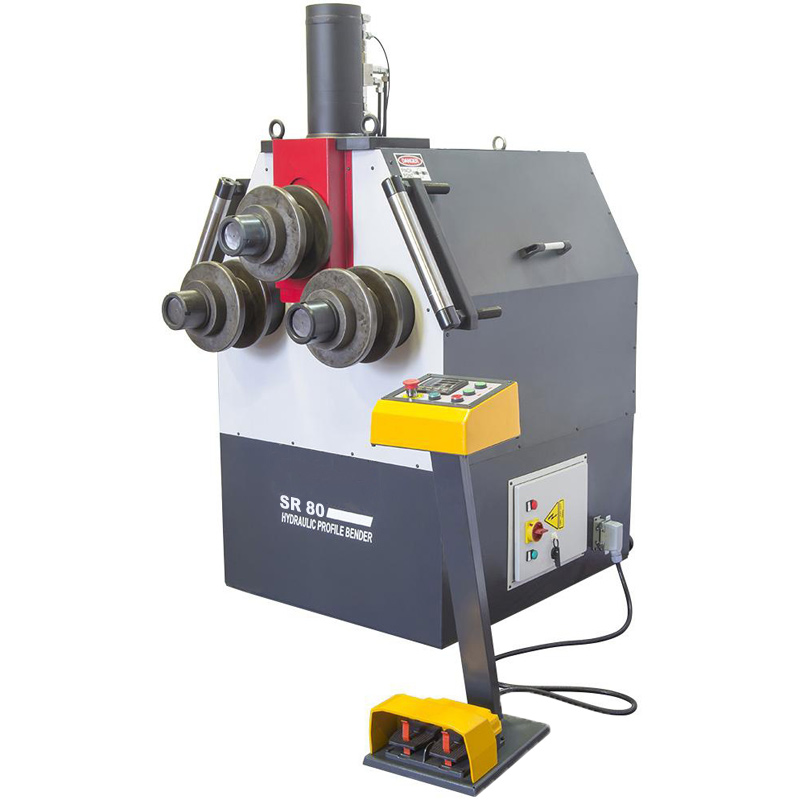

Unitech SR80 Hydraulic Profile Section Rolls Bending Machine
Unitech SR80 Hydraulic Profile Section Rolls Bending Machine standard feature are all rolls and shafts are hardened and grinded & able to bend flat bars and box sections with standard rolls
Description
Standard Features
- Steel frame
- Reducer driven gear system
- All three rolls powered
- Top roll up and down movement hydraulically
- Bottom rolls fixed and powered
- Rolls and shafts are made of SAE 1050 quality steel
- All rolls and shafts are hardened and grinded
- Able to bend flat bars and box sections with standard rolls
- Digital Read out for top roll
- Standard rolls are interchangeable
- Standard guide rolls
- Horizontal and vertical working position
- Manufactured in Europe
- Complies with CE Standards
Additional Accessories
- Pipe bending rolls for different sizes
- Angle bending rolls (leg in and Leg Out)
- Aluminium bending rolls made of DELRIN
- Angle guide rolls
- Speed variator
Technical Specifications
| Model | SR80 |
| Shaft diameters Ø mm | 80 |
| Top Roll Diameter Ø mm | 265 |
| Hydraulic Power ton | 30 |
| Working Speed m/min | 5 |
| Reduced Power kW | 4 |
| Hydraulic Motor kW | 4 |
| Length mm | 1100 |
| Width mm | 1300 |
| Height mm | 1800 |
| Weight kg | 1650 |
Capacity Table
|
1
|
 |
100×20* 80×20 30×10 |
2000 800 300 |
Standard Rolls |
|
2
|
 |
125×25 60×5 |
600 300 |
Standard Rolls |
|
3
|
 |
45×45 15×15 |
500 380 |
Standard Rolls |
|
4
|
 |
Ø 50 Ø 15 |
500 380 |
Optional Rolls |
|
5
|
 |
Ø 100×2,5 Ø 15×1 |
1200 380 |
Optional Rolls |
|
6
|
 |
Ø 3”x5,48 Ø 1/2”x2,77 |
800 380 |
Optional Rolls |
|
7
|
 |
80x25x3 25x15x2 |
800 350 |
Optional Rolls |
|
8
|
 |
70×3 25×2 |
1300 350 |
Optional Rolls |
|
9
|
 |
80x80x8 30x30x3 |
800 400 |
Optional Rolls |
|
10
|
 |
70x70x7 30x30x3 |
700 450 |
Optional Rolls |
|
11
|
 |
80×9 25×3,5 |
800 450 |
Standard Rolls |
|
12
|
 |
70×8 25×3,5 |
800 280 |
Standard Rolls |
|
13
|
 |
80×9 30×4 |
800 280 |
Optional Rolls |
|
14
|
 |
UPN 140 UPN 120 UPN 100 |
1600 900 800 |
Standard Rolls* |
|
15
|
 |
UPN 140 UPN 120 UPN 100 |
1600 1000 800 |
Standard Rolls* |
|
16
|
 |
IPN 120 IPN 80 |
600 400 |
Optional Rolls* |
Specification
Additional information
| Weight | 1650 kg |
|---|---|
| Dimensions | 110 × 130 × 180 cm |
