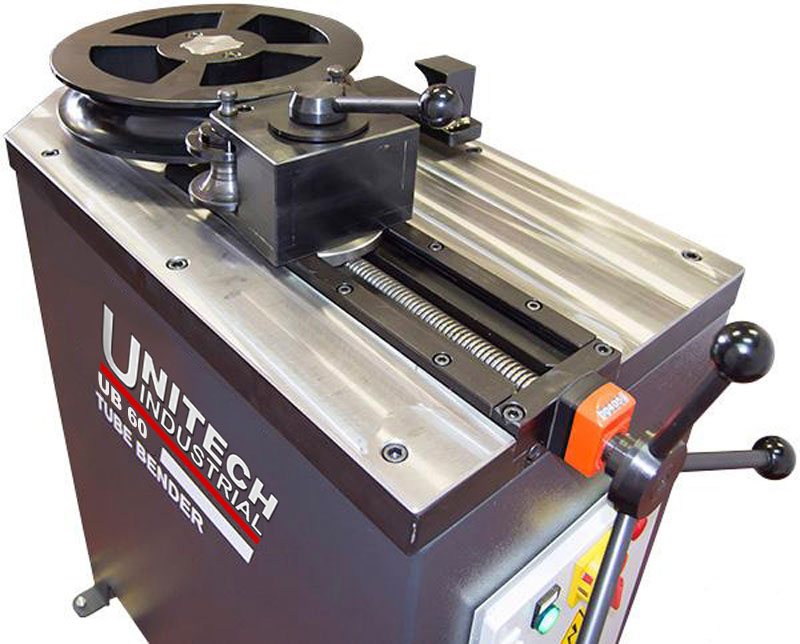

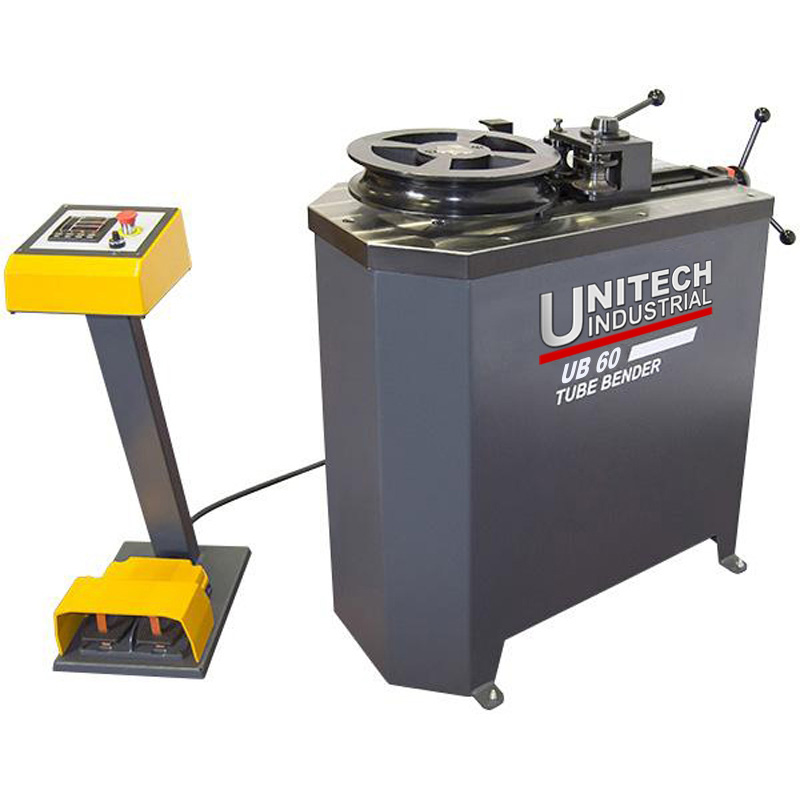

Unitech UB60 Mandrelless Tube Bender
$11,180.39
- AUD: A$17,281.64
- GBP: £9,635.60
- EUR: €10,868.46
- JPY: ¥1,484,979
- CNY: ¥77,543.83
Unitech UB60 Mandrelless Tube Bender
Description
Unitech UB60 Mandrelless Tube Bender Video Preview
Unitech Mandrelless Tube Bender
STANDARD FEATURES:
- CK 45 Monoblock Body
- Heavy-duty reduction gearbox
- Heat-treated and ground drive system
- Digital Programmable operator controller
- Precision Compression Counter
- Variable bending speed controller
- Manufactured in Europe
TECHNICAL PARAMETERS:
TYPE AND DIMENSIONS OF MATERIAL TYPE MAX:
| Model UB 60 | |
| Diameter of the pipe and wall thickness (max) (mm) | 60 × 4 |
| Profile (max) (mm) | 40 × 40 |
| Roller (max) (mm) | 35 |
| Bending radius (max) (mm) | 450 |
| Angle (max) (º) | 180 |
| Bending speed (rev / min) | 0 – 3 |
| Engine power (kw) | 1.5 |
| Tension (V) | 400 |
| Weight (kg) | 450 |
| Length (mm) | 1200 |
| Width (mm) | 600 |
| Height (mm) | 1200 |
| Material Type | Dimensions in mm |
| 40 x 10 | |
| Ø 35 | |
| Ø 12 – 60 | |
| 40 × 40 |
Specification
Additional information
| Weight | 450 kg |
|---|---|
| Dimensions | 50 × 115 × 140 cm |
