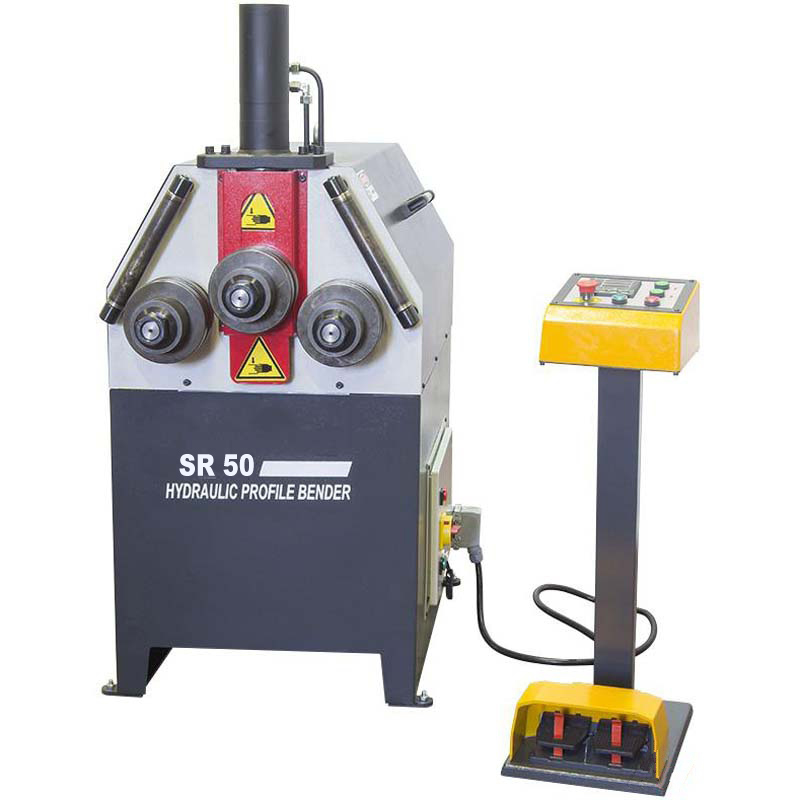

Unitech SR50 Hydraulic Profile Section Rolls Bending Machine

In stock

Unitech SR50 Hydraulic Profile Section Rolls Bending Machine standard feature are all rolls and shafts are hardened and grinded & able to bend flat bars and box sections with standard rolls

  Chat Now
SKU: UNITECH-SR50 Category: Brand:

Description

Standard Features

  • Steel frame
  • Reducer driven gear system
  • All three rolls powered
  • Top roll up and down movement hydraulically
  • Bottom rolls fixed and powered
  • Rolls and shafts are made of SAE 1050 quality steel
  • All rolls and shafts are hardened and grinded
  • Able to bend flat bars and box sections with standard rolls
  • Digital Read out for top roll
  • Standard rolls are interchangeable
  • Standard guide rolls
  • Horizontal and vertical working position
  • Manufactured in Europe
  • Complies with CE Standards

Additional Accessories

  • Pipe bending rolls for different sizes
  • Angle bending rolls (leg in and Leg Out)
  • Aluminium bending rolls made of DELRIN
  • Angle guide rolls
  • Speed variator

Technical Specifications

Model SR50
Shaft diameters Ø mm 50
Top Roll Diameter Ø mm 152
Hydraulic Power ton 16
Working Speed m/min 5
Reduced Power kW 1.5
Hydraulic Motor kW 1.5
Length mm 800
Width mm 650
Height mm 1500
Weight kg 550

Capacity Table

No. Profile Type Size Min. Dia Notes
1

60×10

20×10

600

300

Standard Rolls
2

100×15*

50×10

600

300

Standard Rolls
3

35×35

15×15

600

300

Standard Rolls
4

Ø 35

Ø 20

600

300

Optional Rolls
5

Ø 70×2

Ø 25×1,5

1200

400

Optional Rolls
6

2”x2,9

1/2”x2,3

1000

300

Optional Rolls
7

70x30x3

30x15x2

1500

400

Optional Rolls
8

50×3

20×2

1600

400

Optional Rolls
9

50x50x6

30x30x3

600

400

Optional Rolls
10

50x50x6

30x30x3

900

600

Optional Rolls
11

60×7

30×4

600

400

Standard Rolls
12

60×7

30×4

700

400

Standard Rolls
13

60×7

30×4

700

400

Standard Rolls
14

UPN 80

UPN 30

800

400

Optional Rolls*
15

UPN 80

UPN 30

1200

600

Standard Rolls*

Specification

Additional information

Weight 550 kg
Dimensions 80 × 65 × 150 cm
