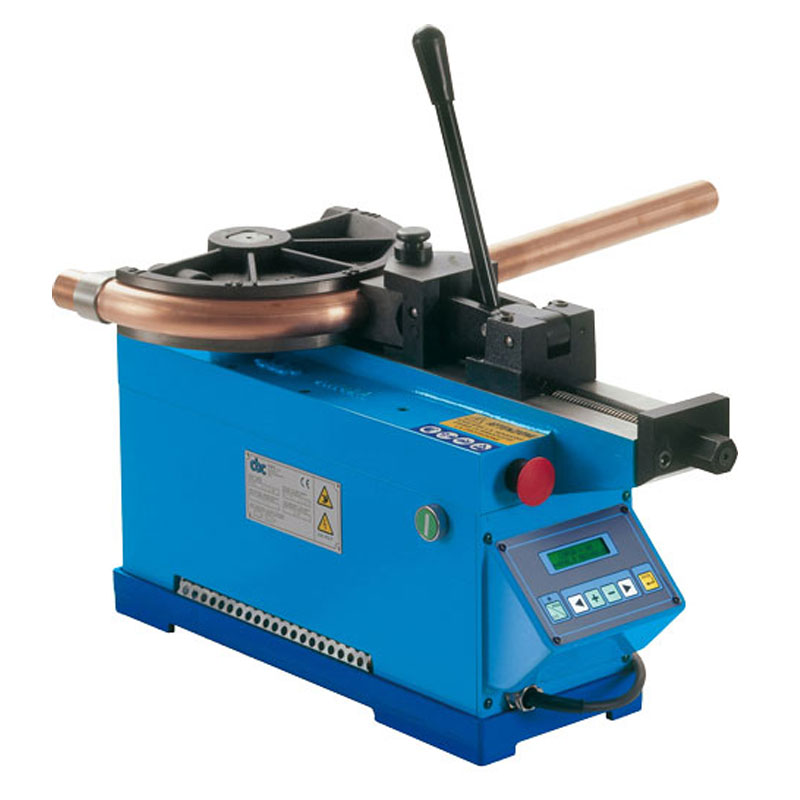

Unitech UNI-60A Digital Pipe and Tube Bender
$7,318.89
- AUD: A$11,885.44
- GBP: £6,395.61
- EUR: €7,330.60
- JPY: ¥1,094,891
- CNY: ¥53,848.73
The CBC UNI-60A digital is an accurate and powerful bending machine able to bend large diameters as well as thin and delicate pipes with optimum and constant bending radii and without any pipe deformation.
Description
Formers and Guides (Counter Formers) for Unitech UNI-60A
Unitech UNI-60A 230VAC Digital Pipe and Tube Bender
- Aluminium body
- Asynchronous motor HP 1.30 220V 50 HZ 2800 RPM
- Optional tripod stand or metal base
- Large range of tooling available – ordered separately
- Digital control panel with a microprocessor for programming the angle of bend. Capable of storing 9 bending programs with 9 bends per program
- Low voltage electronic schedule (24V)
- Bending angle regulation
- Electro brake
- Automatic return to stop
- Dimensions: Length 520 mm, Width 210 mm, Height 410 mm (Without stand)
- Weight: 60 Kg
Bending Capacity
| Type of Pipe (Without Mandrel) | Ø (mm) | Wall Thickness (mm) |
| Hard & Soft Copper and Annealed Brass Pipes | 54 | 2 |
| Steel Pipes for Electrical Installations | 50 | 1.5 |
| AISI 304/316 Stainless Steel Pipes | 35 | 3 |
| Hydraulic Steel Tubes ST. 35.4 | 48 | 4 |
| Furniture Tubes | 48 | 3 |
| FE Boiler Pipes | 48 | 3 |
| Aluminium Pipes | 54 | 3 |
| Gas Pipes UNI 5745 | 1.5″ | Standard |
| Double Coated Aluminium Pipe | 63 | Standard |
| Standard Bending Radii | 3D & 4D |
FeaturesNOTE: To Bend Pipes with a Thickness Equal or More Than 2.5mm Use the Twin Roller Set and Not the Guide
- Aluminium body
- Optional tripod stand or metal base
- Automatic return to stop
